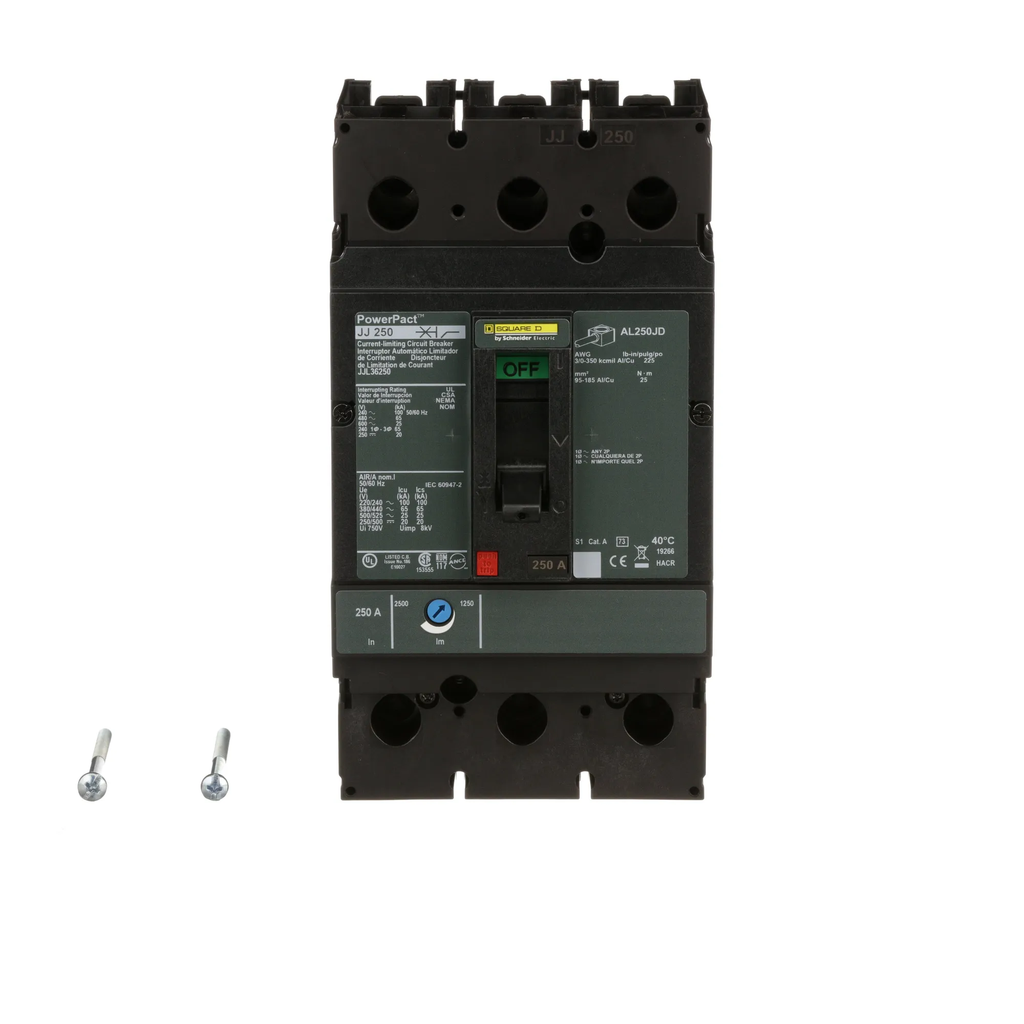

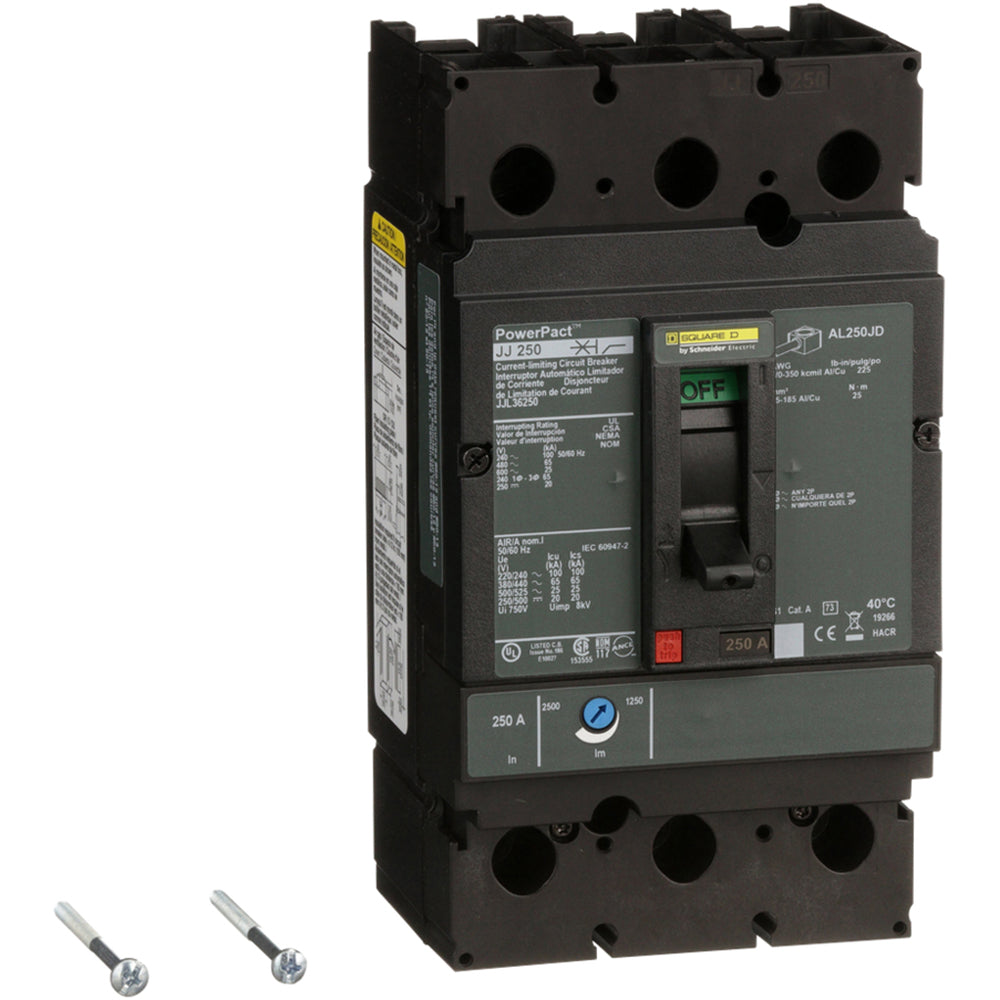

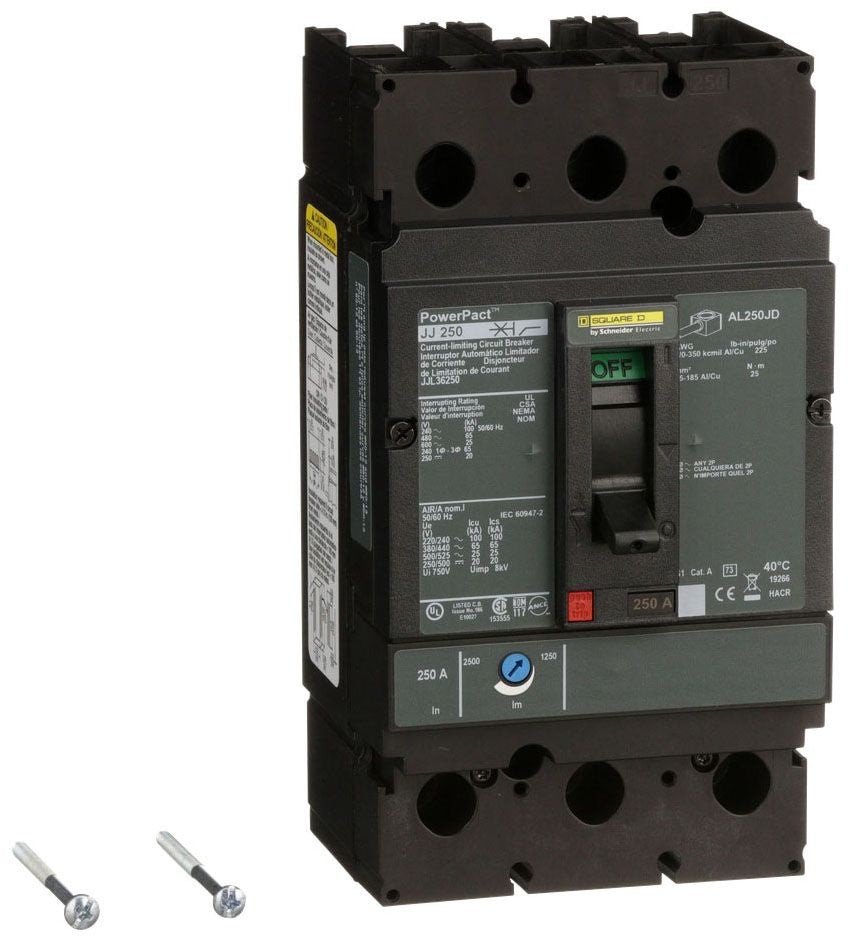

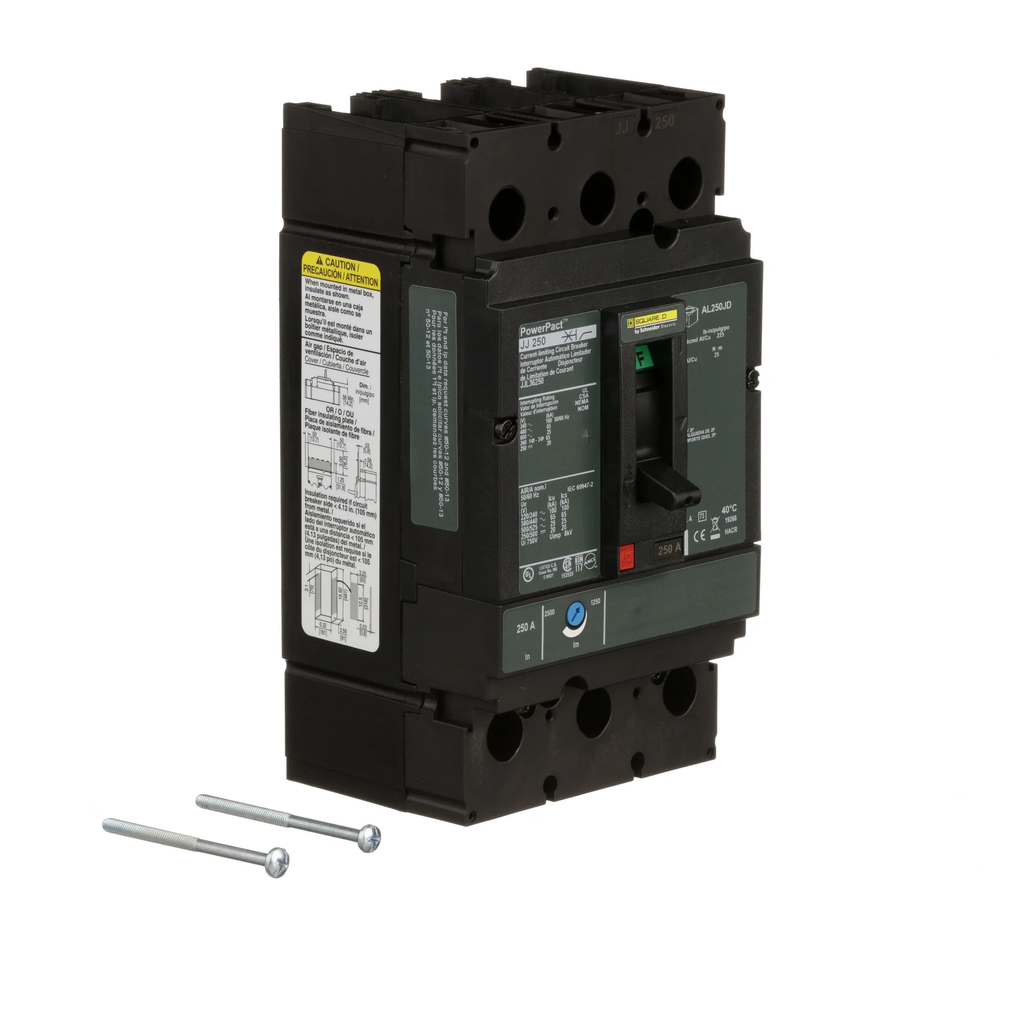

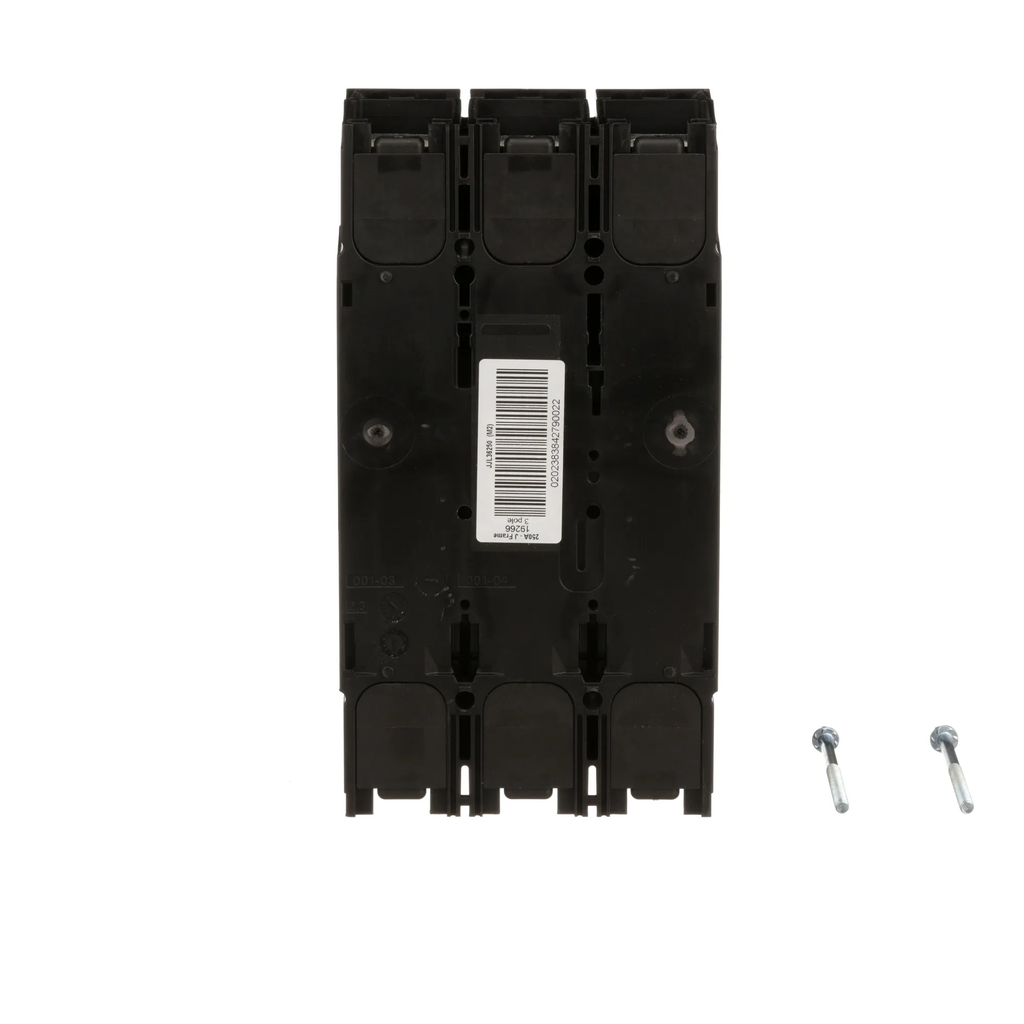

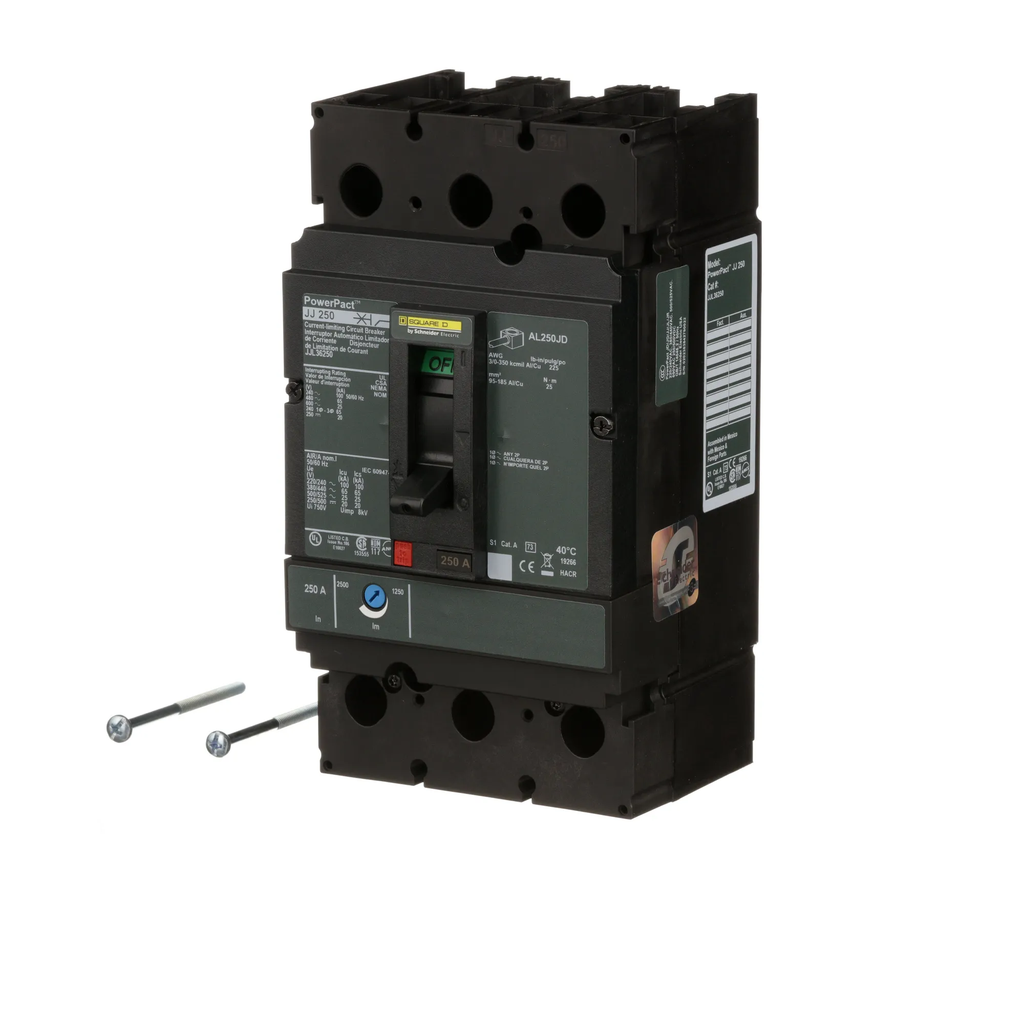

JJL36250 - Square D 250A 600V 3-Pole J-Frame Thermal Magnetic Molded Case Circuit Breaker

JJL36250

JJL36250 is a Square D Powerpact JJL series molded case circuit breaker designed for 250 amp, 600 volt, 3-pole applications with thermal magnetic trip technology.This circuit breaker features a J-frame design with a 65kA interrupt rating at 480V, suitable for overload and short-circuit protection. It includes long-time and instantaneous trip functions, unit-mount lug connections for line and load, and is UL listed for safety and reliability. The breaker supports AWG 4 to 4/0 aluminum or copper terminals and is feed-thru capable for reverse-fed applications.

Key Specifications
• Amperage: 250 Amp
• Voltage Rating: 600 Volt AC
• Poles: 3
• Frame Type: J-Frame
• Interrupt Rating: 65kA @ 480V
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Mounting Type: Unit-Mount Lug
• Connection: Feed-Thru, Line & Load Side Lugs
• Standards: UL Listed

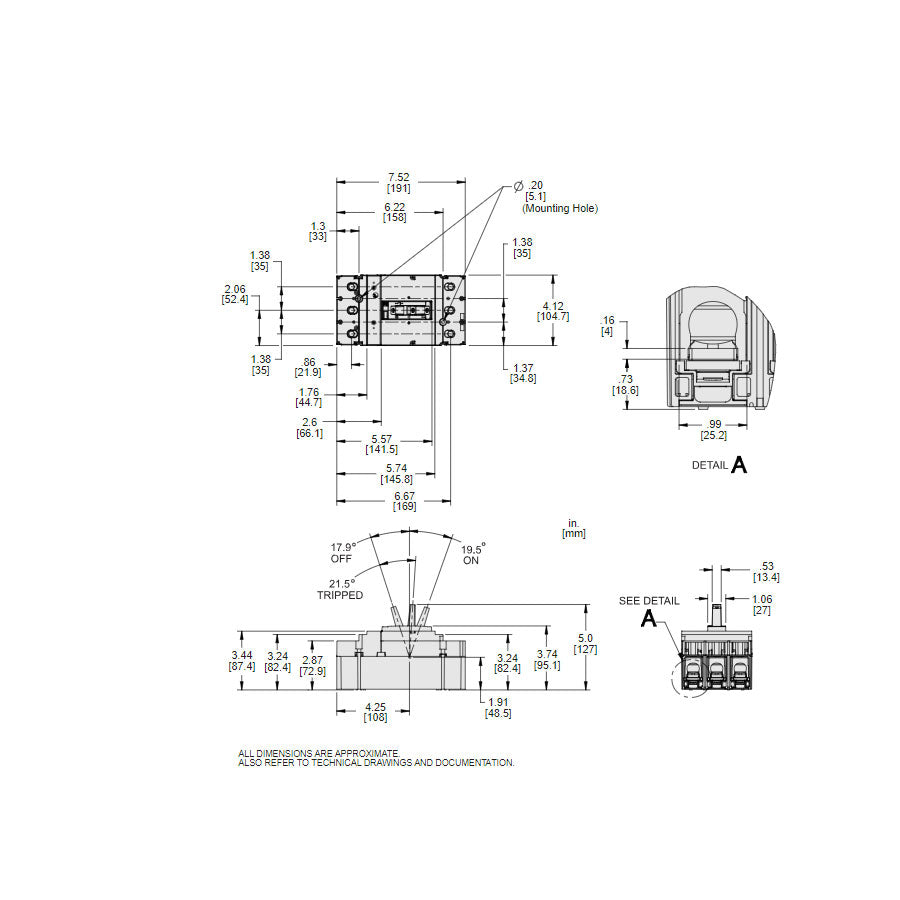

• Dimensions: 7.52" H x 4.12" W x 5" D
• Weight: 5.29 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJL36250
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : J
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901955979
• GTIN : 00785901955979
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.9
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
