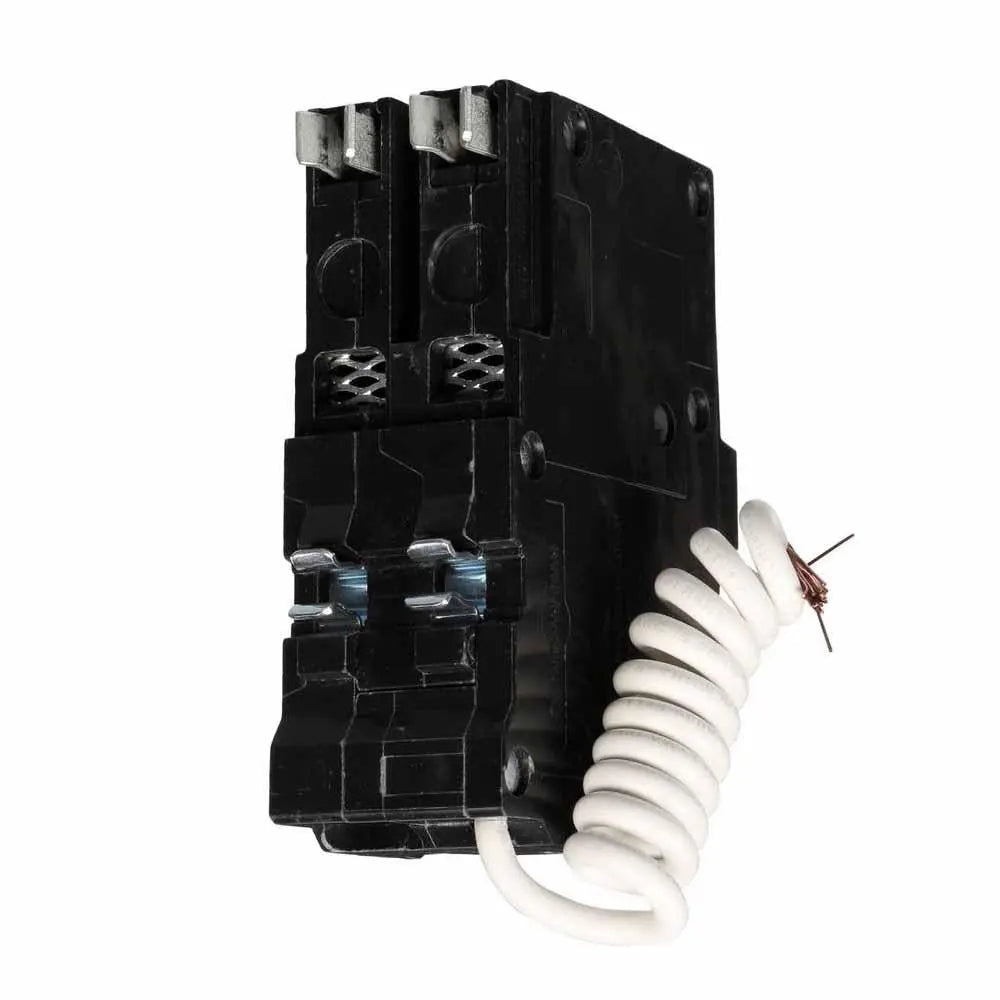

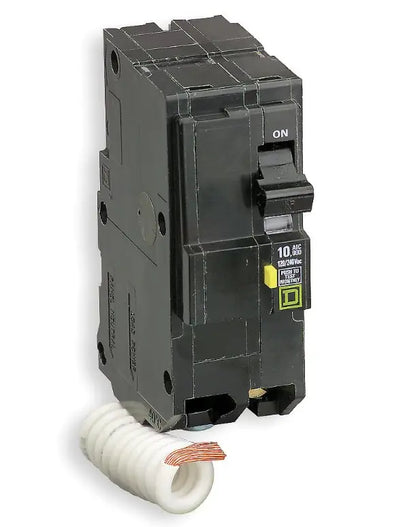

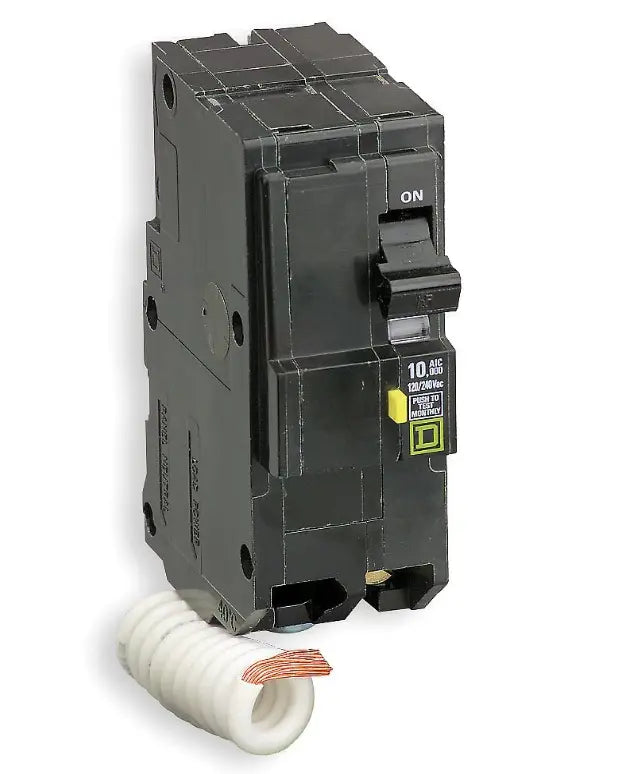

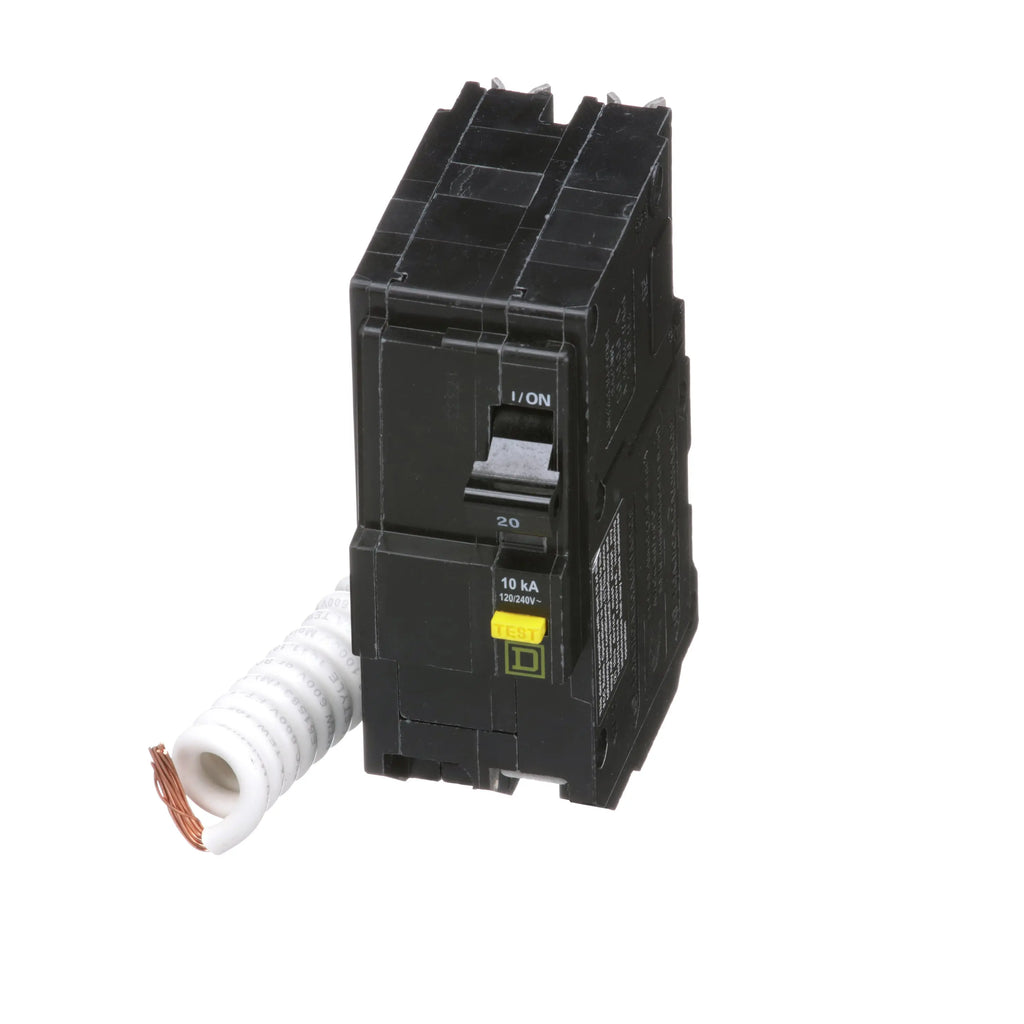

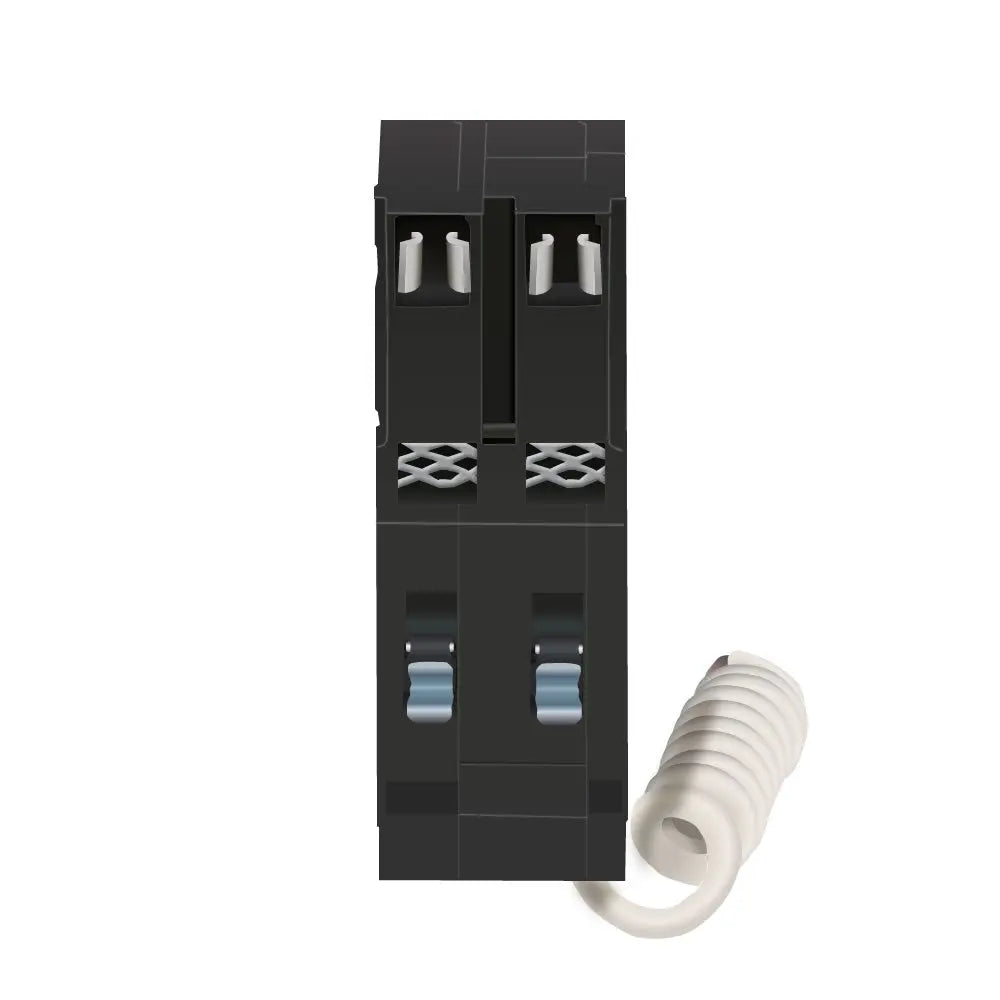

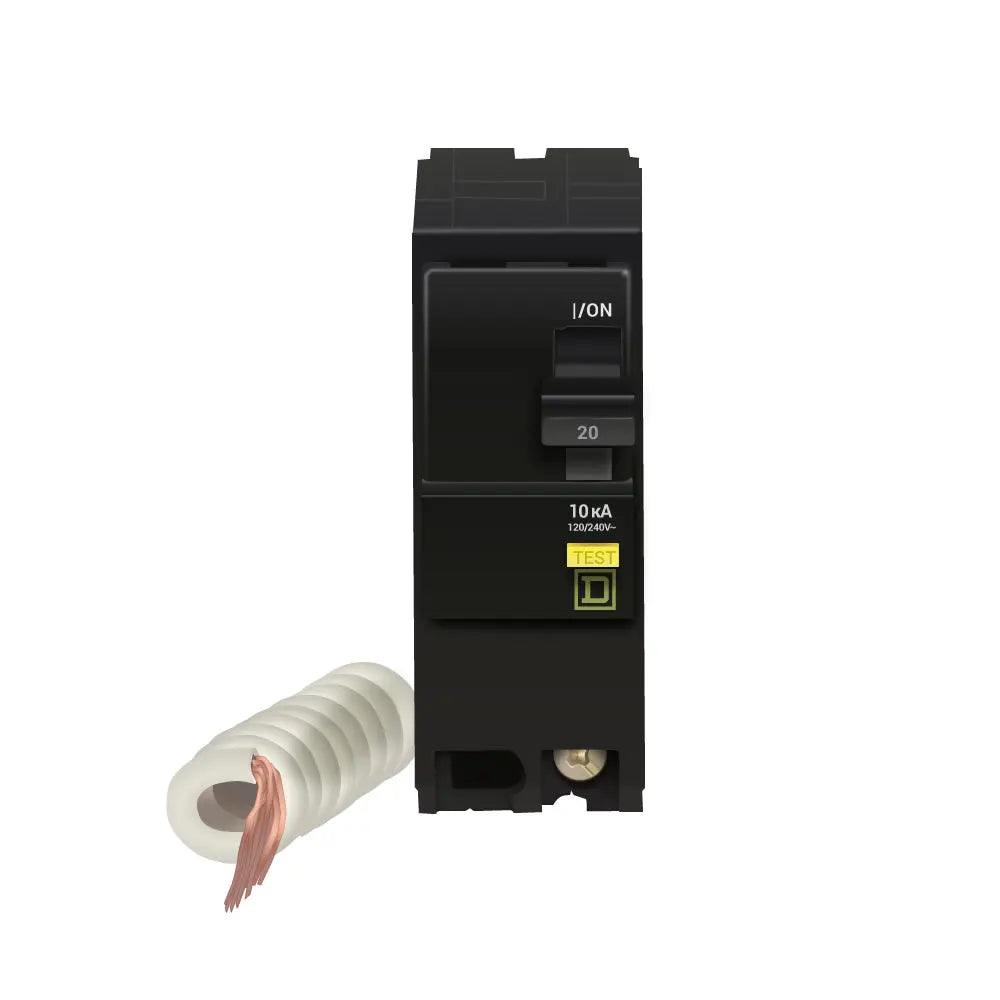

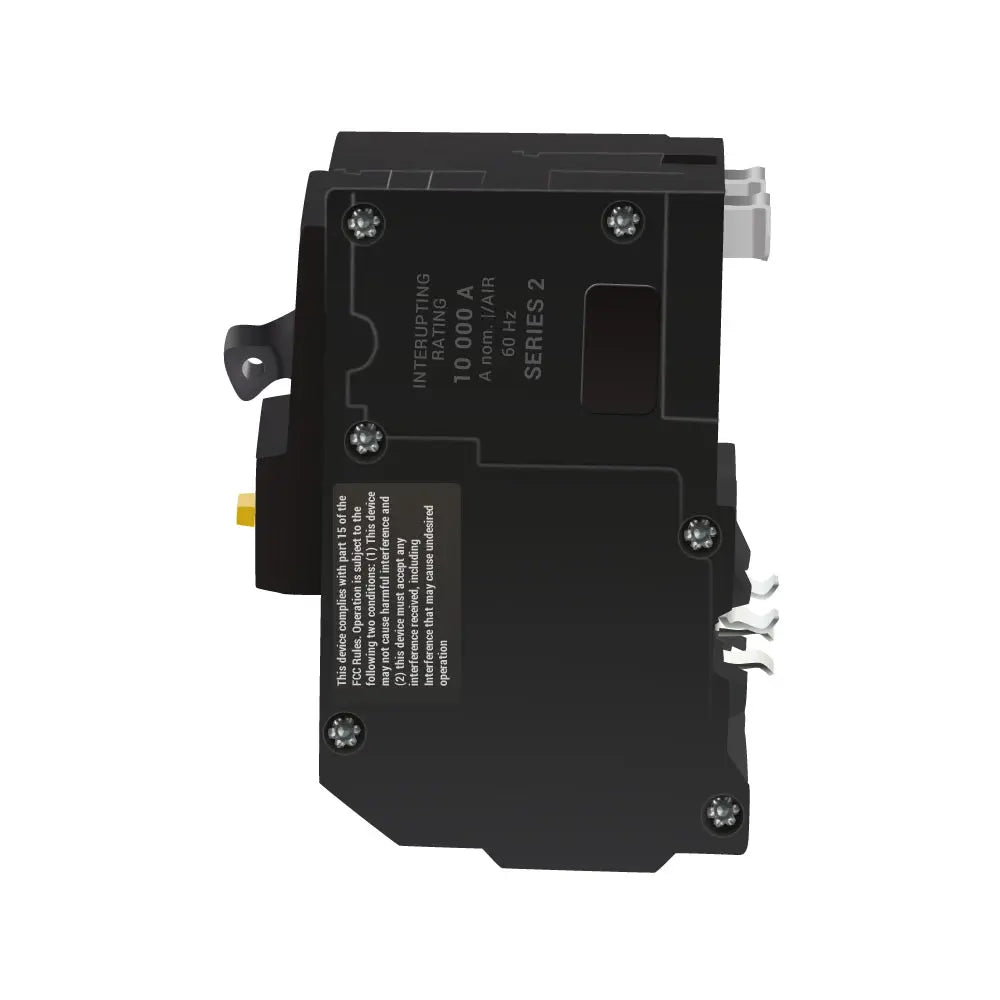

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Molded Case
- Series
- QO SEries
- Frame
- QO-GF
- Rated current
- 20
- Voltage
- 120/240V
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 10kA@120V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Plug-In
- Terminals
- Pressure plate
- Panel / equipment
- QO Load Centers and NQ Panelboards
- Standards
- CSA Certified, UL Listed
- Country of origin
- Mexico
Show all specifications (10 more)
- Frame Size
- 100A/QO
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
- Breaker Type
- Ground Fault Circuit Interrupter (Class A - 5mA)
- UPC
- 785901562993
- GTIN
- 00785901562993
- Dimensions
- 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight
- 0.95 lb
- Certification
- UL Listed
- Wire Size
- AWG 14 to AWG 8, Copper, AWG 12 to AWG 8, Aluminum
Product description & additional details
QO220GFI
QO220GFI is a Square D 2 Pole 20 Amp 120/240 Volt Ground Fault Circuit Breaker designed for plug-in mounting in QO series load centers.This circuit breaker features thermal magnetic protection with long-time and instantaneous trip functions, a 10kA interrupting rating at 120/240VAC, and a pressure plate terminal connection. It includes Class A ground fault protection and a VISI-TRIP indicator for easy status identification. The breaker supports wire sizes from AWG 14 to AWG 8 copper and AWG 12 to AWG 8 aluminum, and is UL and CSA certified.
- Manufacturer: Square D
- Series: QO
- Amperage: 20A
- Voltage: 120/240VAC
- Poles: 2
- Mounting Type: Plug-In
- Interrupt Rating: 10kAIC at 120/240VAC
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
- Connection Type: Pressure Plate
- Protection: Class A Ground Fault
- Certifications: UL, CSA
- Dimensions (HxWxD): 4.1 x 1.5 x 2.9 inches
Specifications
- Part Number: QO220GFI
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QO SEries
- Type : QO-GF
- Voltage : 120/240
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Pressure plate
- Frame Size : 100A/QO
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
- Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901562993
- GTIN : 00785901562993
- Country of Origin : Mexico
- Dimensions : 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 0.95 lb
- Panel Type : QO Load Centers and NQ Panelboards
- Standards : CSA Certified, UL Listed
- Certification : UL Listed
- Wire Size : AWG 14 to AWG 8, Copper, AWG 12 to AWG 8, Aluminum
