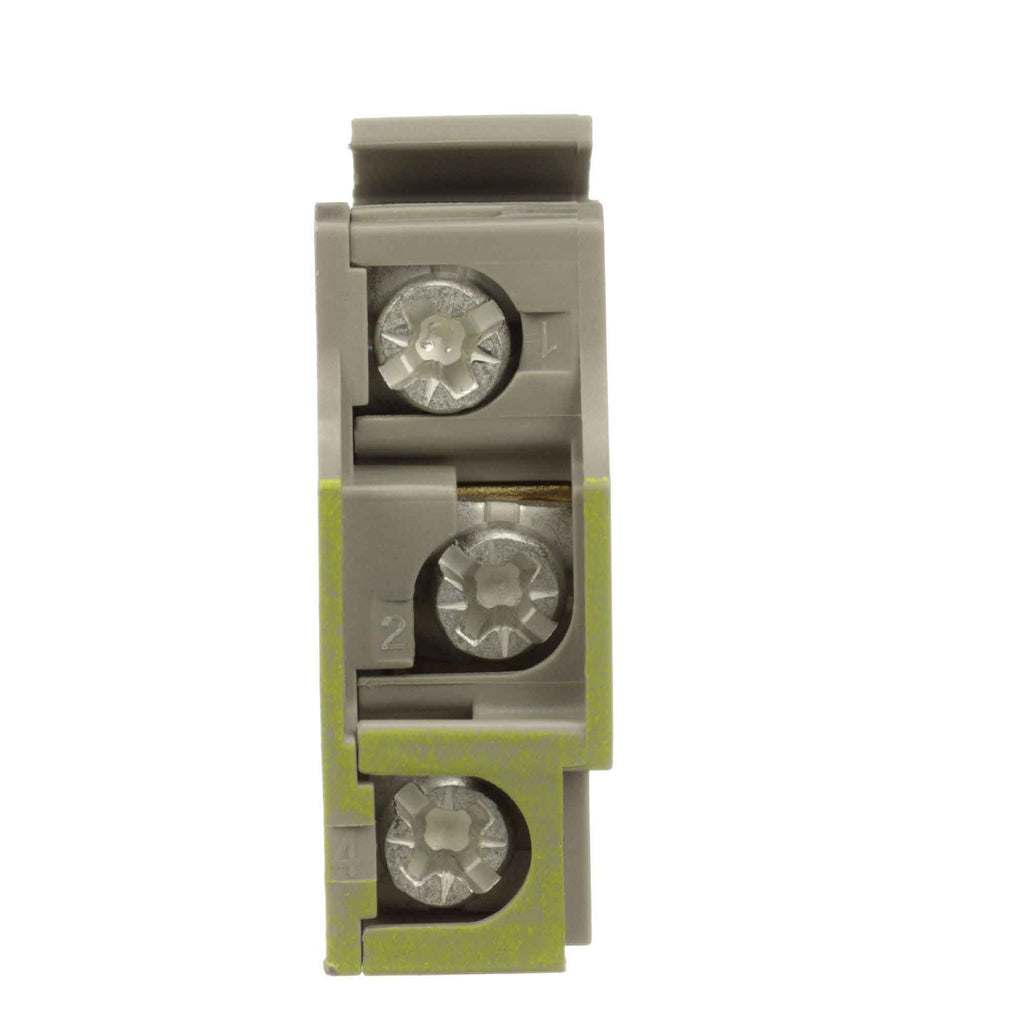

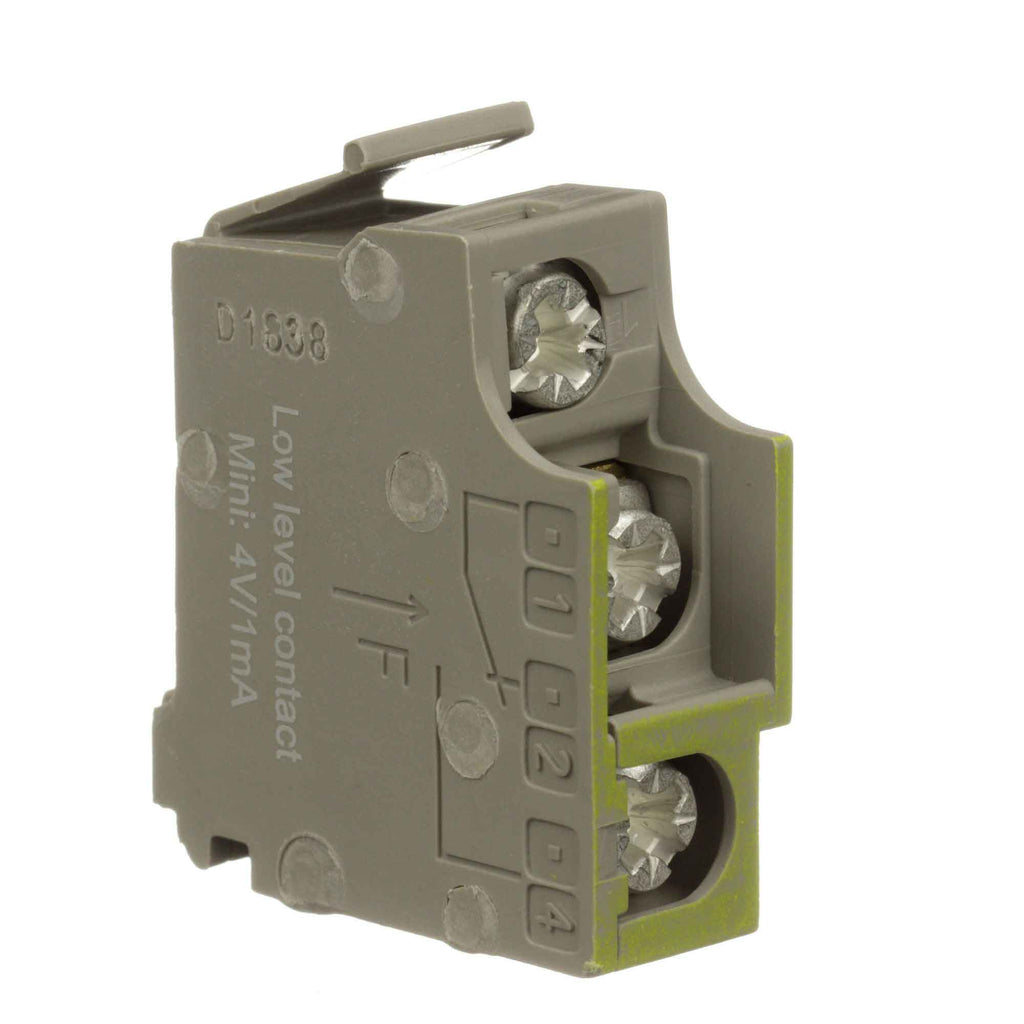

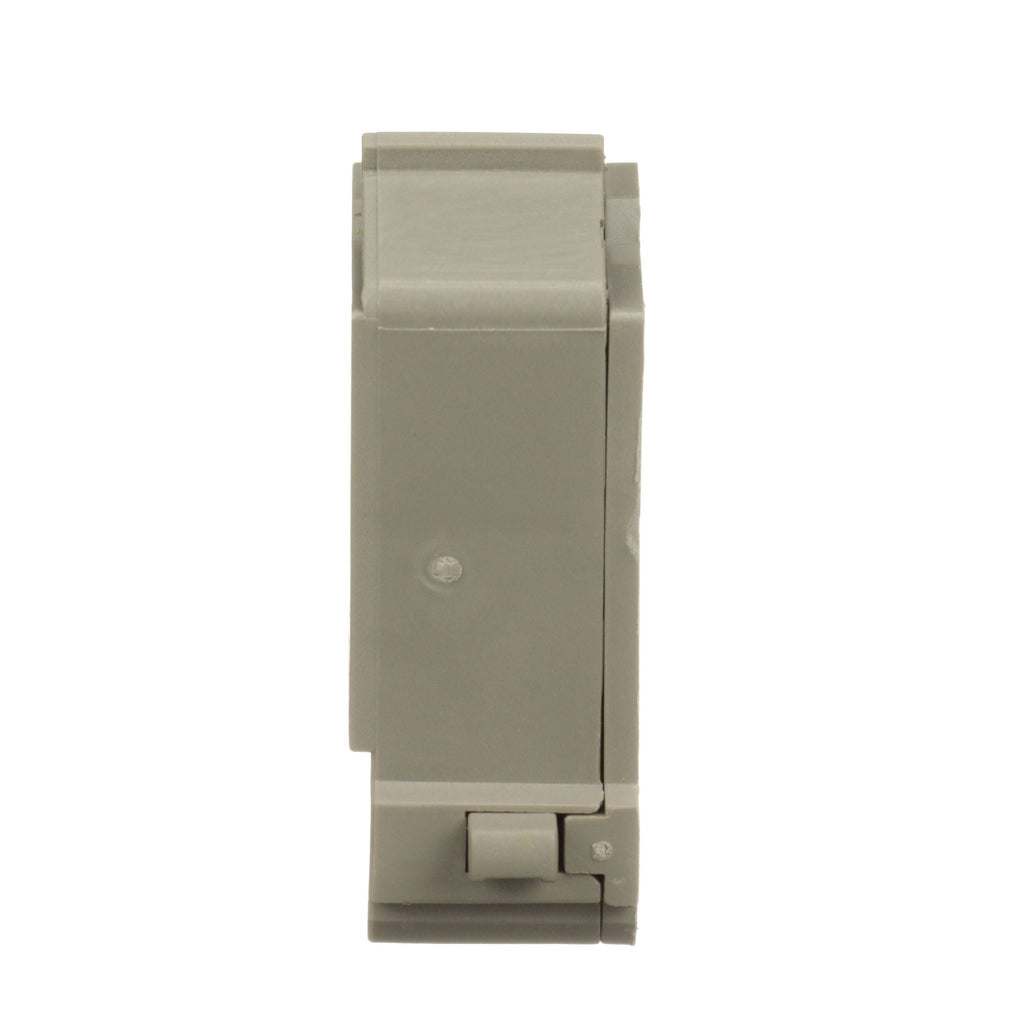

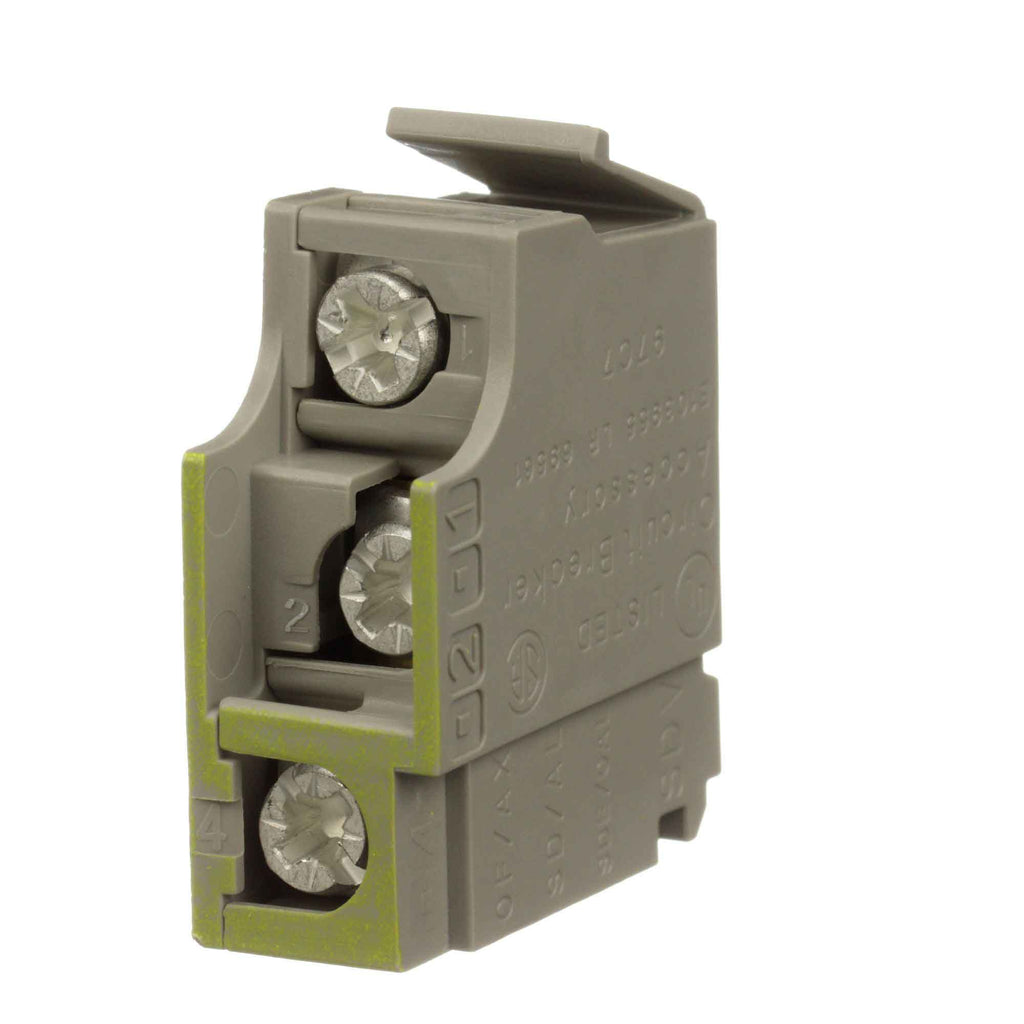

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Bell Alarm
- Series
- Powerpact
- Frame
- Powerpact
- Voltage
- 24VAC, 24VDC
- Poles
- 1
- Standards
- RoHS
- Country of origin
- United States
- Amperage
- 0.001
- Compatible Frames
- HD,HG,HJ,HL,HR,JD,JG,JJ,JL,JR,LD,LG,LJ,LL,LR,MG,MJ,PG,PJ,PK,PL,RG,RJ,RK,RL
- UPC
- 785901942757
- GTIN
- 00785901942757
- Dimensions
- Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
Show all specifications (2 more)
- Weight
- 0.073
- Certification
- UL, CSA
Product description & additional details
S29452
S29452 is a factory-installed auxiliary switch accessory designed for Square D PowerPacT H, J, L, M, P, and R frame circuit breakers, rated for 24V AC/DC operation.This auxiliary switch provides a low-level alarm or overcurrent trip indication and supports up to three padlocks for enhanced safety and lockout/tagout procedures. It complies with UL and CSA certifications, ensuring reliable performance and safety standards.
- Compatible with PowerPacT H/J/L/M/P/R circuit breakers
- Rated voltage: 24V AC/DC
- Auxiliary switch type: Low-level alarm/overcurrent trip
- Supports up to three padlocks
- Factory-installed accessory
- UL and CSA certified
- 1 pole auxiliary switch
- Used for alarm and trip signaling
- Recycled cardboard packaging
Specifications
- Part Number: S29452
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Bell Alarm
- Family : Powerpact
- Type : Powerpact
- Voltage : 24VAC, 24VDC
- Amperage : 0.001
- Poles : 1
- Compatible Frames : HD,HG,HJ,HL,HR,JD,JG,JJ,JL,JR,LD,LG,LJ,LL,LR,MG,MJ,PG,PJ,PK,PL,RG,RJ,RK,RL
Product Data
- UPC : 785901942757
- GTIN : 00785901942757
- Country of Origin : United States
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 0.073
- Standards : RoHS
- Certification : UL, CSA
