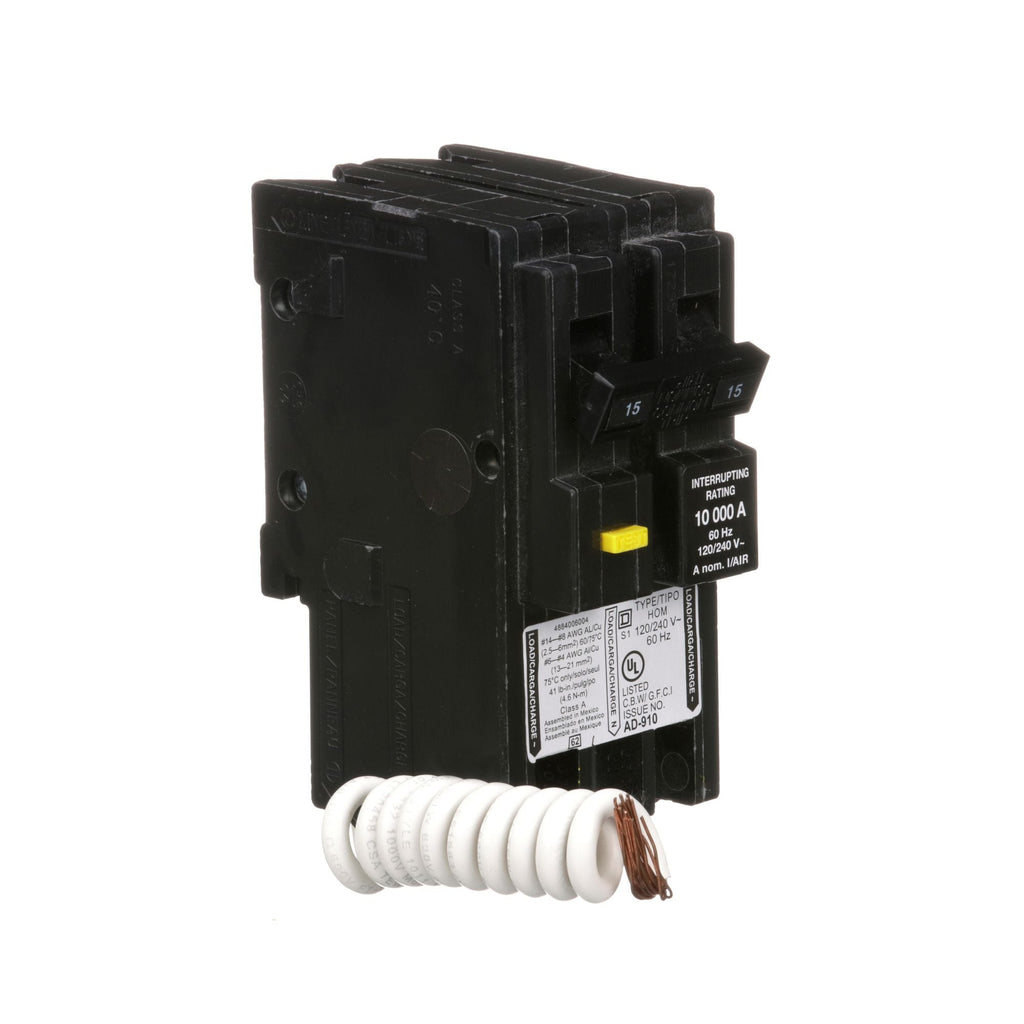

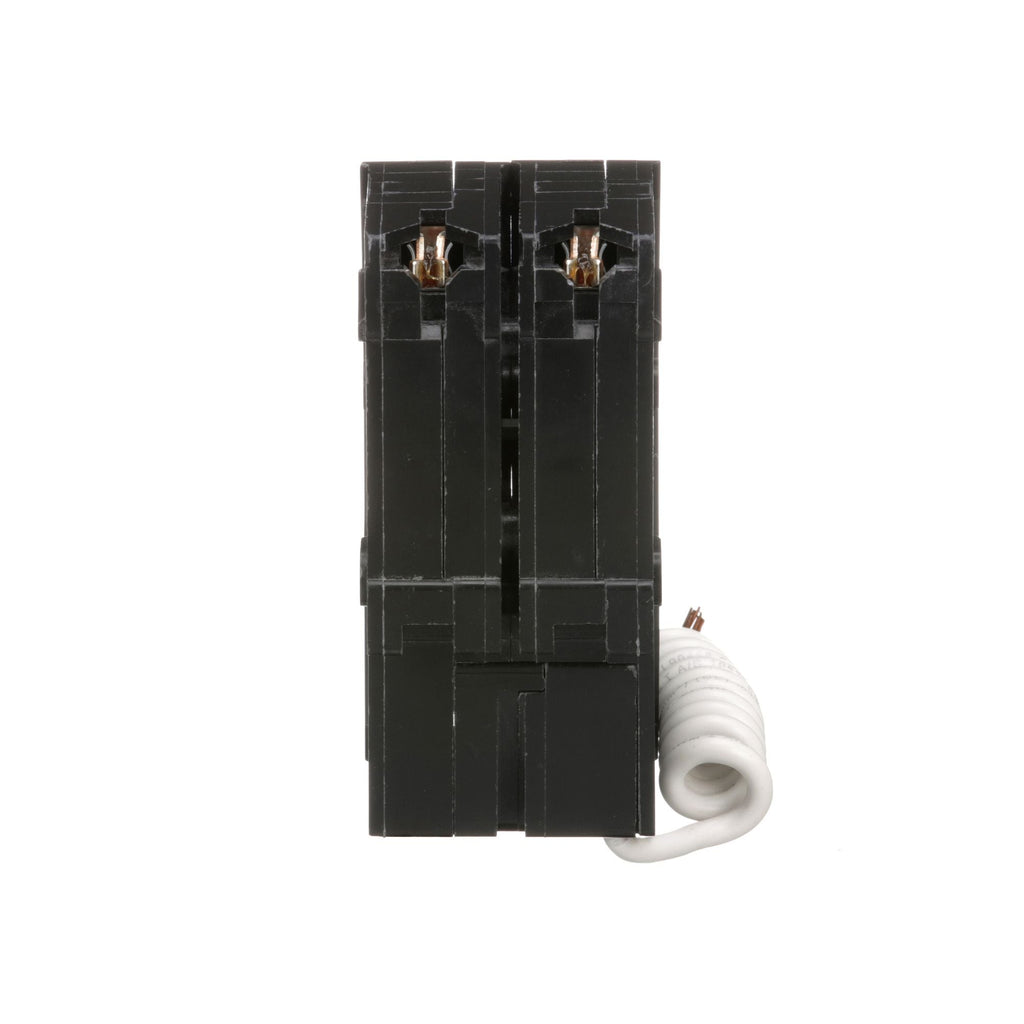

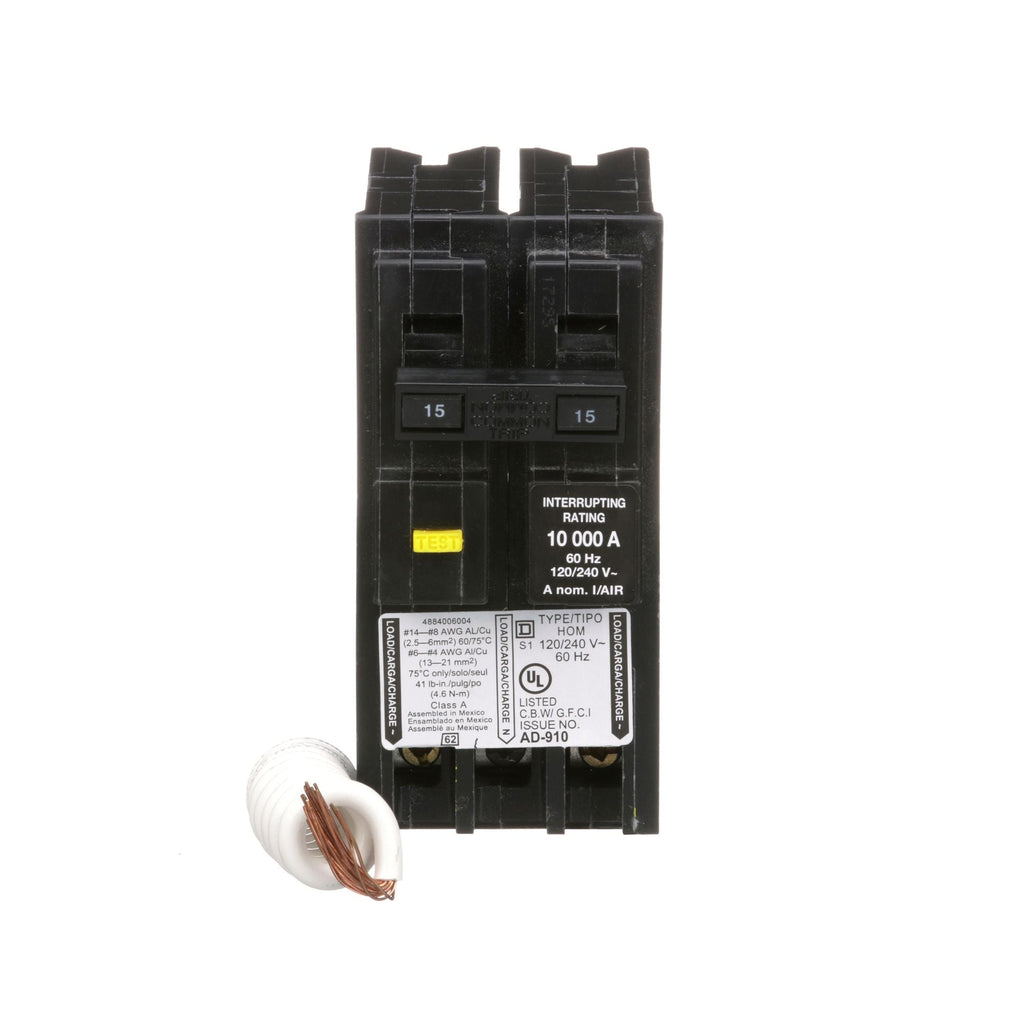

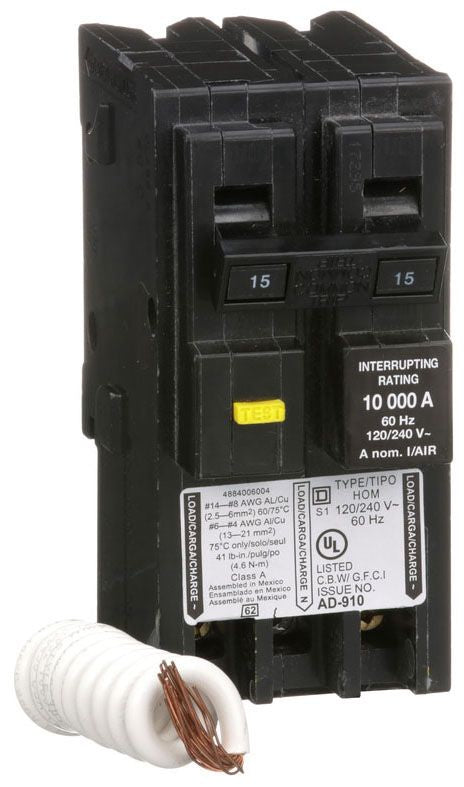

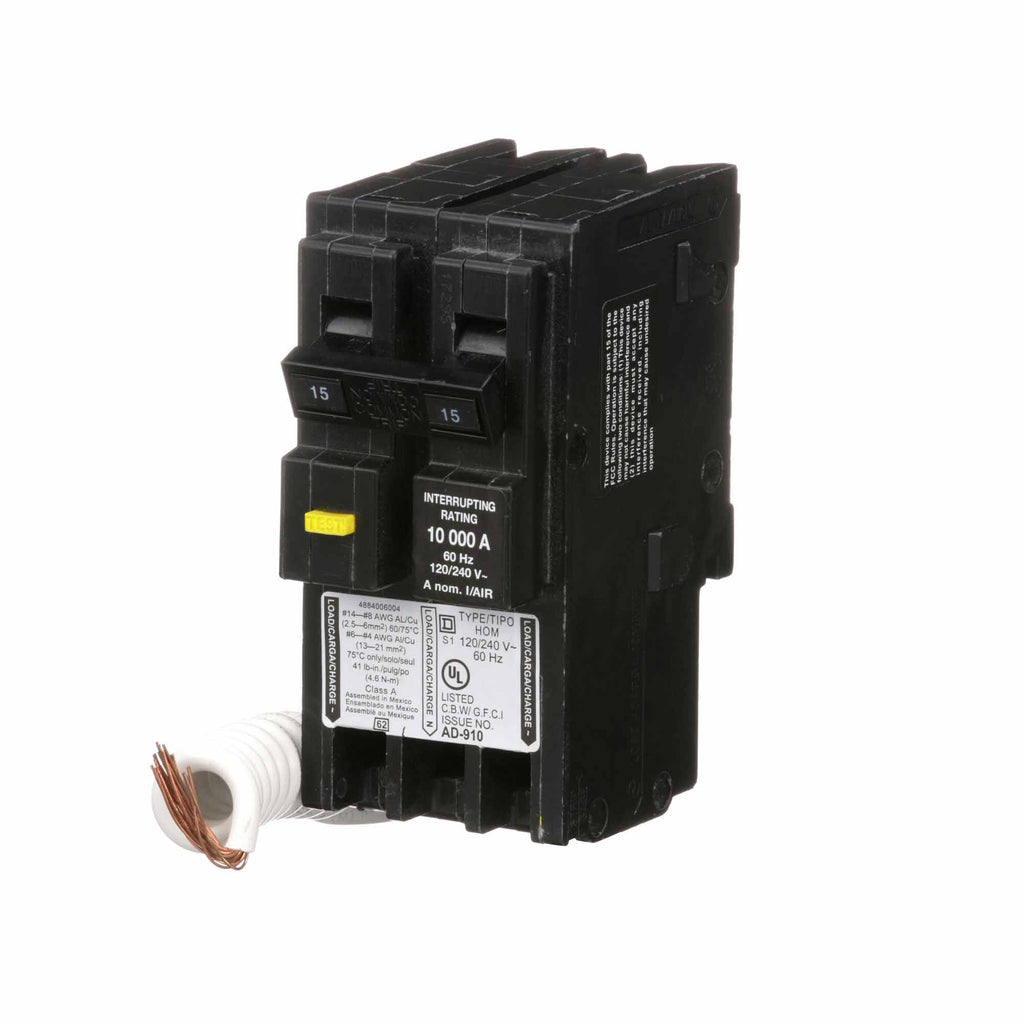

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Molded Case
- Series
- HOMELINE
- Frame
- HOM
- Rated current
- 15
- Voltage
- 120/240V
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 10kA@240V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Connection
- Plug-In
- Terminals
- Screw Clamp
- Panel / equipment
- Homeline Load Center
- Breaker type
- GFCI
- Standards
- CSA Certified, HACR, UL Listed
- Country of origin
- Mexico
Show all specifications (9 more)
- Frame Size
- 100A/HOM
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
- UPC
- 785901303190
- GTIN
- 00785901303190

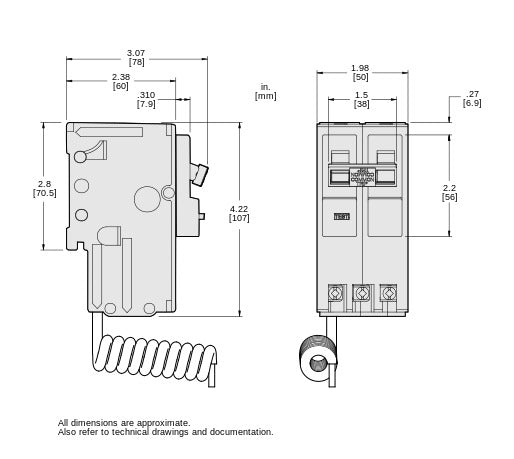

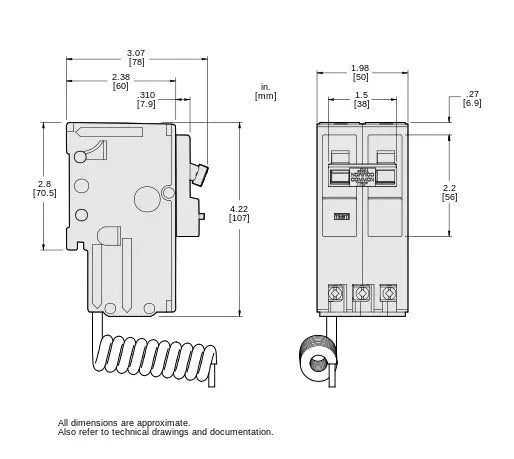

- Dimensions
- 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
- Weight
- 1.17
- Certification
- CSA Certified, HACR, UL Listed
- Wire Size
- 1x AWG 12 to AWG 4, Aluminum, 1x AWG 14 to AWG 6, Copper
Product description & additional details
HOM215GFI
HOM215GFI is a 15 Amp, 2 Pole ground fault circuit breaker from Square D's Homeline series designed for 120/240VAC systems.This Square D HOM215GFI circuit breaker features a plug-in mounting type, thermal magnetic trip unit with long-time and instantaneous trip functions, and a 10kA interrupting rating at 240V. It provides Class A ground fault protection (6mA) and is UL listed and HACR rated for reliable safety and performance.
- Key Specifications
- Amperage: 15 Amps
- Voltage Rating: 120/240 VAC
- Number of Poles: 2
- Mounting Type: Plug-In
- Interrupting Rating: 10kA at 240V
- Series/Frame: Homeline (HOM)
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Protection: Ground Fault Circuit Interrupter (Class A, 6mA)
- UL Listed and HACR Certified
- Terminal Connection: Screw Clamp
- Wire Size: 12 to 4 AWG Aluminum, 14 to 6 AWG Copper
- Dimensions: 3.13" H x 2" W x 2.98" D
Specifications
- Part Number: HOM215GFI
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : HOMELINE
- Type : HOM
- Voltage : 120/240
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Screw Clamp
- Frame Size : 100A/HOM
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
- Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
Product Data
- UPC : 785901303190
- GTIN : 00785901303190
- Country of Origin : Mexico
- Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
- Weight : 1.17
- Panel Type : Homeline Load Center
- Standards : CSA Certified, HACR, UL Listed
- Certification : CSA Certified, HACR, UL Listed
- Wire Size : 1x AWG 12 to AWG 4, Aluminum, 1x AWG 14 to AWG 6, Copper
