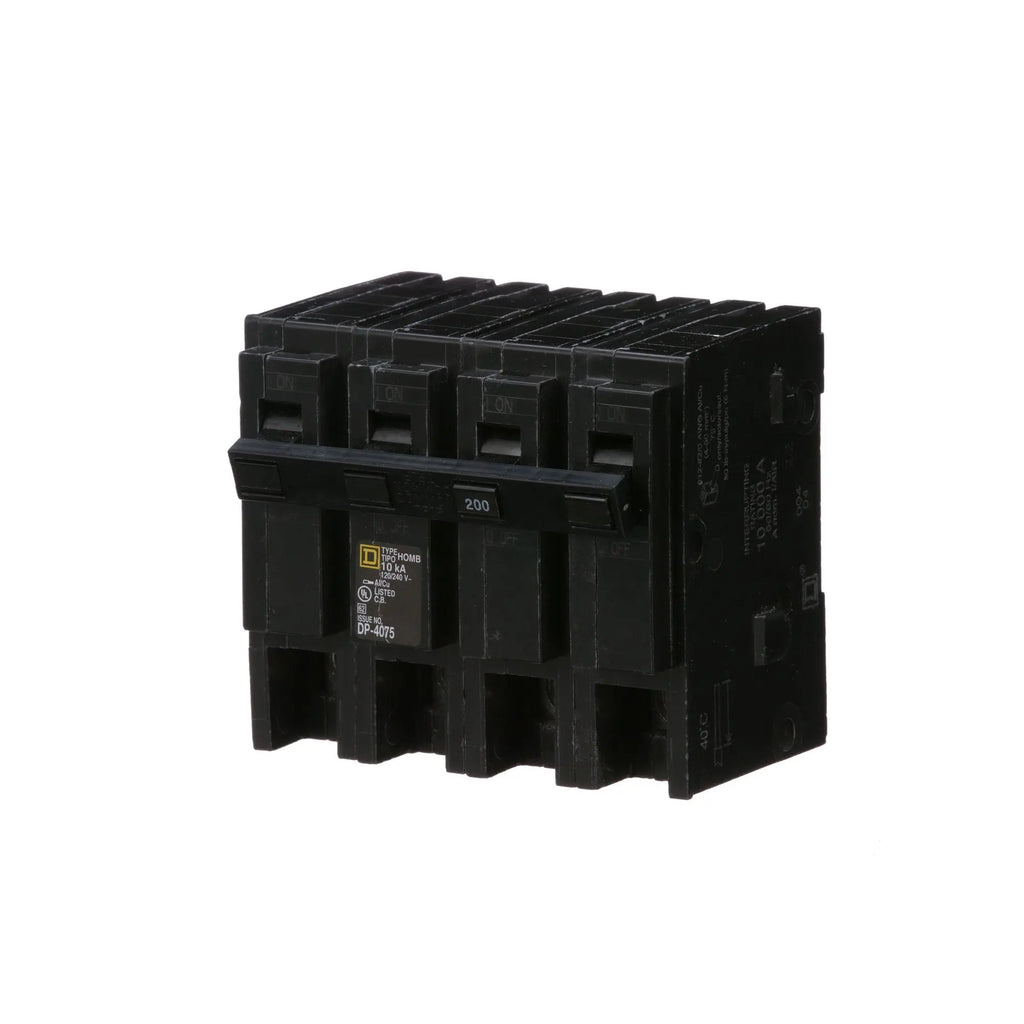

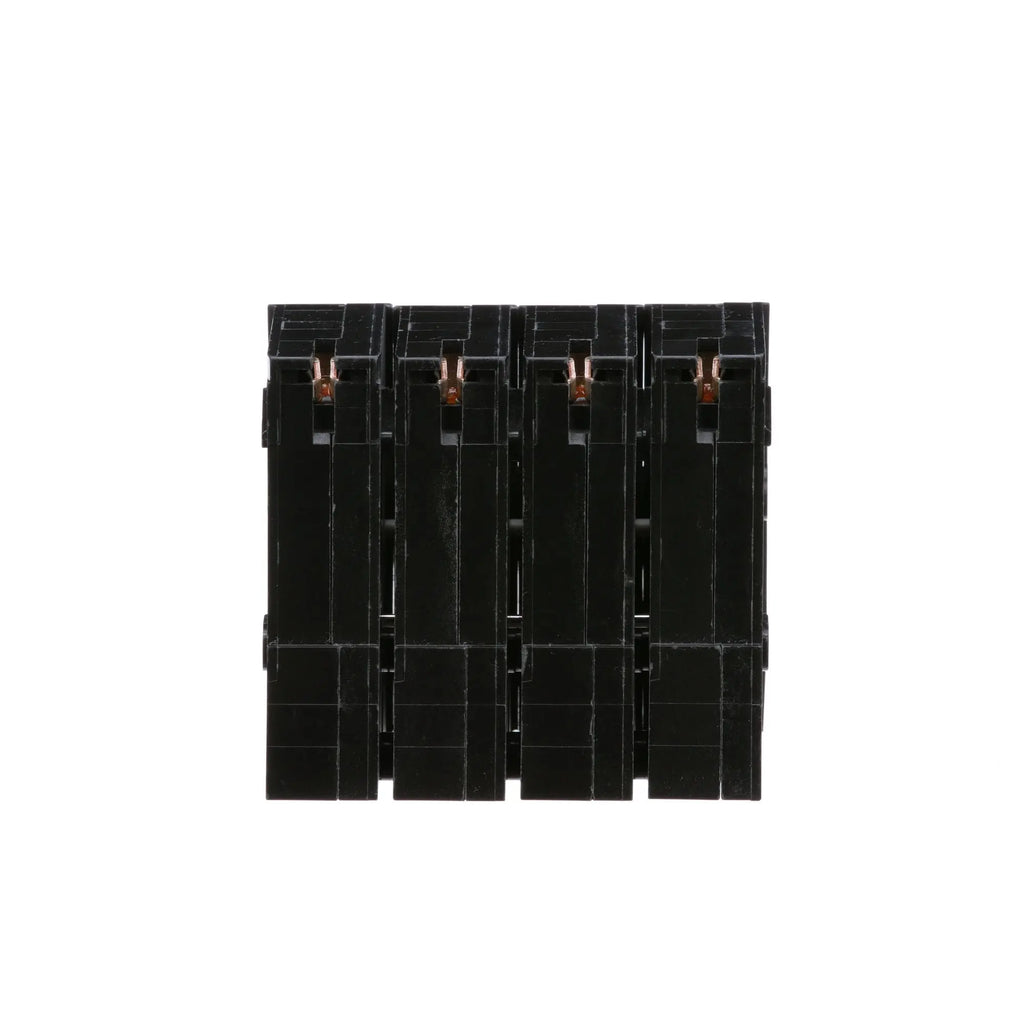

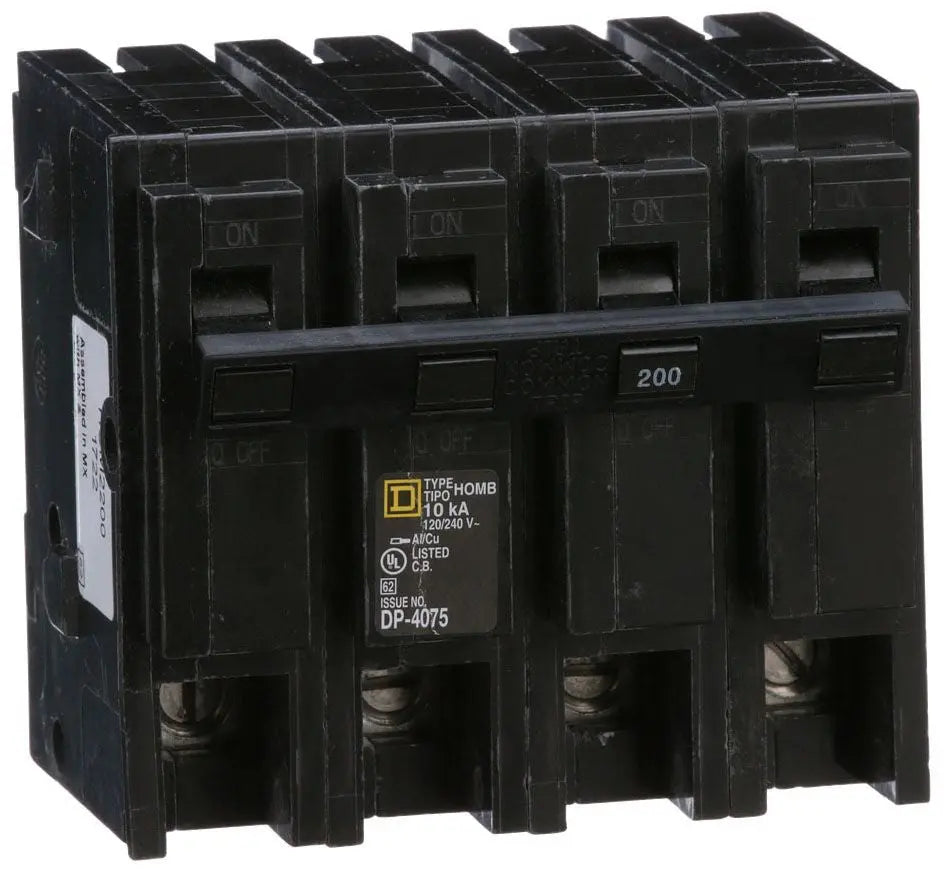

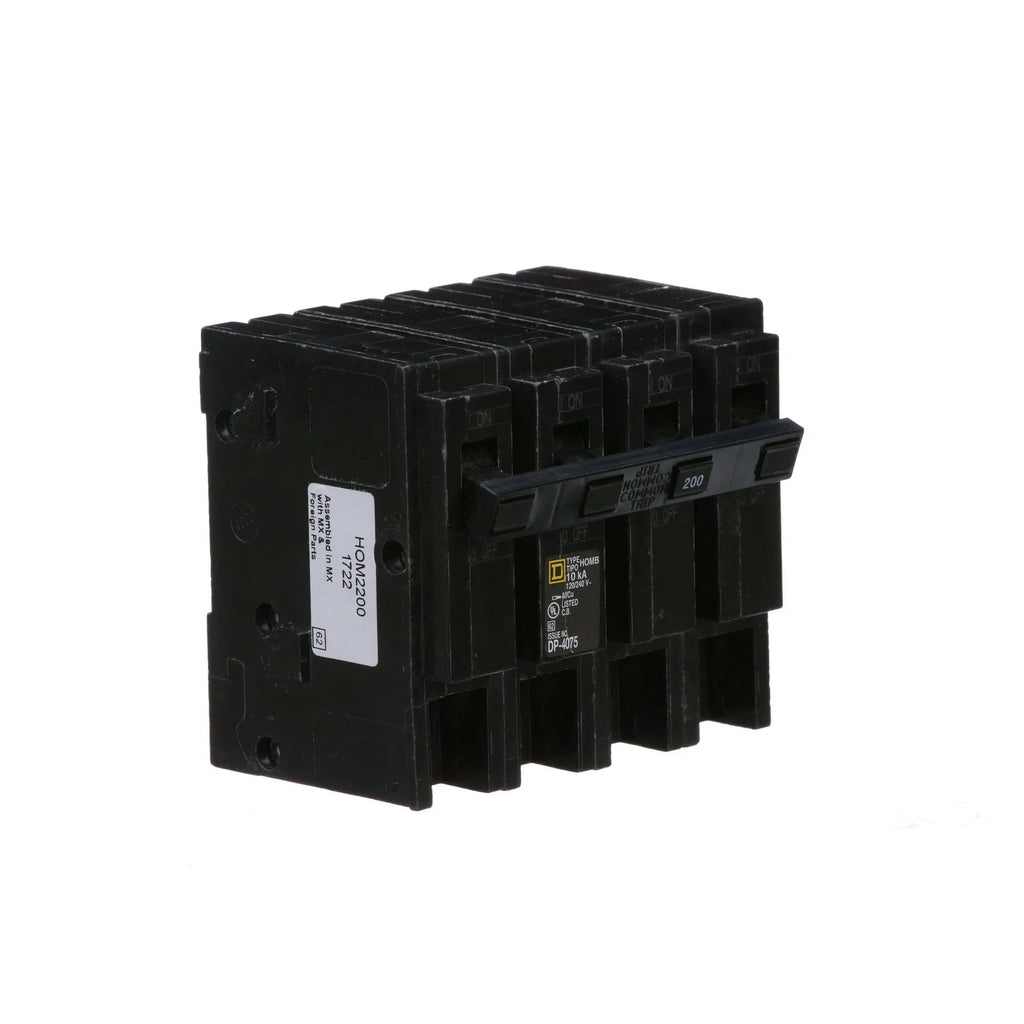

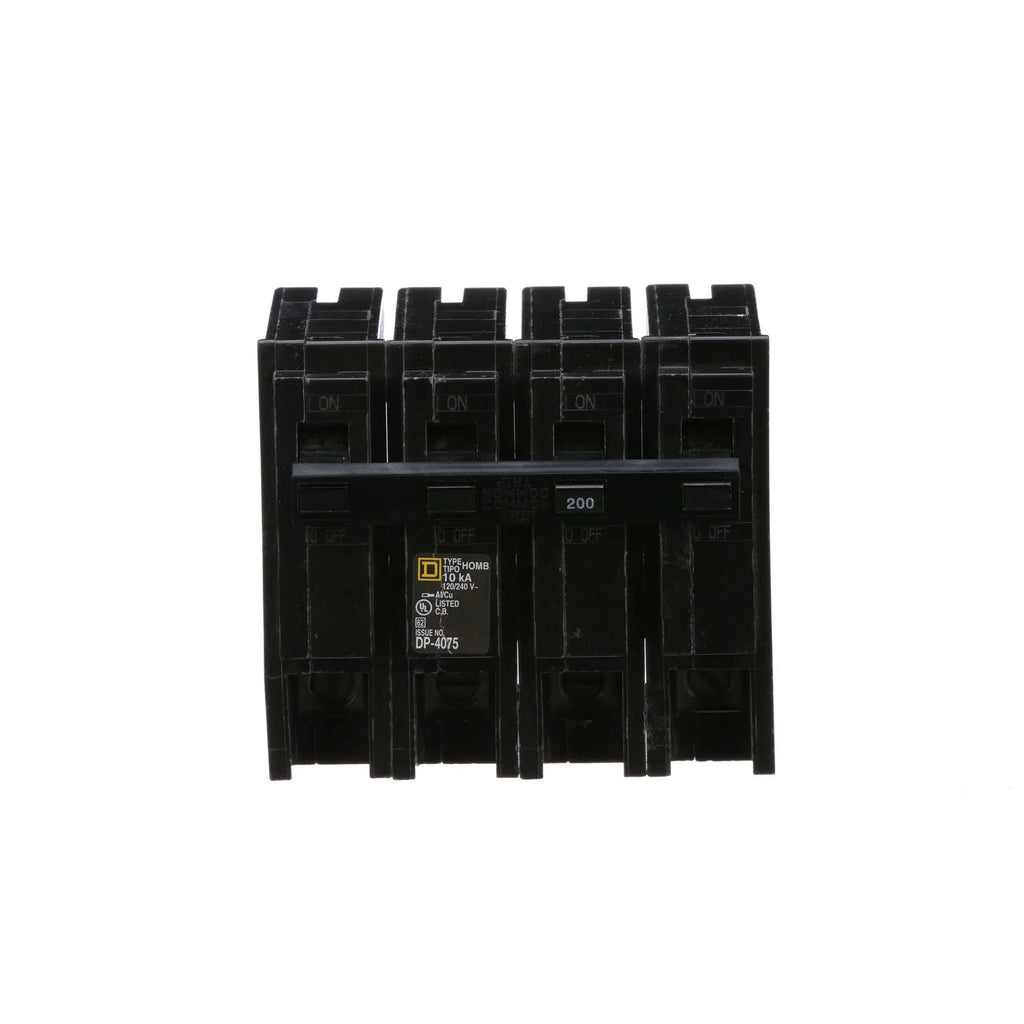

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Molded Case
- Series
- HOMELINE
- Frame
- HOM
- Rated current
- 200
- Voltage
- 120/240V
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 10kA@240V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Plug-In
- Terminals
- Lug
- Panel / equipment
- Homeline Load Center
- Standards
- CSA Certified, HACR, UL Listed
- Country of origin
- Mexico
Show all specifications (10 more)
- Frame Size
- 100A/HOM
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 8 AWG Max. Wire Size 2 AWG
- Breaker Type
- Standard
- UPC
- 785901065883
- GTIN
- 00785901065883

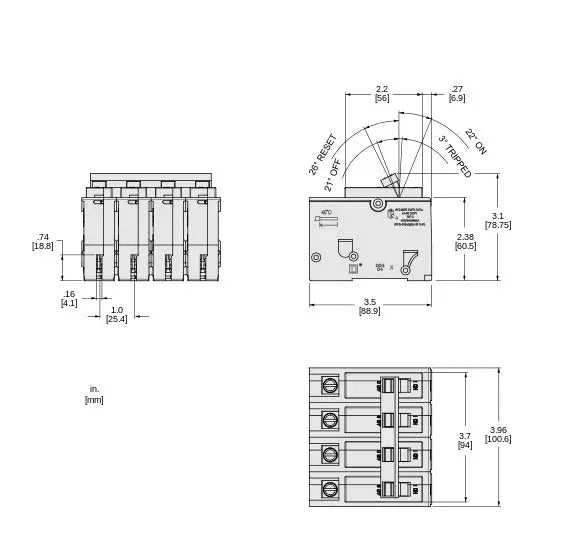

- Dimensions
- 4 in x 5.4 in x 5.4 in
- Weight
- 1.76
- Certification
- CSA Certified, HACR, UL Listed
- Wire Size
- 1x AWG 4 to 300KCmil, Aluminum/Copper
Product description & additional details
HOM2200
HOM2200 is a Square D Homeline 2 pole circuit breaker rated for 200 amps and 120/240 volts AC with plug-in mounting.This thermal magnetic molded case circuit breaker features a 10kA interrupting rating at 240V, long-time and instantaneous trip functions, and box lug terminal connections. It is UL listed and designed for residential and commercial circuit protection with easy installation in Homeline loadcenters.
- Manufacturer: Square D
- Series: Homeline
- Amperage: 200 Amps
- Voltage: 120/240 VAC
- Poles: 2
- Mounting Type: Plug-In
- Interrupt Rating: 10kA at 240V
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Terminal Connection: Box Lugs
- UL Listed
- Frame Type: HOM
- Wire Gauge: 1 AWG to 4/0 Aluminum/Copper
Specifications
- Part Number: HOM2200
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : HOMELINE
- Type : HOM
- Voltage : 120/240
- Amperage : 200
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 100A/HOM
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 785901065883
- GTIN : 00785901065883
- Country of Origin : Mexico
- Dimensions : 4 in x 5.4 in x 5.4 in
- Weight : 1.76
- Panel Type : Homeline Load Center
- Standards : CSA Certified, HACR, UL Listed
- Certification : CSA Certified, HACR, UL Listed
- Wire Size : 1x AWG 4 to 300KCmil, Aluminum/Copper
