QO2125

QO2125

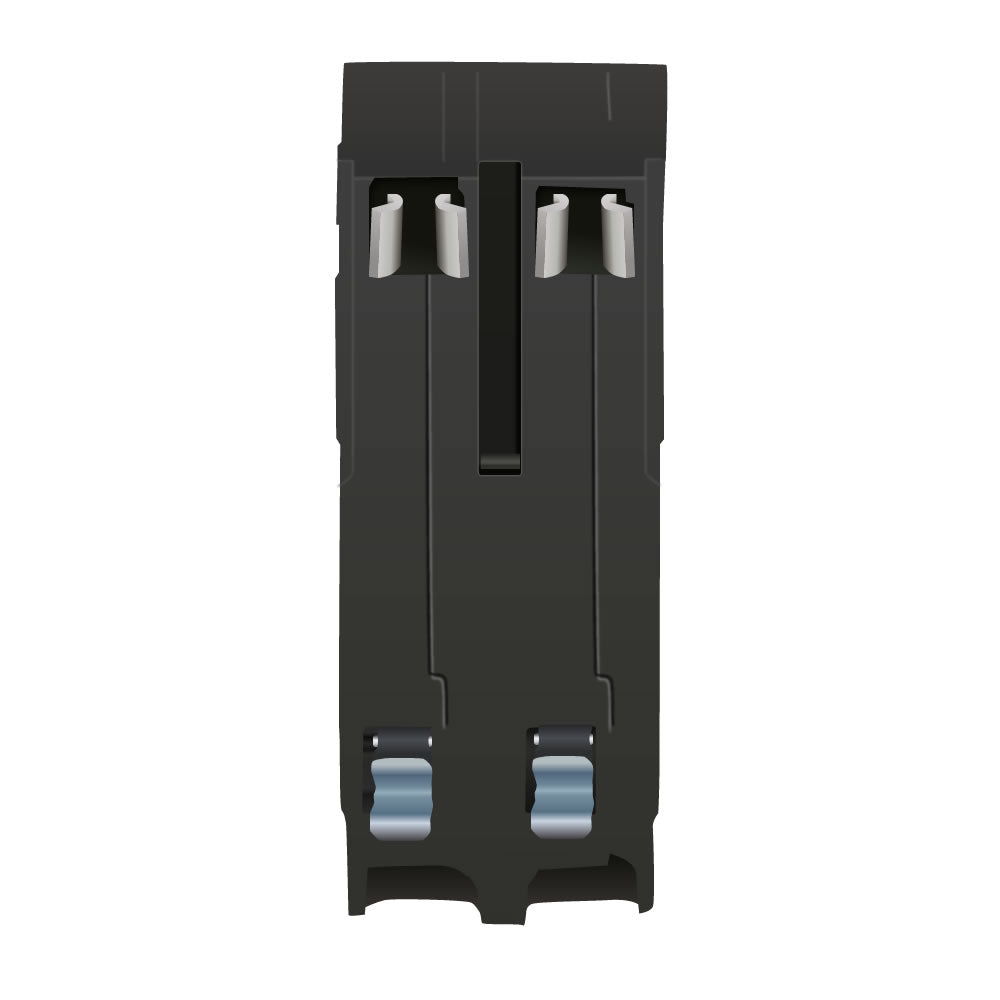

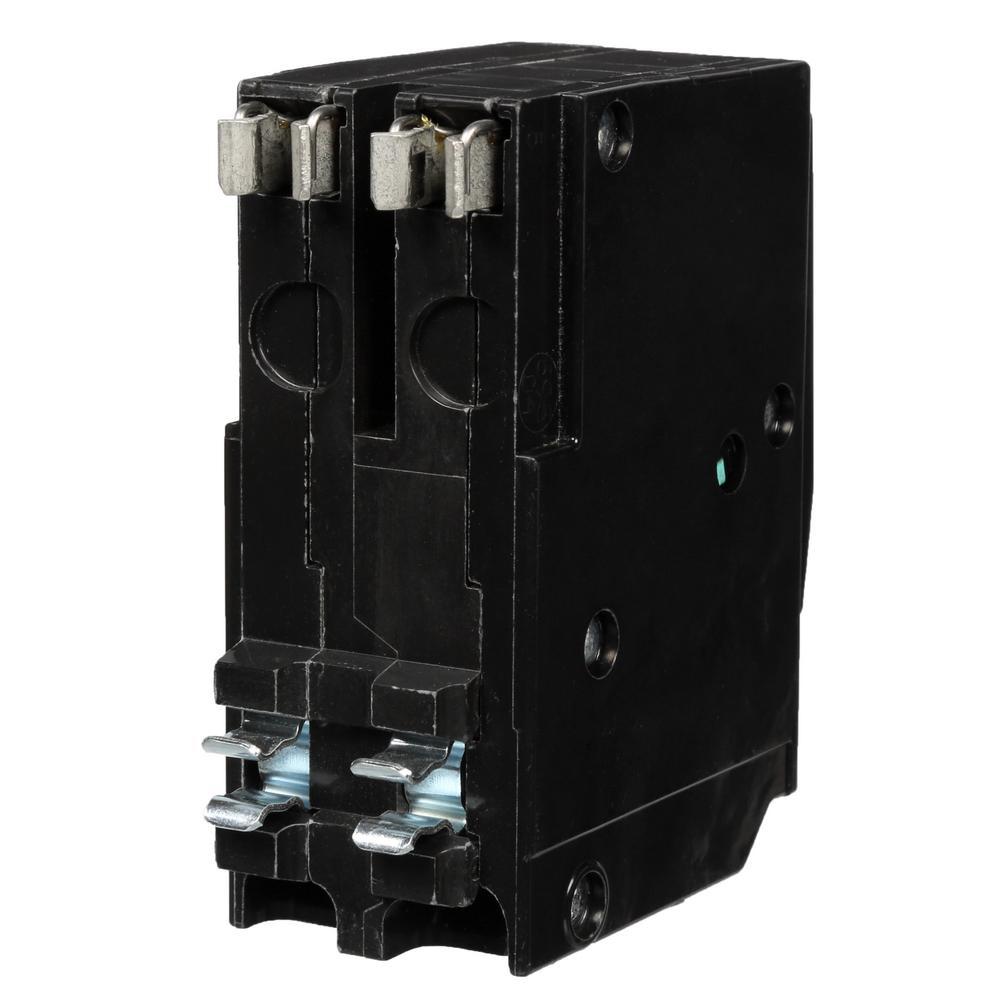

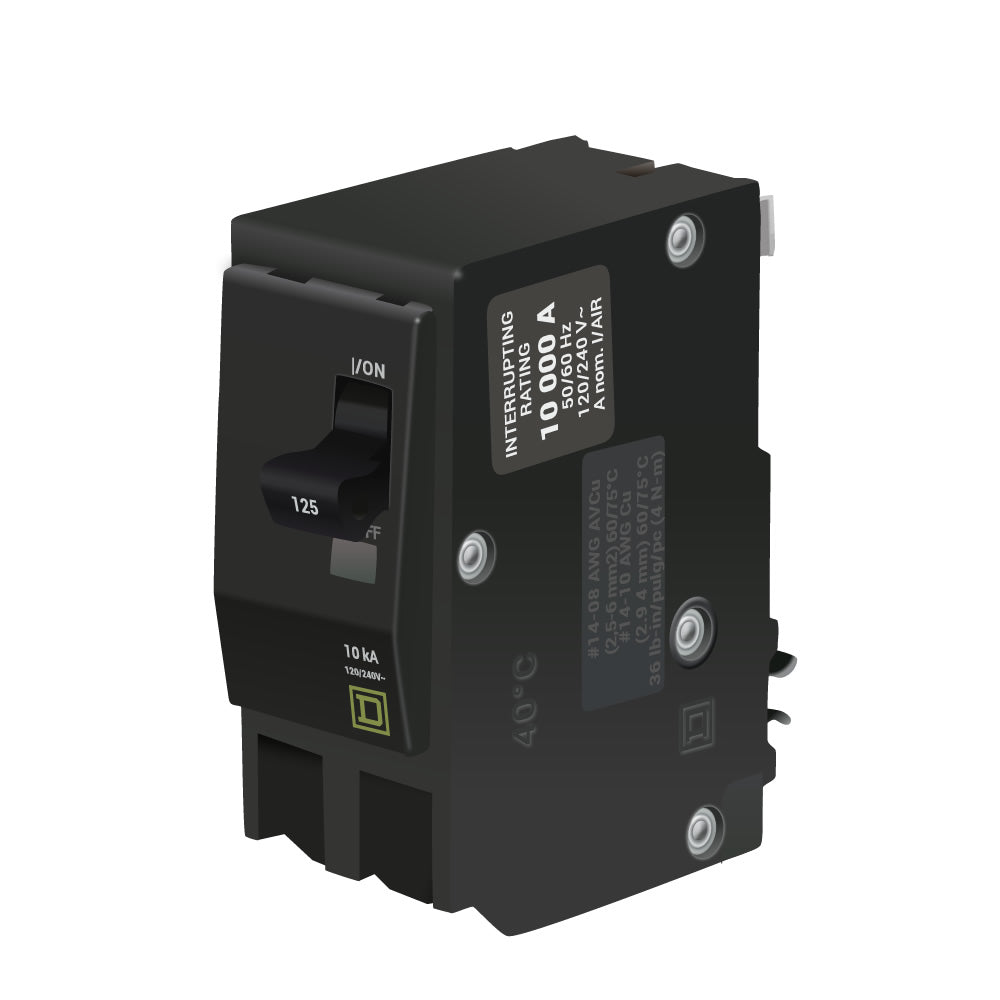

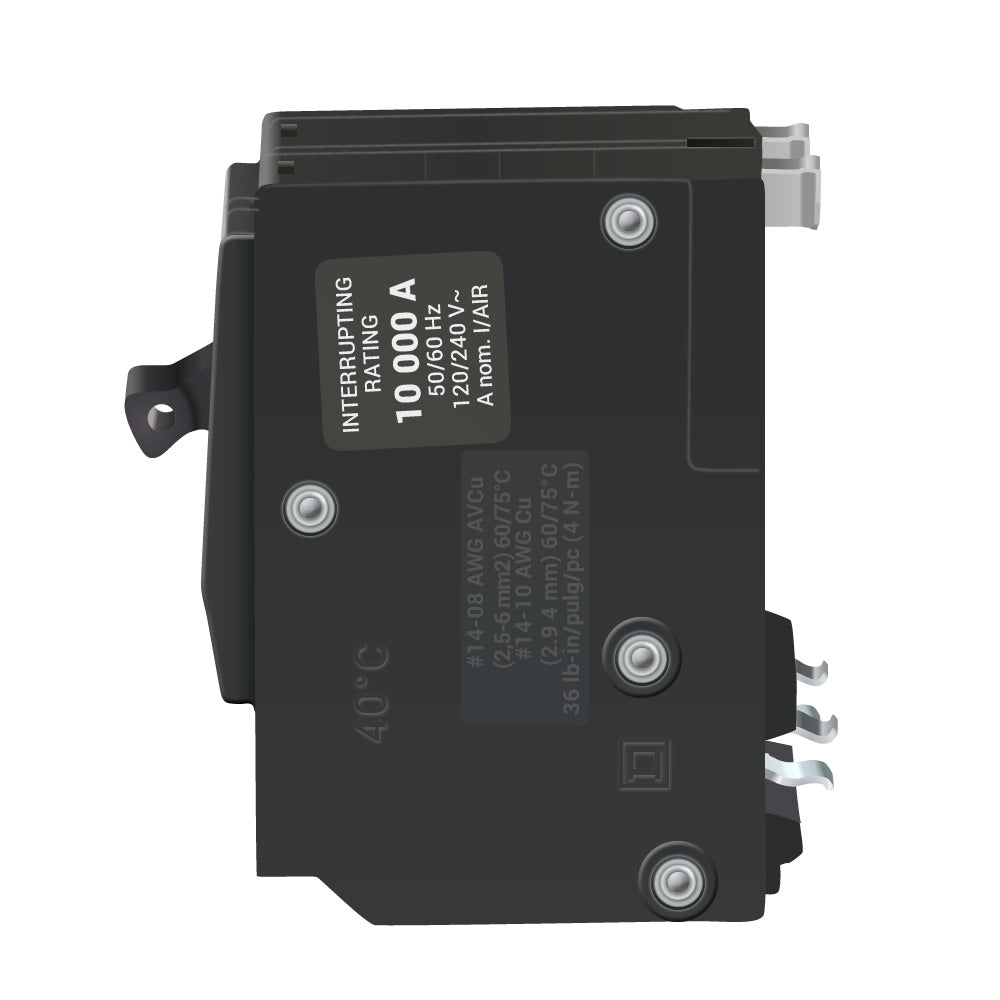

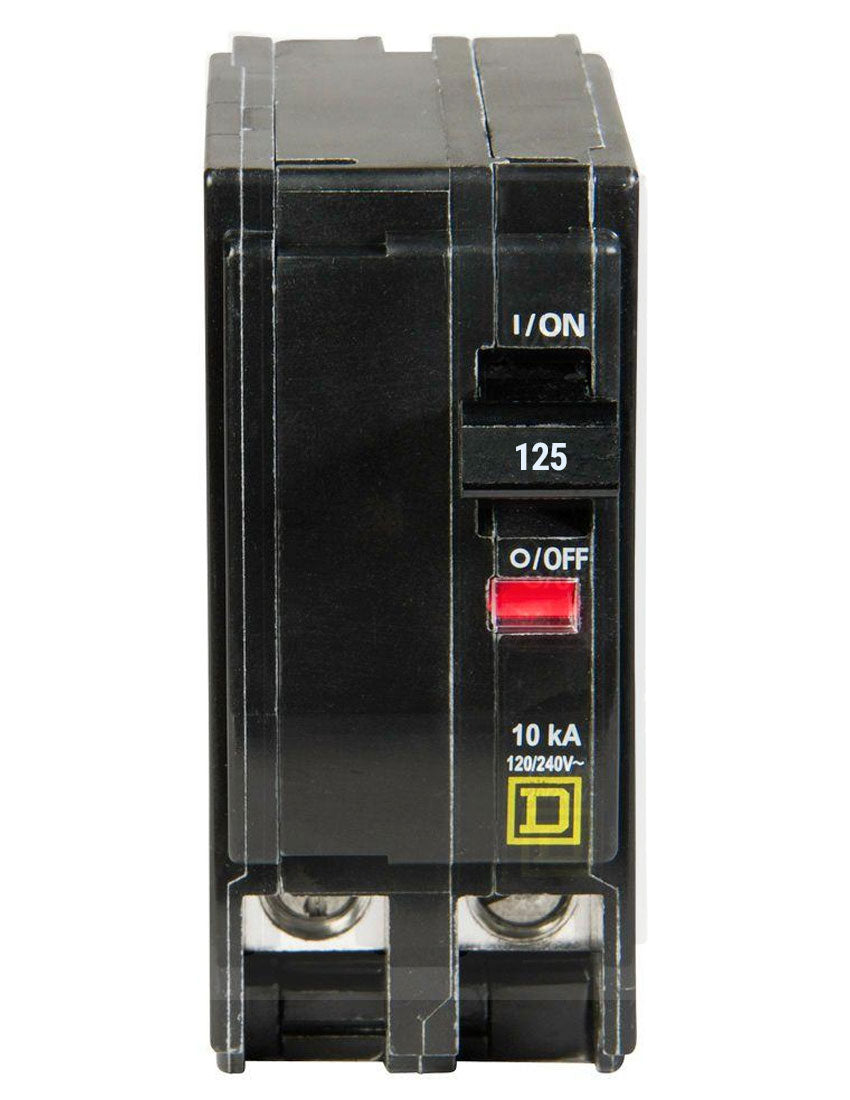

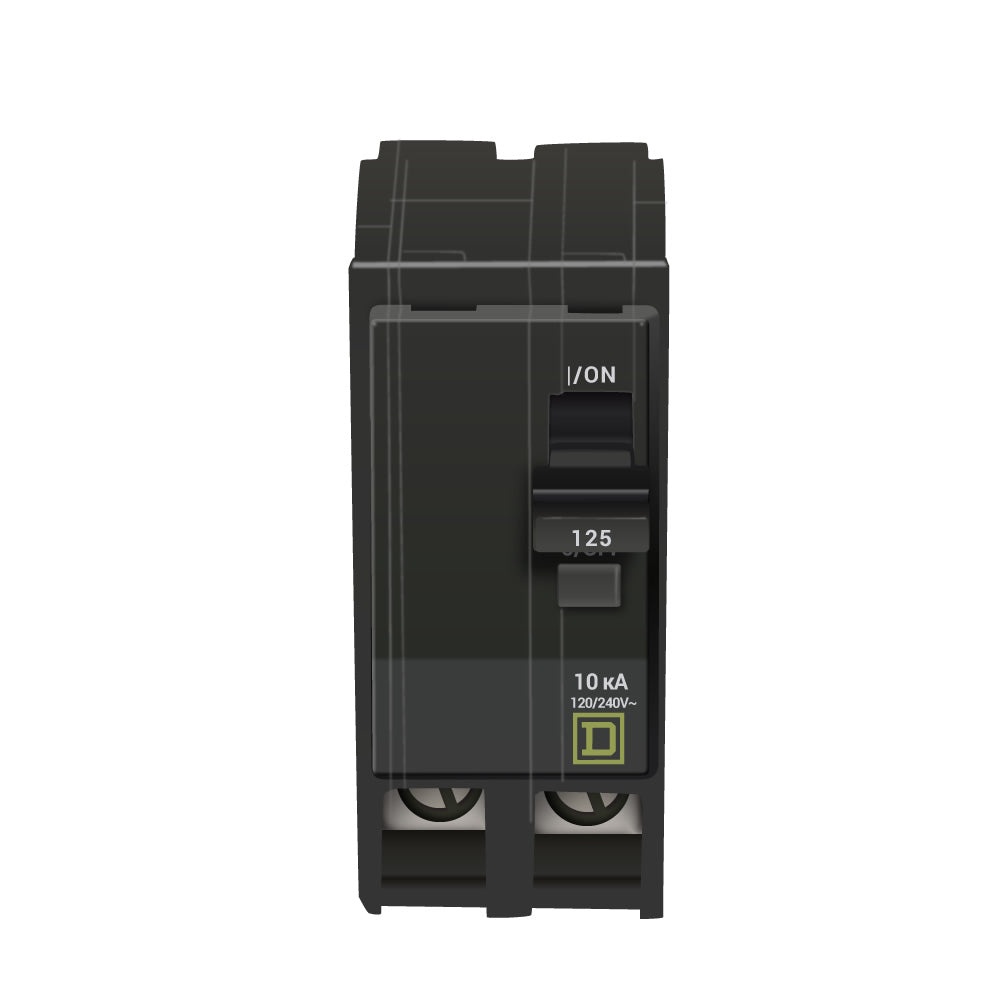

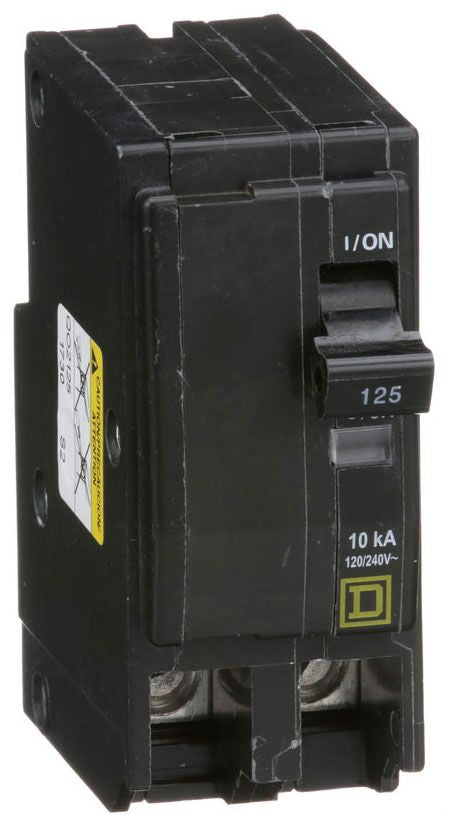

QO2125 is a Square D 2 pole, 125 amp circuit breaker designed for 120/240VAC applications with a 10kA interrupting rating and plug-in mounting.This QO series miniature circuit breaker features thermal magnetic protection with long-time and instantaneous trip functions, a VISI-TRIP indicator for easy diagnostics, and is HACR rated for HVAC applications. It supports wire sizes from AWG 4 to 2/0 copper or aluminum and is UL and CSA certified.

• Amperage: 125 Amp
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupting Rating: 10kAIC at 120/240VAC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Certifications: UL, CSA, HACR Rated
• Connection Type: Box Lugs
• Wire Gauge: AWG 4 to 2/0 Copper or Aluminum
• Phase: Single Phase
• VISI-TRIP Indicator for trip status

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO2125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO
• Voltage : 120/240
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13°F to 158°F (-25°C to 70°C)
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901031093
• GTIN : 00785901031093
• Country of Origin : Mexico
• Dimensions : 3.5 in (89 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.75 lb
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, HACR, UL Listed
• Certification : HACR, UL Listed
• Wire Size : AWG 4 to AWG 2/0, Copper or Aluminum
