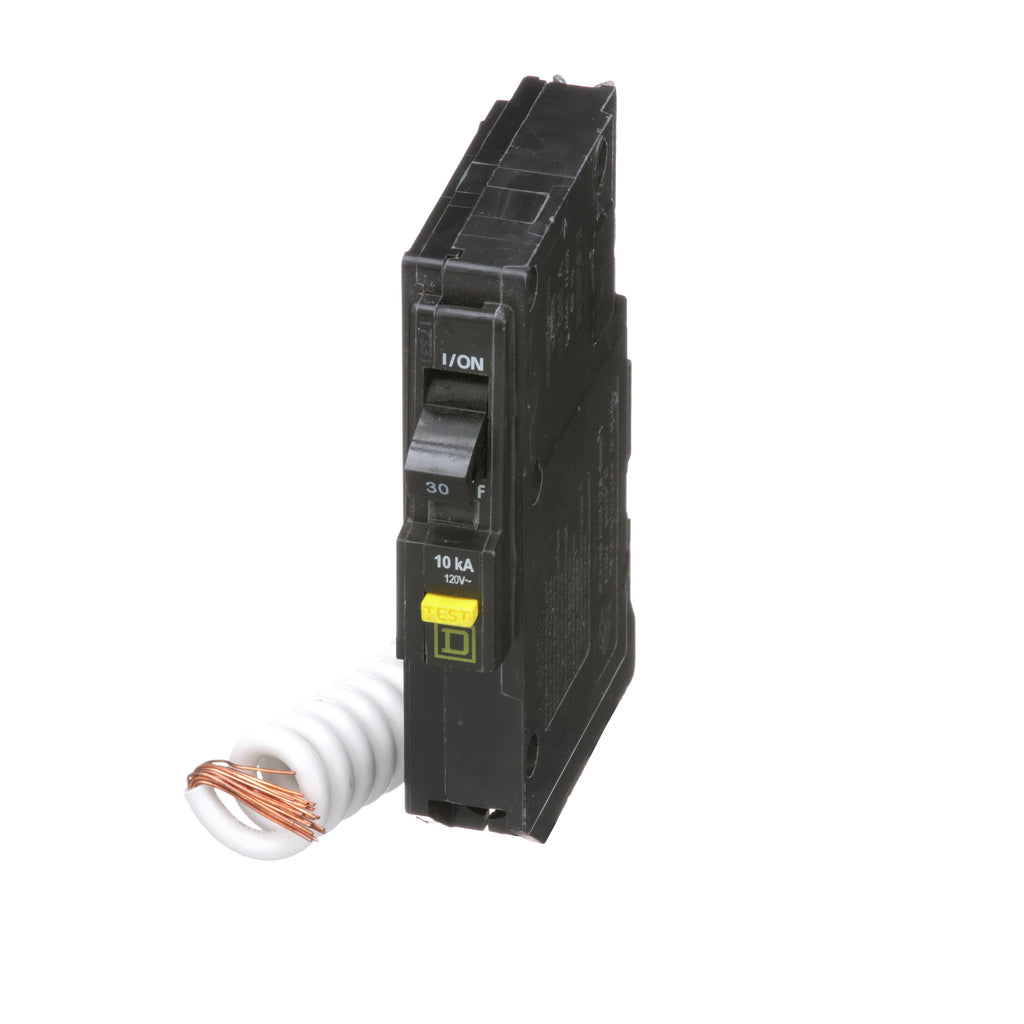

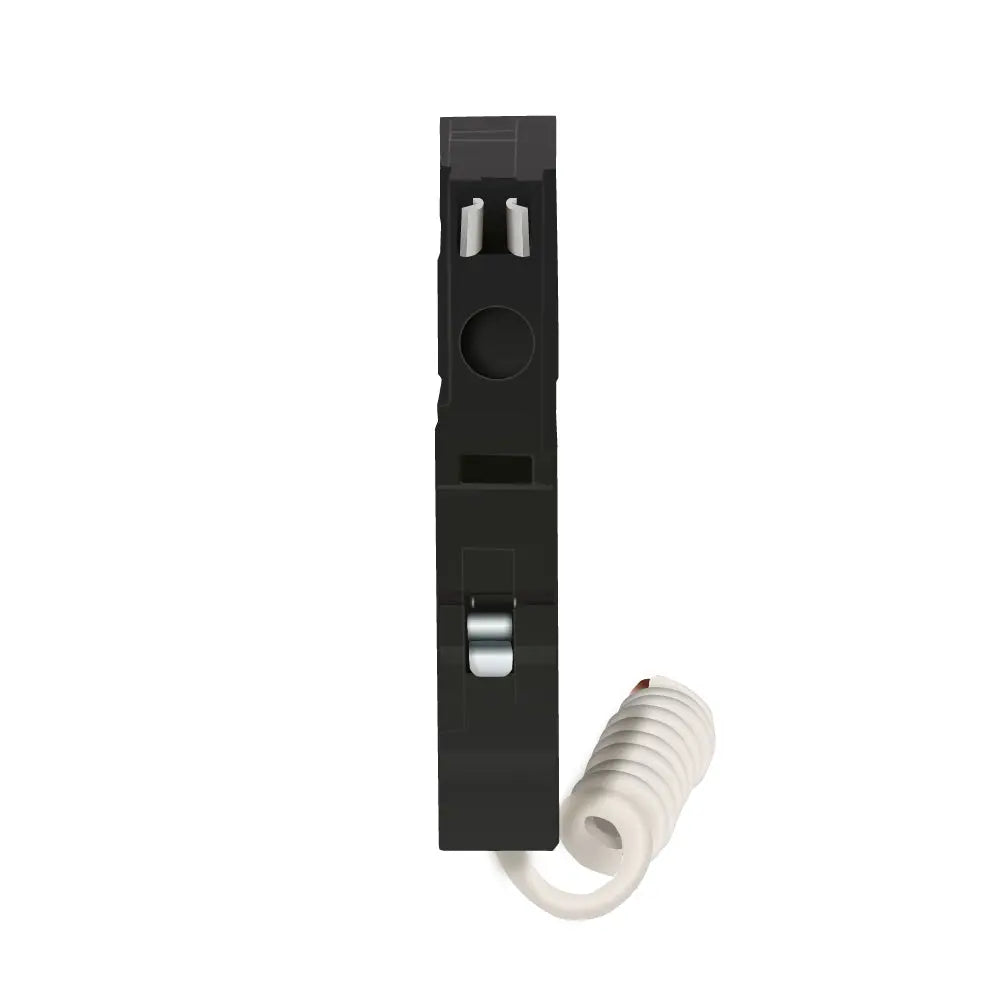

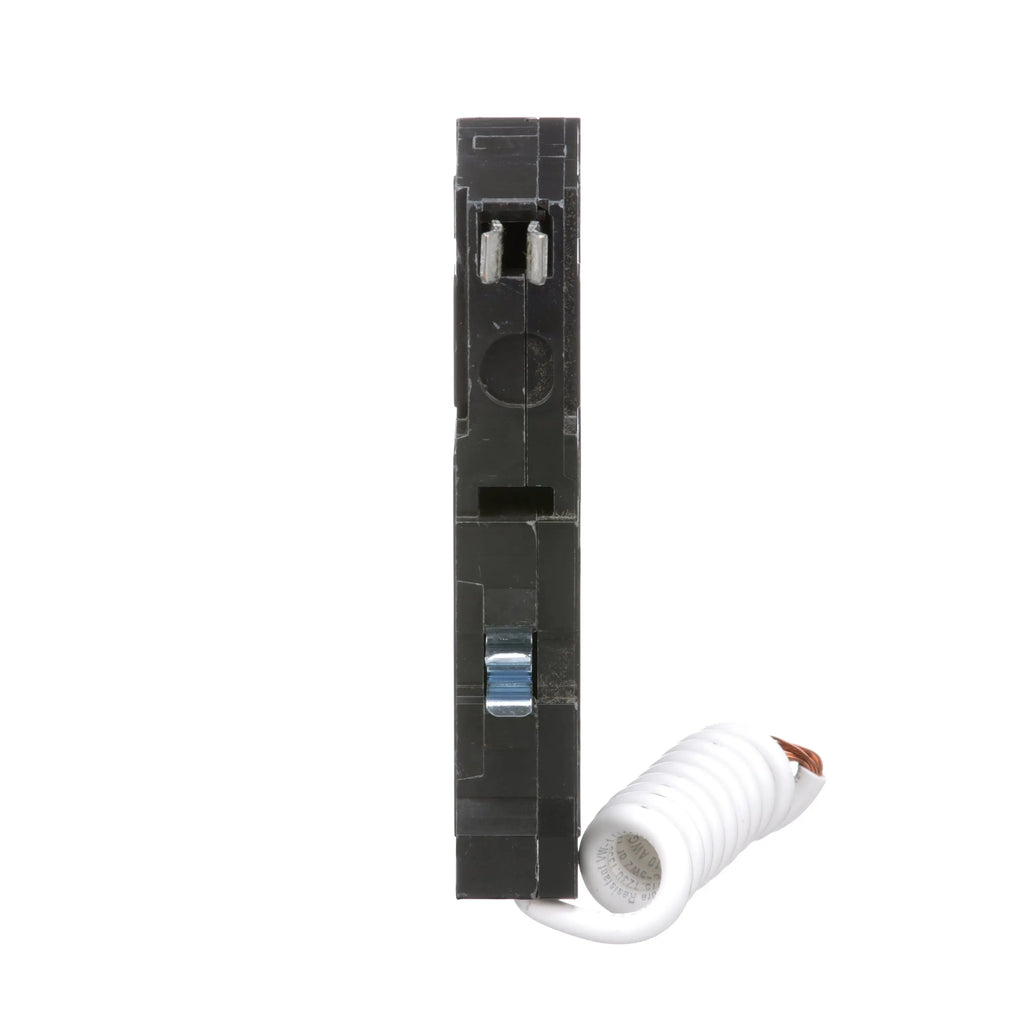

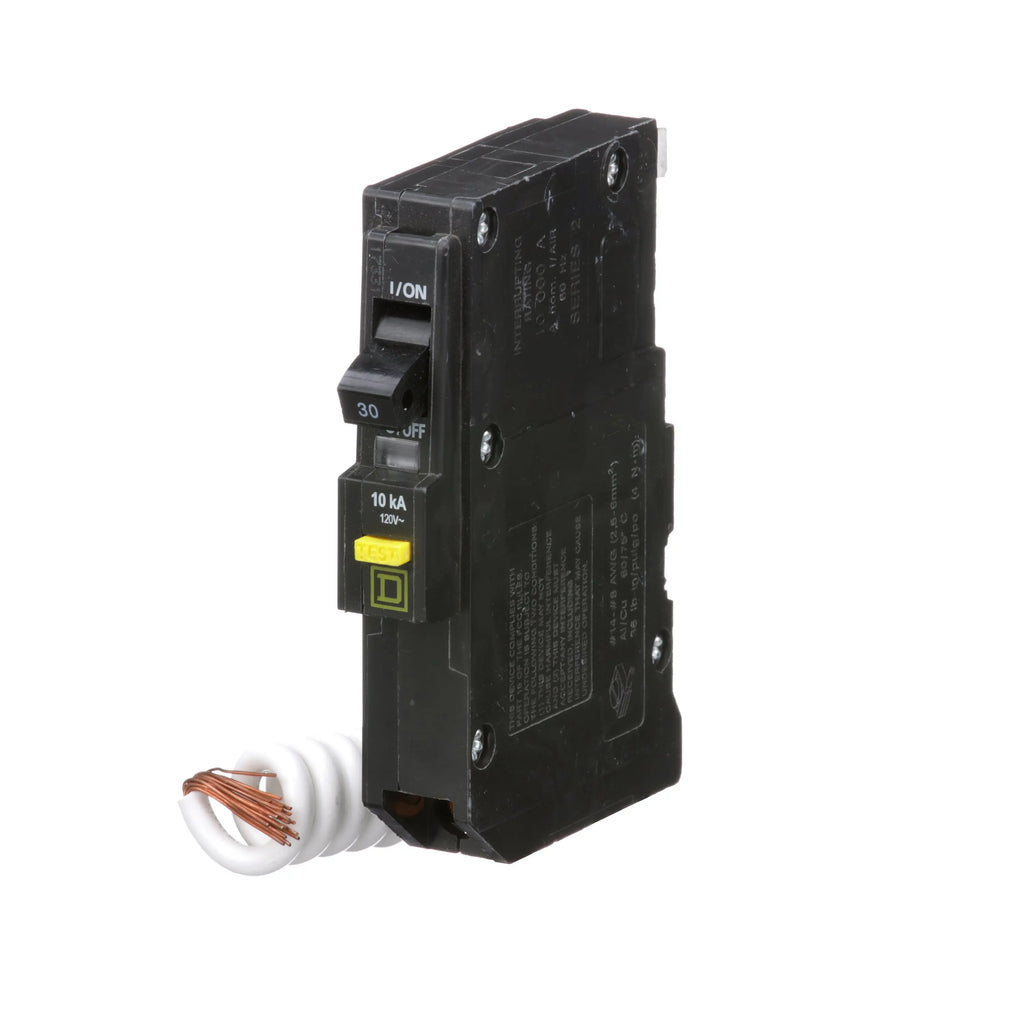

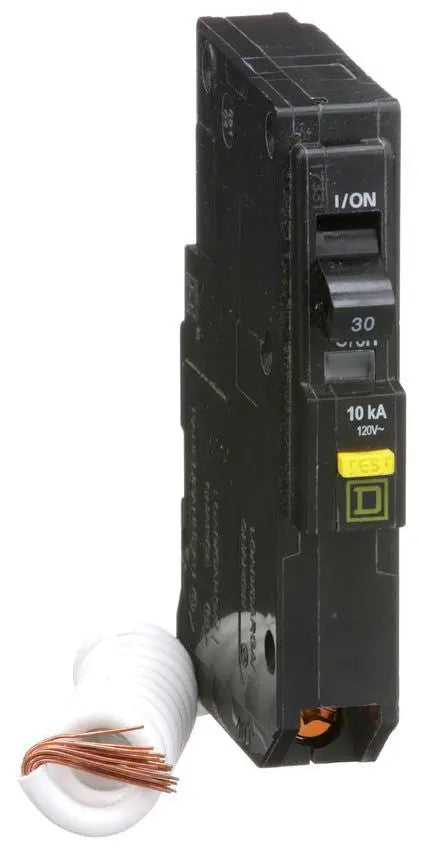

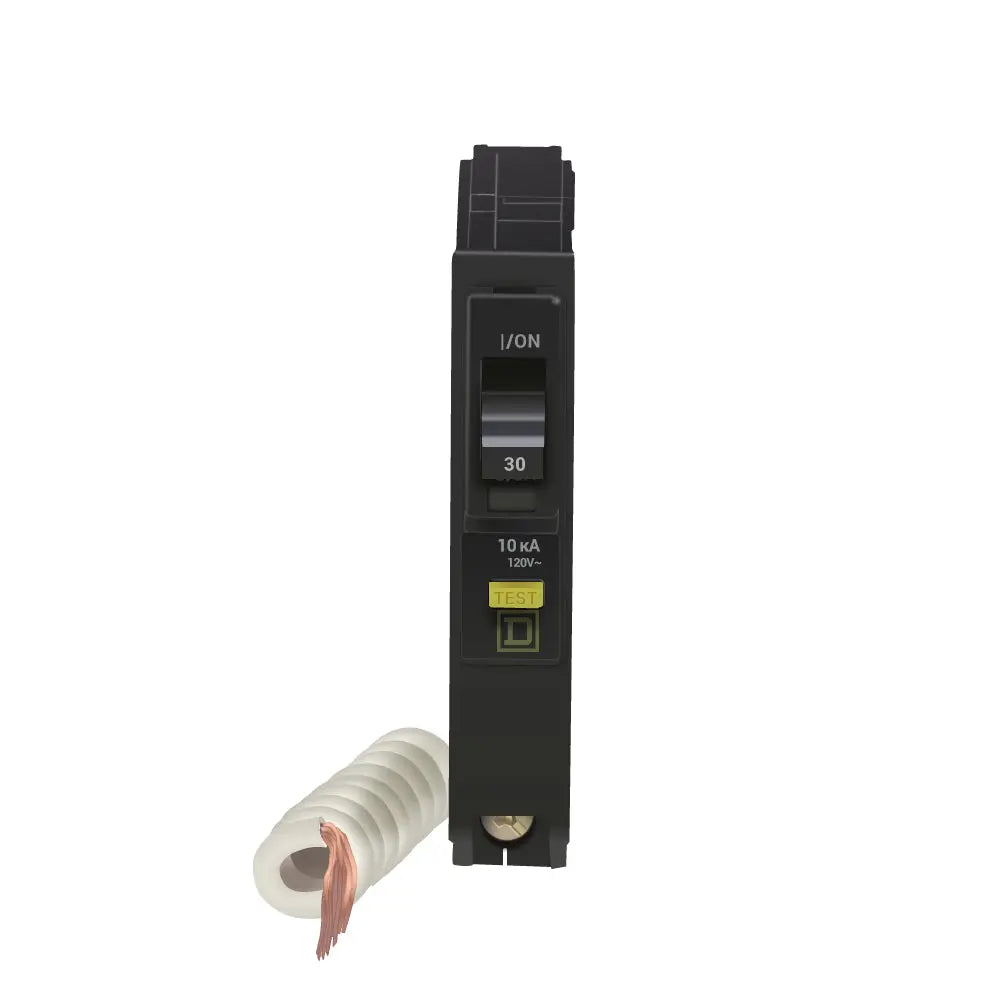

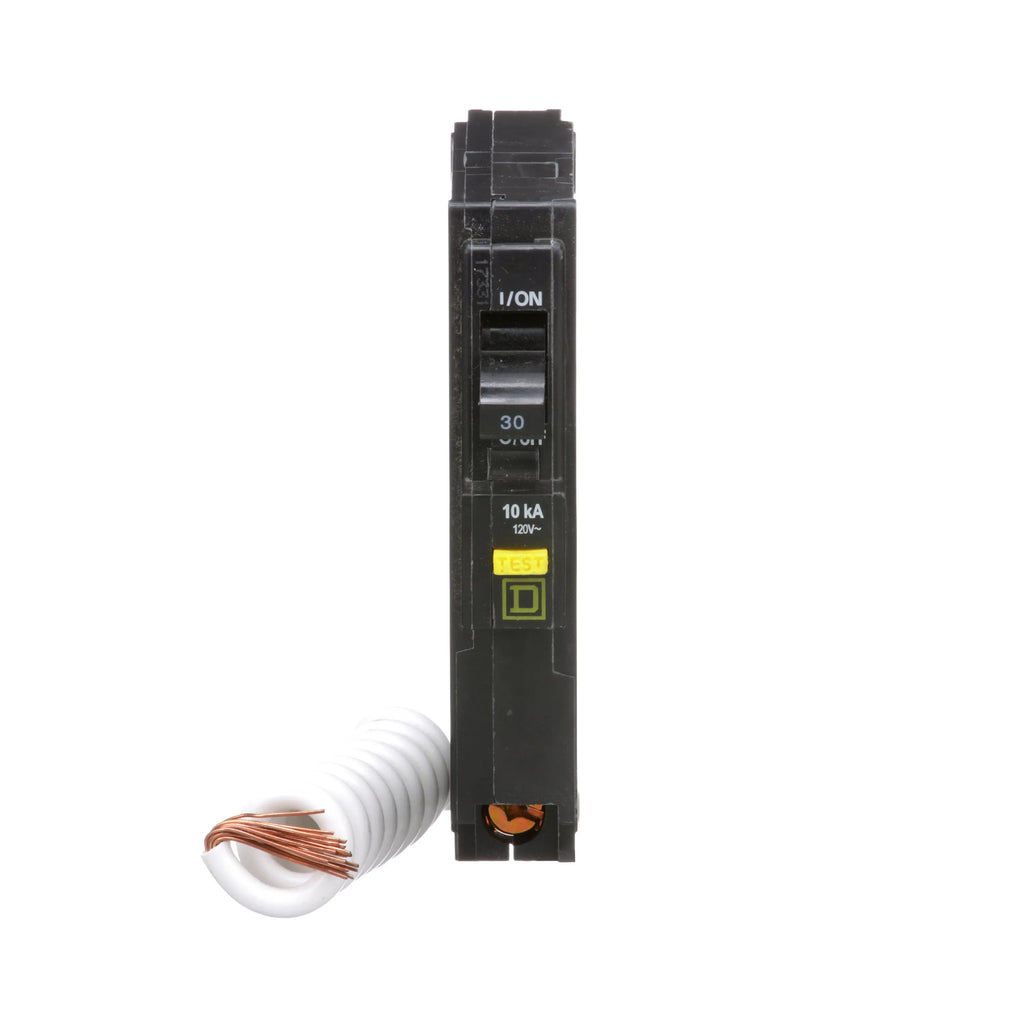

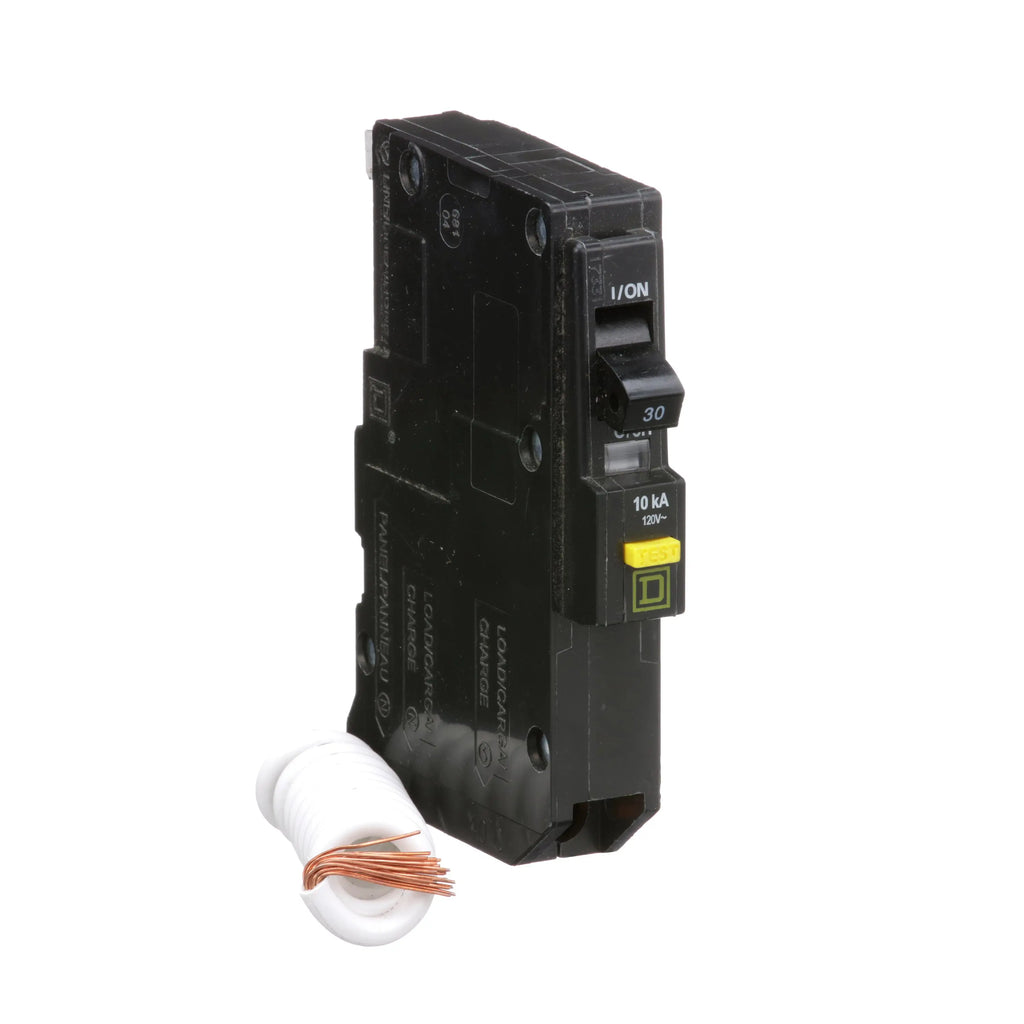

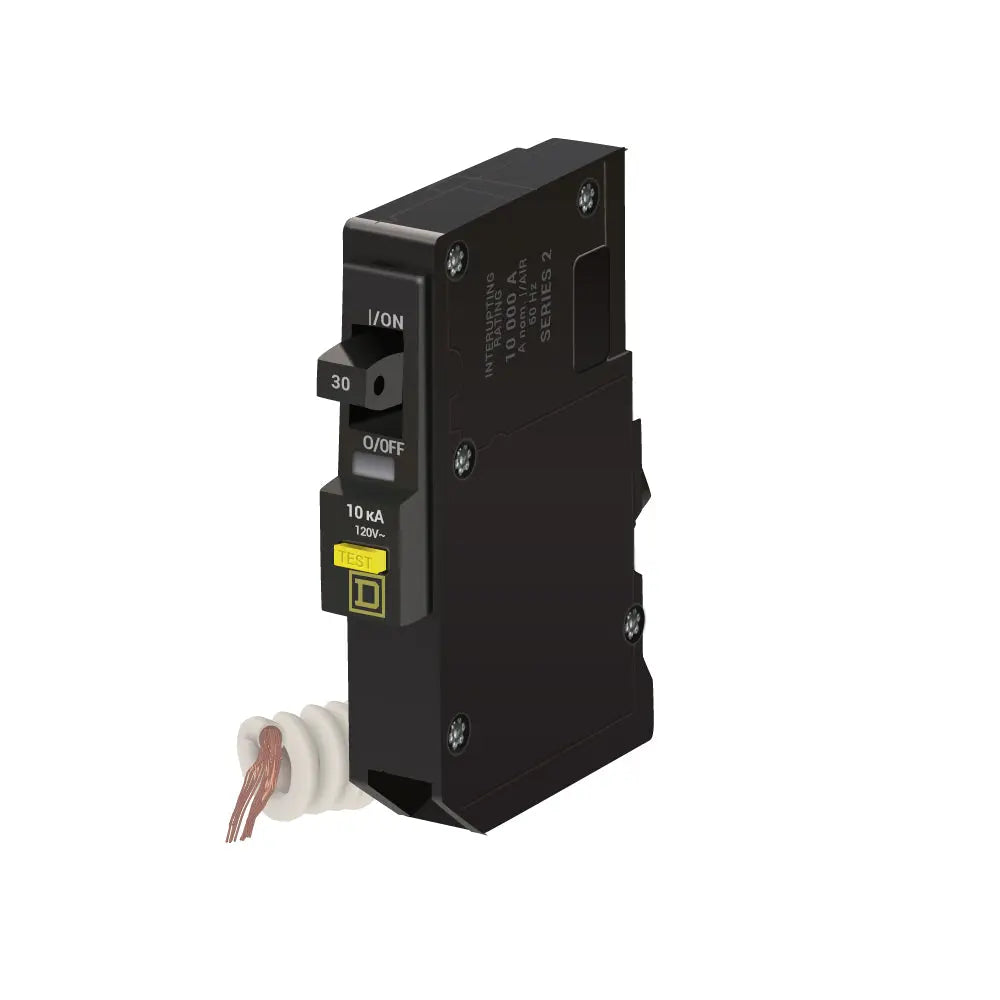

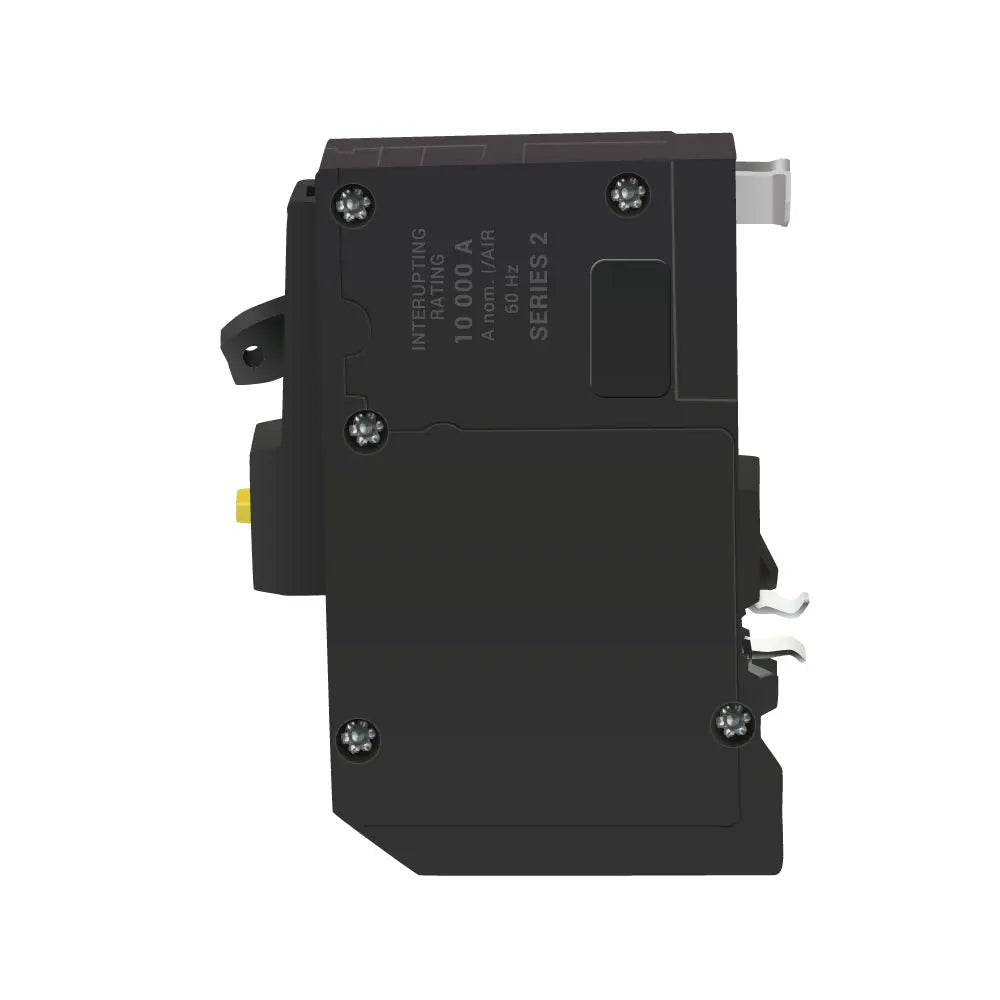

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Molded Case
- Series
- QO SEries
- Frame
- QO Series
- Rated current
- 30
- Voltage
- 120V
- Poles
- 1
- Phases
- 1
- Interrupting rating
- 10kA@120V
- Trip functions
- LI - Long-Time and Instantaneous
- Protection
- Thermal Magnetic
- Connection
- Plug-In
- Terminals
- Pressure plate
- Panel / equipment
- QO Load Centers and NQ Panelboards
- Standards
- CSA Certified, UL Listed
- Country of origin
- Mexico
Show all specifications (10 more)
- Frame Size
- 100A/QO
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 12 AWG Max. Wire Size 8 AWG (Al)
- Breaker Type
- Ground Fault Circuit Interrupter (Class A - 5mA)
- UPC
- 78590125509
- GTIN
- 00785901255093
- Dimensions
- 4.1 in (105 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight
- 0.269
- Certification
- UL Listed
- Wire Size
- AWG 14 to AWG 8, AWG 12 to AWG 8, Copper/Aluminum
Product description & additional details
QO130GFI
QO130GFI is a Square D single pole, 30 Amp, 120/240VAC plug-in ground fault circuit breaker designed for reliable protection in residential and commercial applications.
This QO series breaker features a thermal magnetic trip unit for both overload and short circuit protection, with a 10kA interrupting rating at 120VAC. It is mercury free, RoHS and REACh compliant, and is compatible with QO load centers and NQ panelboards. The plug-in mounting ensures quick installation, and the unit is approved for use with copper or aluminum wire from 8 to 12 AWG.
-
Key Specifications
- Amperage: 30A
- Voltage: 120/240VAC, 48VDC
- Poles: 1
- Mounting Type: Plug-In
- Interrupt Rating: 10kAIC at 120VAC
- Series/Frame: QO
- Trip Unit: Thermal Magnetic (K Curve)
- Certifications: UL, CSA, RoHS, REACh
- Wire Range: 8–12 AWG (Cu/Al)
- Temperature Rating: 40°C
- Actuator Type: Paddle
- Breaker Feature: GFCI, Mercury Free
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QO130GFI
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QO SEries
- Type : QO Series
- Voltage : 120
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Pressure plate
- Frame Size : 100A/QO
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 12 AWG Max. Wire Size 8 AWG (Al)
- Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
- Protection : Thermal Magnetic
Product Data
- UPC : 78590125509
- GTIN : 00785901255093
- Country of Origin : Mexico
- Dimensions : 4.1 in (105 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 0.269
- Panel Type : QO Load Centers and NQ Panelboards
- Standards : CSA Certified, UL Listed
- Certification : UL Listed
- Wire Size : AWG 14 to AWG 8, AWG 12 to AWG 8, Copper/Aluminum
