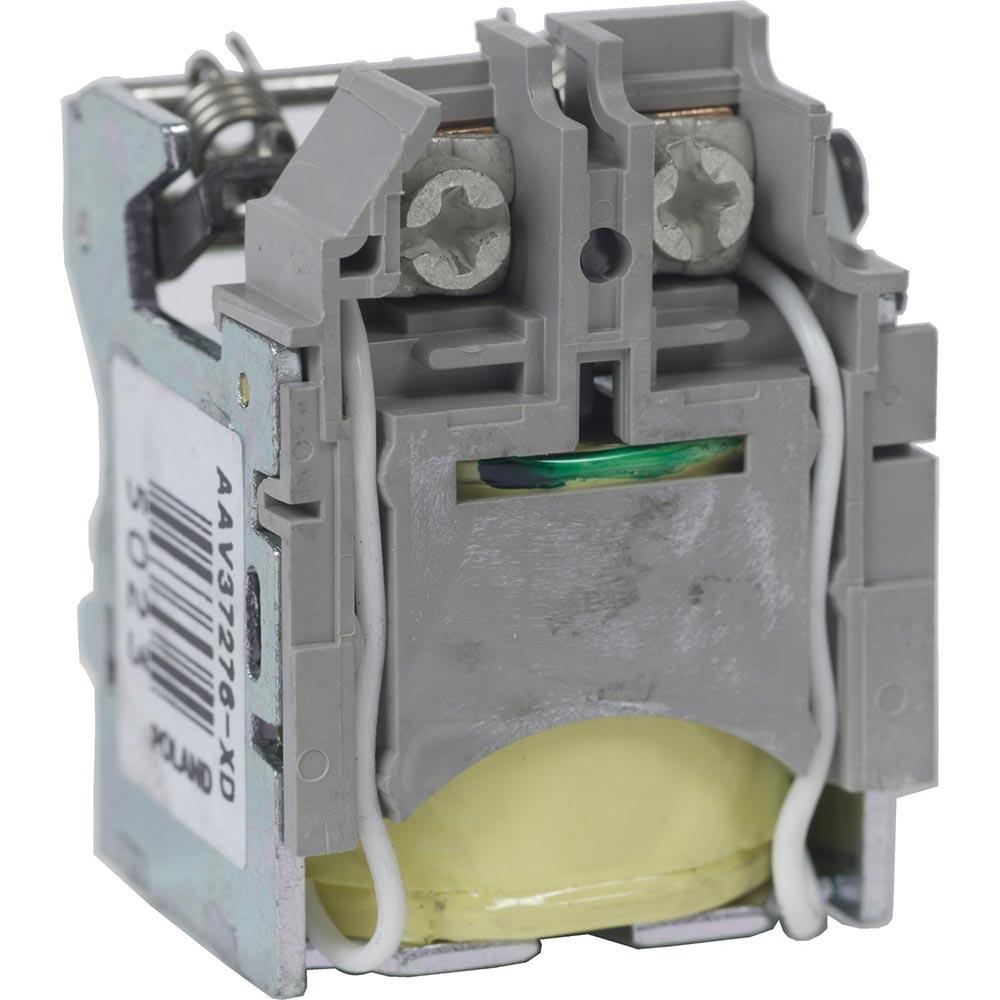

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Shunt Trip
- Series
- Powerpact
- Frame
- PowerPact Series
- Voltage
- 480V
- Interrupting rating
- 50/60Hz
- Country of origin
- United States
- Control Voltage Minimum
- 380
- Compatible Frames
- S
- Control Voltate Maximum
- 480
- UPC
- 785901589914
- GTIN
- 00785901589914
- Dimensions
- Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
Show all specifications (3 more)
- Weight
- 0.281
- Certification
- CSA
- Wire Size
- AWG 18, AWG 14
Product description & additional details
S29388
S29388 is a Square D PowerPact H/J/L frame circuit breaker shunt trip accessory designed for remote tripping of circuit breakers at 380 to 480 volts AC.
This shunt trip unit is compatible with PowerPact H, J, and L molded case circuit breakers and operates by energizing a trip coil from a separate supply voltage circuit. It supports 18 to 14 AWG copper wire connections and features a tightening torque of 1.4 N-m. The device is UL approved and CSA certified, ensuring compliance with industry safety standards.
- Key Specifications
- Manufacturer: Square D (Schneider Electric)
- Part Number: S29388
- Voltage Rating: 380-480 V AC
- Compatible Frames: PowerPact H, J, L
- Mounting Type: Field Mounted
- Wire Size: 18 to 14 AWG Copper
- Tightening Torque: 1.4 N-m (12.4 lbf.in)
- Trip Type: Shunt Trip (remote trip coil)
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Country of Origin: US
- Interrupt Rating: Matches compatible breaker frame ratings
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: S29388
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Powerpact
- Type : PowerPact Series
- Voltage : 480
- AIC rating : 50/60Hz
- Control Voltage Minimum : 380
- Compatible Frames : S
- Control Voltate Maximum : 480
Product Data
- UPC : 785901589914
- GTIN : 00785901589914
- Country of Origin : United States
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 0.281
- Certification : CSA
- Wire Size : AWG 18, AWG 14
