Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Molded Case
- Series
- Powerpact
- Frame
- JJL
- Rated current
- 175
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 65kA@480V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Feed-Thru
- Terminals
- Lug
- Phase connection
- CB
- Standards
- UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Country of origin
- Mexico
Show all specifications (9 more)
- Frame Size
- J
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 4/0 AWG (Cu/Al)
- UPC
- 785901955948
- GTIN
- 00785901955948
- Dimensions
- 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight
- 6.757
- Certification
- UL, CSA, NOM
- Wire Size
- AWG 4...AWG 4/0 aluminium/copper terminal
Product description & additional details

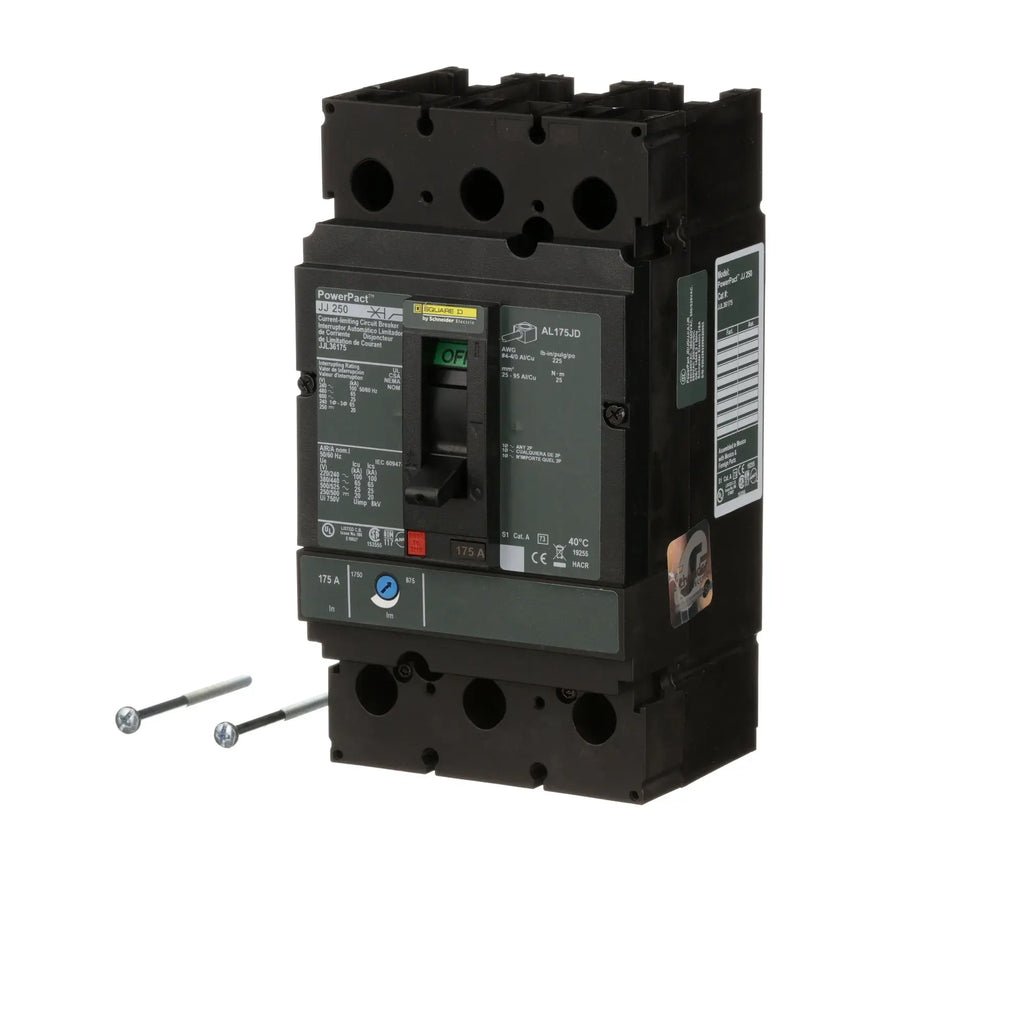

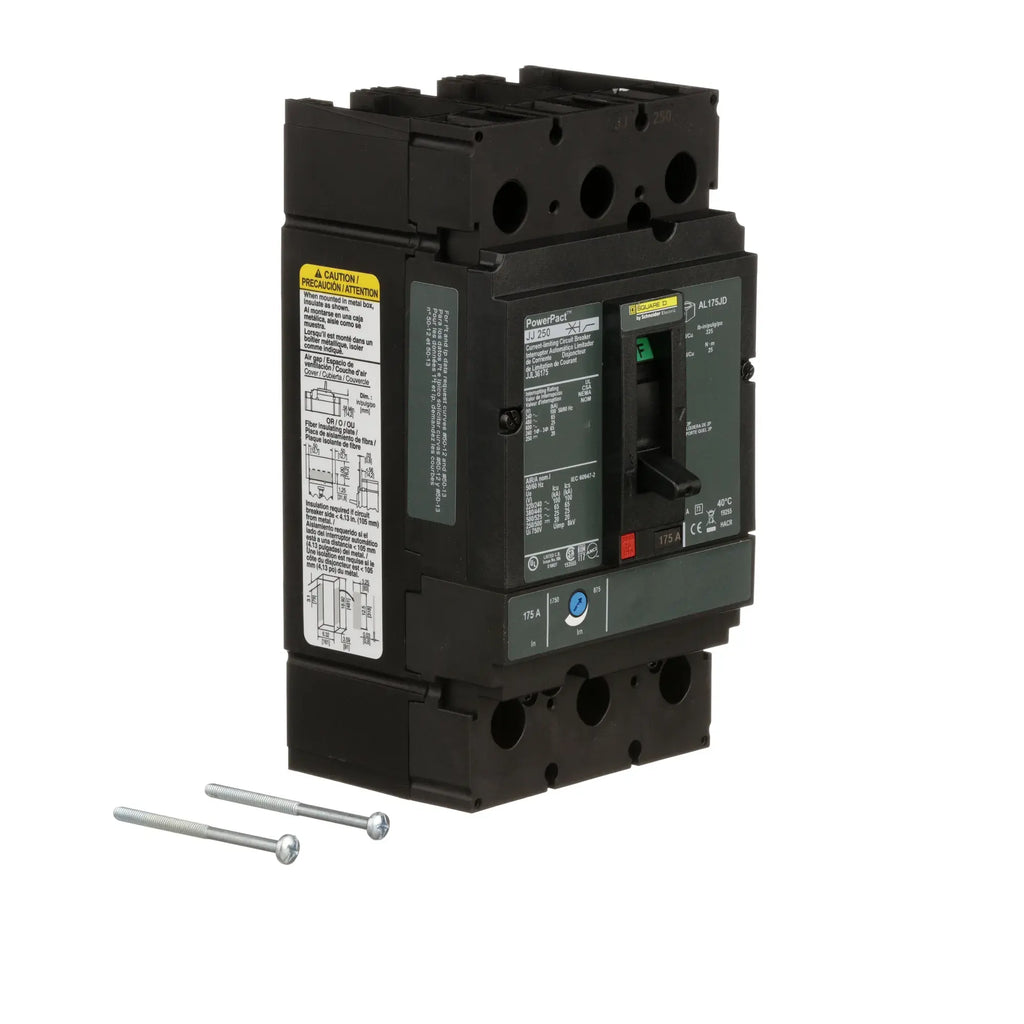

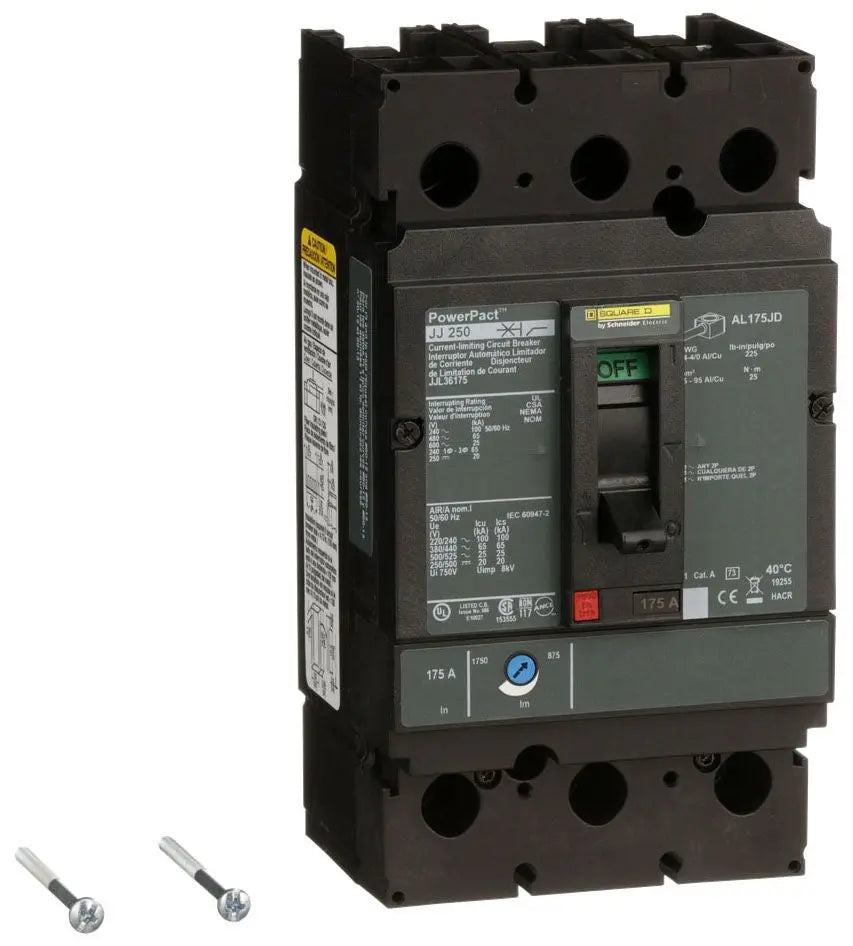

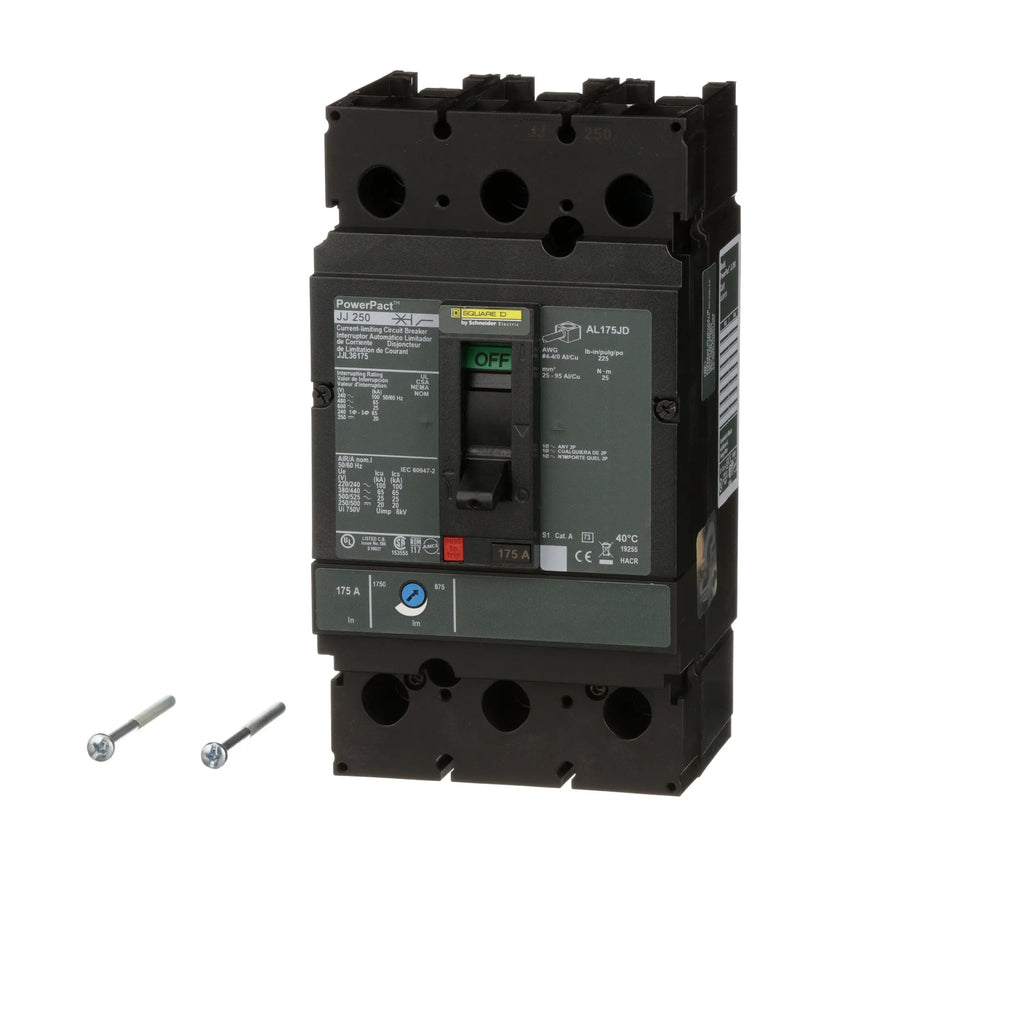

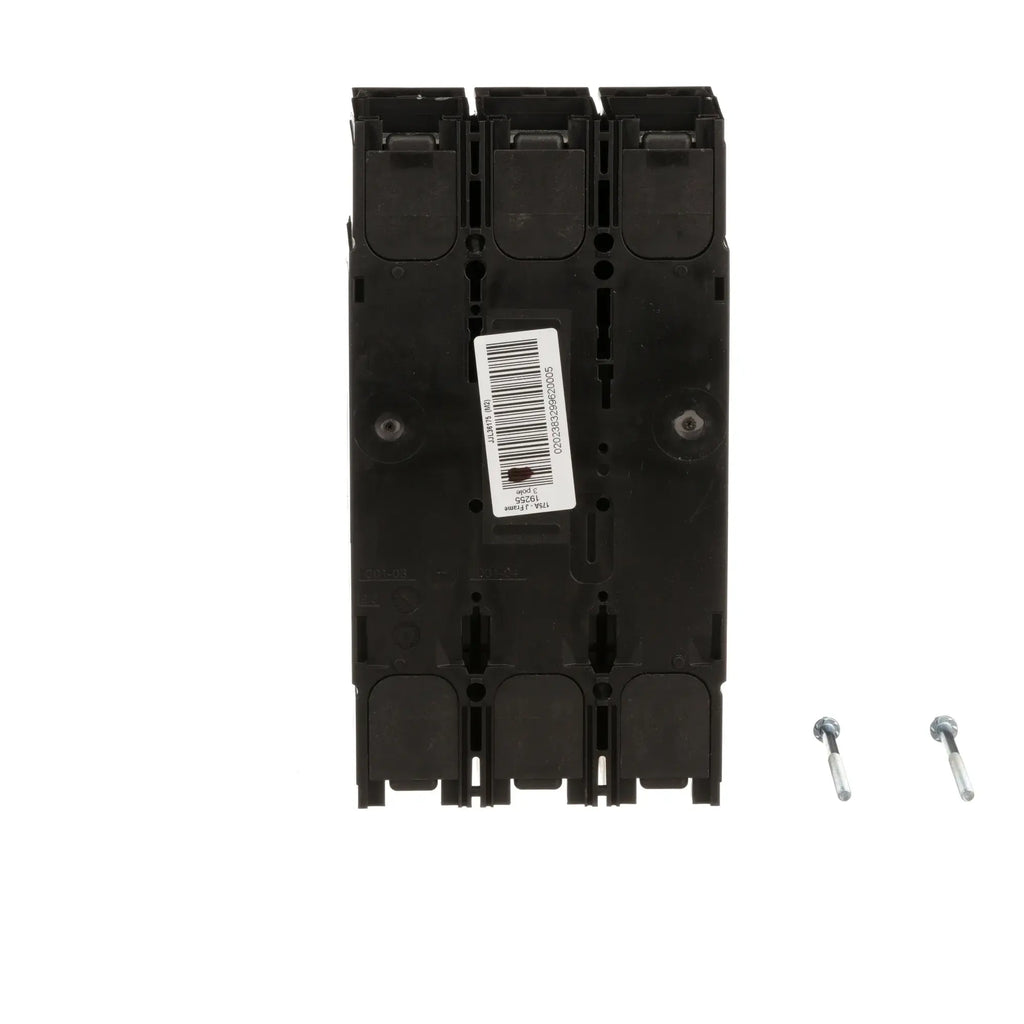

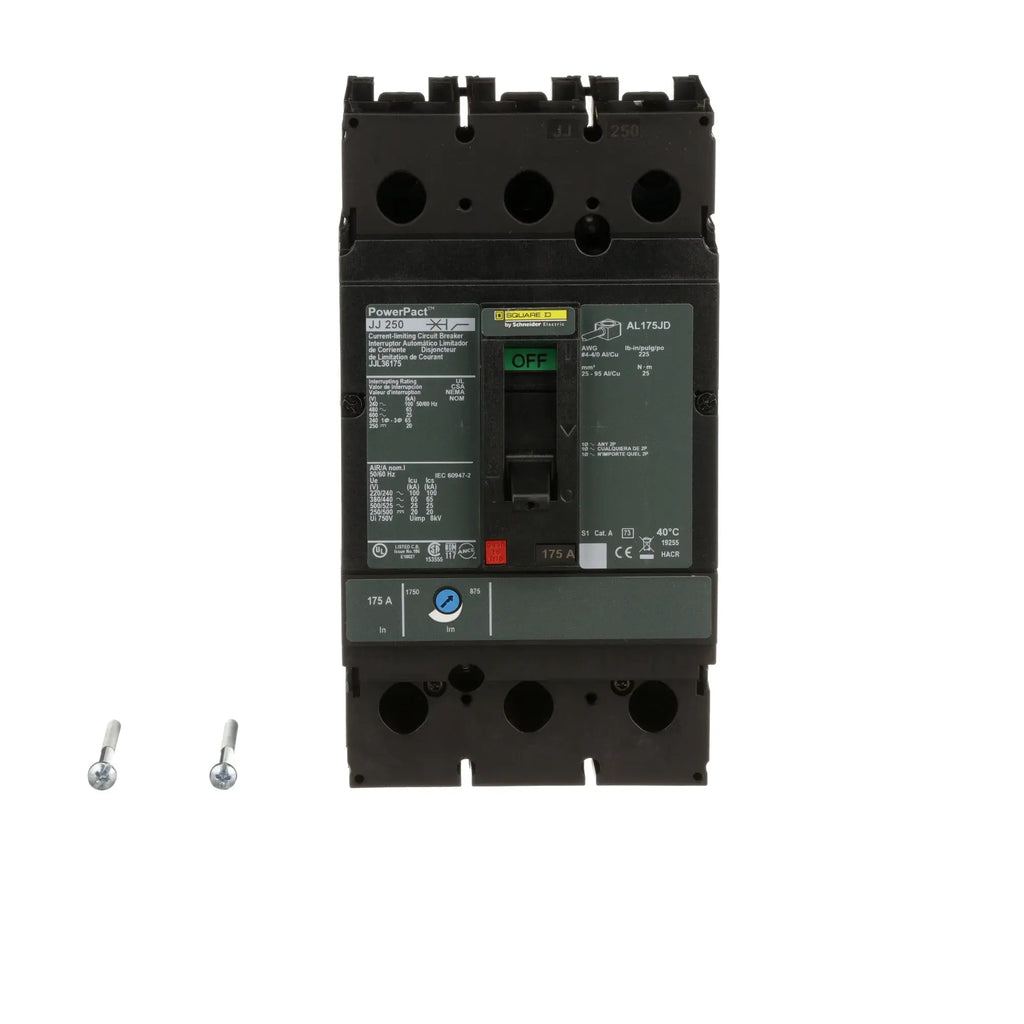

JJL36175
JJL36175 is a Square D molded case circuit breaker designed for reliable protection in commercial and industrial applications.
This 3-pole, 175 Amp breaker features a thermal magnetic trip unit, current limiting design, and plug-on mounting for easy installation. It is rated for 600V AC and 250V DC operation, with UL and CSA certifications for safety and compliance. The JJL frame series offers robust performance and is suitable for a wide range of power distribution needs.
Key Specifications
- Amperage: 175A
- Voltage: 600V AC, 250V DC
- Poles: 3
- Mounting Type: Plug-On
- Interrupt Rating: Not specified in available data
- Series/Frame: JJL
- Trip Unit: Thermal Magnetic, Adjustable
- Certifications: UL, CSA
- Electrical Connection: Lug line / Lugs load
- Continuous Current Rating: 80%
- Control Type: Toggle
- Dimensions: 4.09" W x 3.39" D x 7.52" H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JJL36175
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : JJL
- Voltage : 600
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : J
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 4/0 AWG (Cu/Al)
- Protection : Thermal Magnetic
- Phase Connection : CB
Product Data
- UPC : 785901955948
- GTIN : 00785901955948
- Country of Origin : Mexico

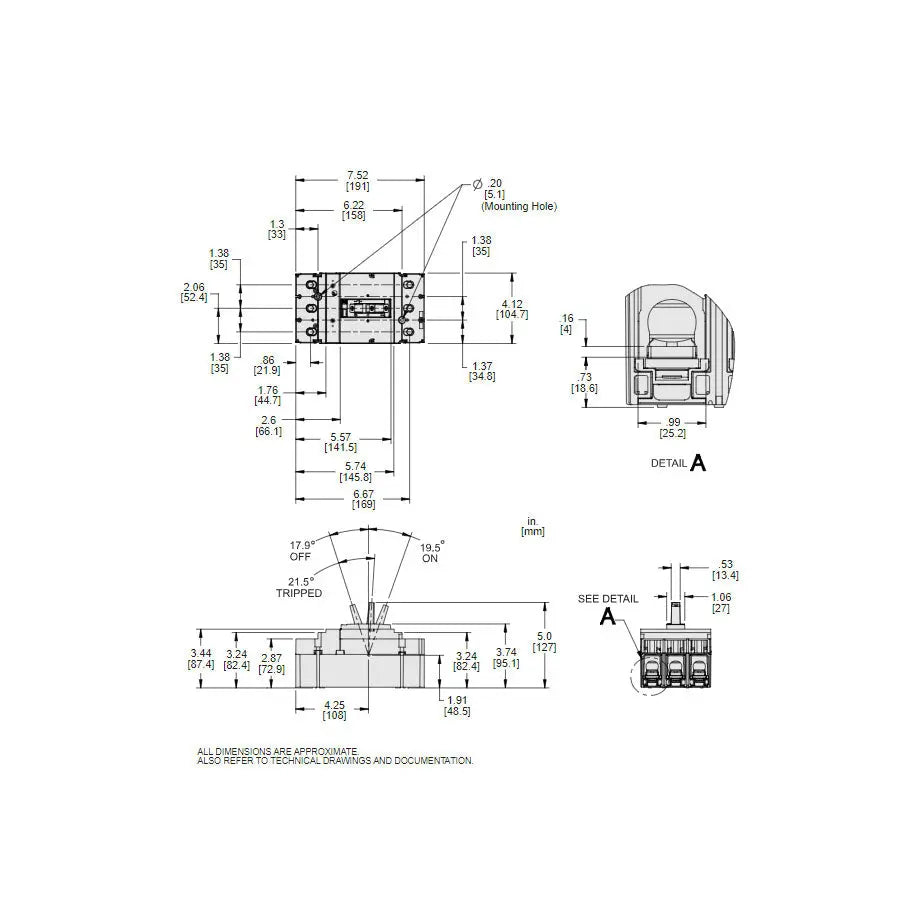

- Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 6.757
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
Technical Documents
