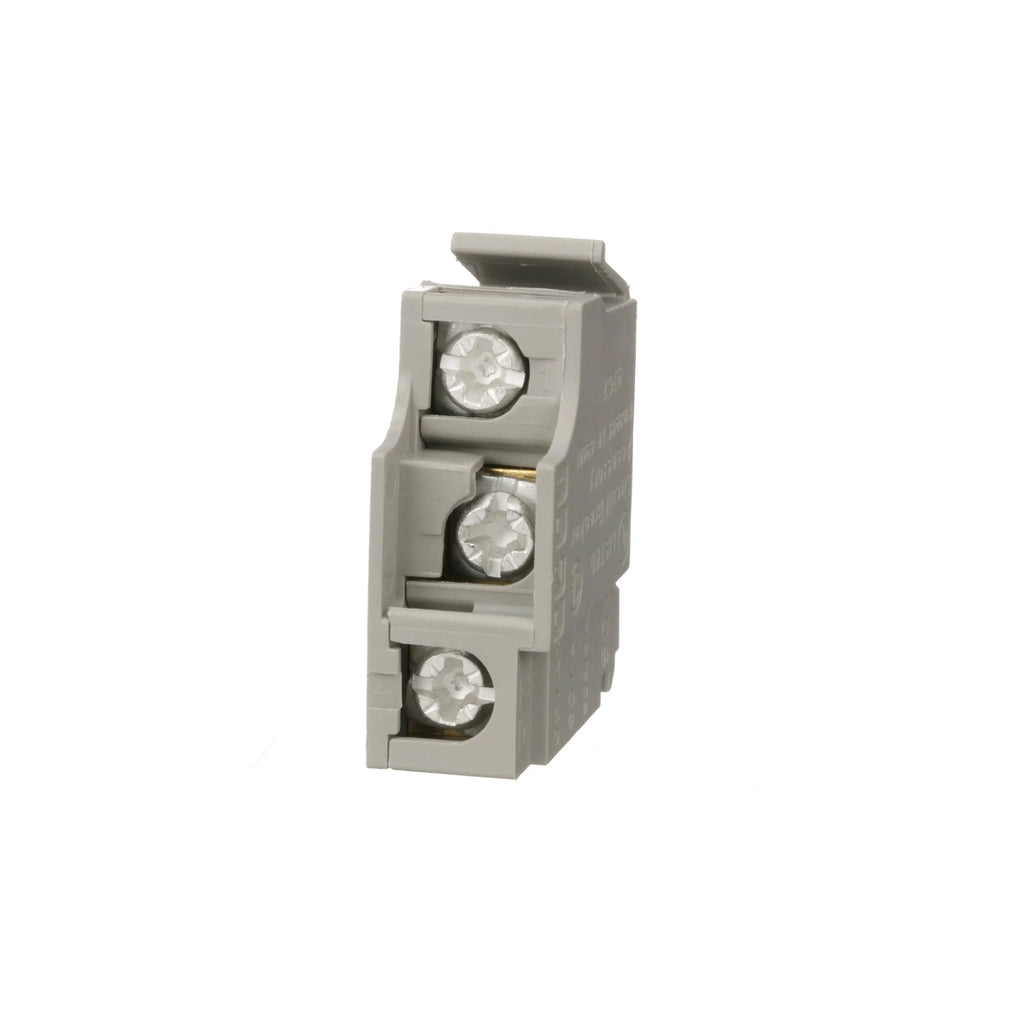

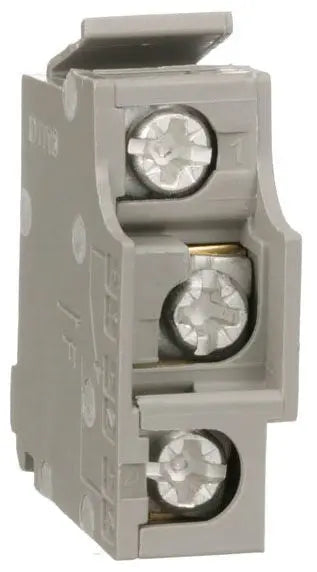

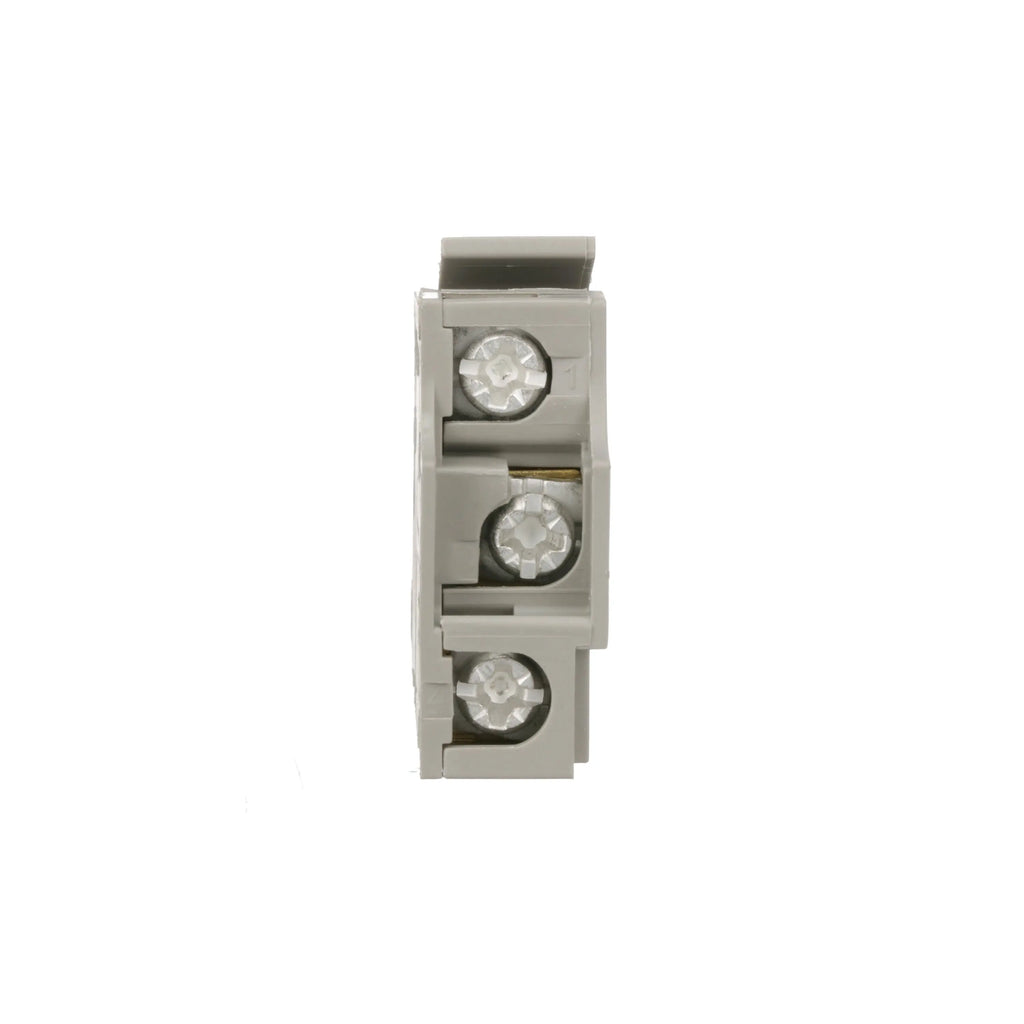

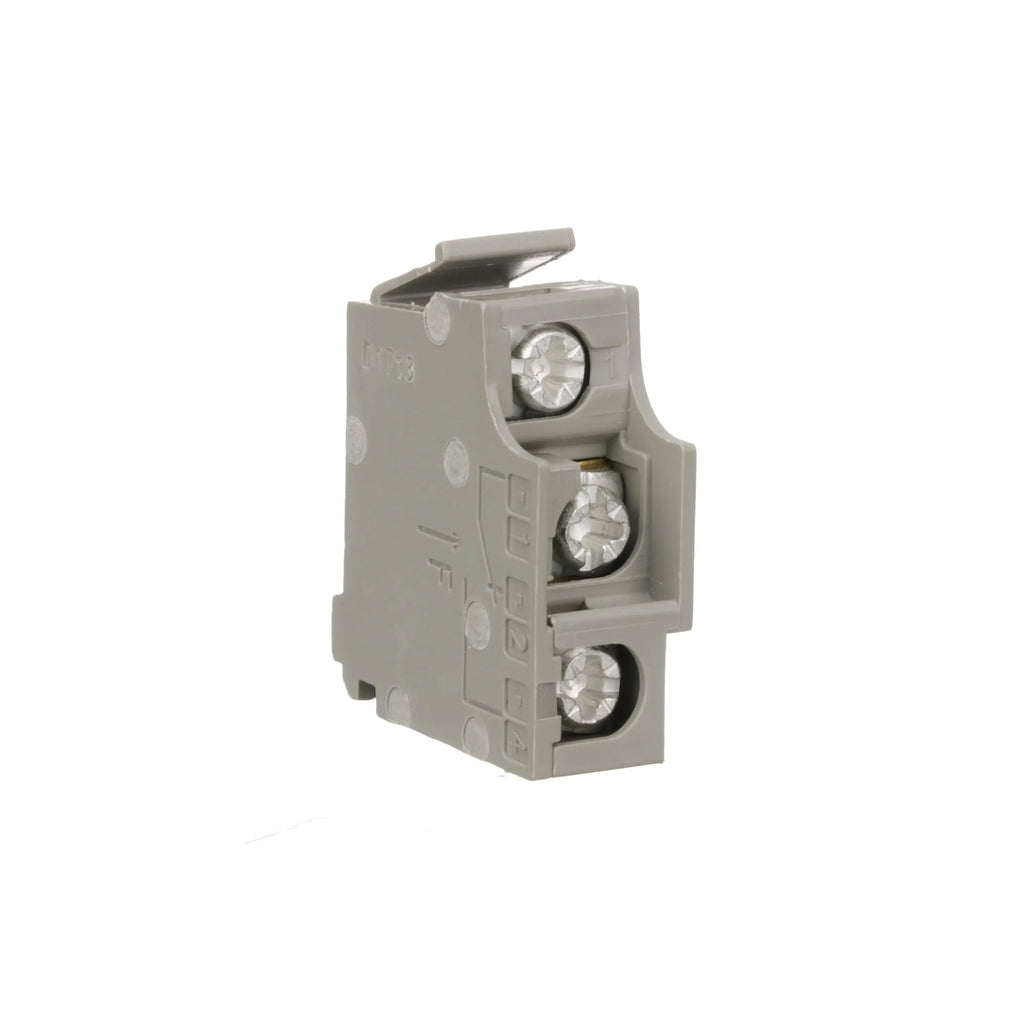

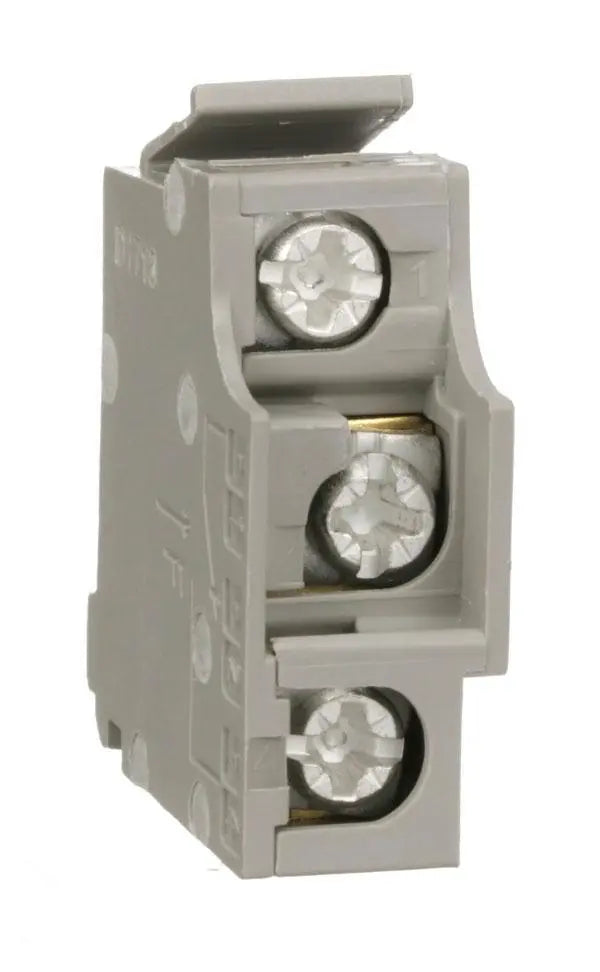

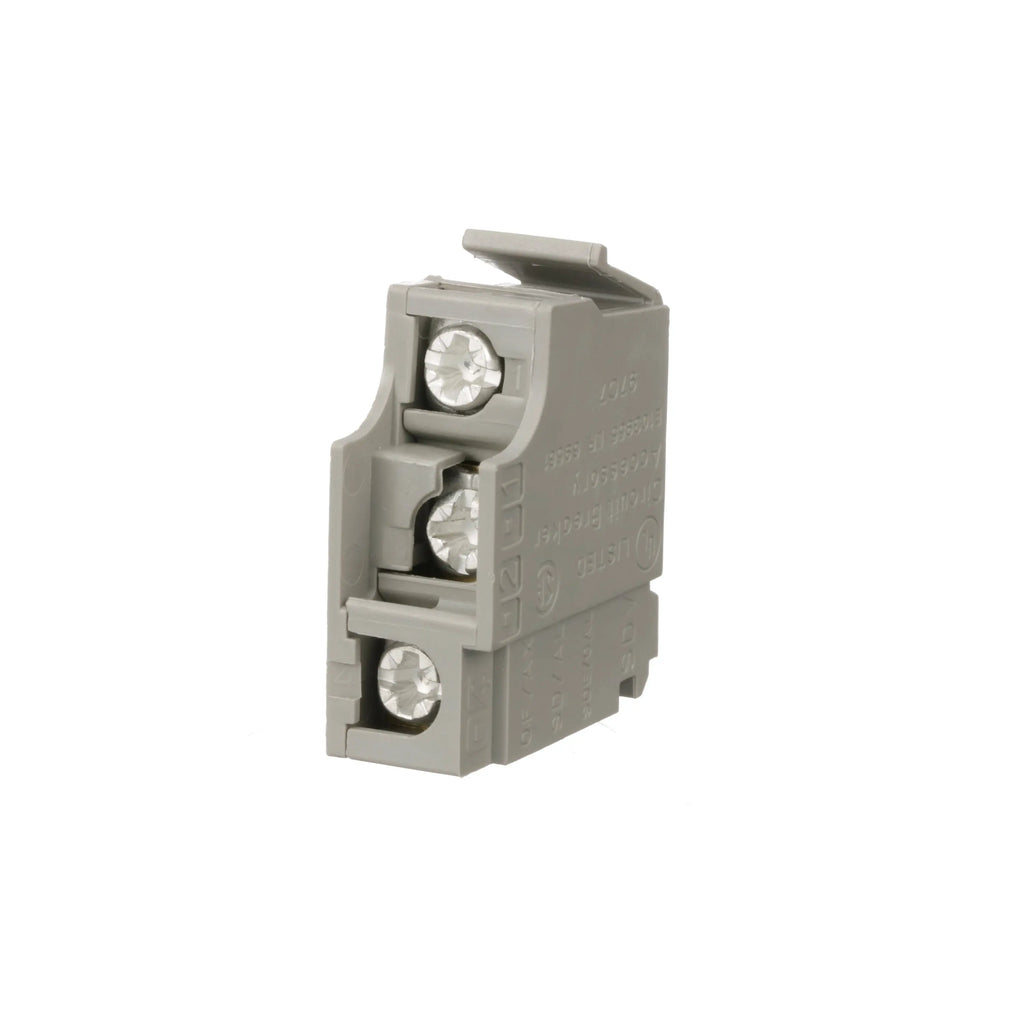

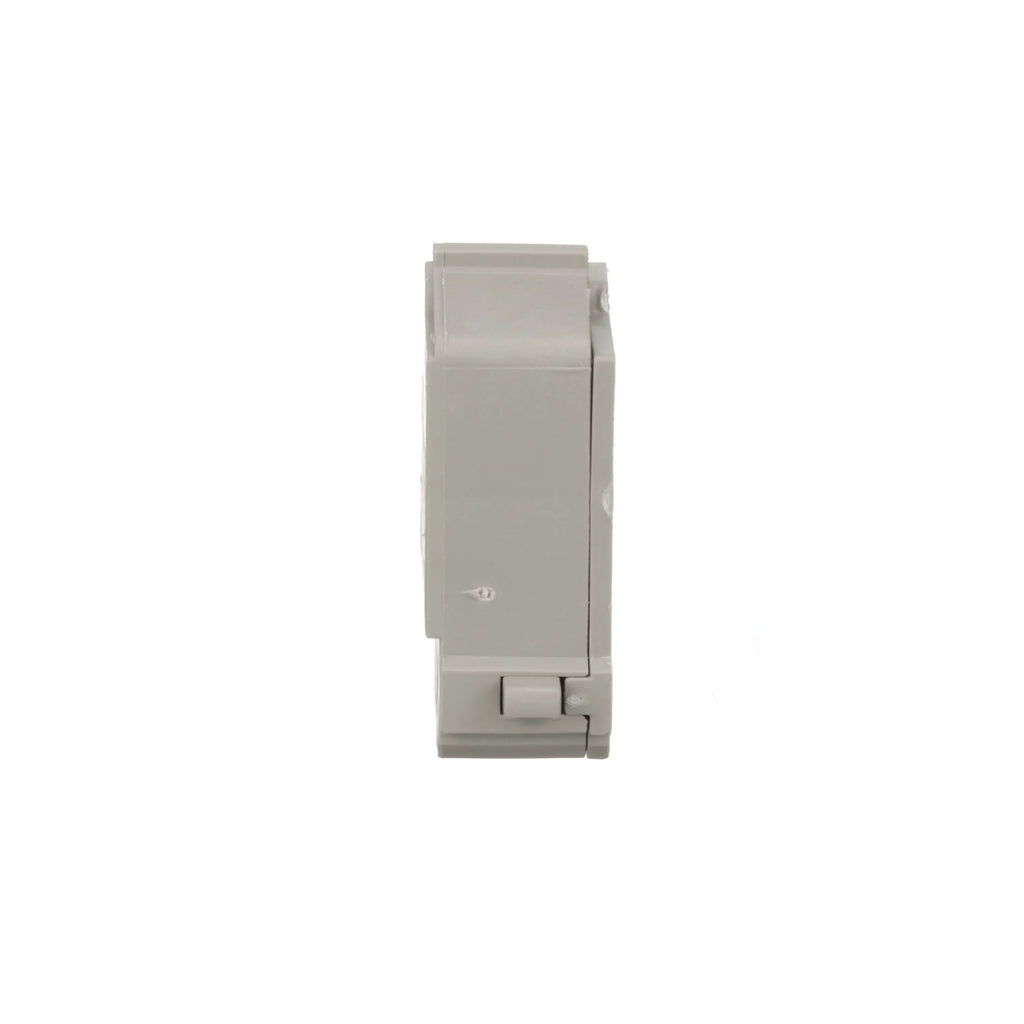

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Auxiliary
- Series
- Powerpact
- Frame
- PowerPacT
- Configuration
- 1A, 1B
- Country of origin
- United States
- Voltage
- 600
- Compatible Frames
- DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, LR, MG, MJ, PG, PJ, PK, PL, RG, RJ, RK, RL
- UPC
- 785901506416
- GTIN
- 00785901506416
- Dimensions
- 1.34 in (34.04 mm) x 0.496 in (12.598 mm) x 1.19 in (30.23 mm) (Height x Width x Depth)
- Weight
- 0.09
- Certification
- UL, IEC, CSA, NEMA
Product description & additional details
S29450
S29450 is a Square D PowerPact auxiliary switch designed for use with H, J, L, M, P, and R frame circuit breakers, providing remote indication of breaker status.
This auxiliary switch features a 1NO-1NC contact configuration, a 600 VAC voltage rating, and a minimum load of 100mA at 24V. It is compatible with multiple PowerPact circuit breaker frames and complies with UL, CSA, and IEC standards. The switch accepts 3/16 or 3/8 inch lock shackles for secure mounting and is RoHS compliant.
- Key Specifications
- Manufacturer: Square D
- Part Number: S29450
- Category: Circuit Breaker Auxiliary Switch
- Compatible Frames: PowerPact H, J, L, M, P, R
- Contact Configuration: 1NO-1NC (one normally open, one normally closed)
- Voltage Rating: 600 VAC
- Minimum Load: 100mA at 24V
- Mounting: Accepts 3/16 or 3/8 inch lock shackle
- Certifications: UL Listed, CSA Certified, IEC Compliant
- RoHS Compliant
- Part Number: S29450
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Auxiliary
- Family : Powerpact
- Type : PowerPacT
- Voltage : 600
- Configuration : 1A, 1B
- Compatible Frames : DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, LR, MG, MJ, PG, PJ, PK, PL, RG, RJ, RK, RL
- UPC : 785901506416
- GTIN : 00785901506416
- Country of Origin : United States
- Dimensions : 1.34 in (34.04 mm) x 0.496 in (12.598 mm) x 1.19 in (30.23 mm) (Height x Width x Depth)
- Weight : 0.09
- Certification : UL, IEC, CSA, NEMA
