S29412

S29412

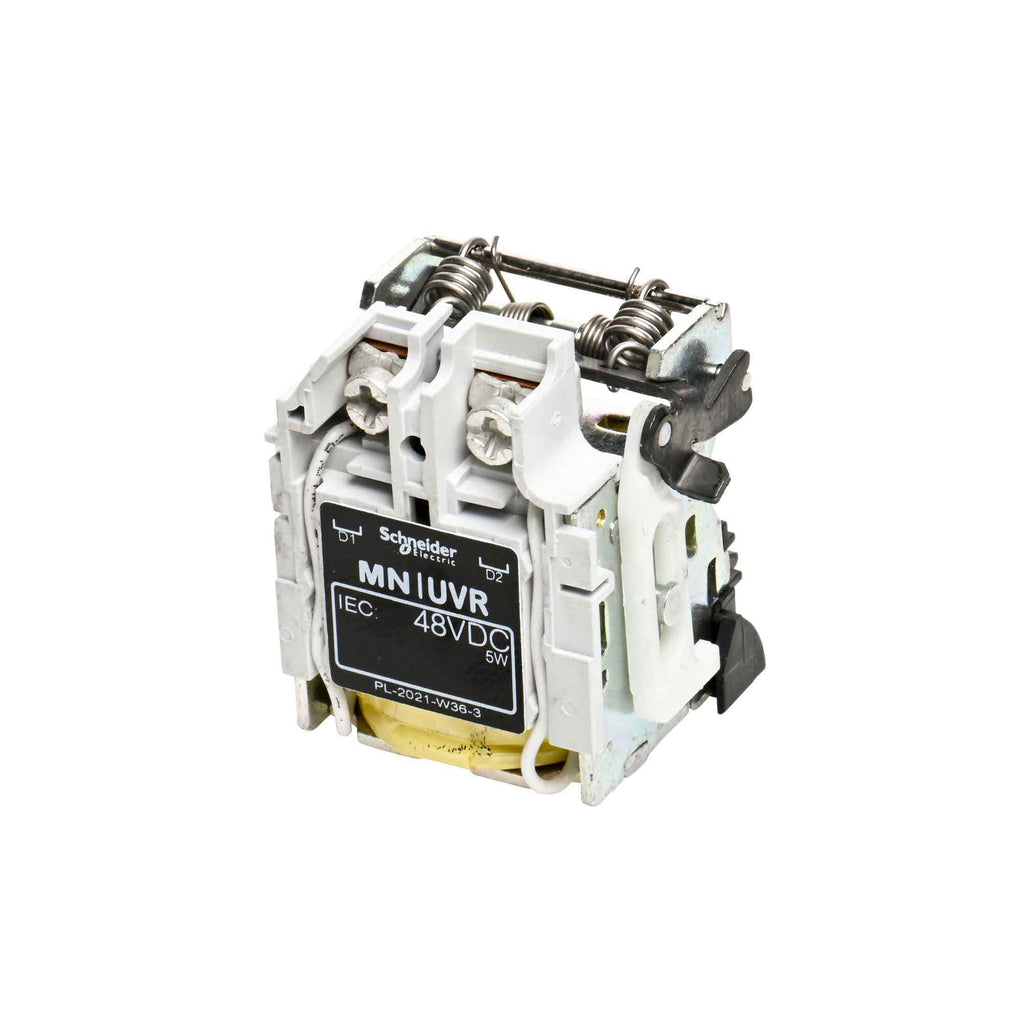

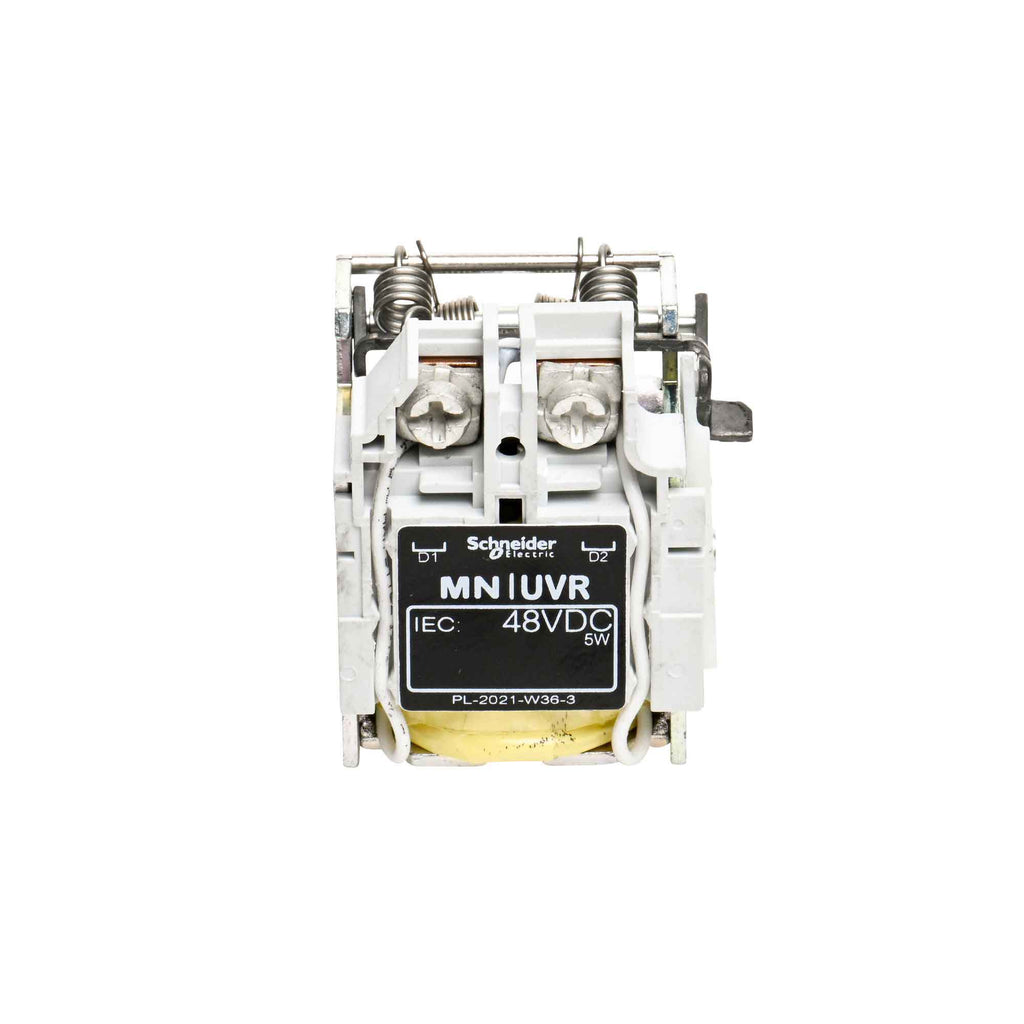

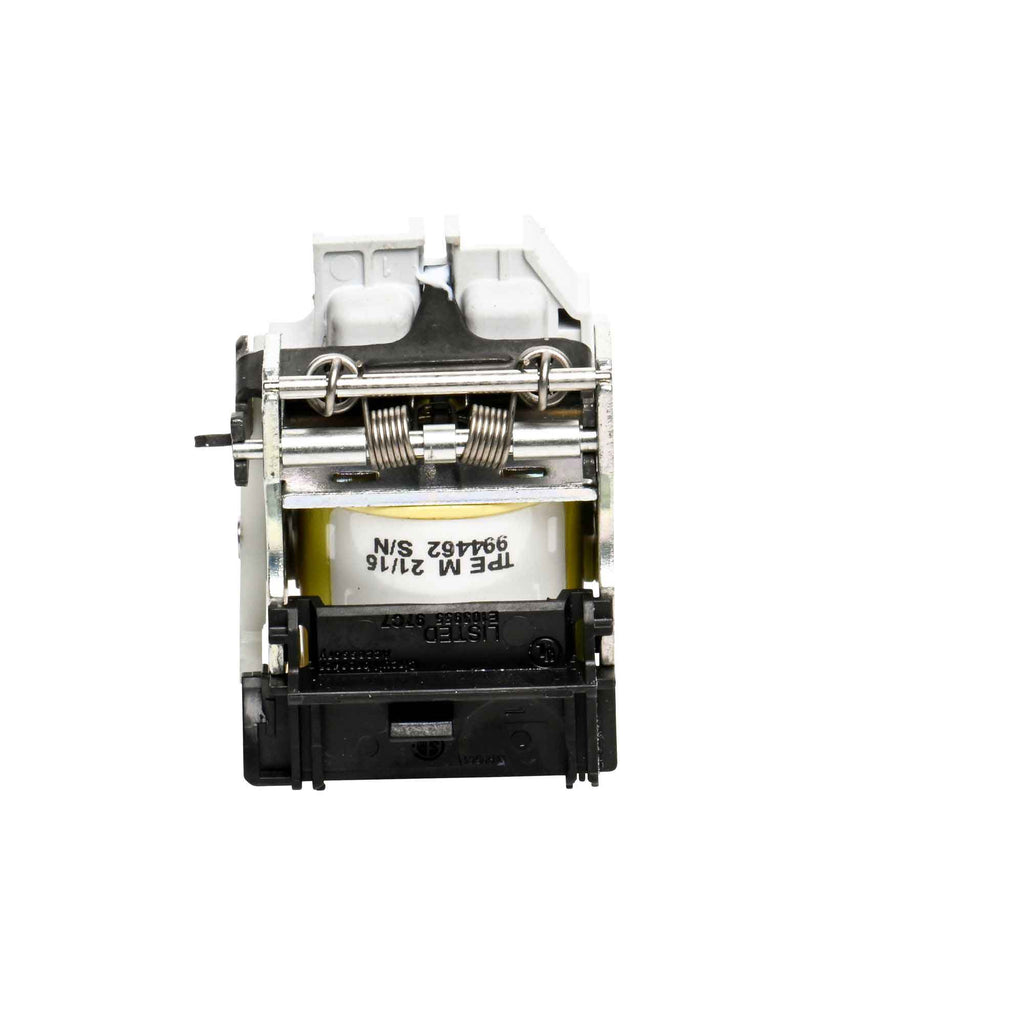

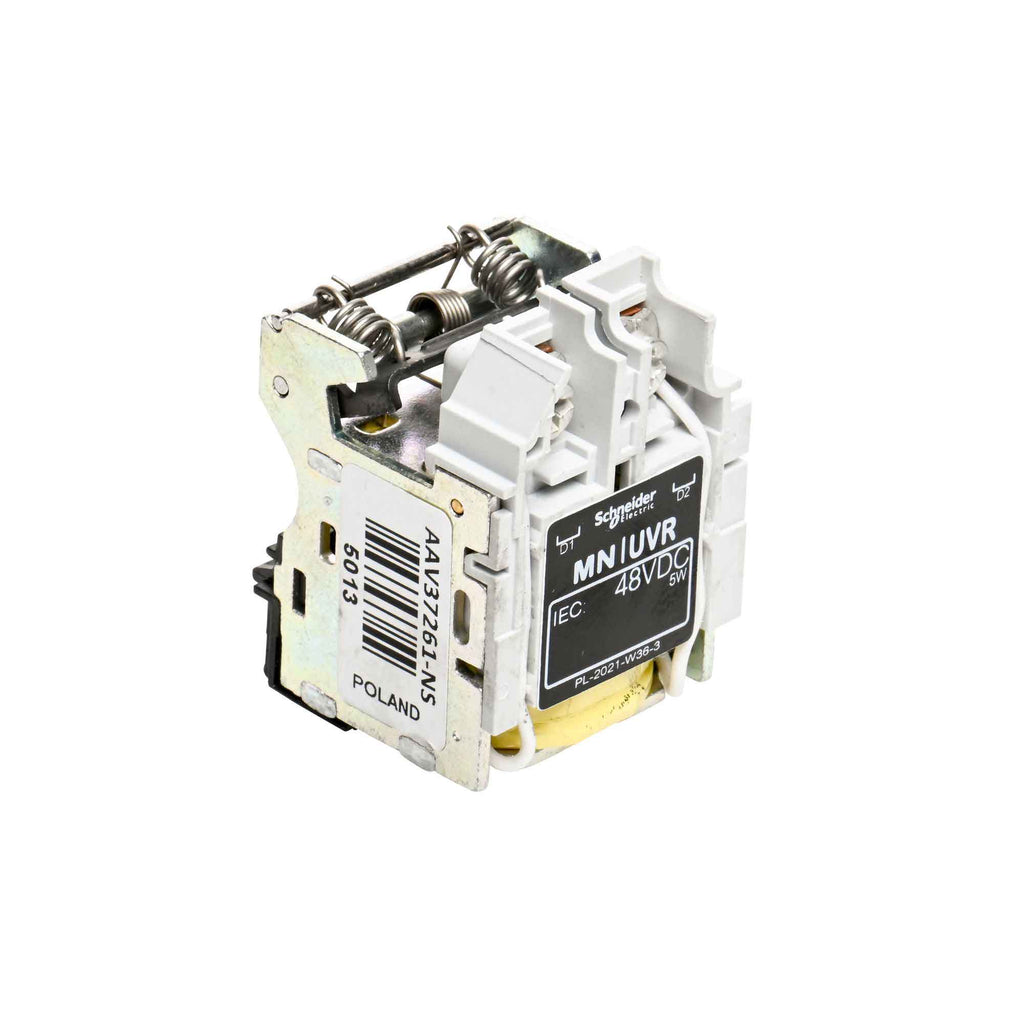

S29412 is an undervoltage trip accessory designed for Square D PowerPact H, J, and L frame circuit breakers operating at 48 V DC.This undervoltage trip protects electrical systems by sensing low voltage conditions and tripping the circuit breaker to prevent damage from overloads and short circuits. It features a screw connection for easy installation and complies with UL 489, CSA, and IEC standards.

• Compatible with PowerPact H, J, and L frame circuit breakers
• Voltage rating: 48 V DC
• Type: Undervoltage trip accessory
• Connection: Screw connection
• Protects against low voltage conditions
• Complies with UL 489, CSA, and IEC standards
• Country of origin: US
• Tightening torque: 12.4 lbf.in (1.4 N.m)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: S29412
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Under Voltage Release
• Family : Powerpact
• Type : S
• Voltage : 48 DC
• Connection : Screw connection
• Frame Size : J-Frame/H-Frame/L-Frame
• Control Voltage Minimum : 48
• Compatible Frames : DG,DJ,DL,HD,HG,HJ,HL,HR,JD,JG,JJ,JL,JR,LD,LG,LJ,LL,LR
• Control Voltate Maximum : 48

Product Data

• UPC : 785901945413
• GTIN : 00785901945413
• Country of Origin : United States
• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 0.35
• Panel Type : PowerPact H PowerPact, PowerPact J PowerPact, PowerPact L PowerPact
