Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Molded Case
- Series
- EDB Series
- Frame
- EDB
- Rated current
- 100
- Voltage
- 480Y/277
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 18kA@480V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Terminals
- Lug
- Panel / equipment
- NF panelboard
- Standards
- cULus, IEC
- Country of origin
- Mexico
Show all specifications (10 more)
- Frame Size
- 125A/EDB
- Temp Rating
- 104°F (40°C)
- MCM Size
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2 AWG
- Breaker Type
- Standard
- UPC
- 785901875383
- GTIN
- 00785901875383
- Dimensions
- 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
- Weight
- 3.521 lb
- Certification
- cULus, IEC
- Wire Size
- AWG 12 to AWG 2/0, Aluminum, AWG 14 to AWG 2/0, Copper
Product description & additional details

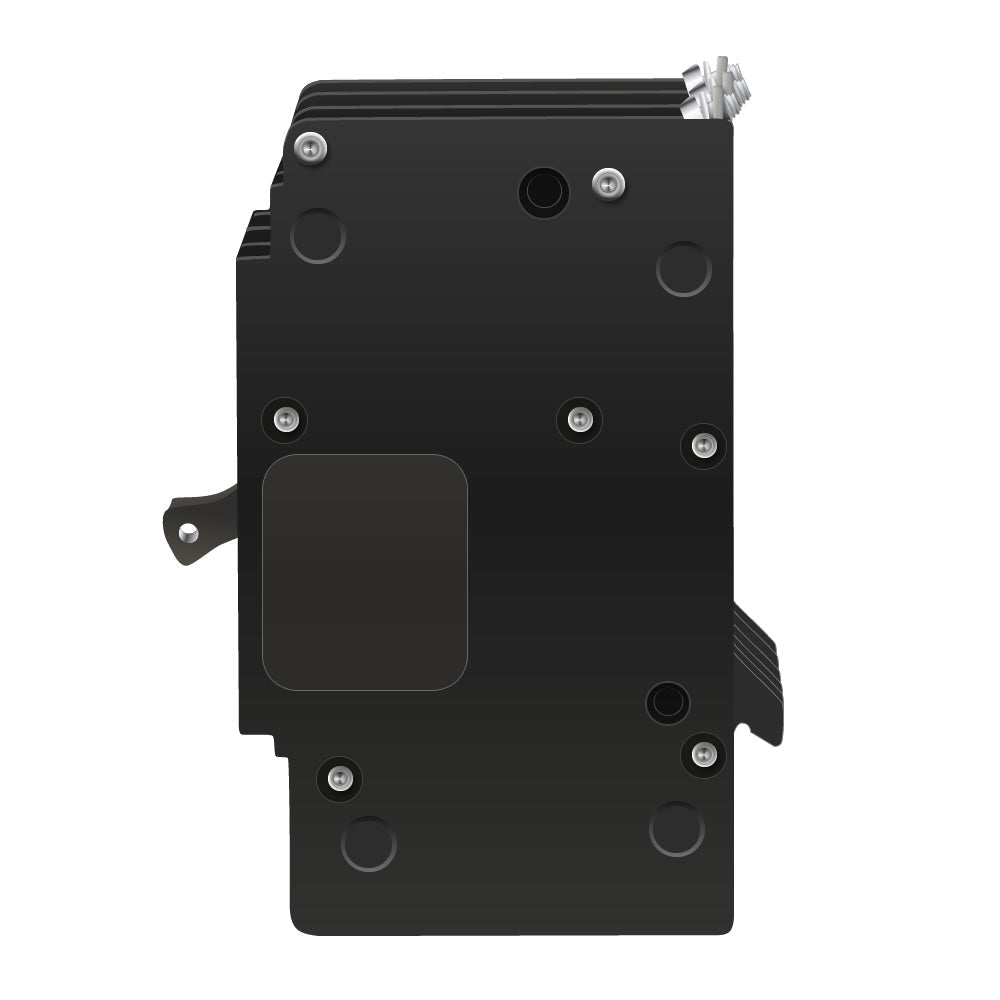

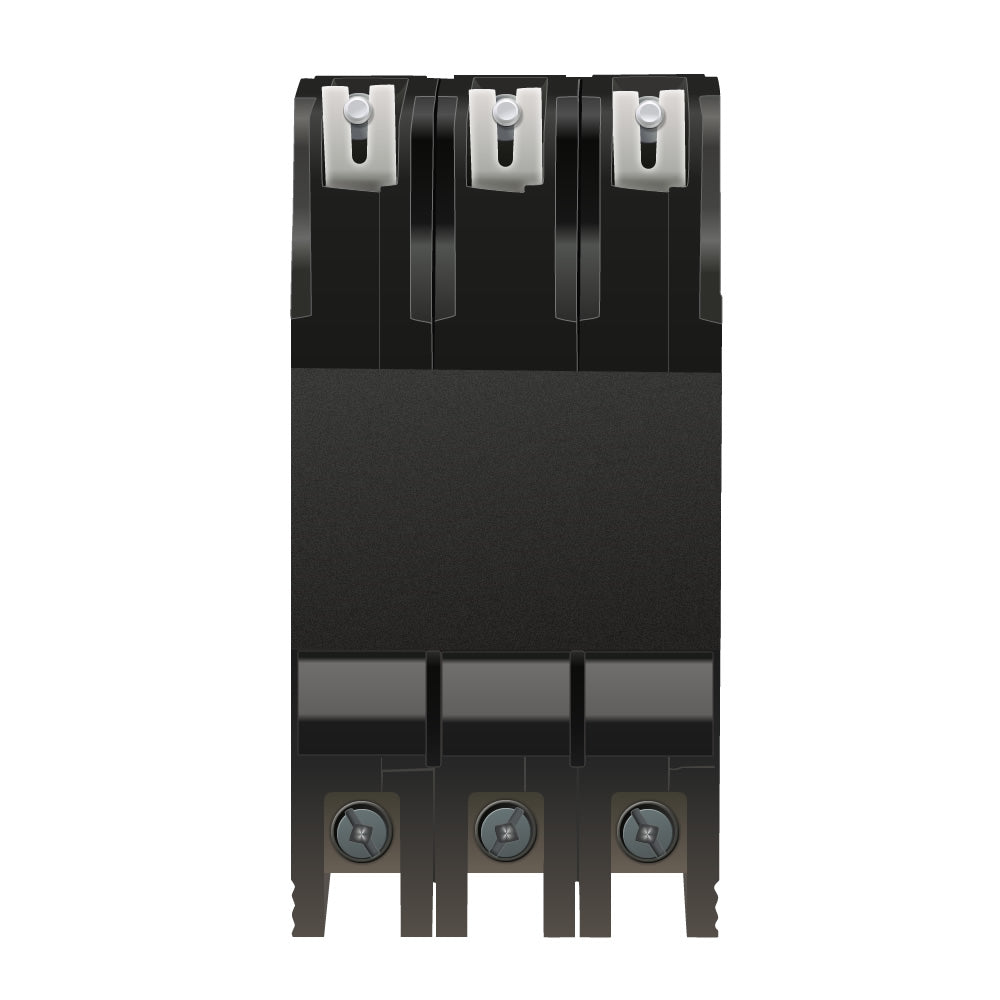

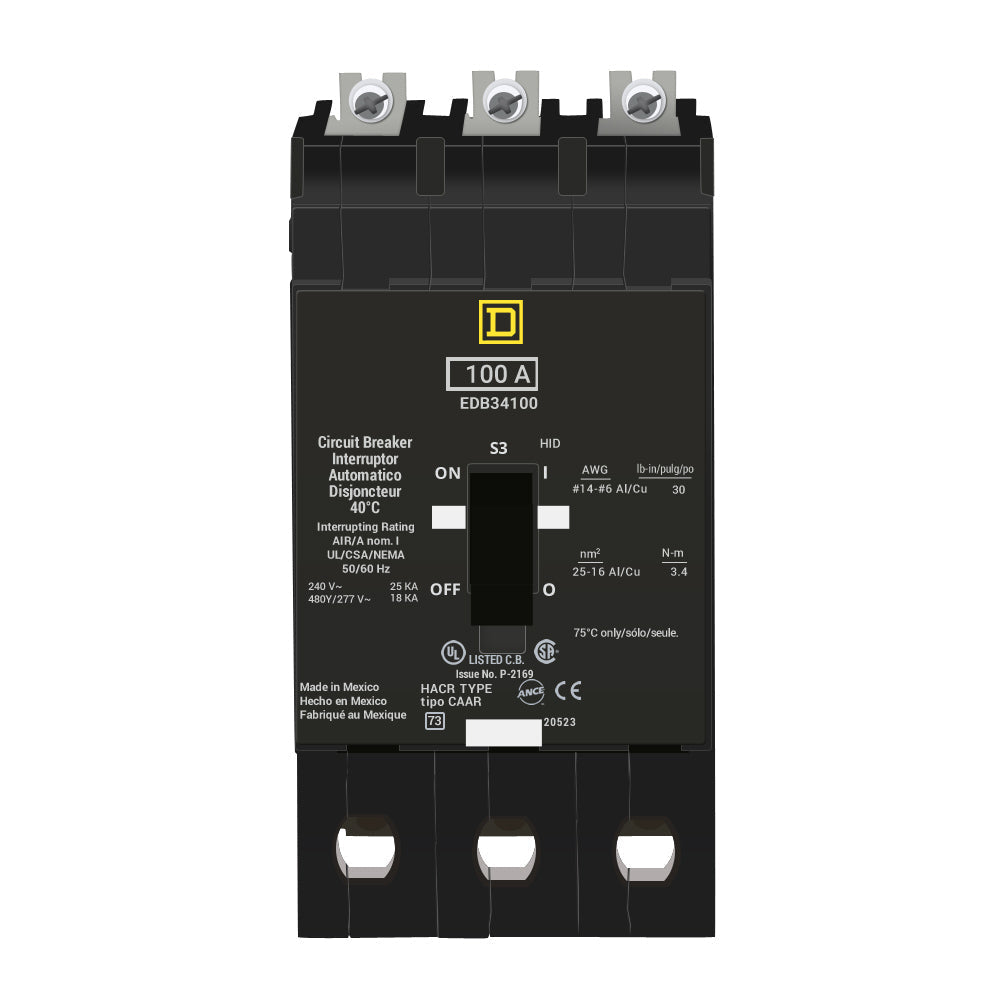

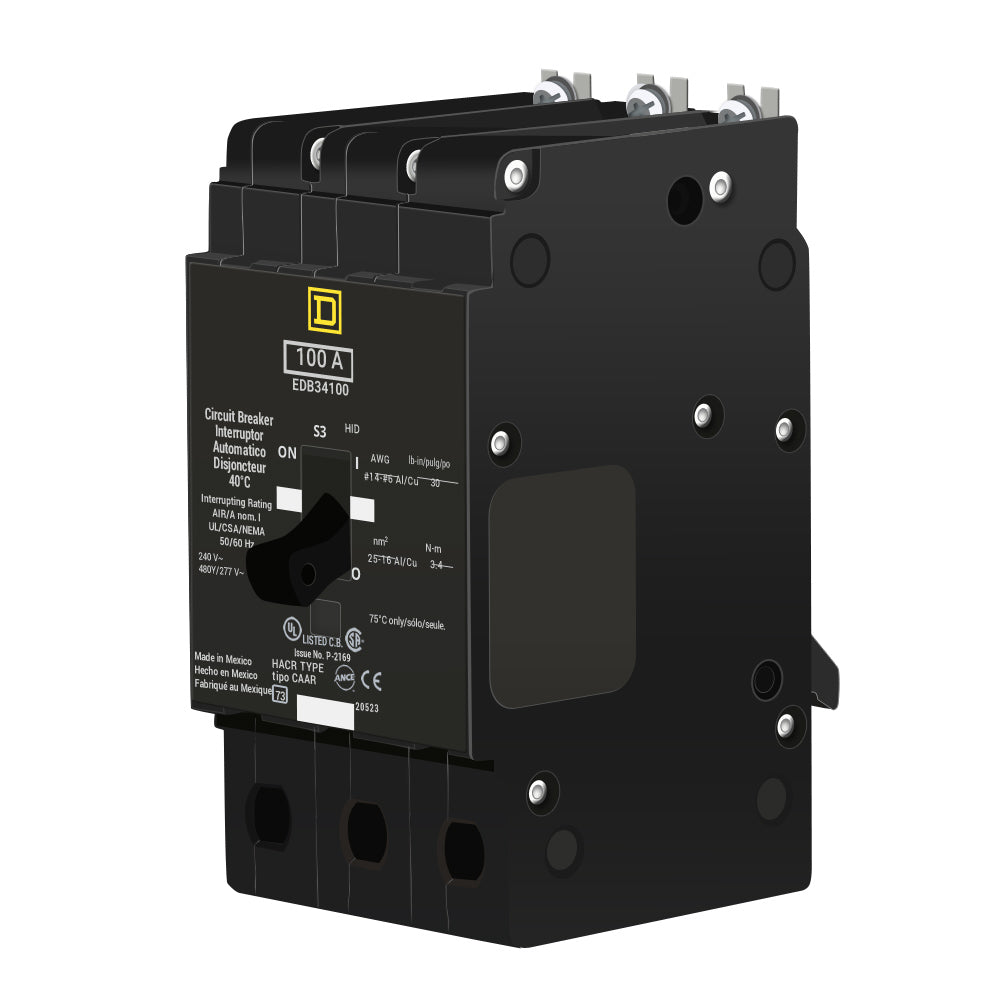

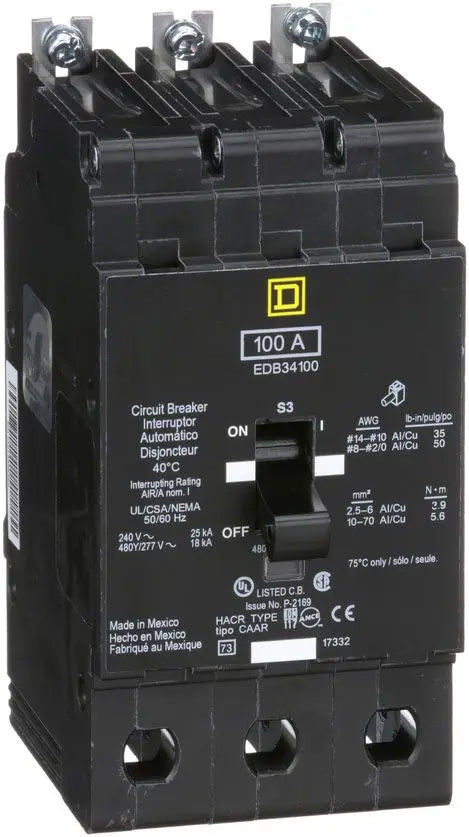

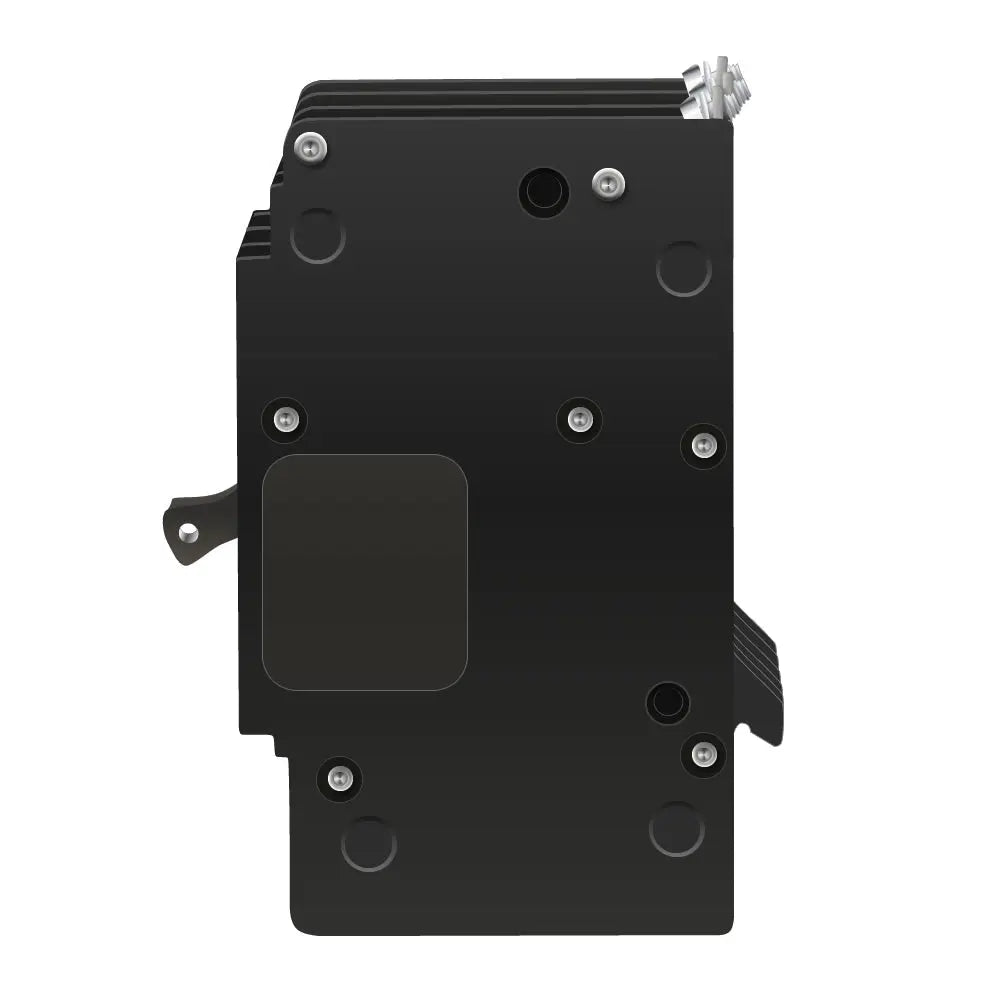

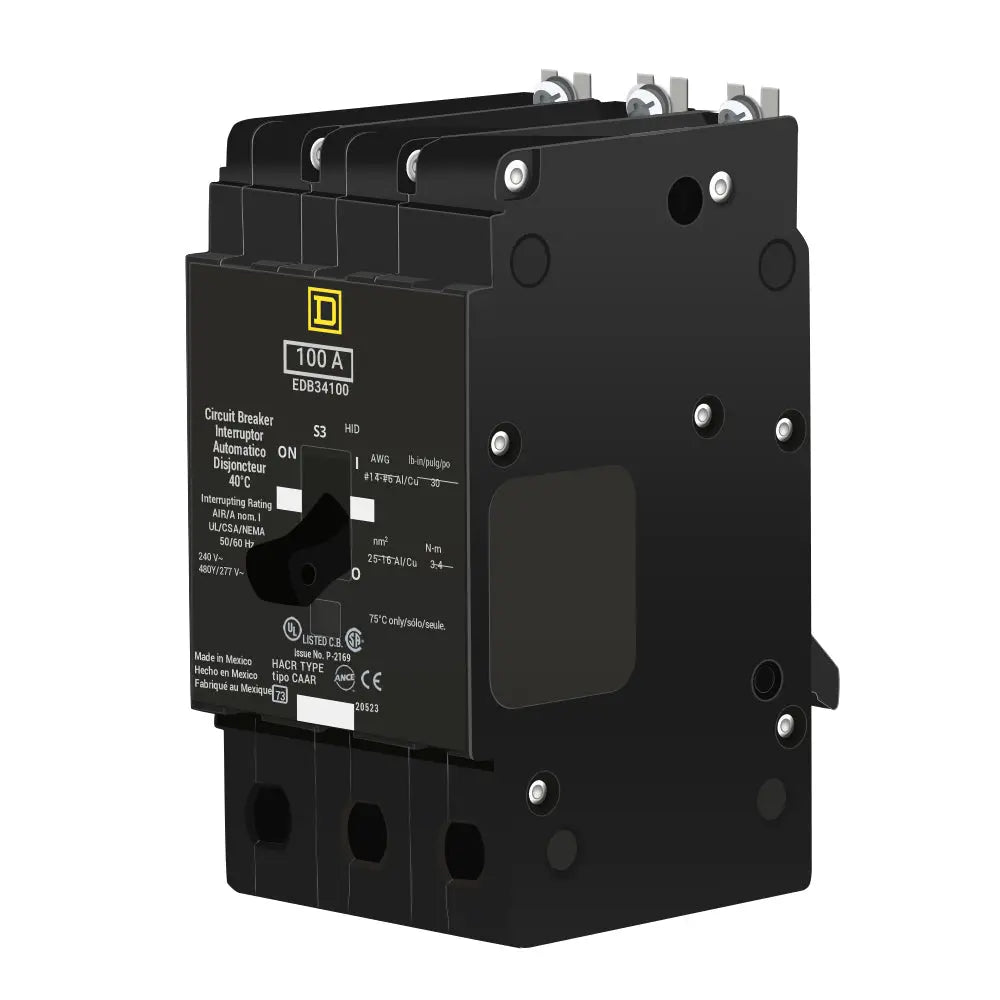

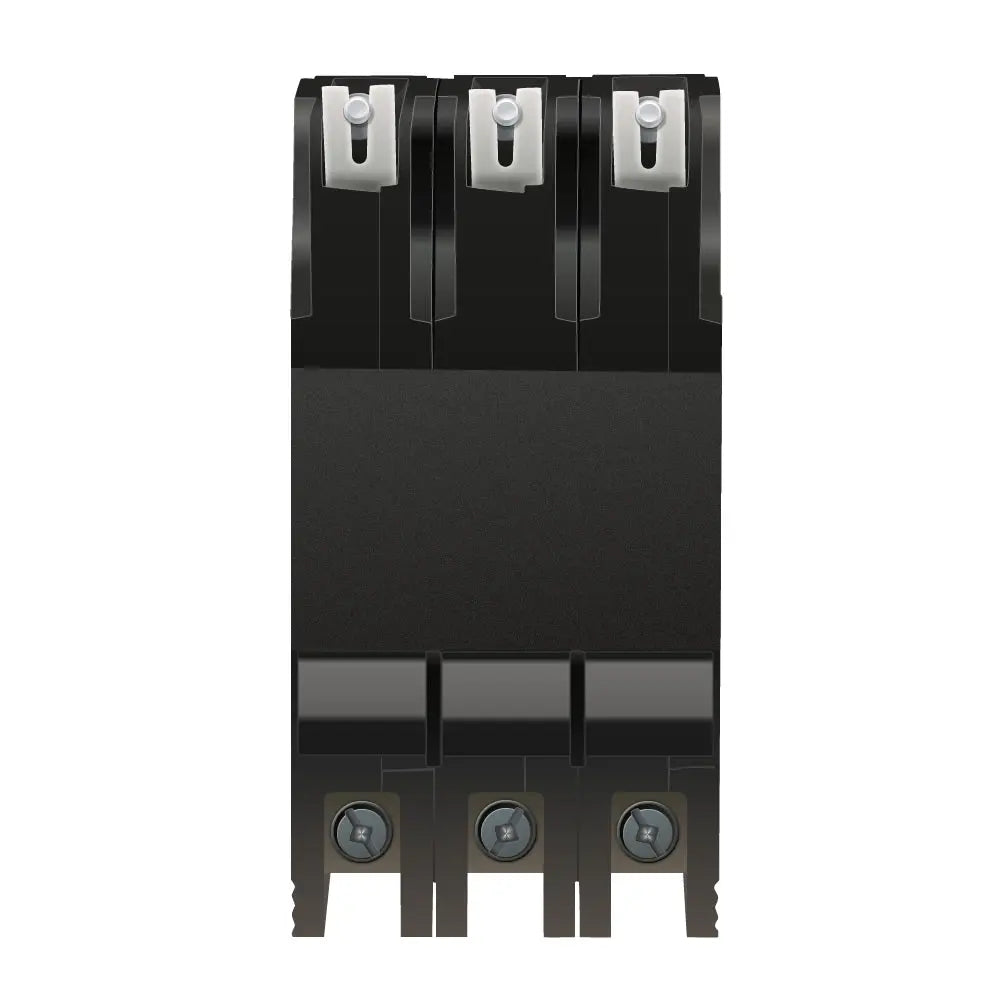

EDB34100

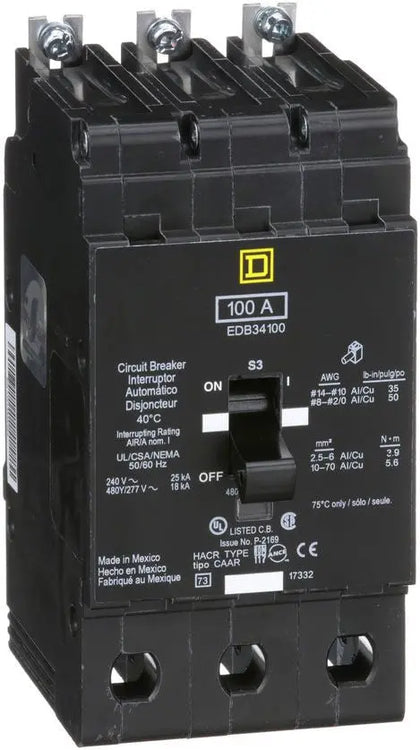

EDB34100 - Schneider Electric E-Frame 3-pole molded case circuit breaker rated at 100A, 480Y/277V AC with thermal-magnetic trip unit.The EDB34100 is a bolt-on miniature circuit breaker from the EDB series, designed for Square D NF panelboards. It provides superior overload and short-circuit protection with LI functions, trip indicator, and HACR-rated performance. Electrical connections support aluminum lugs (AWG 12-6) and copper lugs (AWG 14-6).
- Part Number: EDB34100
- Manufacturer: Schneider Electric (Square D)
- Amperage: 100A
- Voltage: 480Y/277V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 18kA@480Y/277V, 18kA@277V, 25kA@240V/120V
- Series/Frame: EDB / E-Frame
- Trip Unit: Thermal-Magnetic
- Protection: Short-Circuit / Overload
Specifications
- Part Number: EDB34100
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : EDB Series
- Type : EDB
- Voltage : 480Y/277
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/EDB
- Temp Rating : 104°F (40°C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 785901875383
- GTIN : 00785901875383
- Country of Origin : Mexico
- Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
- Weight : 3.521 lb
- Panel Type : NF panelboard
- Standards : cULus, IEC
- Certification : cULus, IEC
- Wire Size : AWG 12 to AWG 2/0, Aluminum, AWG 14 to AWG 2/0, Copper
