EDB34030 - Square D/ Schneider Electric Bolt-On 30 Amp 3 Pole Circuit Breaker

Save $456.68
SKU: EDB34030-New

Title: New
Sale price$212.32 Regular price$669.00
In stock, ready to be shipped

We also have No Box, Recertified, and Surplus options available.
Call (866) 377-3532 for a price!

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

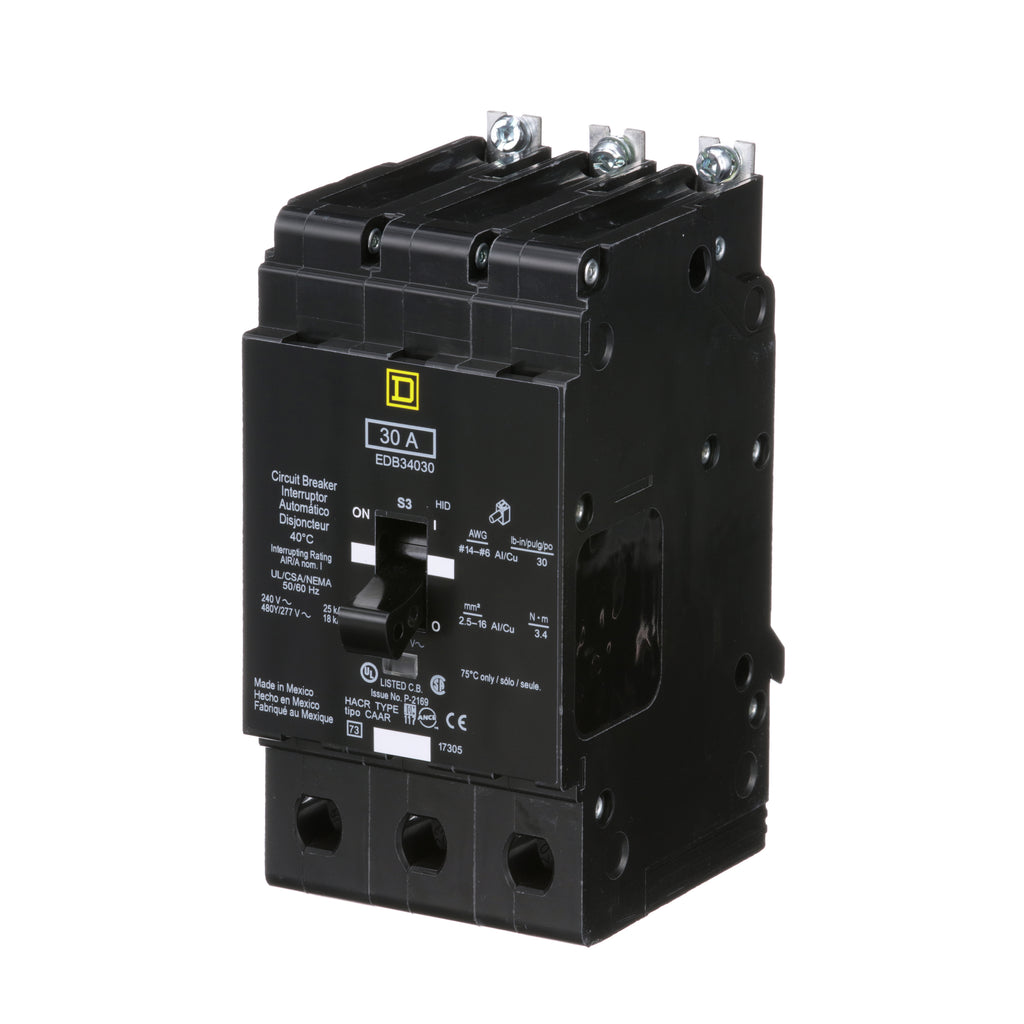

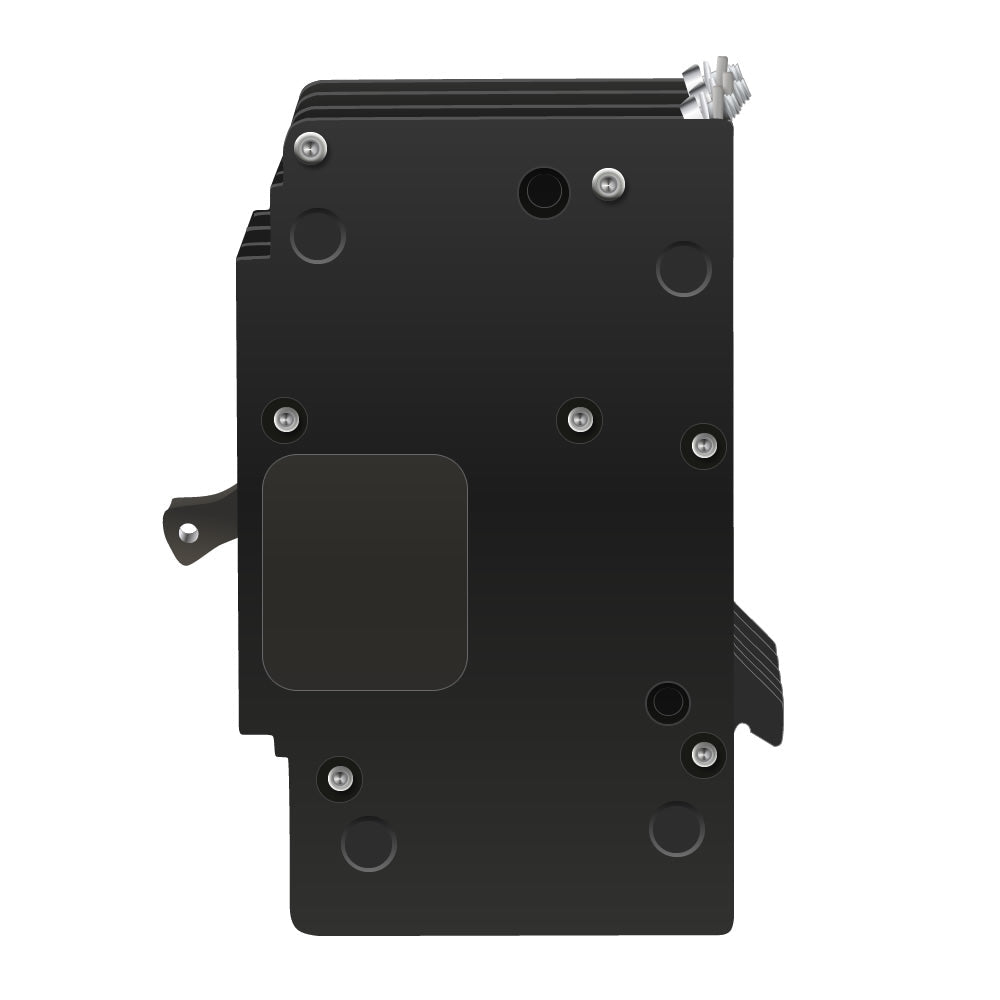

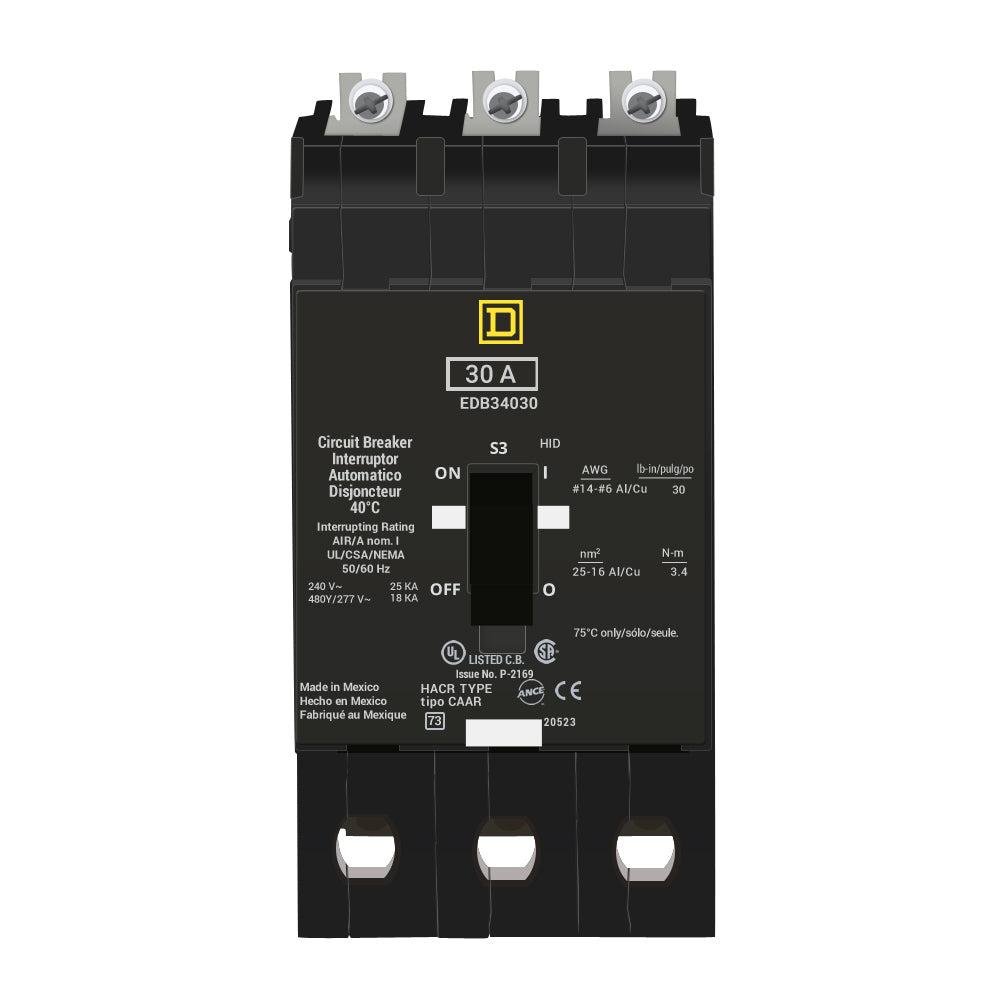

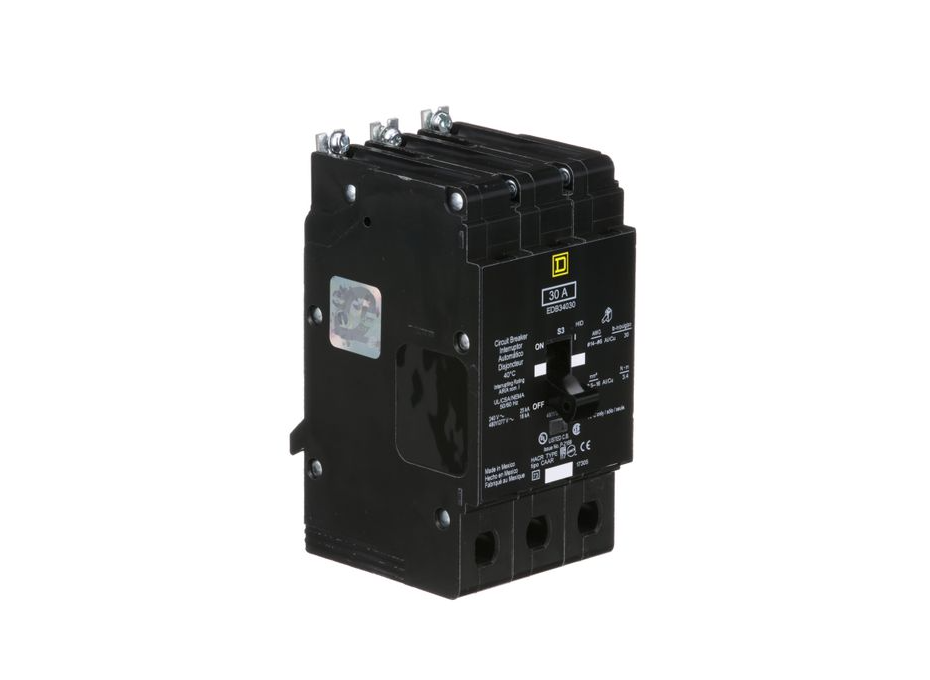

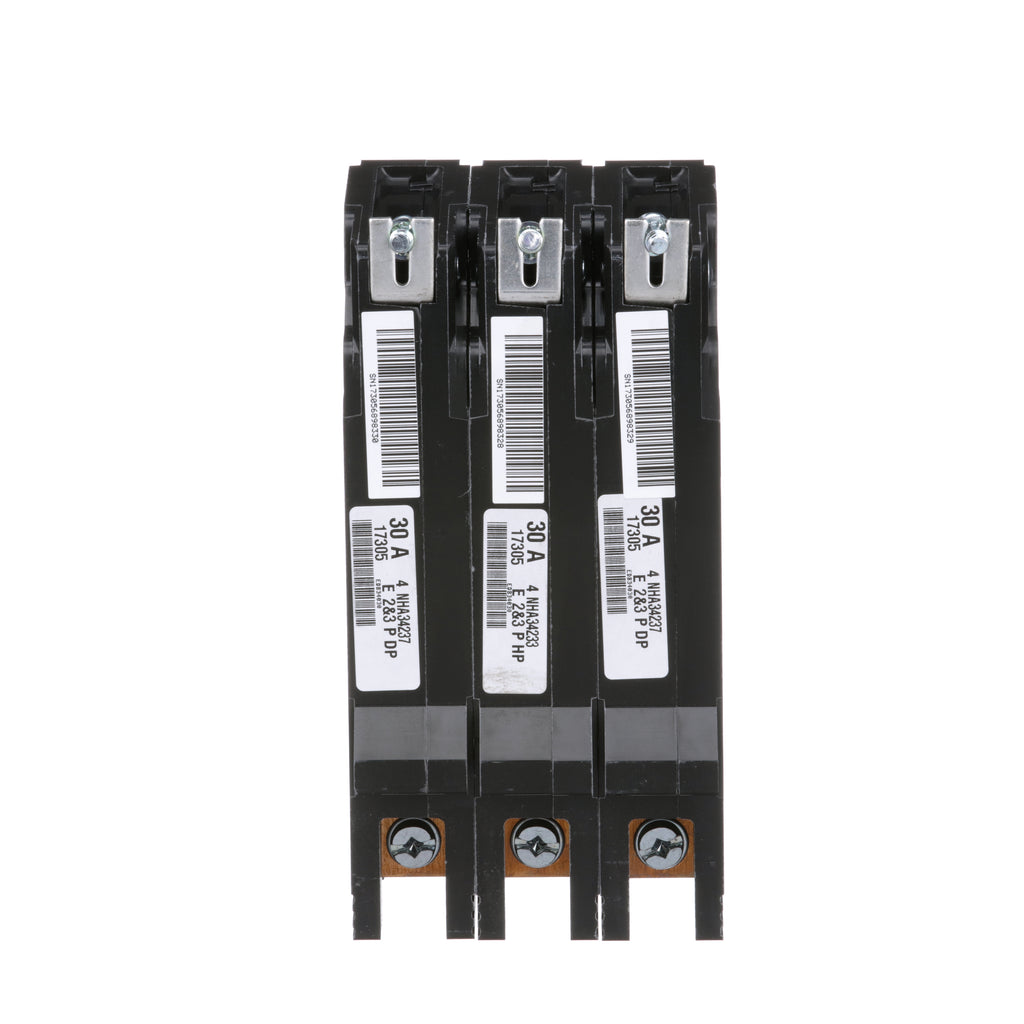

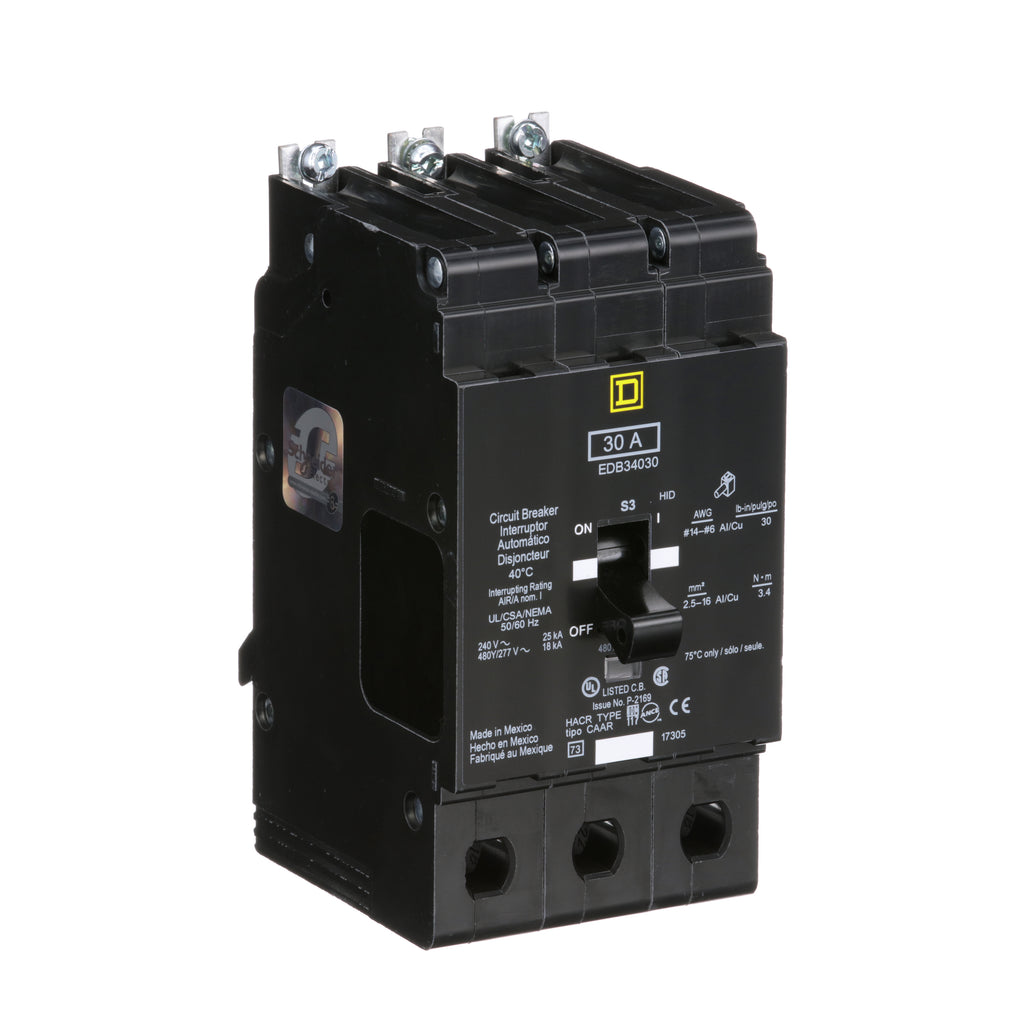

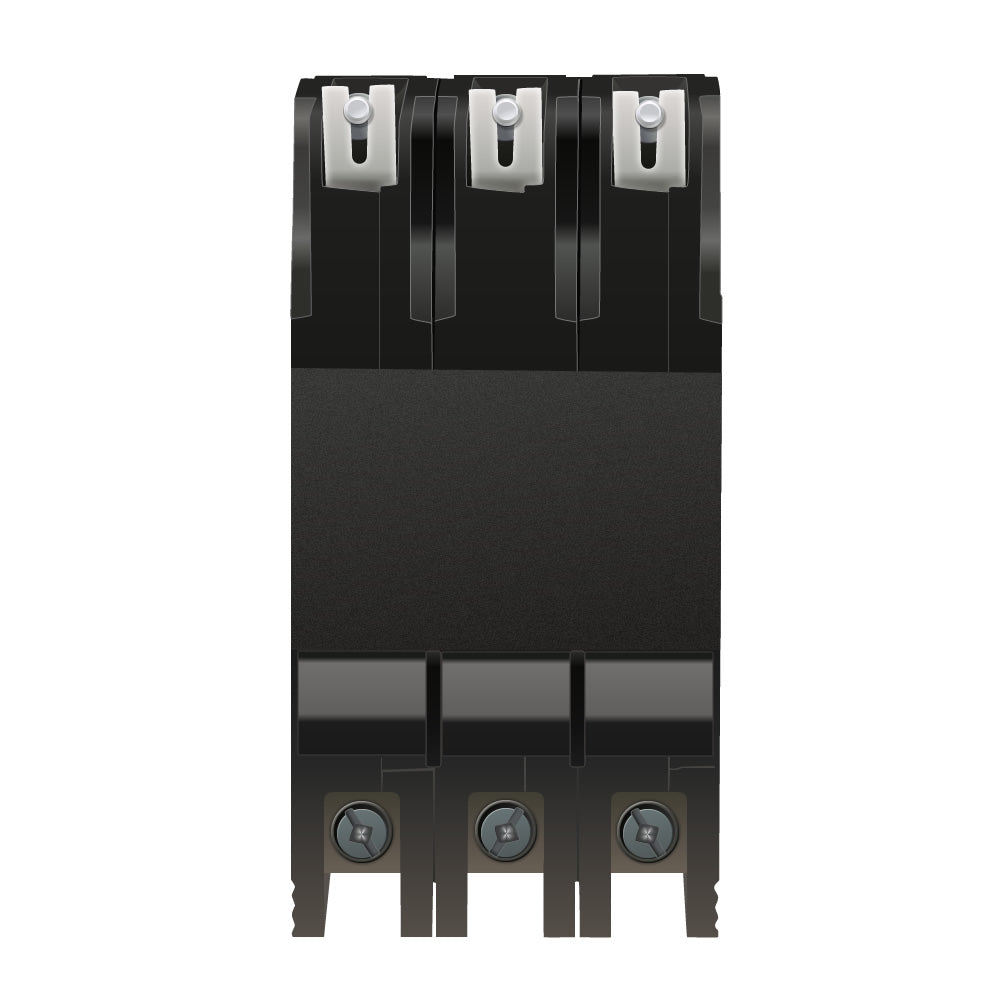

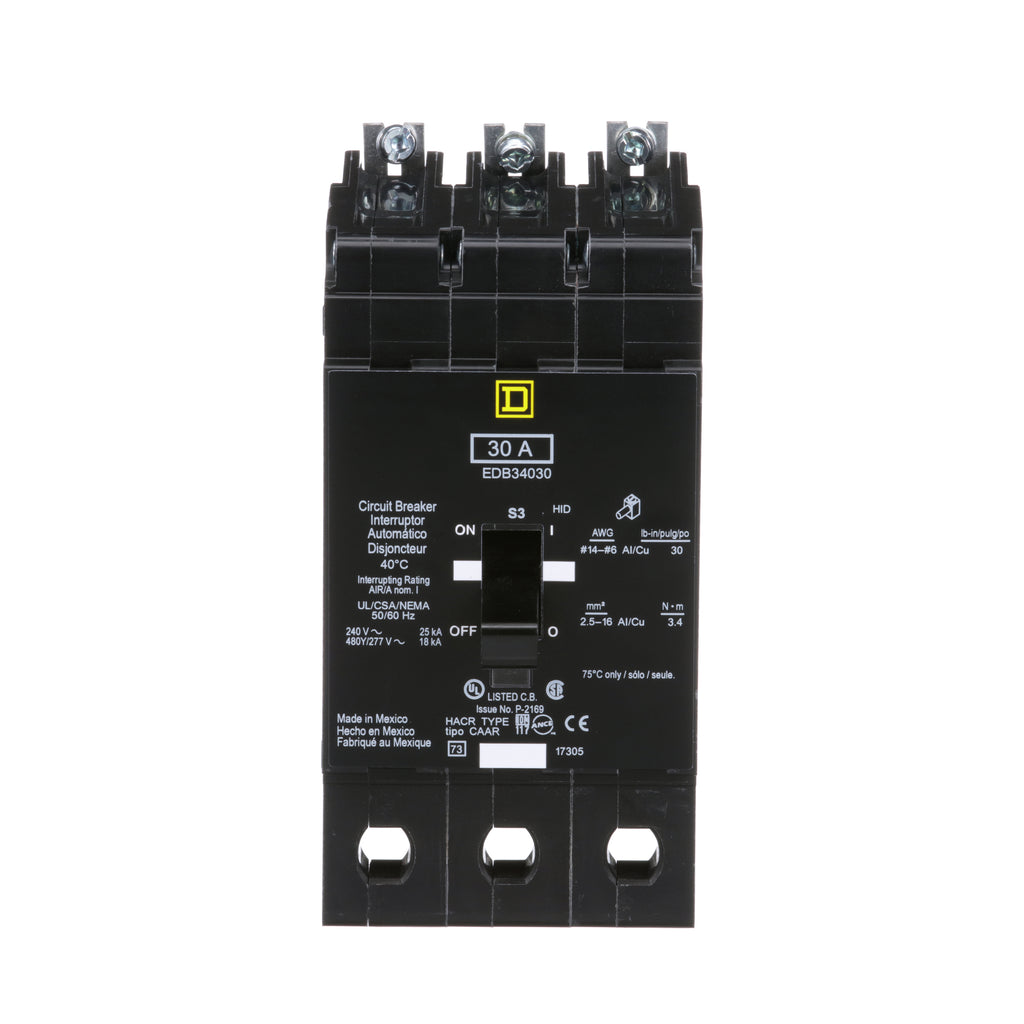

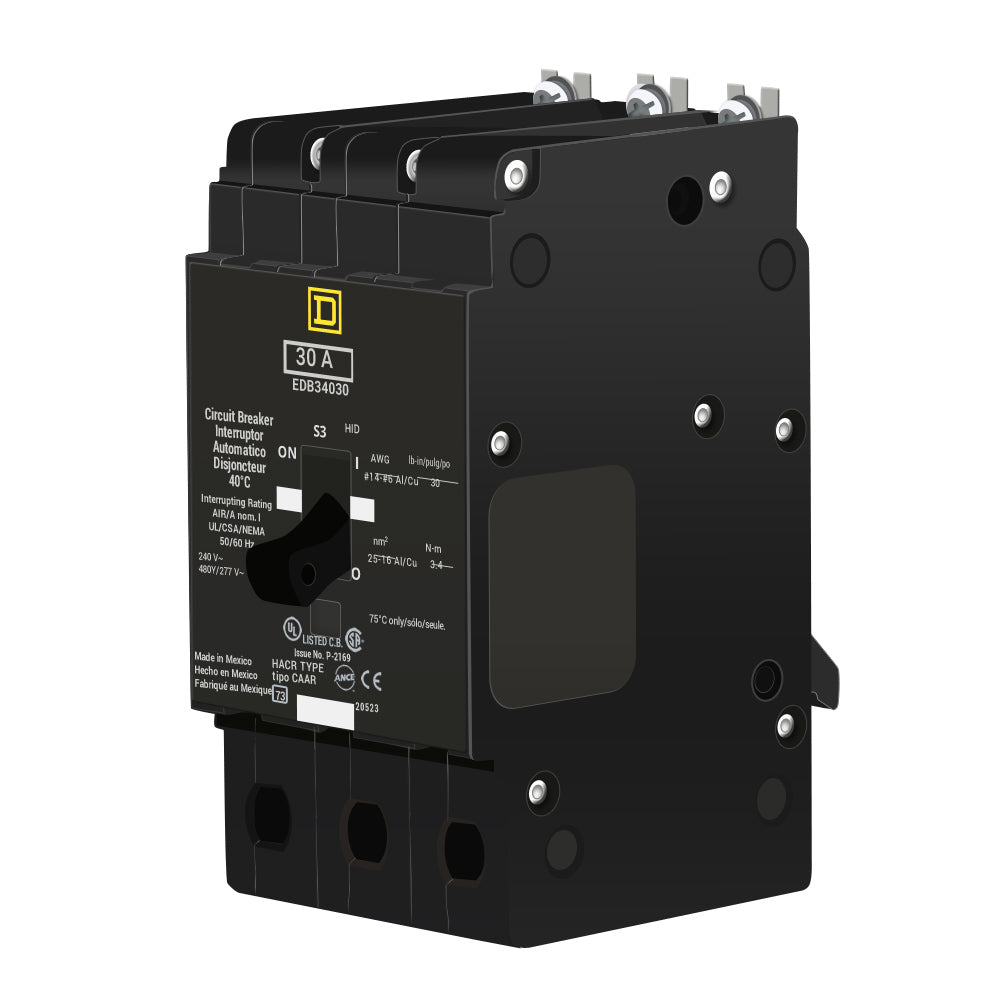

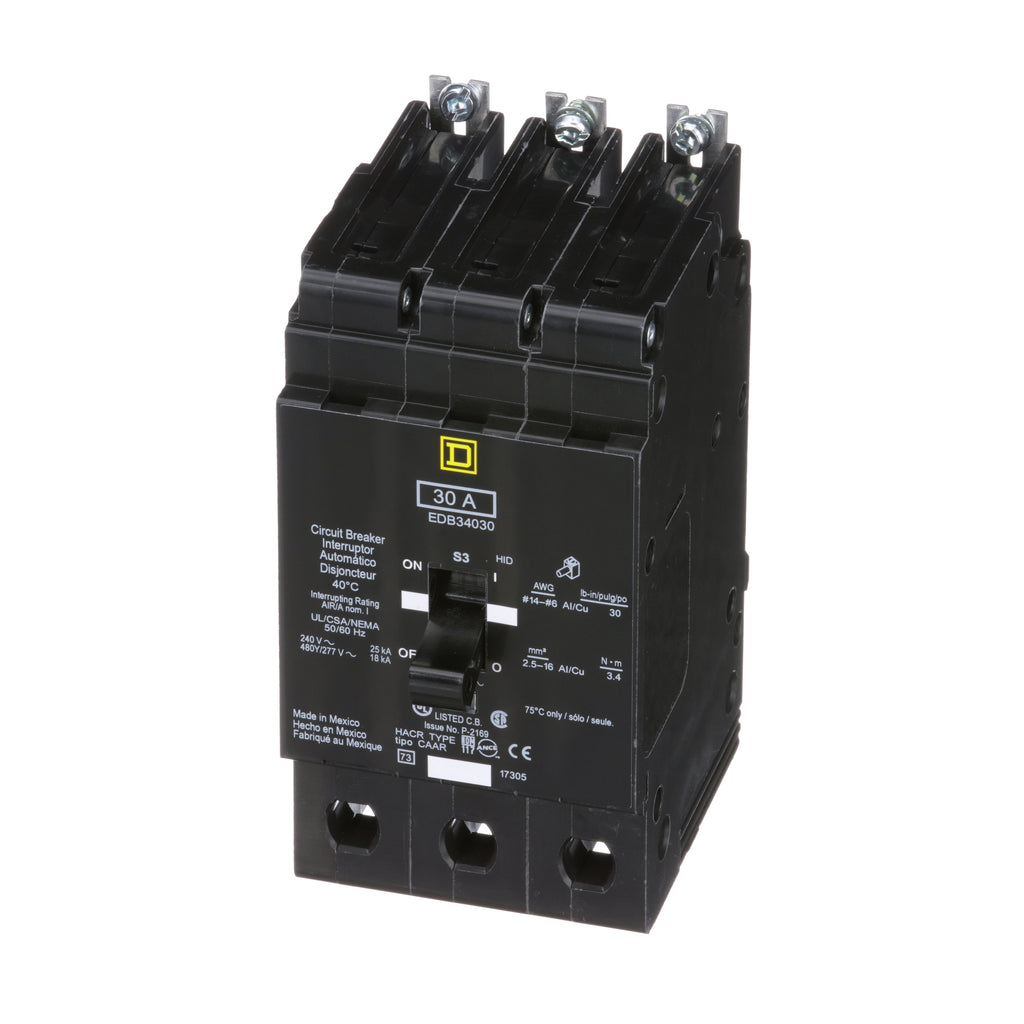

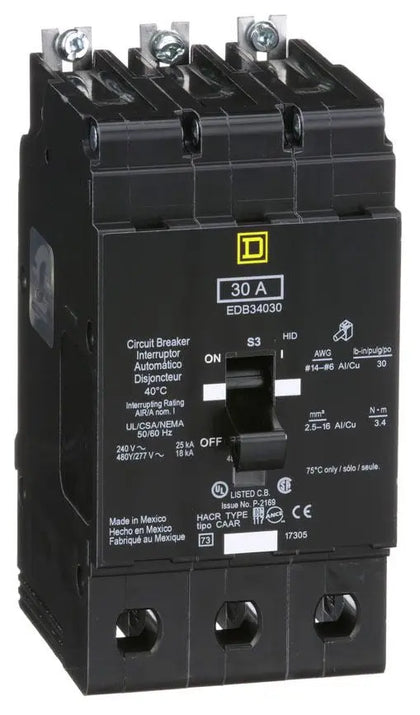

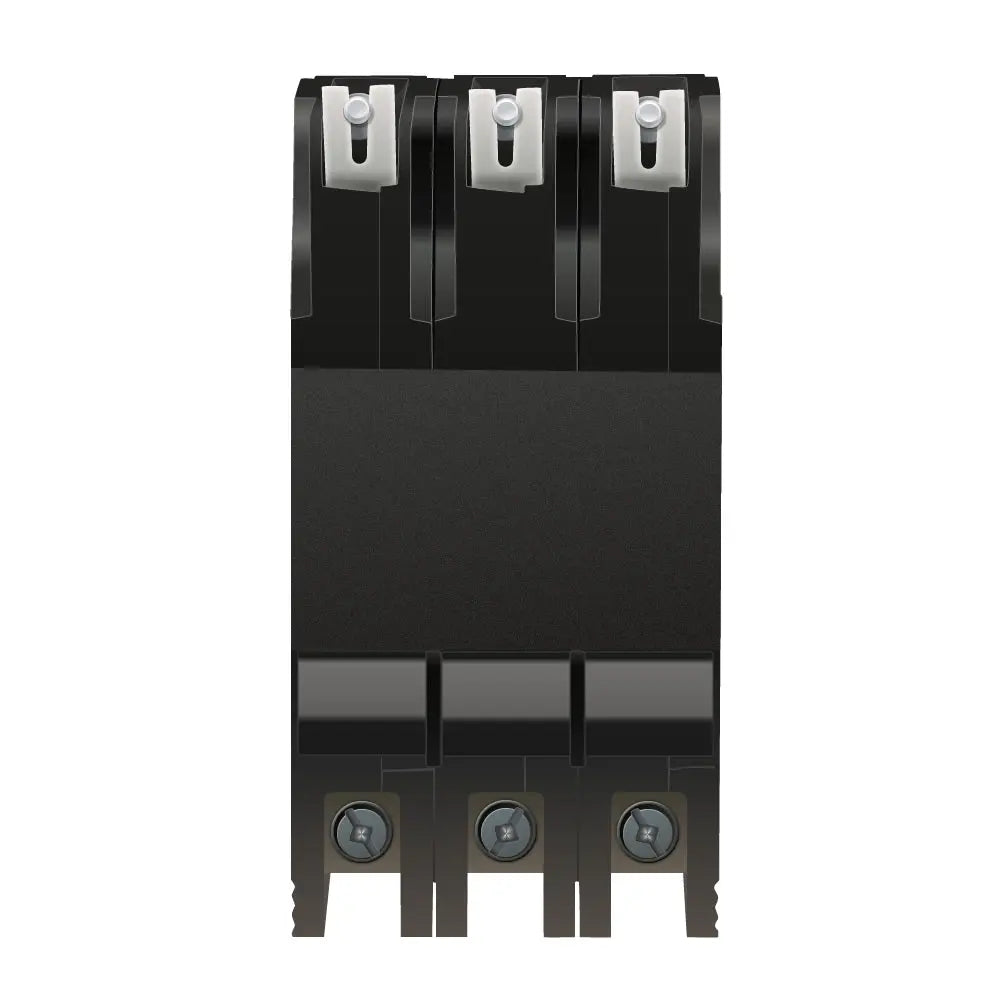

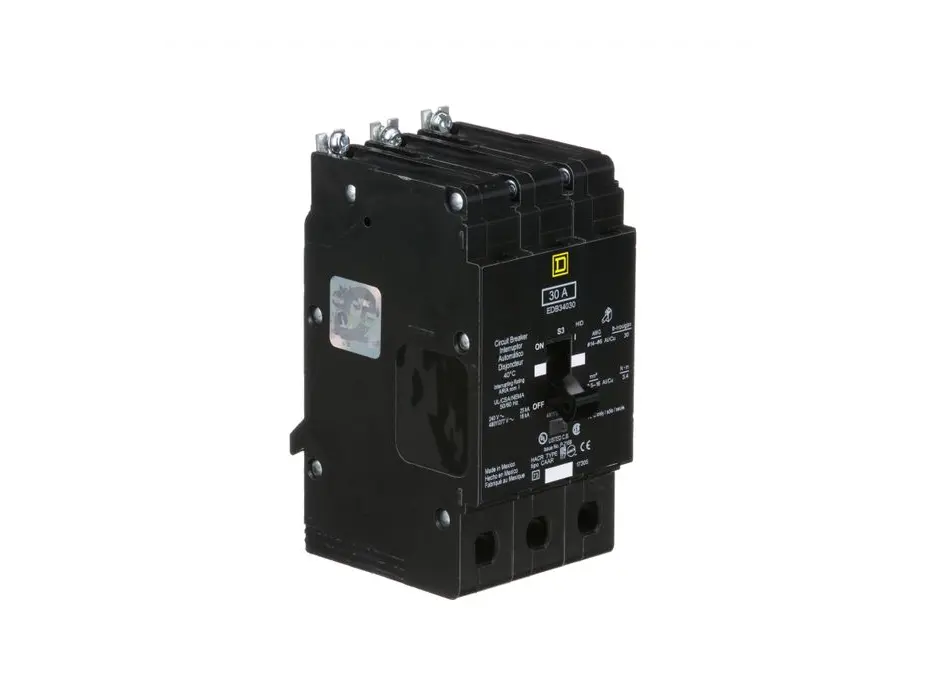

The Square D EDB34030 is a Molded Case circuit breaker. This type EDB circuit breaker is a member of The EDB series family. The EDB34030 is a 3 pole, 480 Volt, 30 amp rated circuit breaker, with an AIC rating of 18kA@480V and is manufactured by Square D and Schneider Electric. The EDB34030 uses a bolt-on connection and includes thermal magnetic protection.   Every part Essential Electric sells is also backed by our industry leading gold standard 2-year warranty.


  • Part Number: EDB34030
  • Manufacturers: Square D
  • Sub-Category: Molded Case
  • UPC: 785901875260
  • GTIN: 00785901875260
  • Poles: 3
  • Phase: 3
  • Voltage: 480
  • Amperage: 30
  • AIC Rating: 18kA@480V
  • Connection: Bolt-On
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • Wire size: 14 To 6 AWG (Aluminum/Copper)
  • Temp Rating: 104°F (40°C)
  • Panel Type: NF panelboard
  • Breaker Type: Branch
  • Family: EDB Series
  • Type: EDB
  • Certification: CULus
  • Dimensions: Depth 4.05 in (102.87 mm) Width 2.94 in (74.68 mm) Height 5.66 in (143.76 mm)
  • Weight: 5 lb
