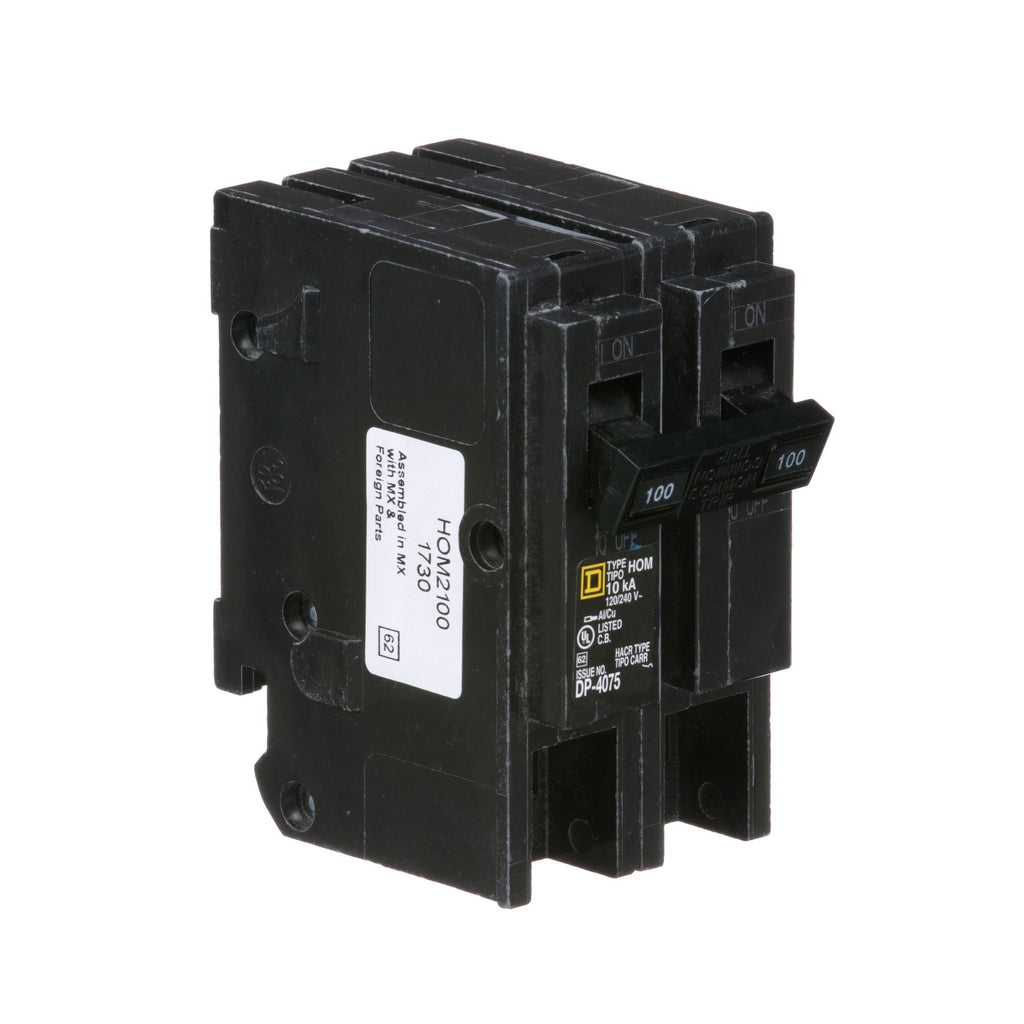

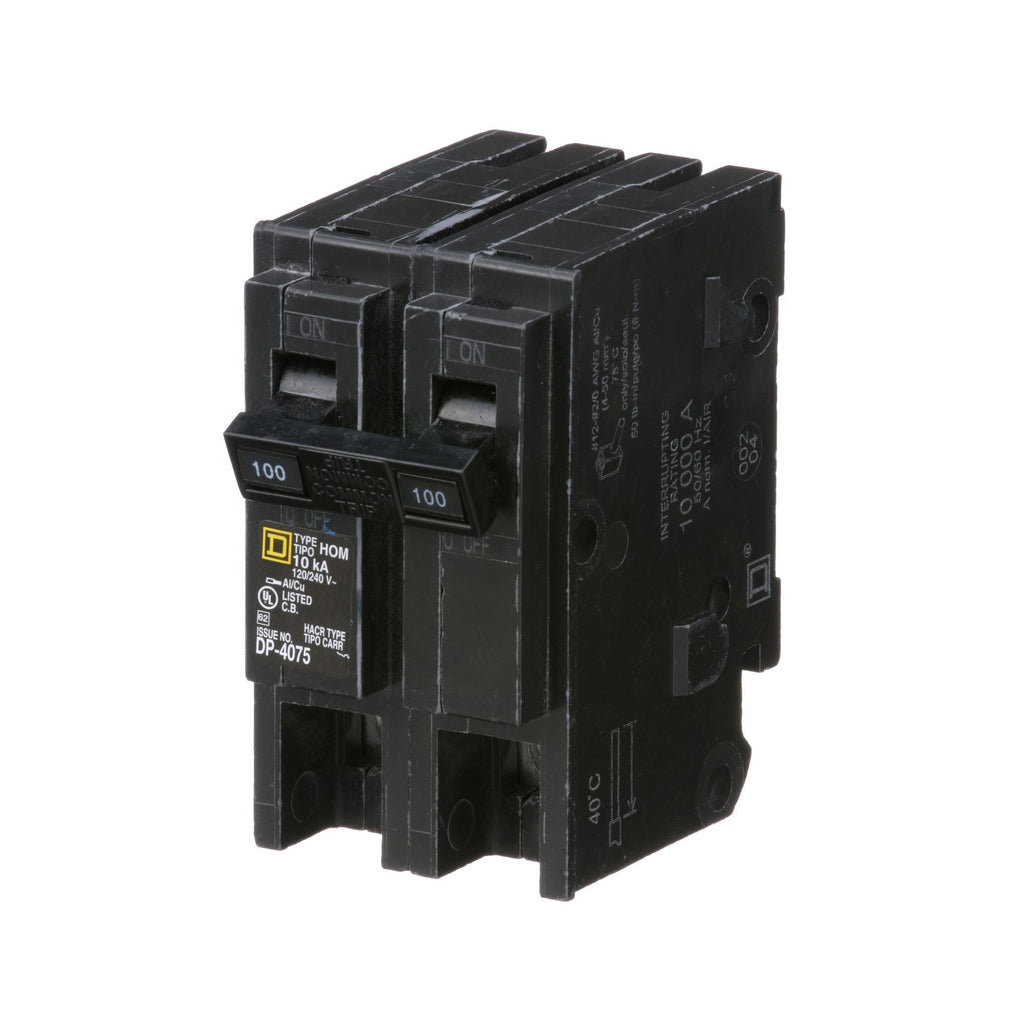

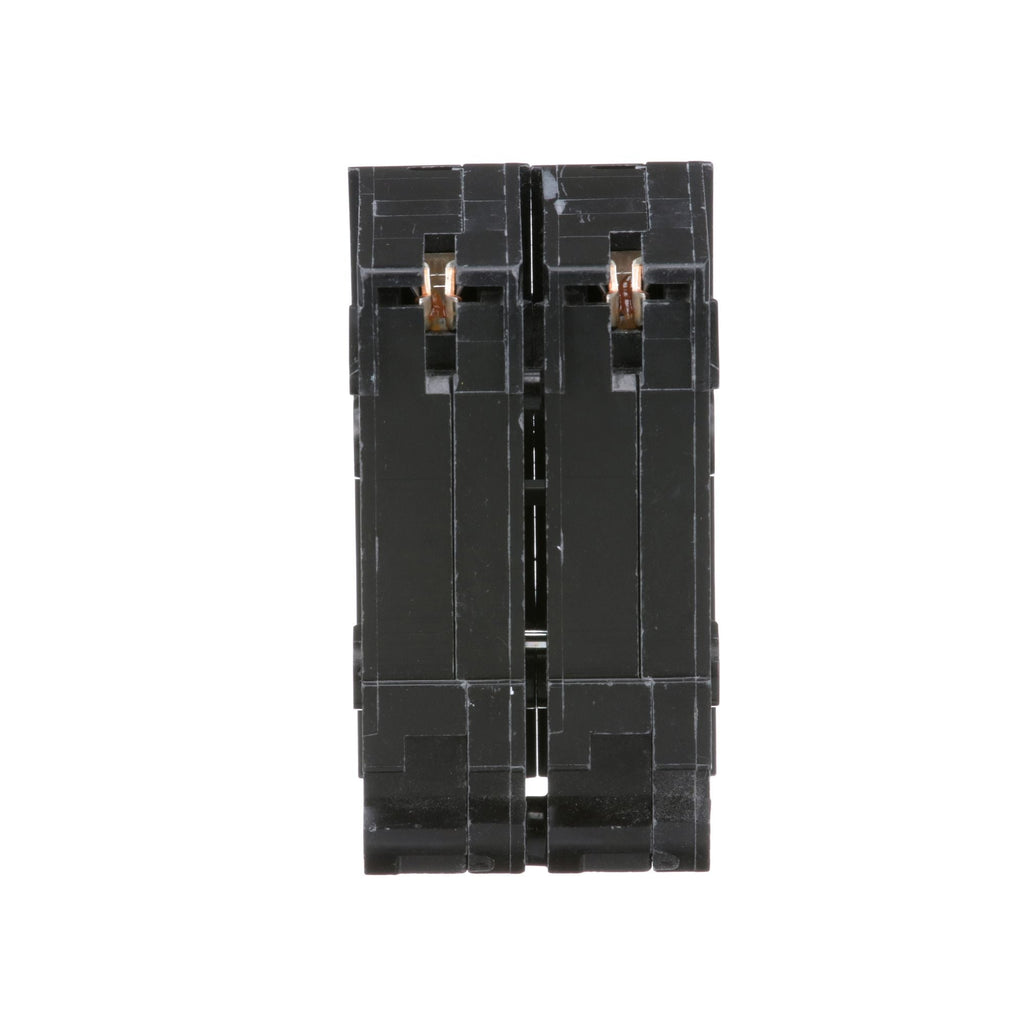

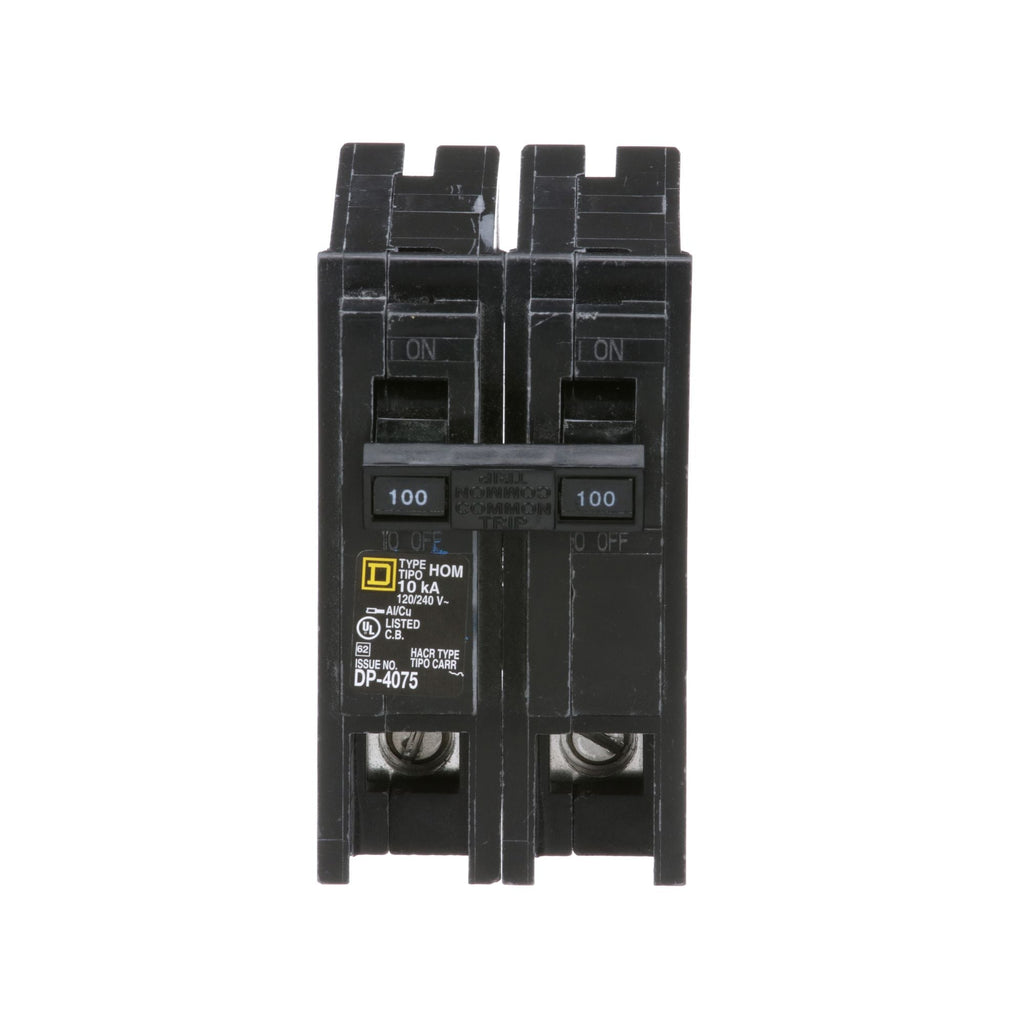

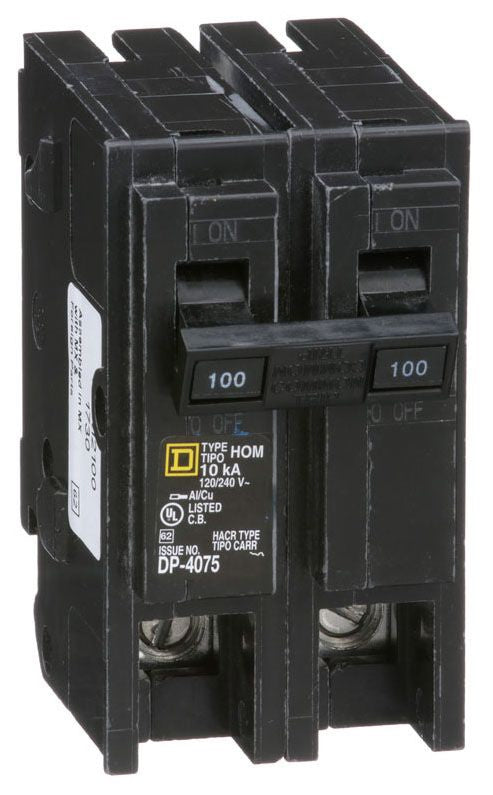

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Molded Case
- Series
- HOMELINE
- Frame
- HOM
- Rated current
- 100
- Voltage
- 120/240V
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 10kA@240V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Plug-In
- Terminals
- Lug
- Frequency
- 50/60 Hz
- Panel / equipment
- Homeline Load Center
- Standards
- CSA Certified, HACR, UL Listed
- Country of origin
- Mexico
Show all specifications (10 more)
- Frame Size
- 100A/HOM
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 8 AWG Max. Wire Size 2 AWG
- Breaker Type
- Standard
- UPC
- 785901065753
- GTIN
- 00785901065753
- Dimensions
- 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
- Weight
- 0.95 lb
- Certification
- CSA Certified, HACR, UL Listed
- Wire Size
- 1x AWG 4 to AWG 2/0, Aluminum/Copper
Product description & additional details
HOM2100
HOM2100 is a Square D Homeline miniature circuit breaker providing 100 amp, 2 pole, 120/240 VAC circuit protection with a 10 kA interrupt rating.
This circuit breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions, designed for plug-on mounting in Homeline load centers. It supports wire sizes from 4 AWG to 2/0 AWG copper or aluminum, has UL listing and HACR certification, and operates at 50/60 Hz frequency with a temperature rating of 104°F (40°C). Dimensions are approximately 3.13 in H x 2 in W x 2.98 in D.
- Key Specifications
- Amperage: 100 A
- Voltage Rating: 120/240 VAC
- Number of Poles: 2
- Mounting Type: Plug-On
- Interrupt Rating: 10 kA at 240 V
- Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
- Wire Size Range: 4 AWG to 2/0 AWG Copper/Aluminum
- Frequency: 50/60 Hz
- Certifications: UL Listed, HACR Rated
- Dimensions (HxWxD): 3.13 x 2 x 2.98 inches
- Phase: Single
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HOM2100
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : HOMELINE
- Type : HOM
- Voltage : 120/240
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 100A/HOM
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 785901065753
- GTIN : 00785901065753
- Country of Origin : Mexico
- Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
- Weight : 0.95 lb
- Panel Type : Homeline Load Center
- Standards : CSA Certified, HACR, UL Listed
- Certification : CSA Certified, HACR, UL Listed
- Wire Size : 1x AWG 4 to AWG 2/0, Aluminum/Copper
