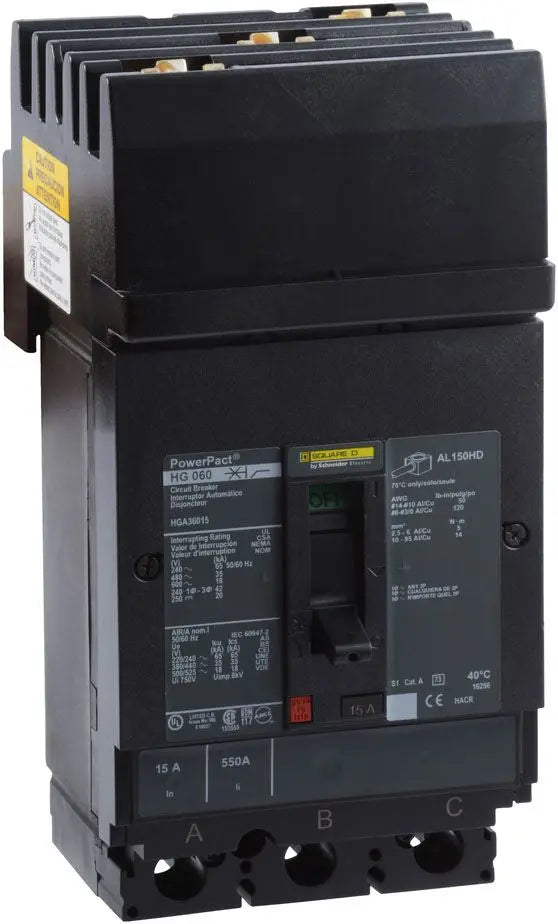

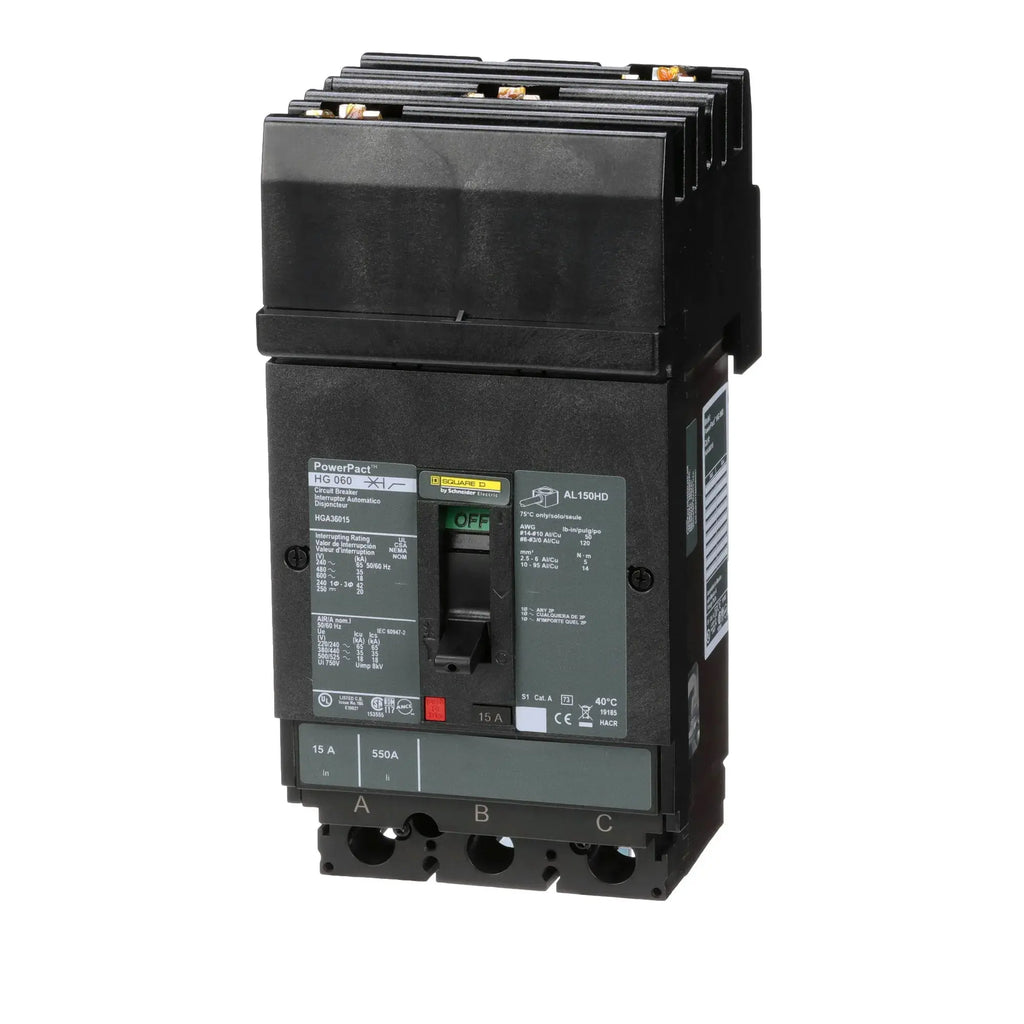

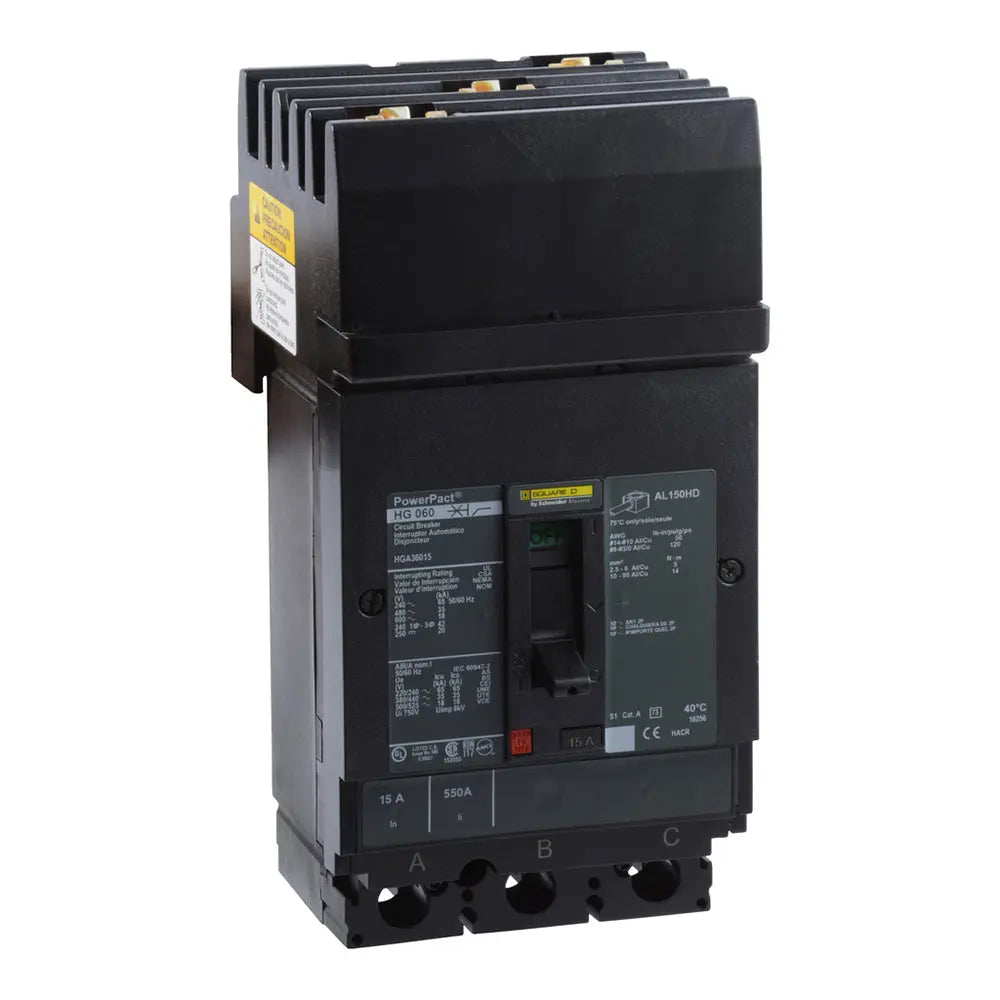

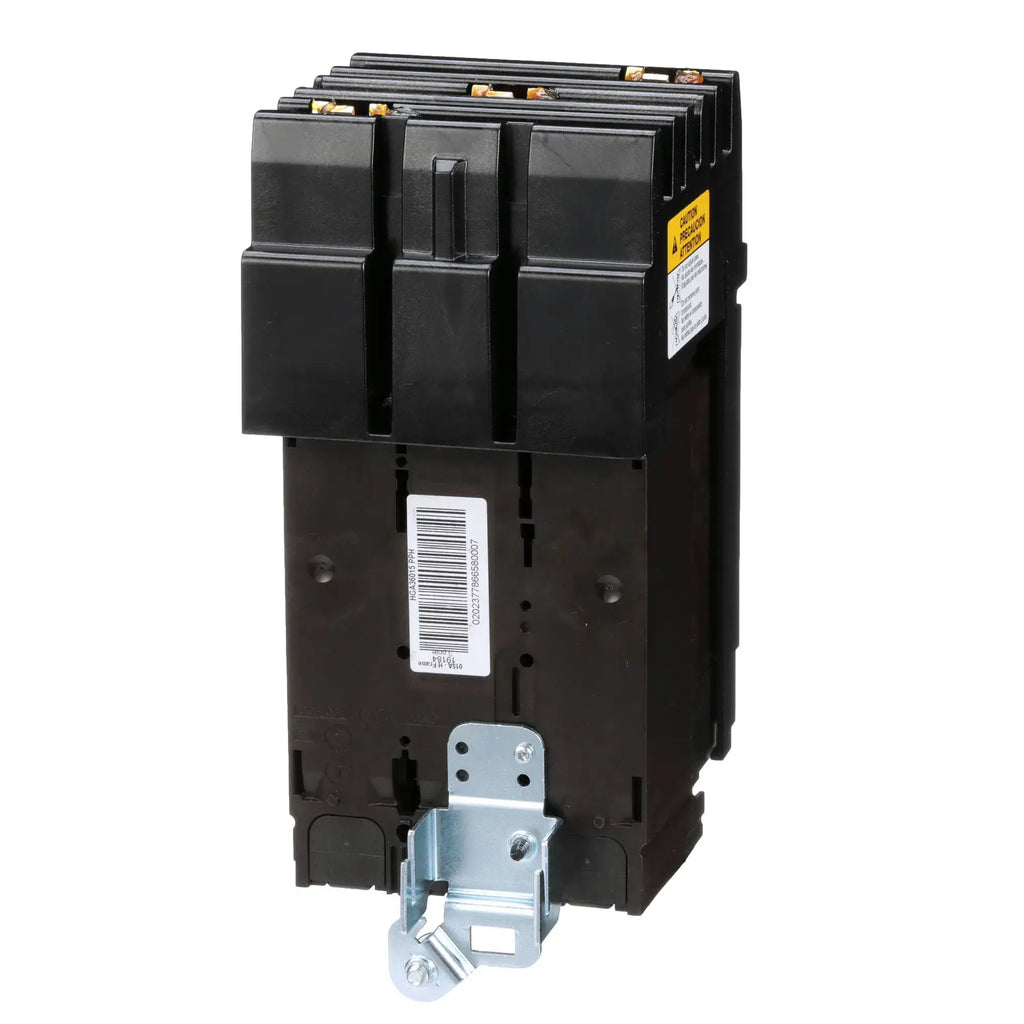

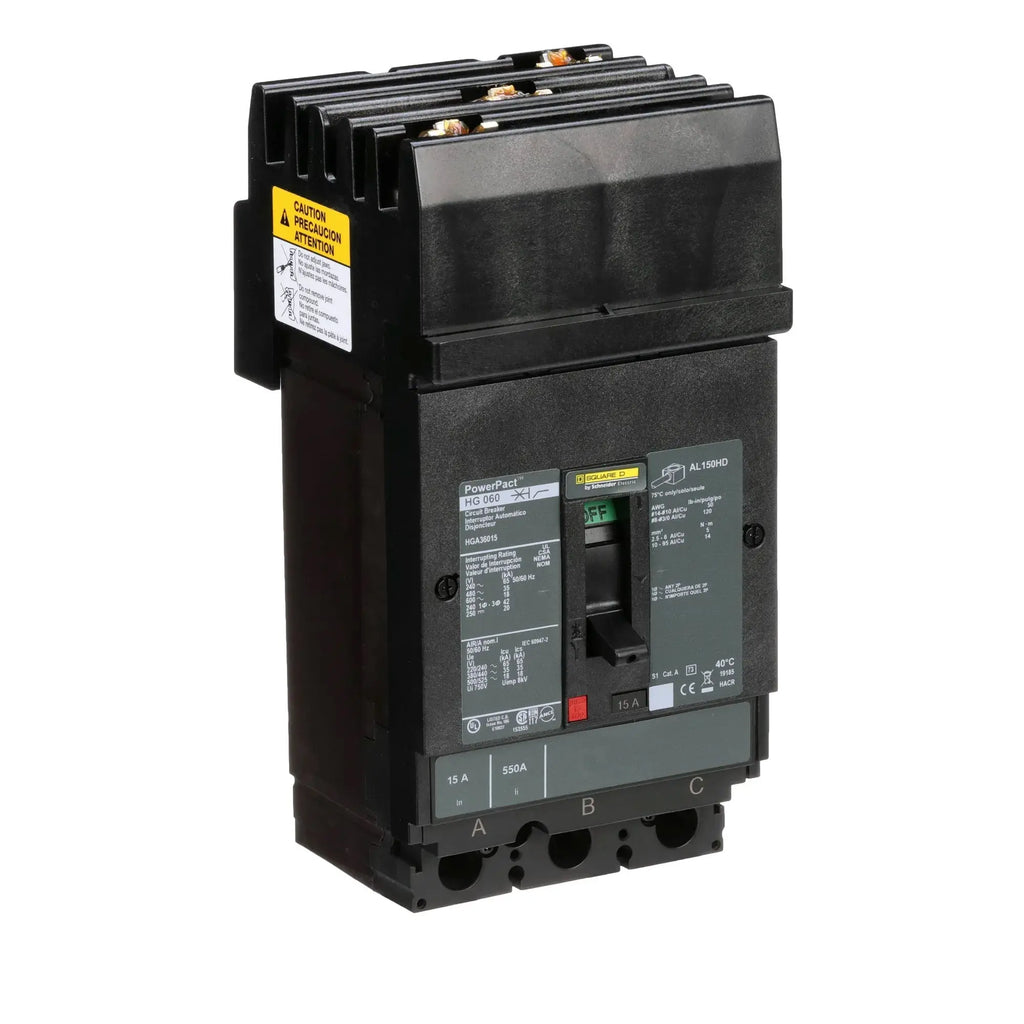

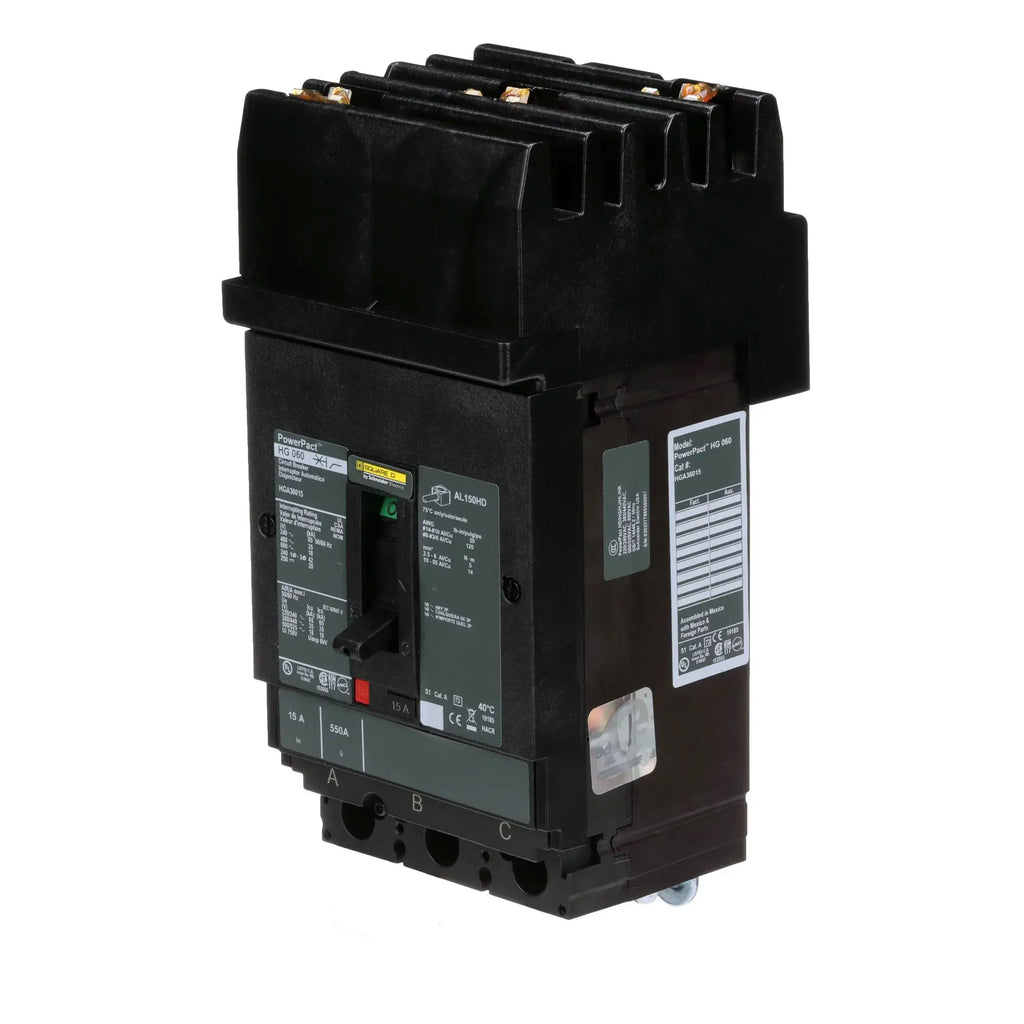

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Molded Case
- Series
- Powerpact
- Frame
- HGA
- Rated current
- 15
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 35kA@480V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Plug In Panelboard
- Terminals
- Lug
- Phase connection
- ABC
- Panel / equipment
- I Line Panelboards
- Standards
- UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Country of origin
- Mexico
Show all specifications (10 more)
- Frame Size
- 150A/HG
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 14 AWG Max. Wire Size 3 AWG
- Breaker Type
- Standard
- UPC
- 785901632566
- GTIN
- 00785901632566

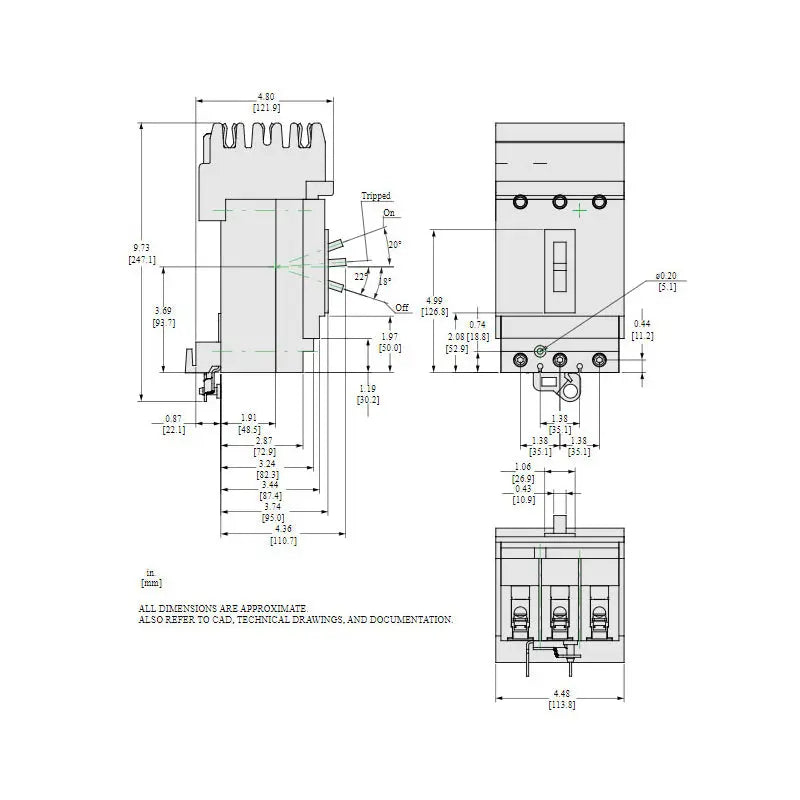

- Dimensions
- 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight
- 5.45
- Certification
- UL, CSA, NOM
- Wire Size
- AWG 14...AWG 3/0 aluminium/copper terminal
Product description & additional details
HGA36015
HGA36015 is a Square D PowerPact H series molded case circuit breaker designed for reliable power distribution in commercial and industrial applications.
This thermal magnetic trip unit circuit breaker features a 15A current rating, 3 poles, and a voltage rating of 600VAC, with an interrupting rating of 18kA at 600VAC. It is designed for I-Line panelboard mounting and is UL listed, making it suitable for a wide range of electrical installations.
-
Key Specifications
- Part Number: HGA36015
- Manufacturer: Square D (Schneider Electric)
- Series/Frame: PowerPact H (HGA)
- Amperage: 15A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: I-Line (plug-in)
- Interrupt Rating: 18kA at 600VAC
- Trip Unit: Thermal magnetic
- Certifications: UL Listed, CSA, CE, IEC
- Connection: ABC phase
- Continuous Current Rating: 80% standard
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HGA36015
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HGA
- Voltage : 600
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Plug In Panelboard
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 150A/HG
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 785901632566
- GTIN : 00785901632566
- Country of Origin : Mexico
- Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 5.45
- Panel Type : I Line Panelboards
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
