Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Shunt Trip
- Series
- Powerpact
- Frame
- S
- Voltage
- 60V
- Control Voltage Minimum
- 60
- Compatible Frames
- DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, LR
- Control Voltate Maximum
- 60
- Dimensions
- Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight
- 5
- Certification
- CSA
Product description & additional details
S29383

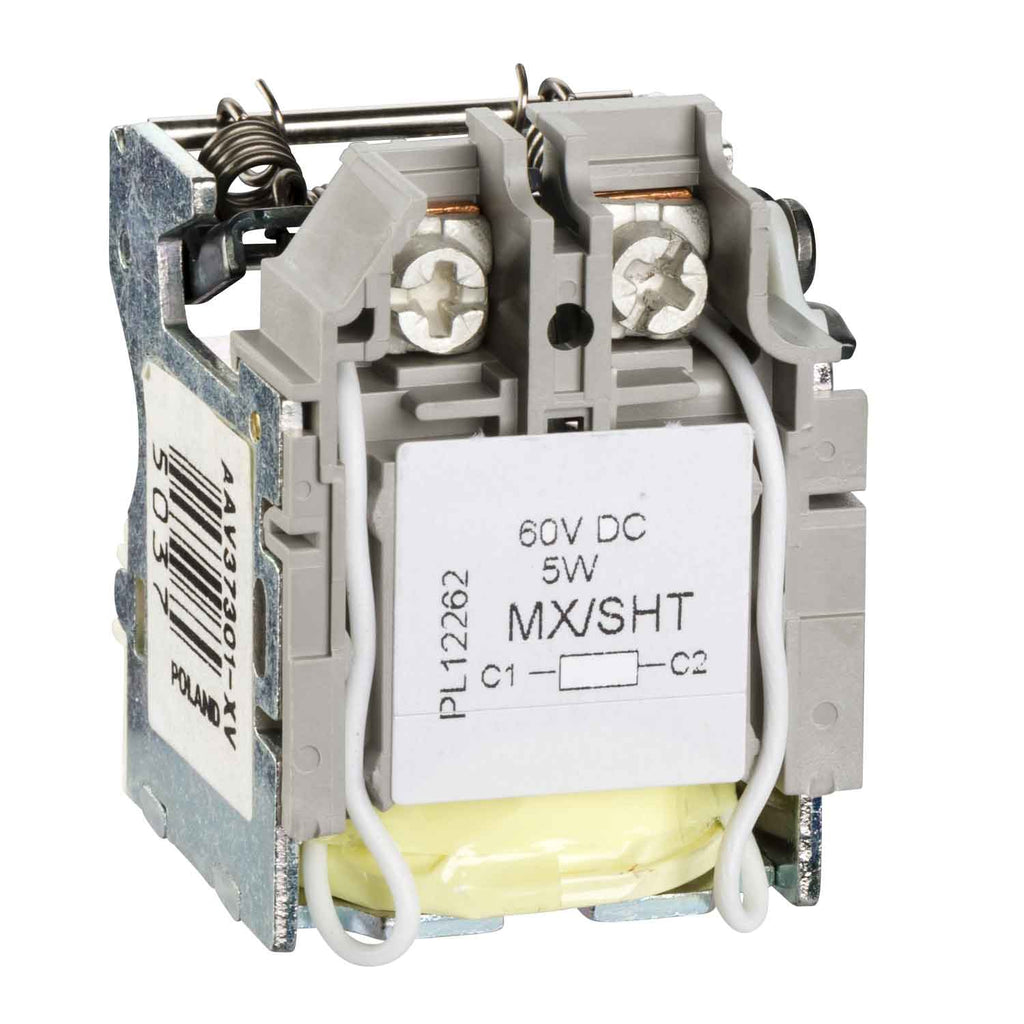

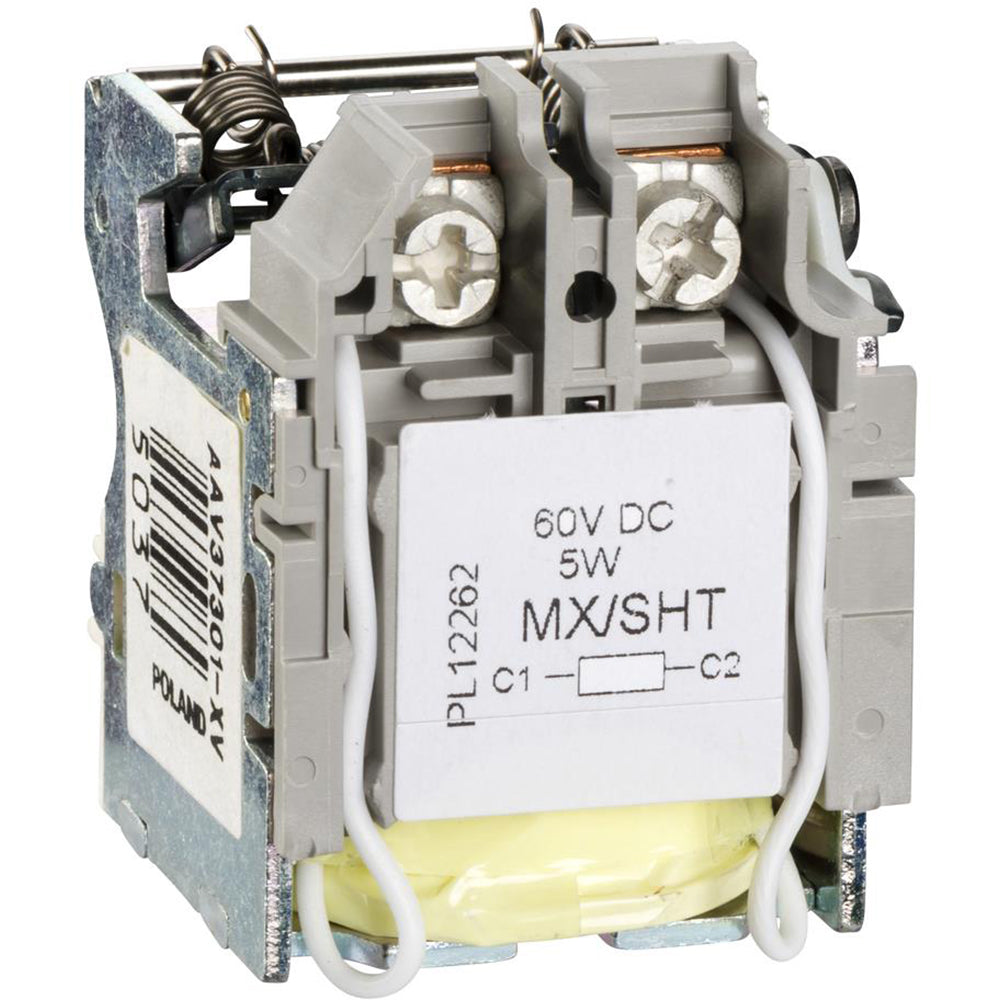

S29383 is a shunt trip accessory designed for Schneider Electric PowerPact H, J, and L frame circuit breakers with a 60V DC control voltage.This shunt trip enables remote tripping of compatible circuit breakers, enhancing safety and control in electrical distribution systems.
- Voltage Rating: 60 V DC
- Compatible with PowerPact H, J, and L frame breakers
- Type S circuit breaker accessory
- Enables remote trip functionality
- Maintained impulse control signal
- Auxiliary connection via screw terminals
- Discontinued product; no direct replacement
- Suitable for industrial and commercial applications
- Enhances circuit breaker safety and control
Specifications
- Part Number: S29383
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Powerpact
- Type : S
- Voltage : 60
- Control Voltage Minimum : 60
- Compatible Frames : DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, LR
- Control Voltate Maximum : 60
Product Data
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 5
- Certification : CSA
