THQB1120ST1 - General Electric 20A 1-Pole 120/240V Q-Line Bolt-On Shunt Trip Circuit Breaker, 10kA Interrupt Rating, HACR, UL/CSA Listed

Save $91.22
SKU: THQB1120ST1-New
Condition: New
Price:
$107.78 $199.00
Stock:
100+ in stock, ready to be shipped

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

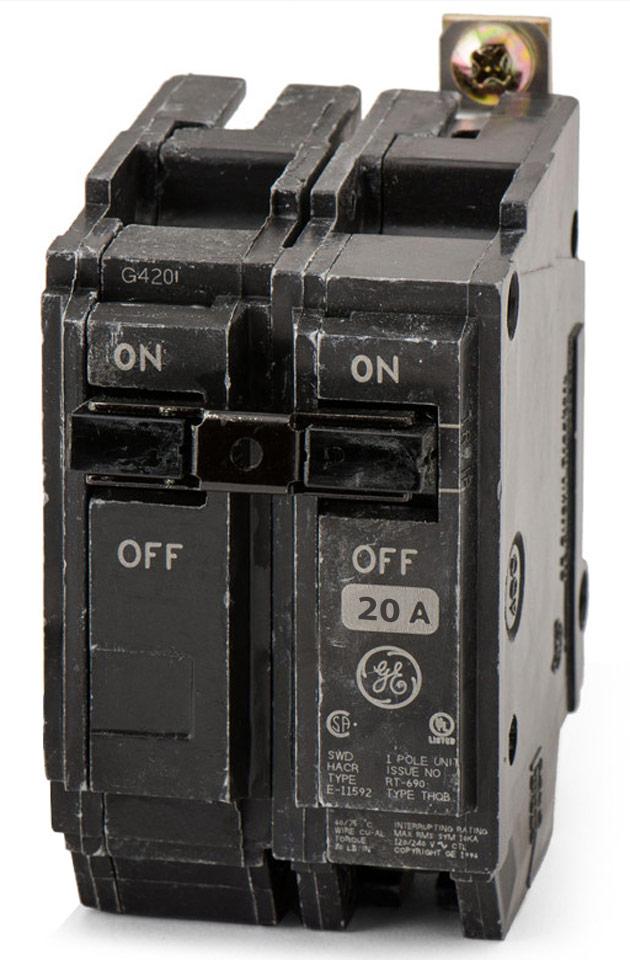

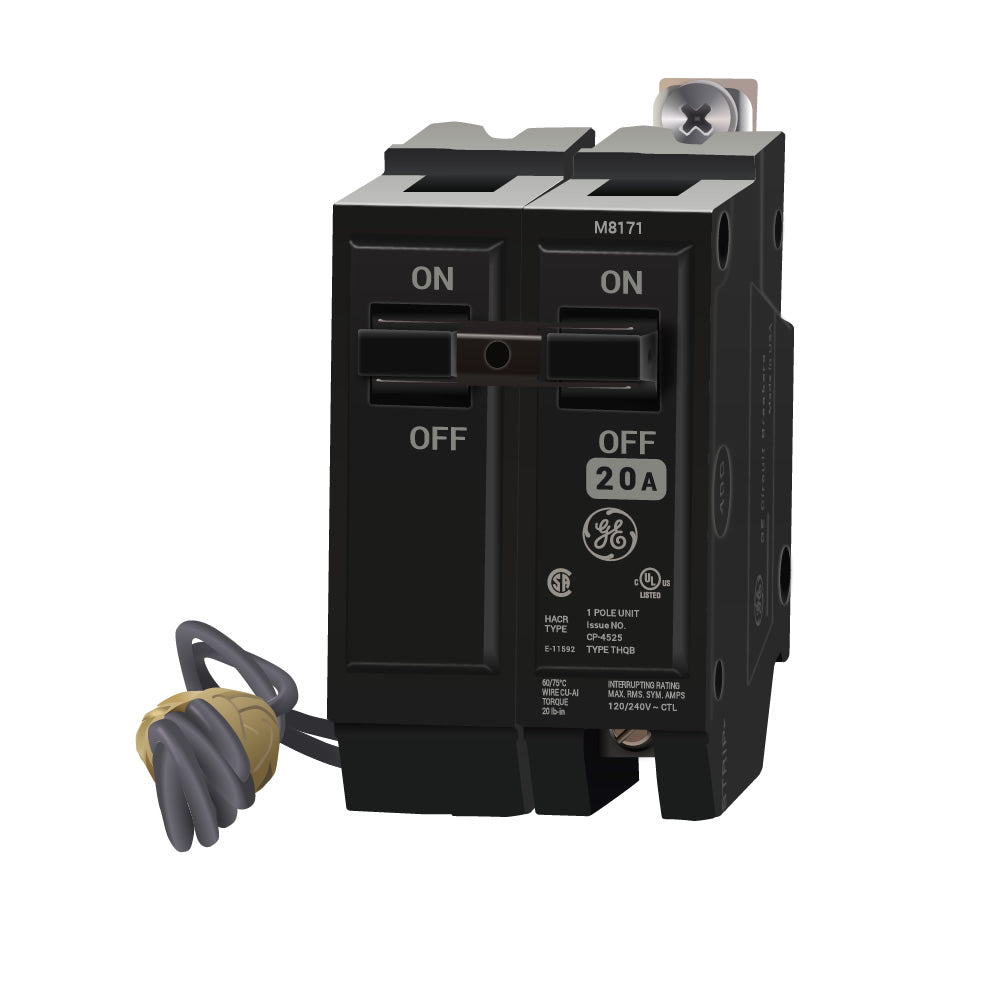

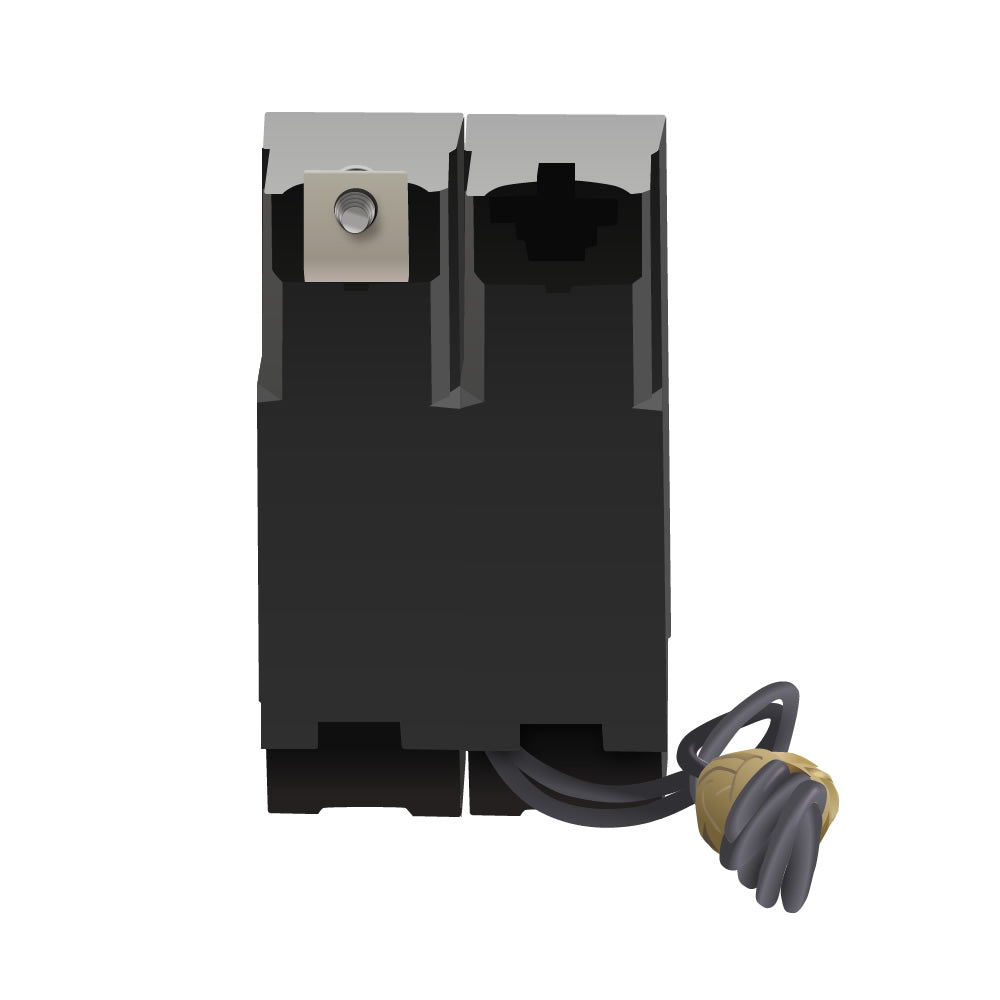

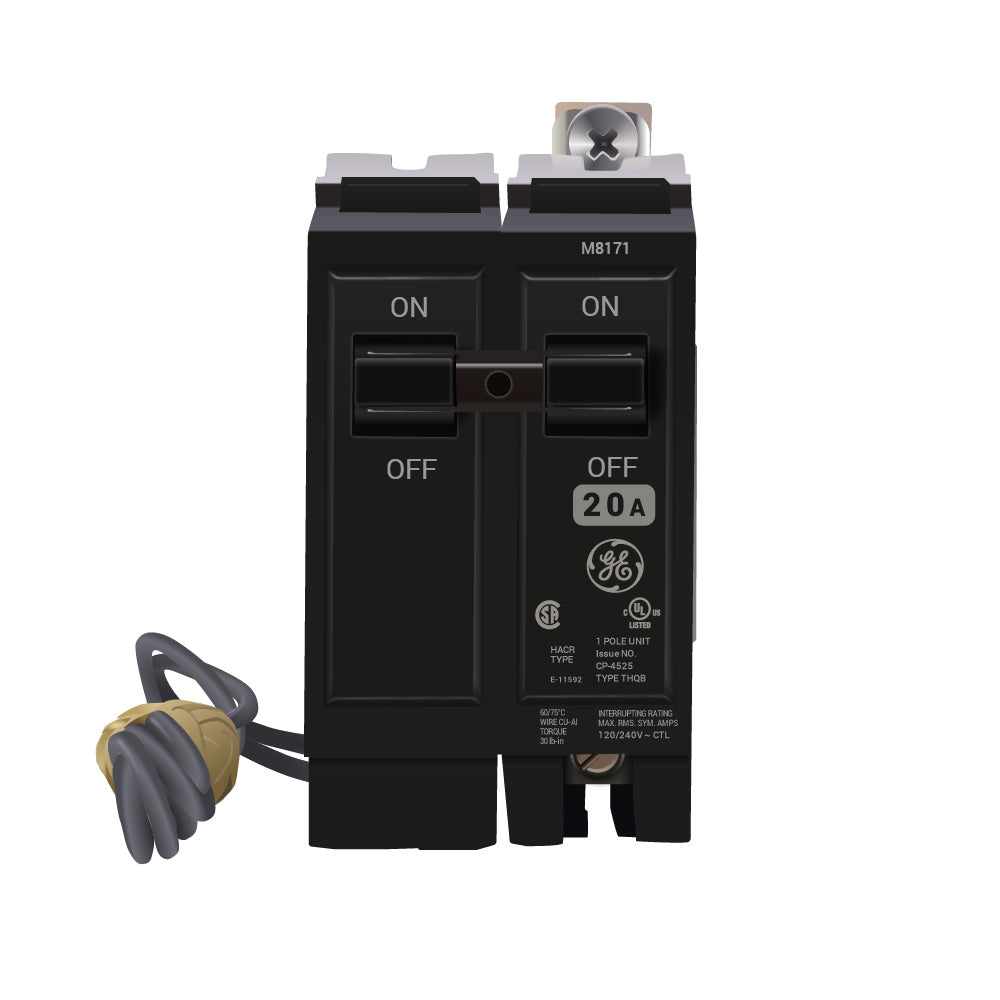

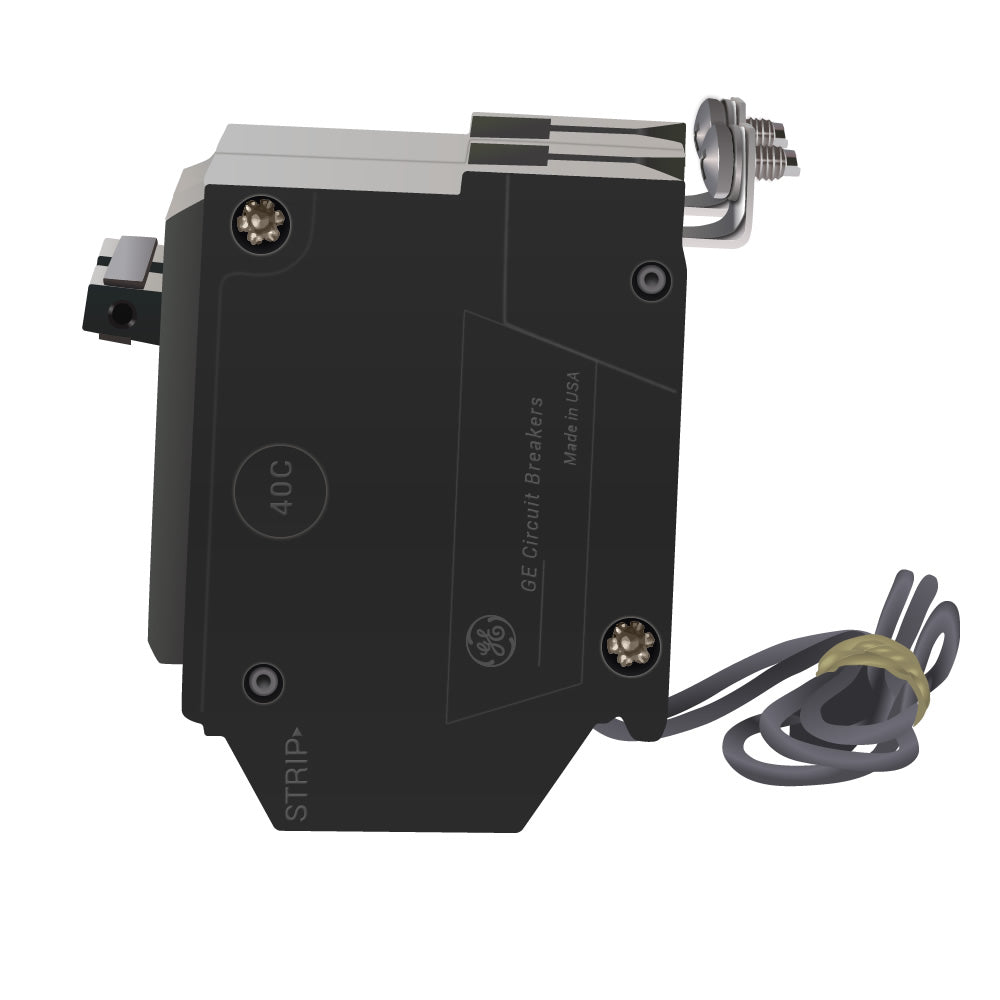

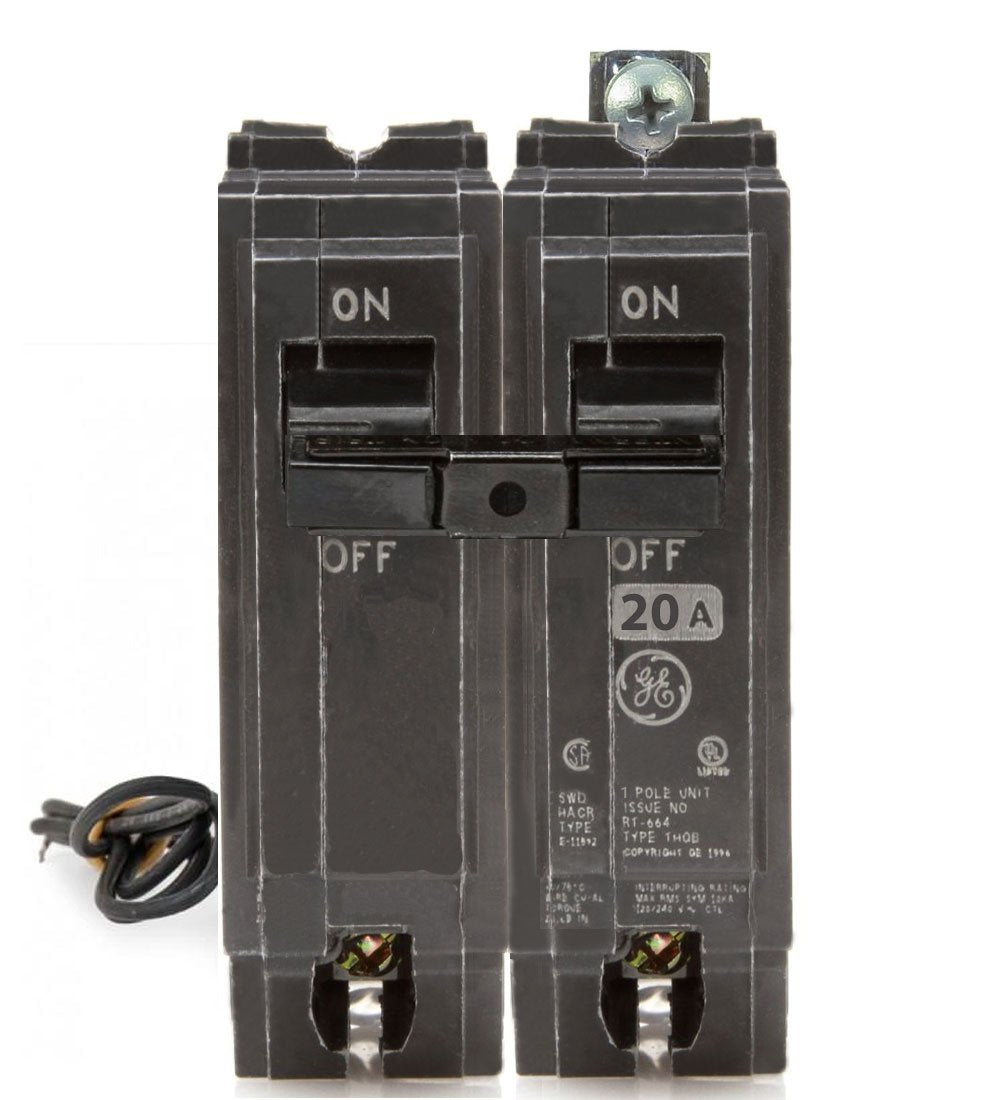

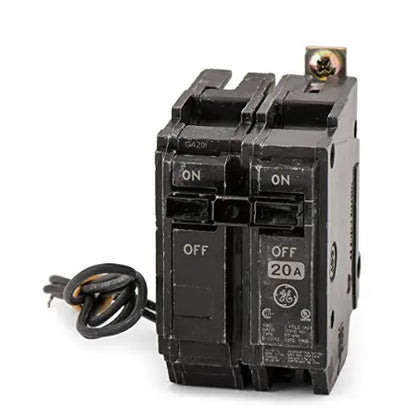

THQB1120ST1 - General Electric Bolt-On 20 Amp 1 Pole Circuit Breaker - Essential Electric Supply
THQB1120ST1 - General Electric 20A 1-Pole 120/240V Q-Line Bolt-On Shunt Trip Circuit Breaker, 10kA Interrupt Rating, HACR, UL/CSA Listed - Essential Electric Supply
THQB1120ST1 - General Electric 20A 1-Pole 120/240V Q-Line Bolt-On Shunt Trip Circuit Breaker, 10kA Interrupt Rating, HACR, UL/CSA Listed - Essential Electric Supply
THQB1120ST1 - General Electric 20A 1-Pole 120/240V Q-Line Bolt-On Shunt Trip Circuit Breaker, 10kA Interrupt Rating, HACR, UL/CSA Listed - Essential Electric Supply
THQB1120ST1 - General Electric 20A 1-Pole 120/240V Q-Line Bolt-On Shunt Trip Circuit Breaker, 10kA Interrupt Rating, HACR, UL/CSA Listed - Essential Electric Supply
THQB1120ST1 - General Electric 20A 1-Pole 120/240V Q-Line Bolt-On Shunt Trip Circuit Breaker, 10kA Interrupt Rating, HACR, UL/CSA Listed - Essential Electric Supply
THQB1120ST1 - General Electric 20A 1-Pole 120/240V Q-Line Bolt-On Shunt Trip Circuit Breaker, 10kA Interrupt Rating, HACR, UL/CSA Listed - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
THQB1120ST1 - General Electric Bolt-On 20 Amp 1 Pole Circuit Breaker - Essential Electric Supply
THQB1120ST1 - General Electric 20A 1-Pole 120/240V Q-Line Bolt-On Shunt Trip Circuit Breaker, 10kA Interrupt Rating, HACR, UL/CSA Listed - Essential Electric Supply
THQB1120ST1 - General Electric 20A 1-Pole 120/240V Q-Line Bolt-On Shunt Trip Circuit Breaker, 10kA Interrupt Rating, HACR, UL/CSA Listed - Essential Electric Supply
THQB1120ST1 - General Electric 20A 1-Pole 120/240V Q-Line Bolt-On Shunt Trip Circuit Breaker, 10kA Interrupt Rating, HACR, UL/CSA Listed - Essential Electric Supply
THQB1120ST1 - General Electric 20A 1-Pole 120/240V Q-Line Bolt-On Shunt Trip Circuit Breaker, 10kA Interrupt Rating, HACR, UL/CSA Listed - Essential Electric Supply
THQB1120ST1 - General Electric 20A 1-Pole 120/240V Q-Line Bolt-On Shunt Trip Circuit Breaker, 10kA Interrupt Rating, HACR, UL/CSA Listed - Essential Electric Supply
THQB1120ST1 - General Electric 20A 1-Pole 120/240V Q-Line Bolt-On Shunt Trip Circuit Breaker, 10kA Interrupt Rating, HACR, UL/CSA Listed - Essential Electric Supply

Description

THQB1120ST1


THQB1120ST1 is a General Electric 1-pole, 20A, 120/240V bolt-on miniature circuit breaker with shunt trip and 10kA interrupting rating.

This Q-Line series circuit breaker features a thermal magnetic trip unit with fixed long time and instantaneous trip functions, suitable for reverse feed applications. It is designed for reliable protection in commercial and industrial power distribution systems, offering a compact, bolt-on mounting solution with load side lug terminals.

    Key Specifications
  • Amperage: 20A
  • Voltage: 120/240V AC
  • Poles: 1
  • Mounting Type: Bolt-on
  • Interrupt Rating: 10kA at 120/240V AC
  • Series/Frame: Q-Line (THQB)
  • Trip Unit: Thermal magnetic, fixed long time and instantaneous
  • Shunt Trip: 120V
  • Certifications: UL Listed (File E11592), CSA Certified (File LR10263)
  • Special Markings: HACR
  • GSA Compliance: Yes
  • Dimensions: 1" x 2-3/8" x 3-9/32"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: THQB1120ST1
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Q-Line
  • Type : THQB
  • Voltage : 120
  • Amperage : 20
  • Phase : 1
  • Poles : 1
  • AIC rating : 10kA@120V
  • Connection : Bolt-On
  • Functions : Long Time and Instantaneous Trip
  • Protection : Thermal Magnetic

Product Data

  • UPC : 783164033427
  • GTIN : 40783164033425
  • Weight : 1
  • Certification : Ul Listed
  • Wire Size : 14 To 8 Awg (Copper) 12 To 8 Awg (Aluminum)

Accesories

Part Manufacture Sub Category
TQAS2A1
