THQB1120

THQB1120

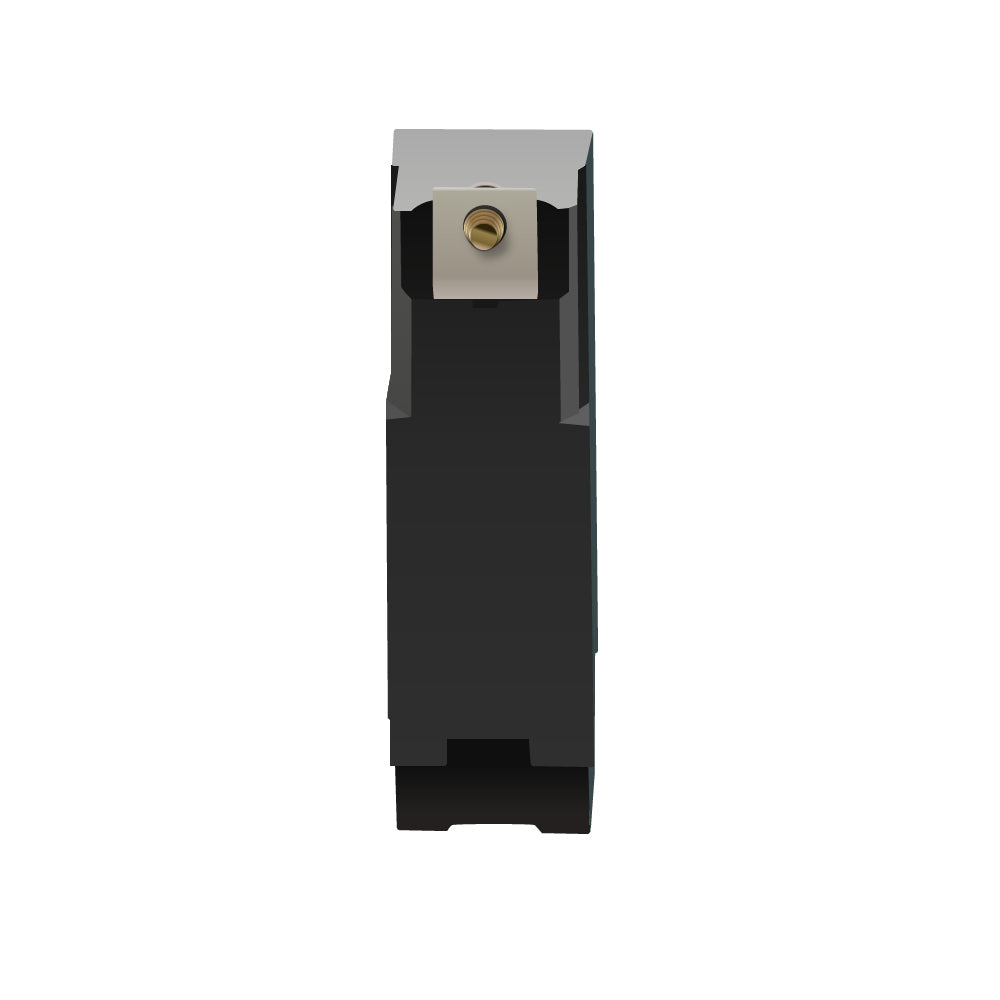

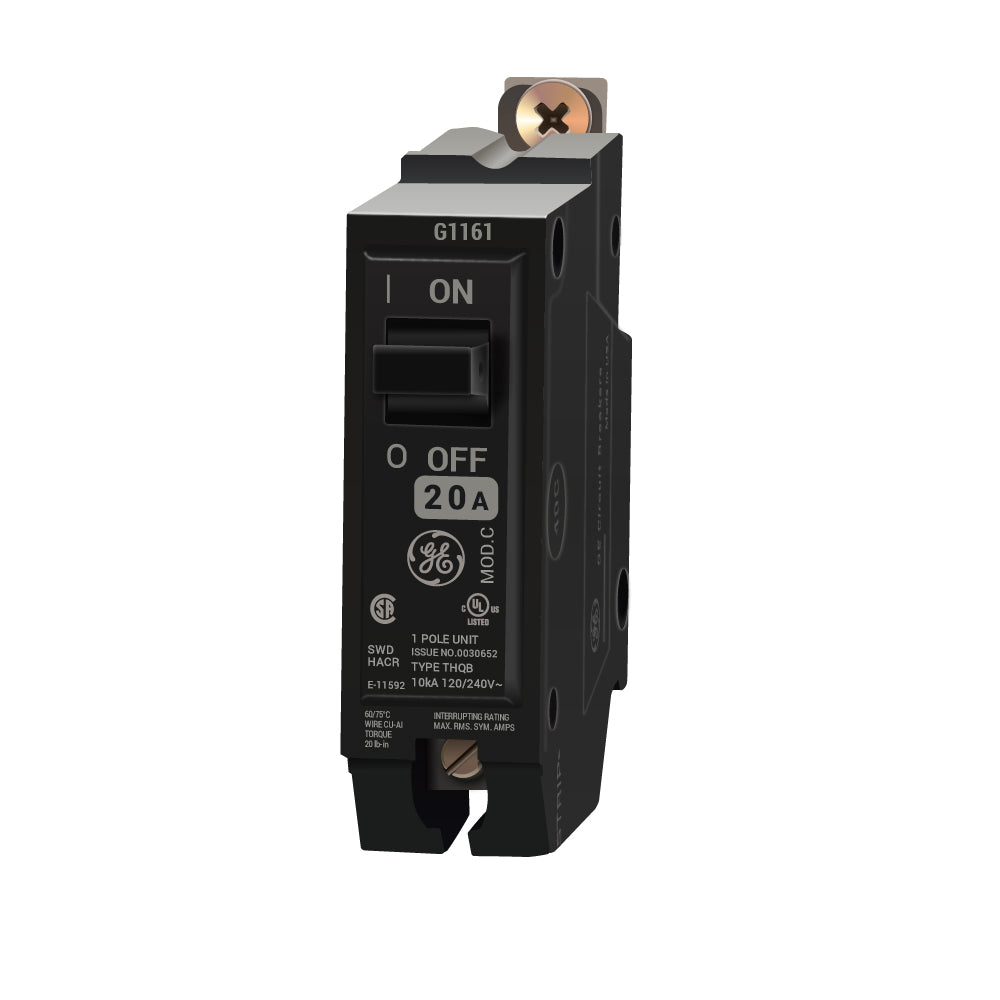

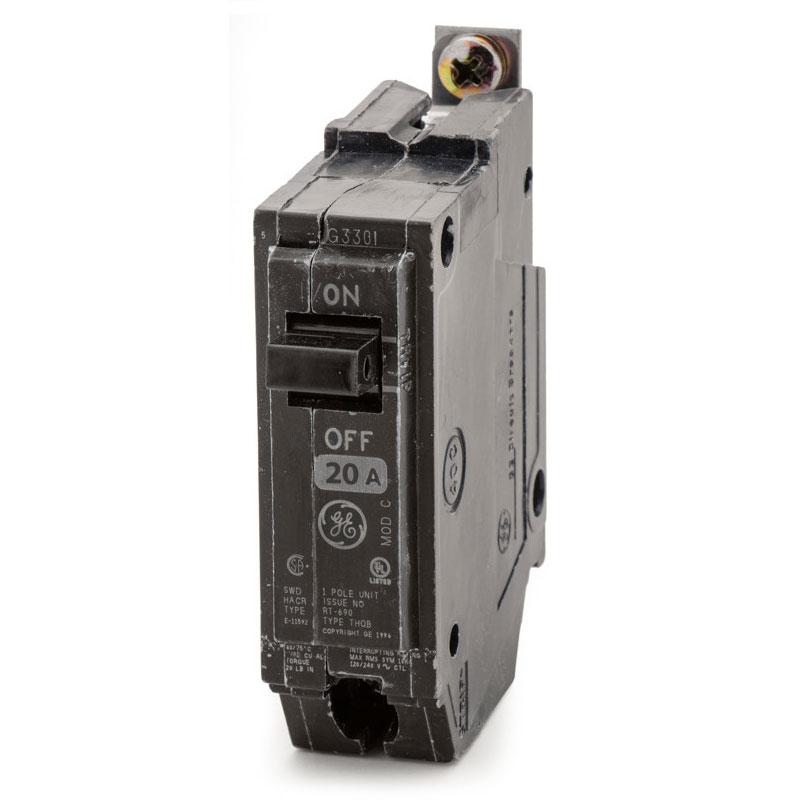

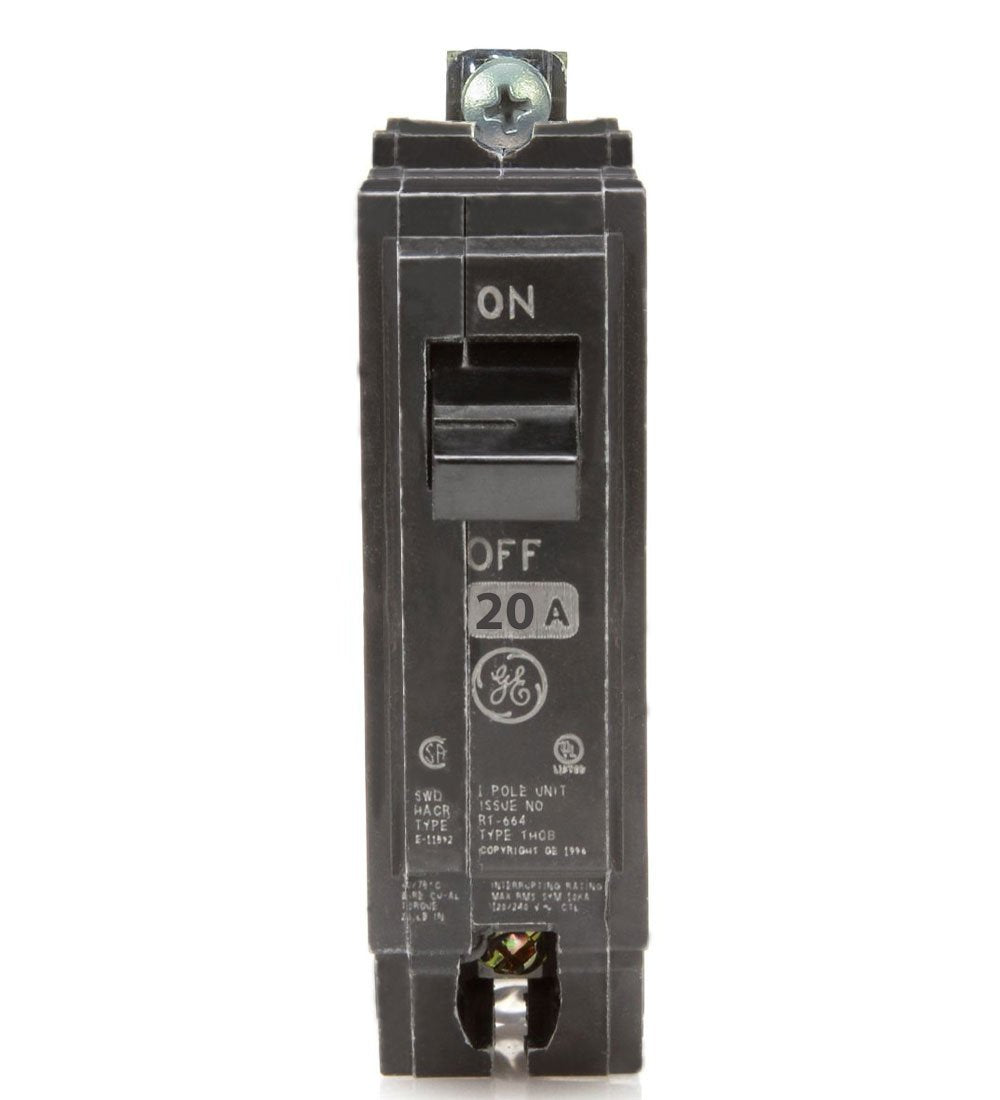

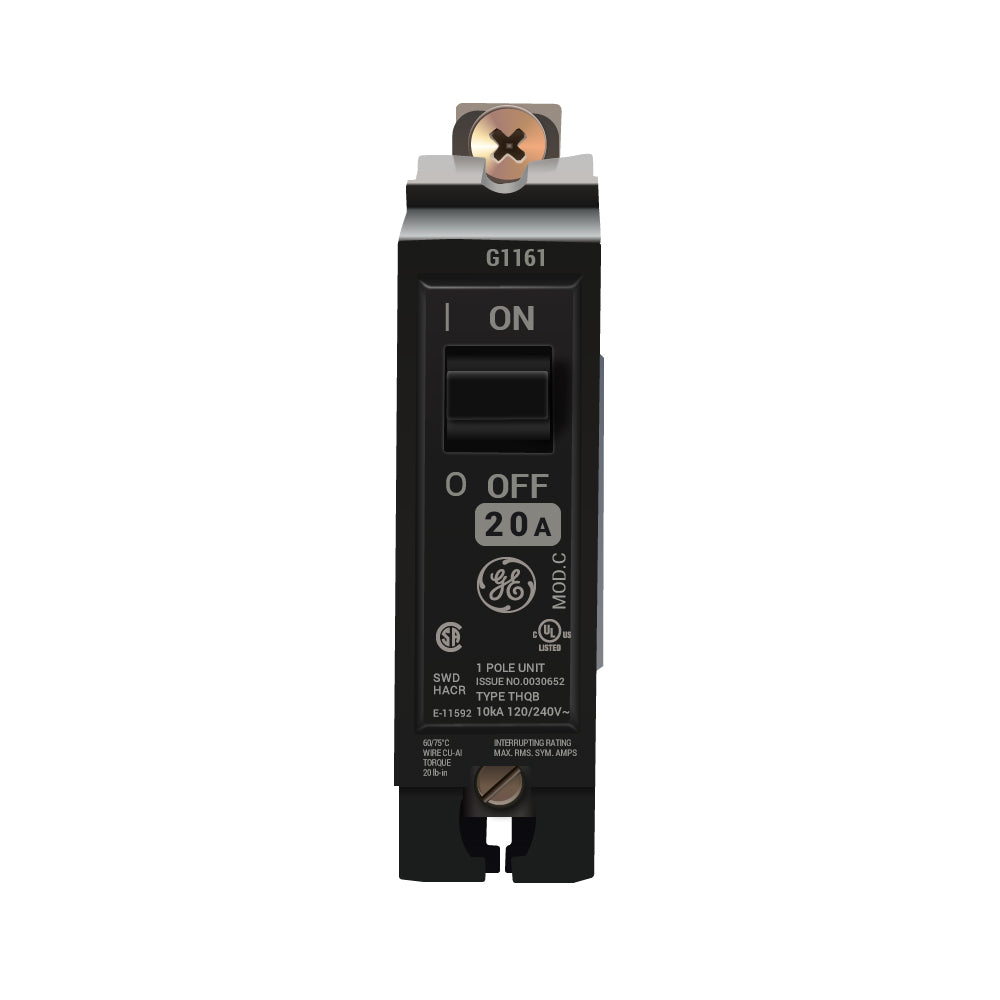

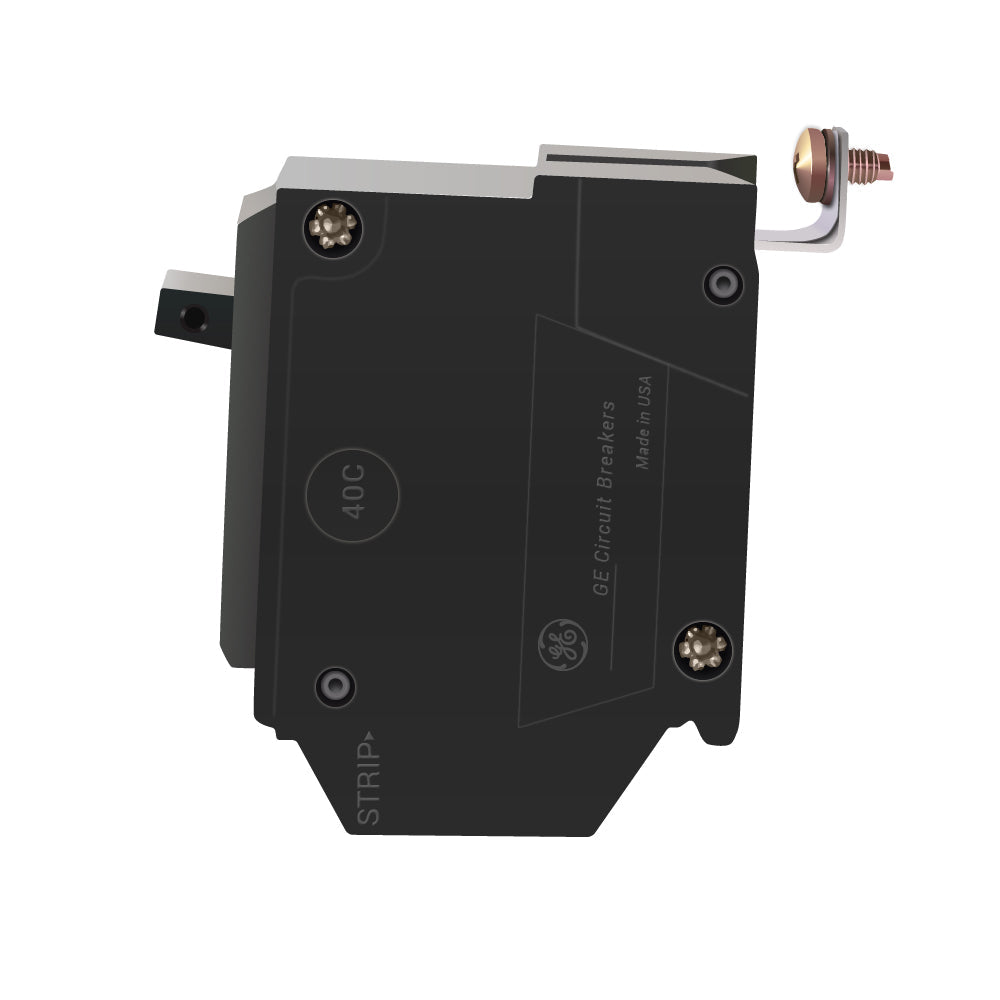

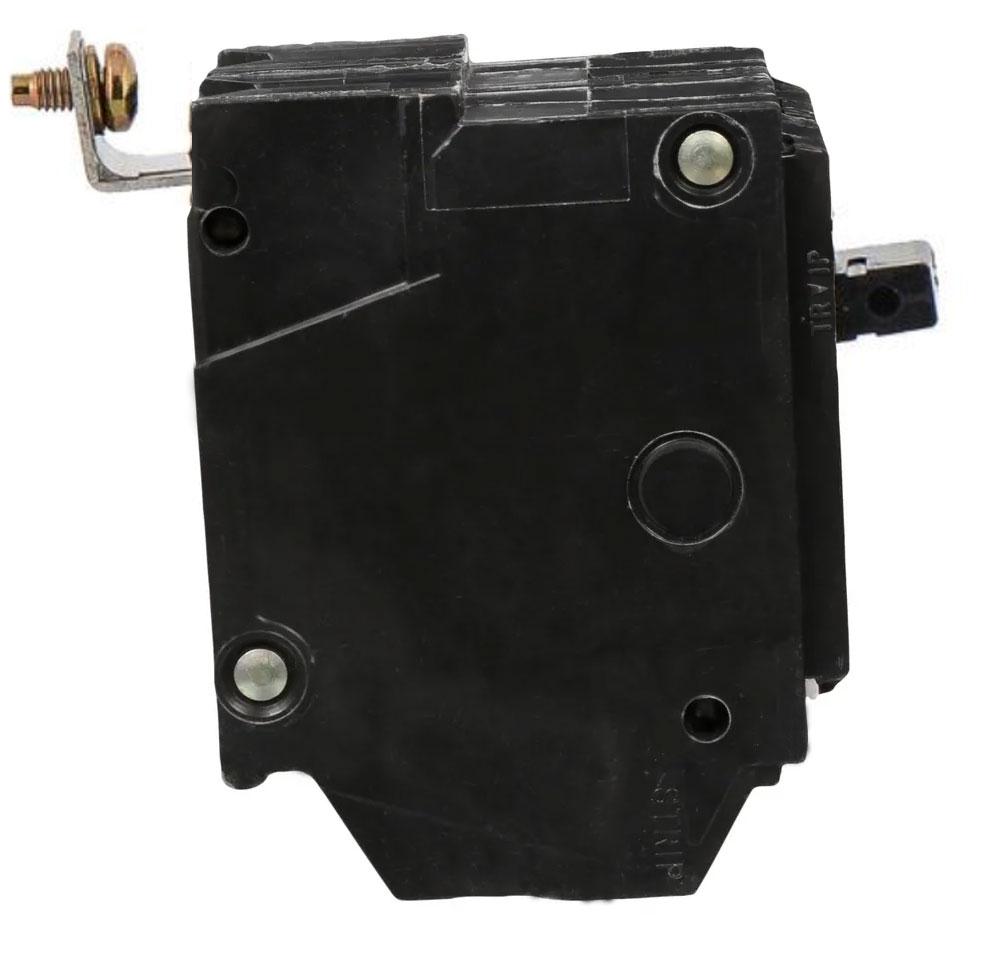

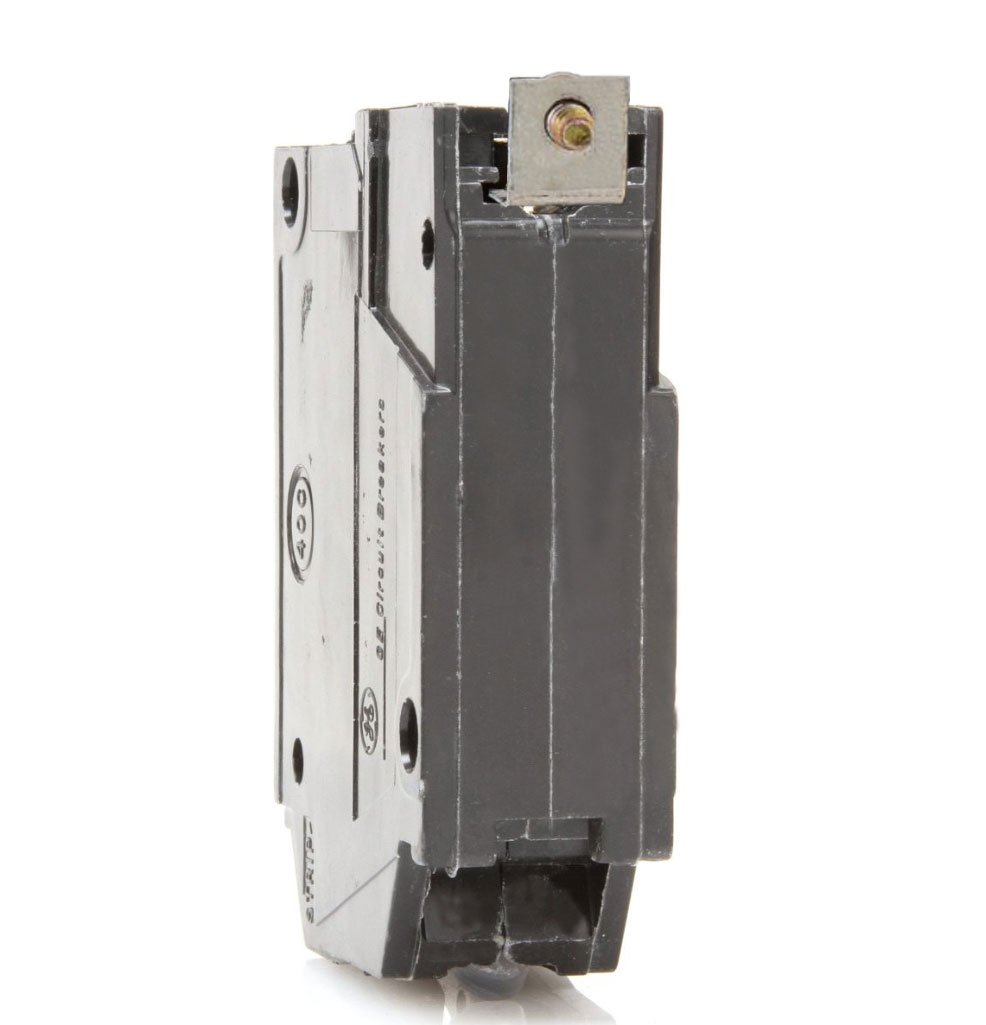

THQB1120 is a General Electric 20 Amp, 1 Pole, 120/240 VAC bolt-on circuit breaker designed for residential and commercial applications.This Q Line miniature circuit breaker features a compact one-inch wide per pole design with a thermal-magnetic trip unit. It includes a Quick-make / Quick-break mechanism, common trip bar, and easy-to-spot trip indication for enhanced safety and reliability. The breaker is suitable for use with GE AQ lighting panels and supports reverse feed. It has a maximum interrupt rating of 10 kA and mounts via bolt-on to bus connections of load centers and lighting panels.

Key Specifications
• Amperage: 20 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA
• Series/Frame: Q Line, A Series
• Trip Unit: Thermal Magnetic
• Wire Size: 14 to 8 AWG Copper, 12 to 8 AWG Aluminum
• Certifications: UL Listed, CSA Certified, GSA Compliant
• Dimensions: 3.28" Length, 1.00" Width, 2.38" Depth
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: THQB1120
• Manufacturer : General Electric
• Brand : General Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Q-Line
• Type : THQB
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13°F to 158°F (-25°C to 70°C)
• Protection : Thermal Magnetic



Product Data

• UPC : 078316401218
• GTIN : 40783164012185
• Dimensions : Height 3.280 in x Depth / Length 2.375 in x Width 1.000 in
• Weight : 1 lb
• Certification : UL Listed, CSA Certified
• Wire Size : 14 To 8 Awg (Copper), 12 To 8 Awg (Aluminum)
