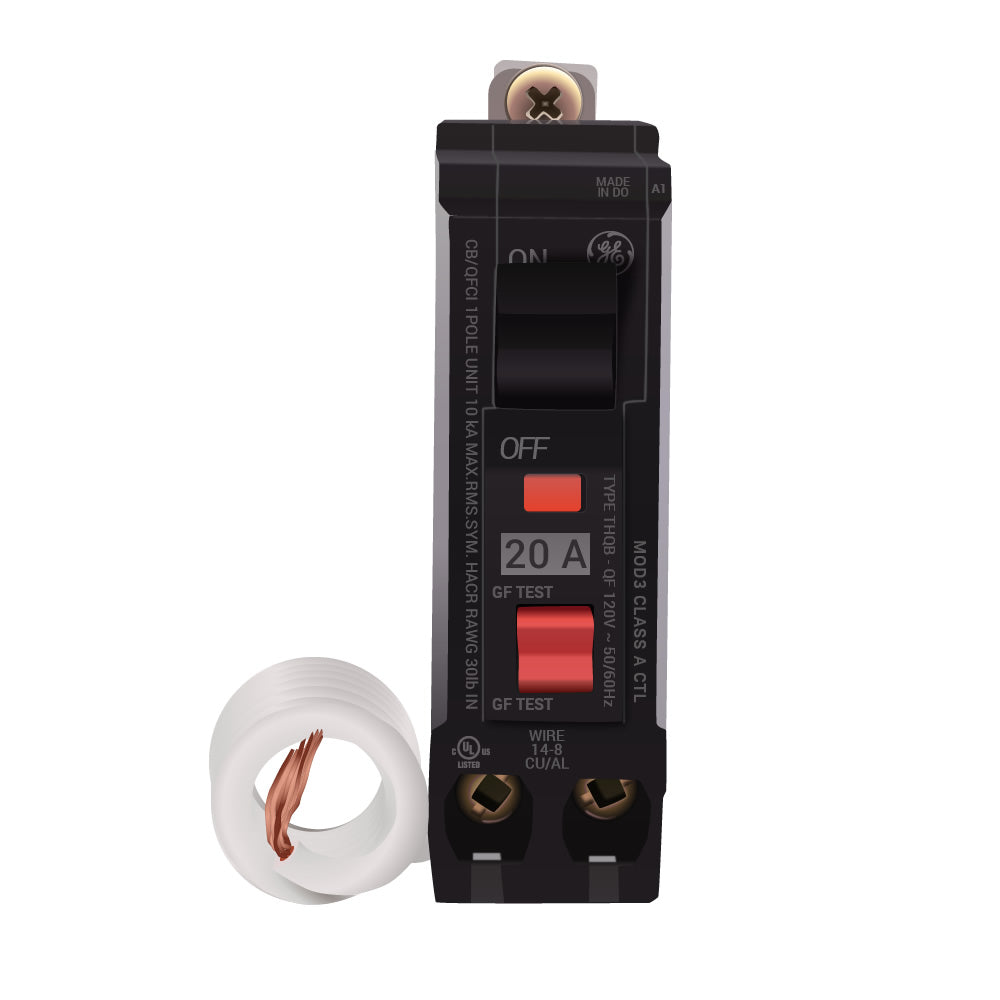

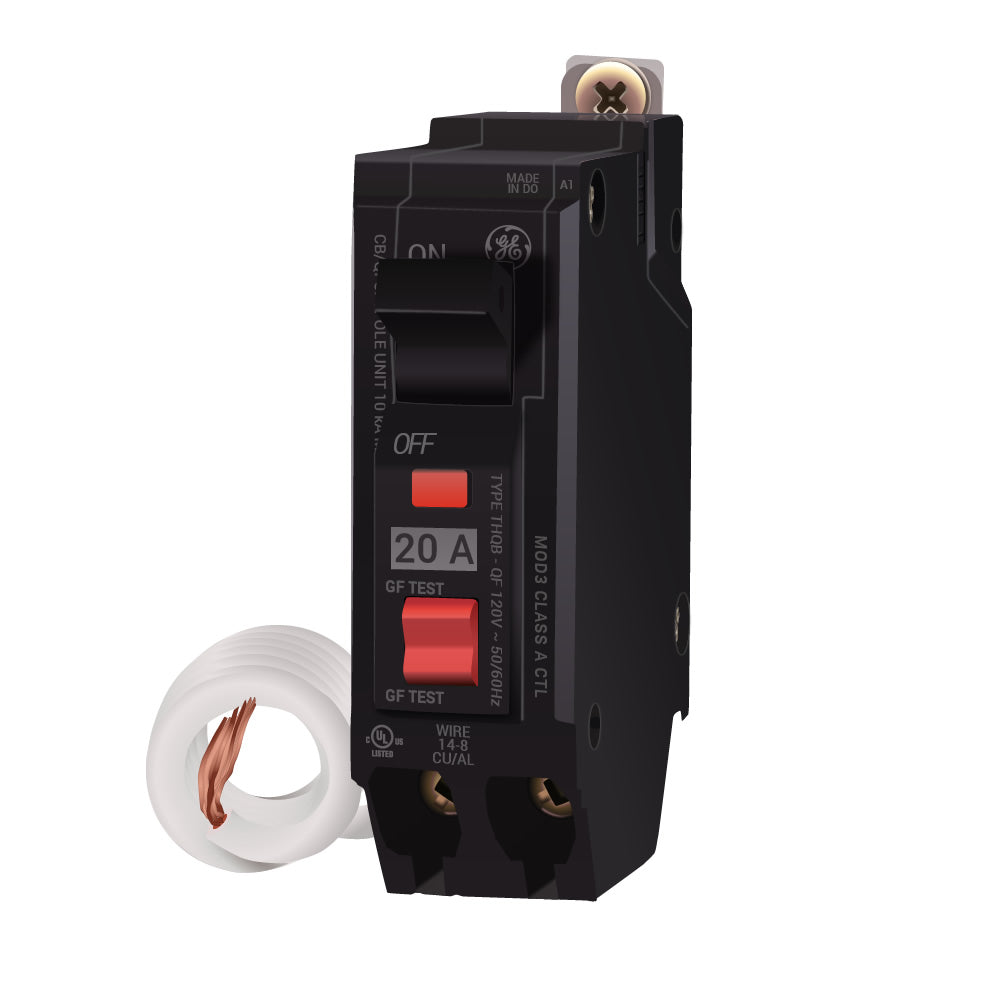

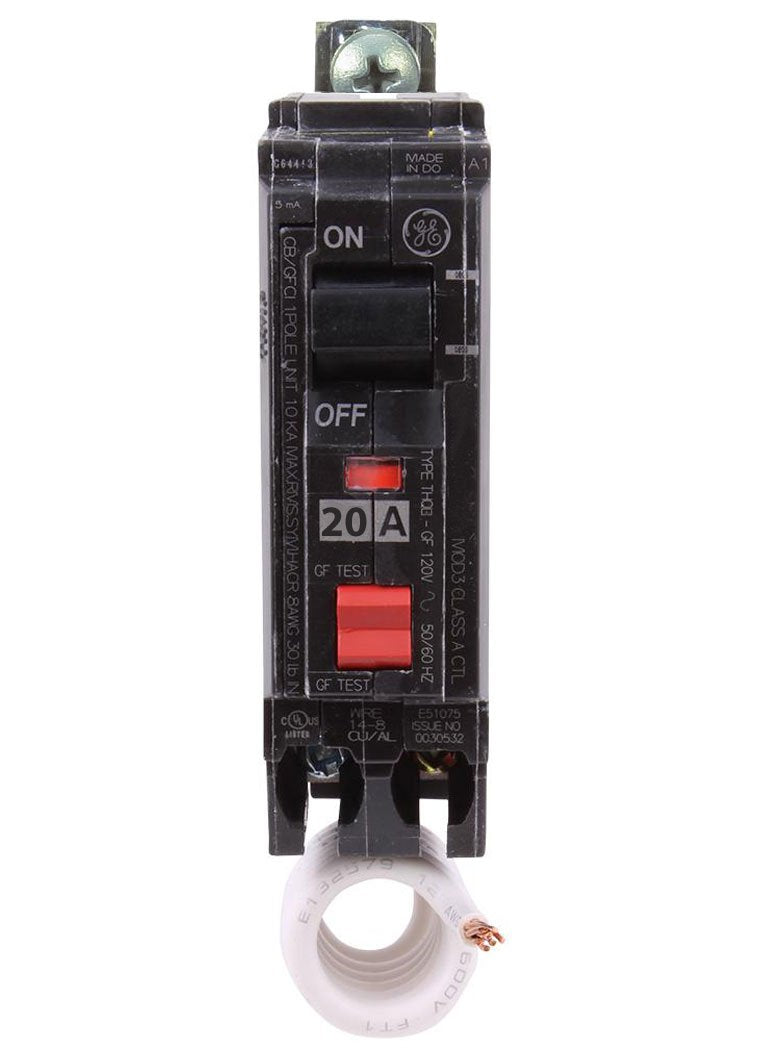

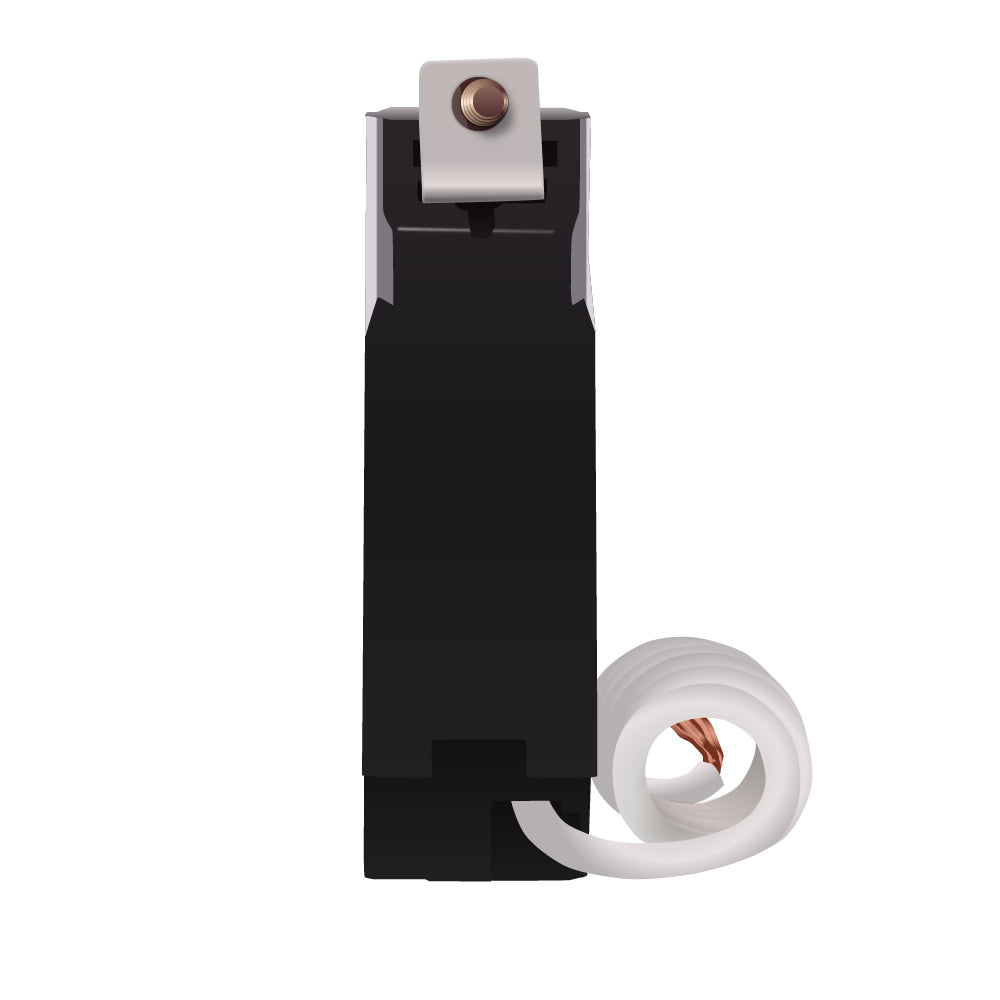

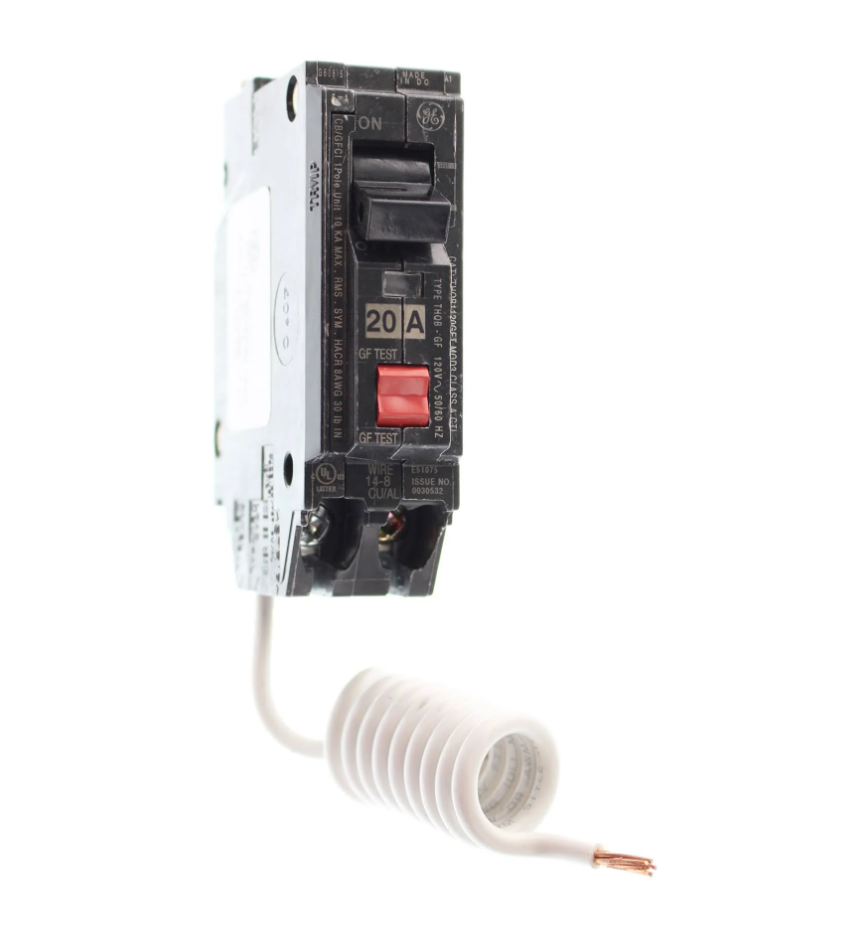

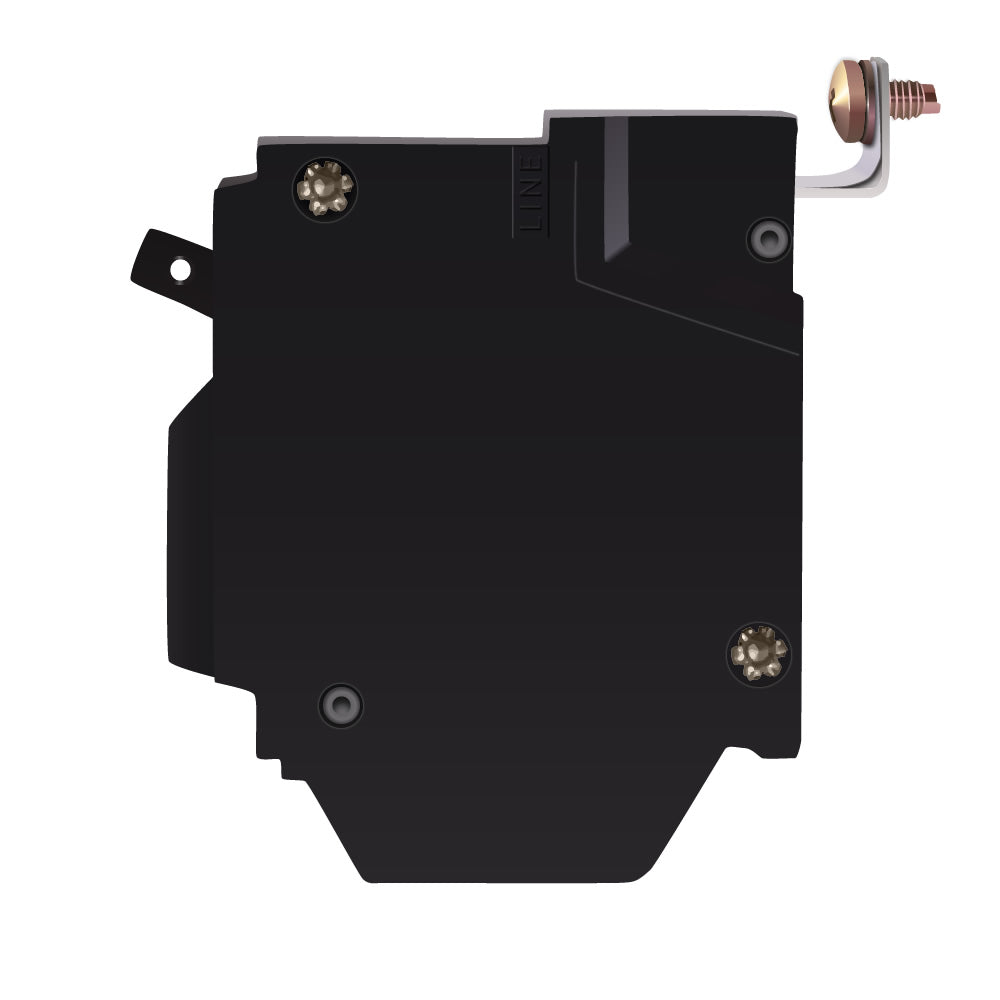

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- General Electric
- Sub-Category
- Molded Case
- Series
- Q-Line
- Frame
- THQB
- Rated current
- 20
- Voltage
- 120V
- Poles
- 1
- Phases
- 1
- Interrupting rating
- 10kA@120V
- Trip functions
- LI - Long-Time and Instantaneous
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Breaker type
- GFCI
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
Show all specifications (5 more)
- UPC
- 783164485479
- GTIN
- 40783164485477
- Dimensions
- Height 2.92 in x Depth / Length 3.28 in x Width 1 in
- Weight
- 1 lb
- Certification
- UL Listed
Product description & additional details
THQB1120GFT
THQB1120GFT is a General Electric 1-pole bolt-on ground fault circuit breaker rated for 20 amps and 120/240 volts AC.
This circuit breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions, a 10kA interrupting rating at 120V, and a bolt-on connection type for secure mounting. It is UL listed and CSA approved, designed for reliable ground fault protection in residential and commercial panelboards.
- Manufacturer: General Electric
- Series/Frame: THQB
- Amperage: 20 Amps
- Voltage: 120/240 VAC
- Poles: 1
- Mounting Type: Bolt-On
- Interrupting Rating: 10kA at 120V
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
- Connection Type: Bolt-On
- Certifications: UL Listed, CSA Approved
- Breaker Type: Ground Fault Circuit Interrupter (GFCI)
- Trip Sensitivity: 5 mA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: THQB1120GFT
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQB
- Voltage : 120
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164485479
- GTIN : 40783164485477
- Dimensions : Height 2.92 in x Depth / Length 3.28 in x Width 1 in
- Weight : 1 lb
- Certification : UL Listed
