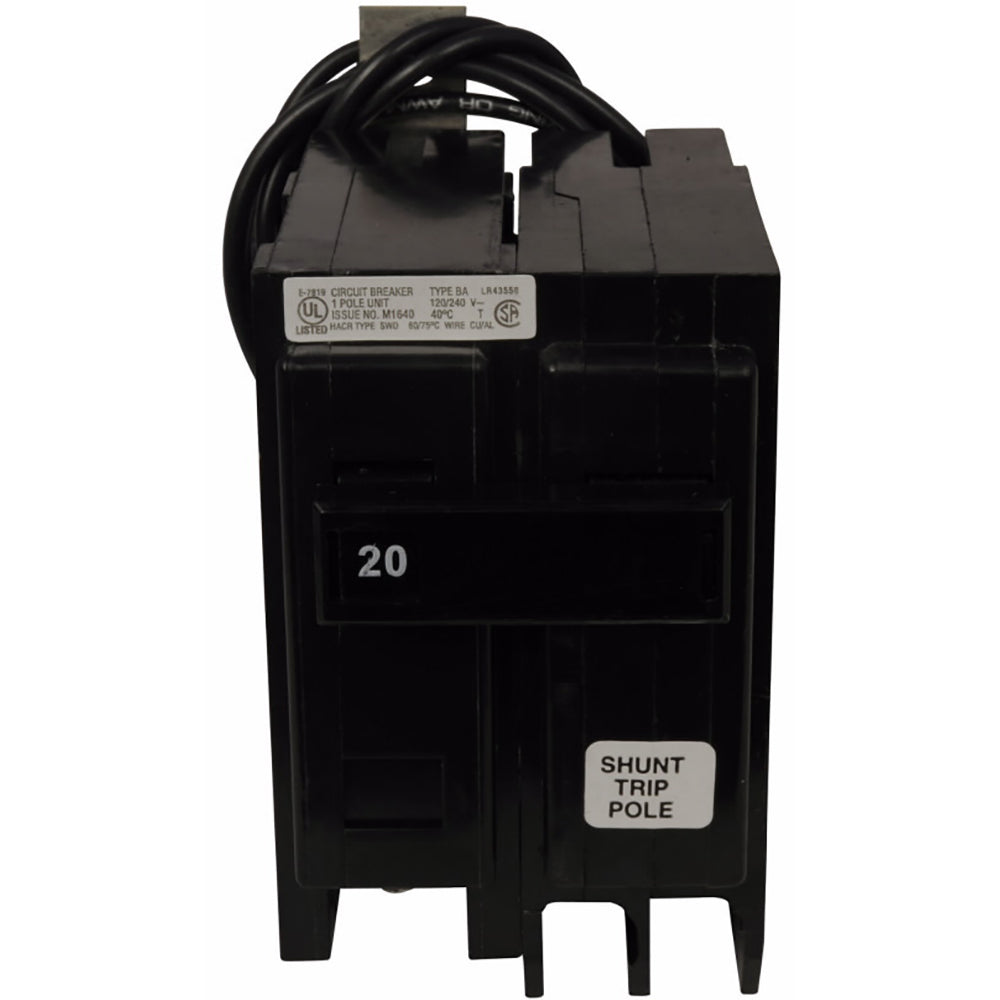

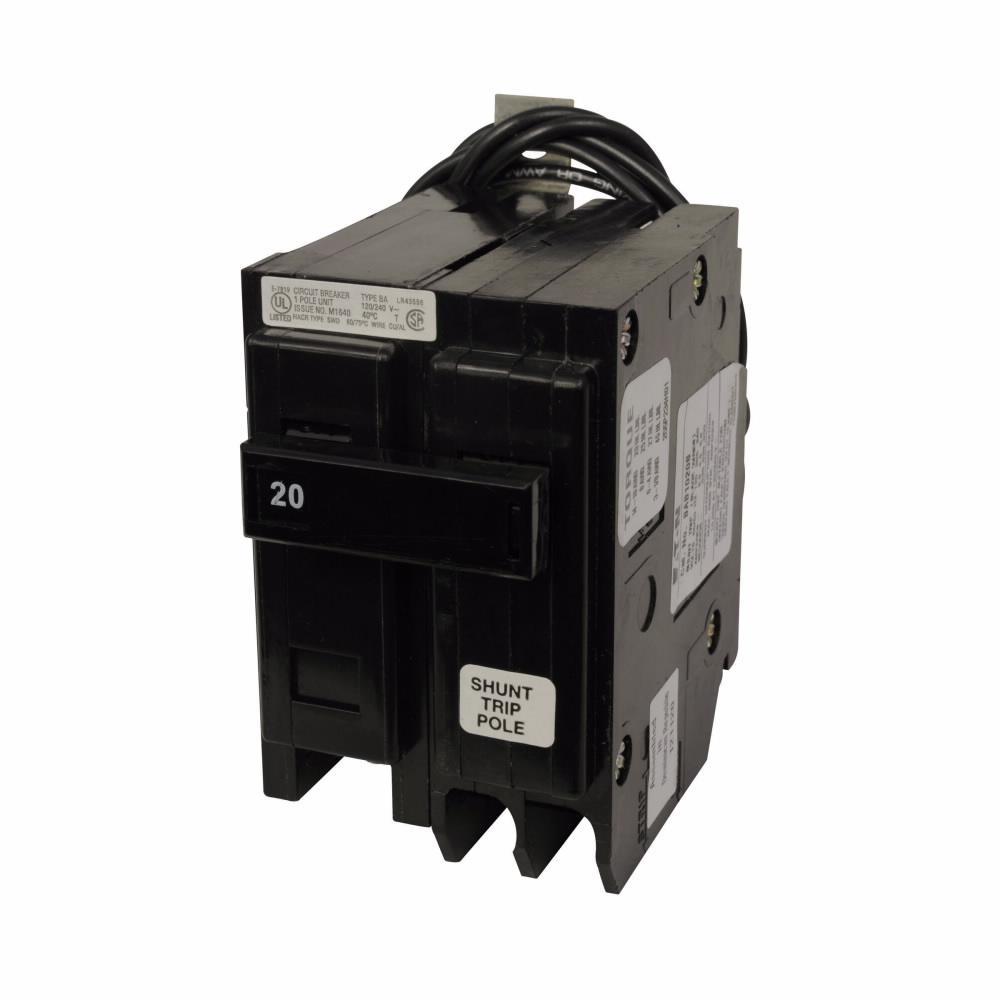

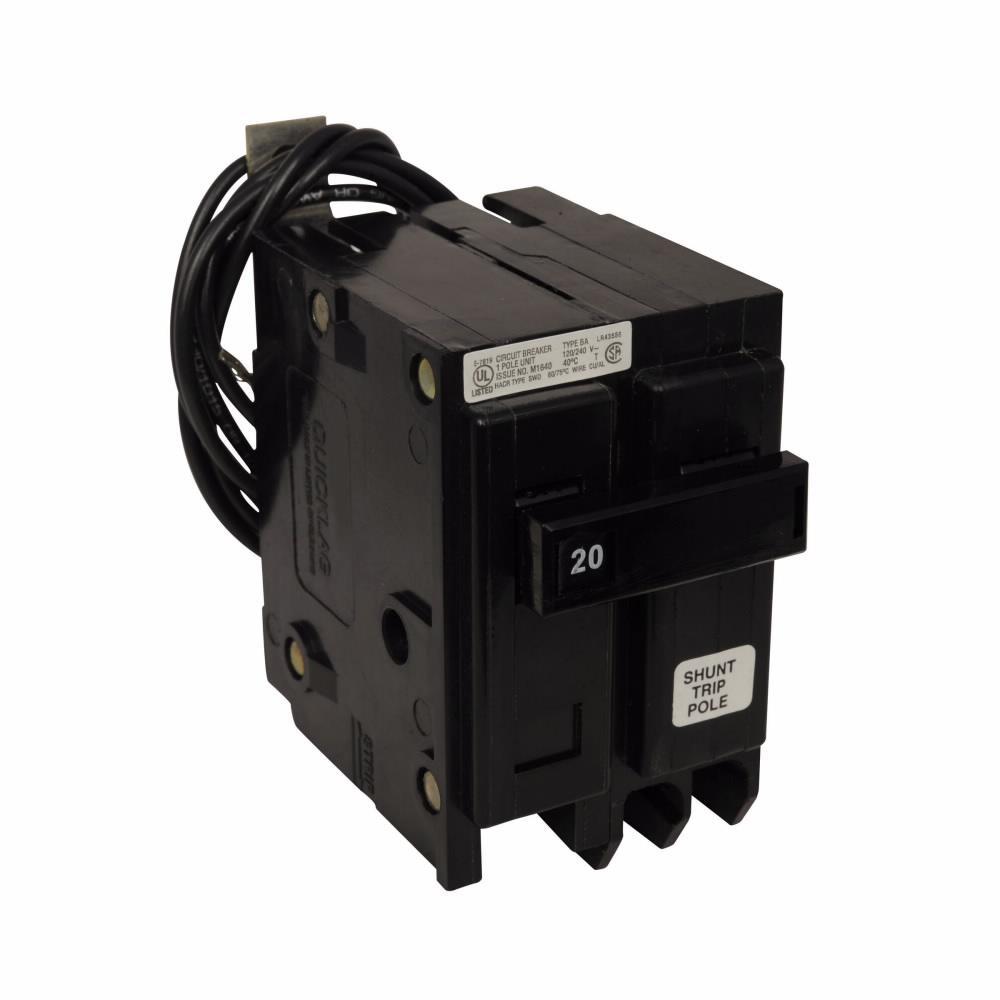

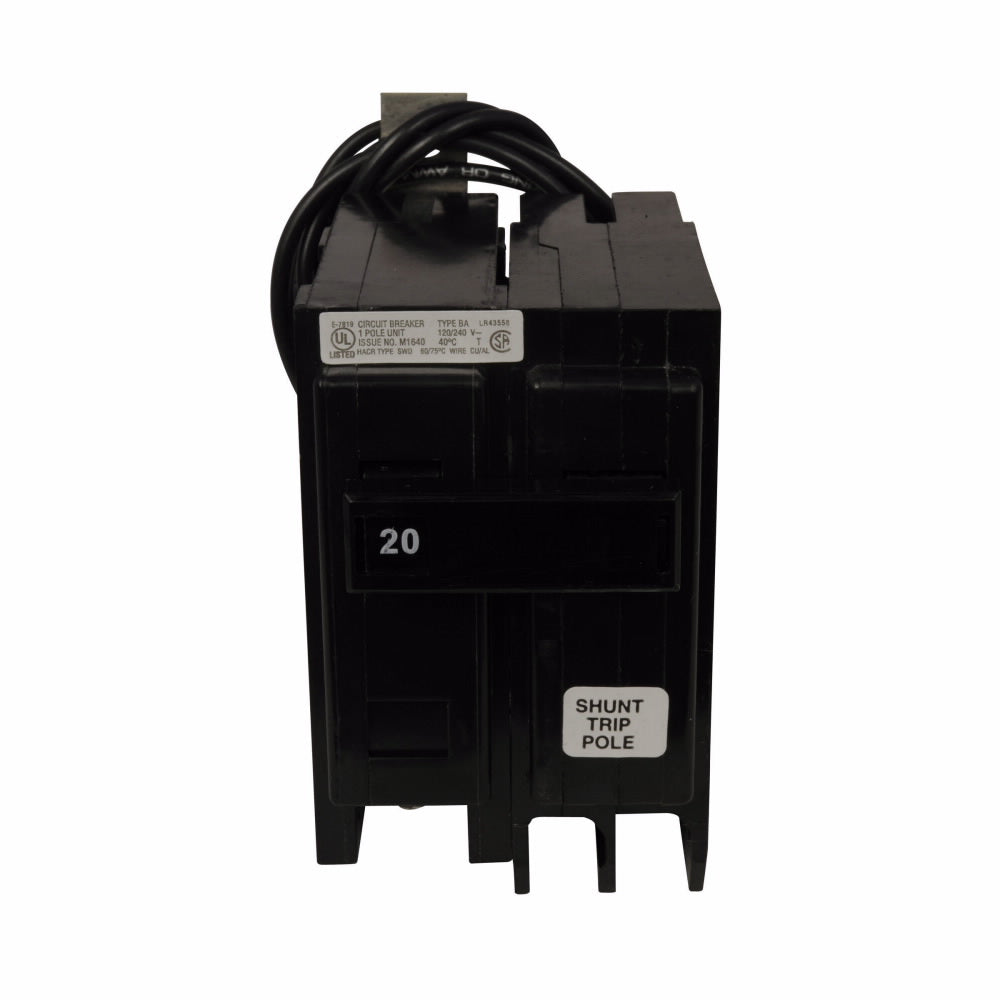

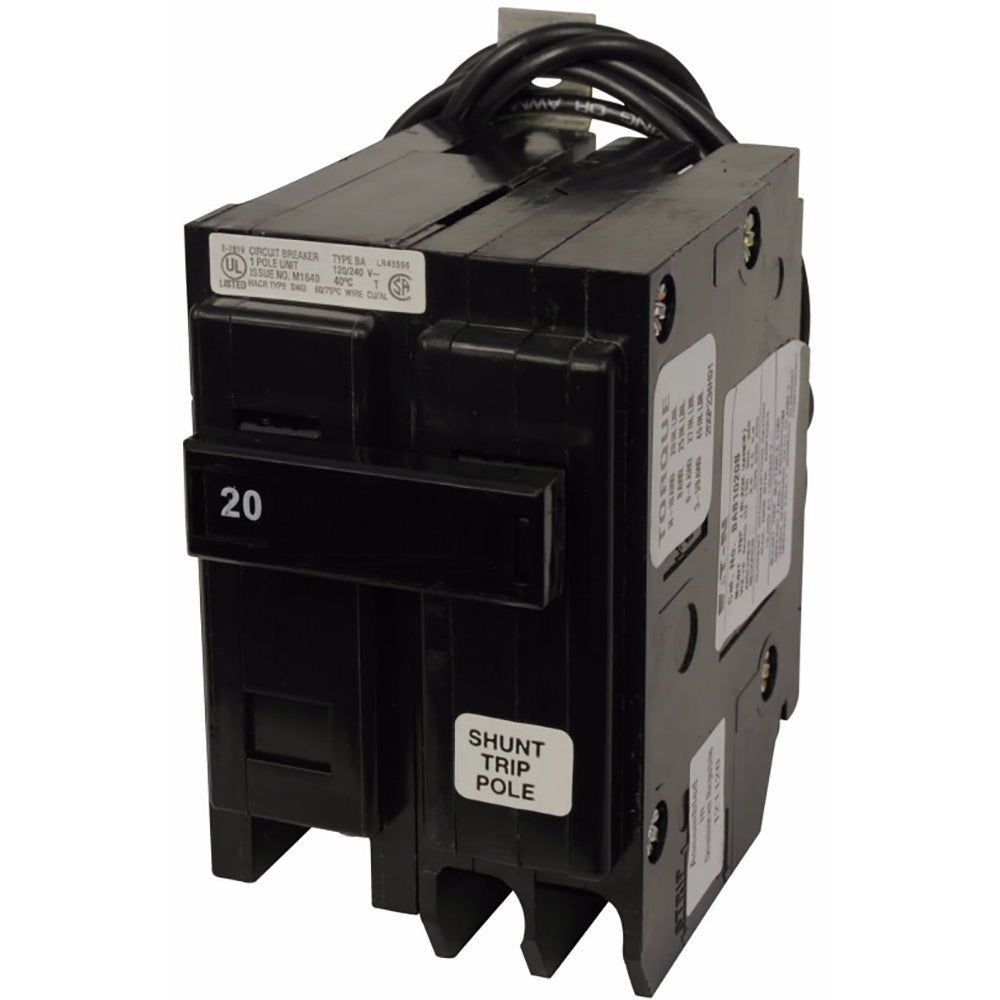

BAB1020S - Cutler Hammer 20A 120/240V 1-Pole Quicklag Thermal Magnetic Circuit Breaker with Shunt Trip

BAB1020S

BAB1020S is a Cutler Hammer Quicklag thermal magnetic circuit breaker with a 20 amp rating and 120/240 volt capacity featuring a 1-pole design and shunt trip functionality.This BAB series breaker offers bolt-on mounting and a fixed, non-interchangeable trip unit. It has a 10 kA interrupt rating at 240 VAC, suitable for commercial applications. The breaker is UL Listed and CSA Certified, HACR rated, and designed for panel board installation with extended tang line terminals.

• Amperage: 20 A
• Voltage: 120/240 VAC
• Poles: Single-pole (1)
• Mounting Type: Bolt-on
• Interrupt Rating: 10 kAIC
• Trip Type: Fixed, Non-Interchangeable Thermal Magnetic
• Series/Frame: Quicklag BAB
• Shunt Trip Voltage: 120-240 V
• Certifications: UL Listed, CSA Certified, HACR Rated
• Application: Commercial
• Terminal Type: Extended Tang Line
• Warranty: 1-2 years depending on source

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get th(more...)

Specifications

• Part Number: BAB1020S
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : BAB
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 786679509609
• GTIN : 00786679509609
• Country of Origin : Dominican Republic
• Dimensions : 3.9 in x 4.8 in x 2.2 in (Length/Depth x Height x Width)
• Weight : 1
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
• Wire Size : 14 To 4 AWG (Aluminum/Copper
