BRP120DF

BRP120DF

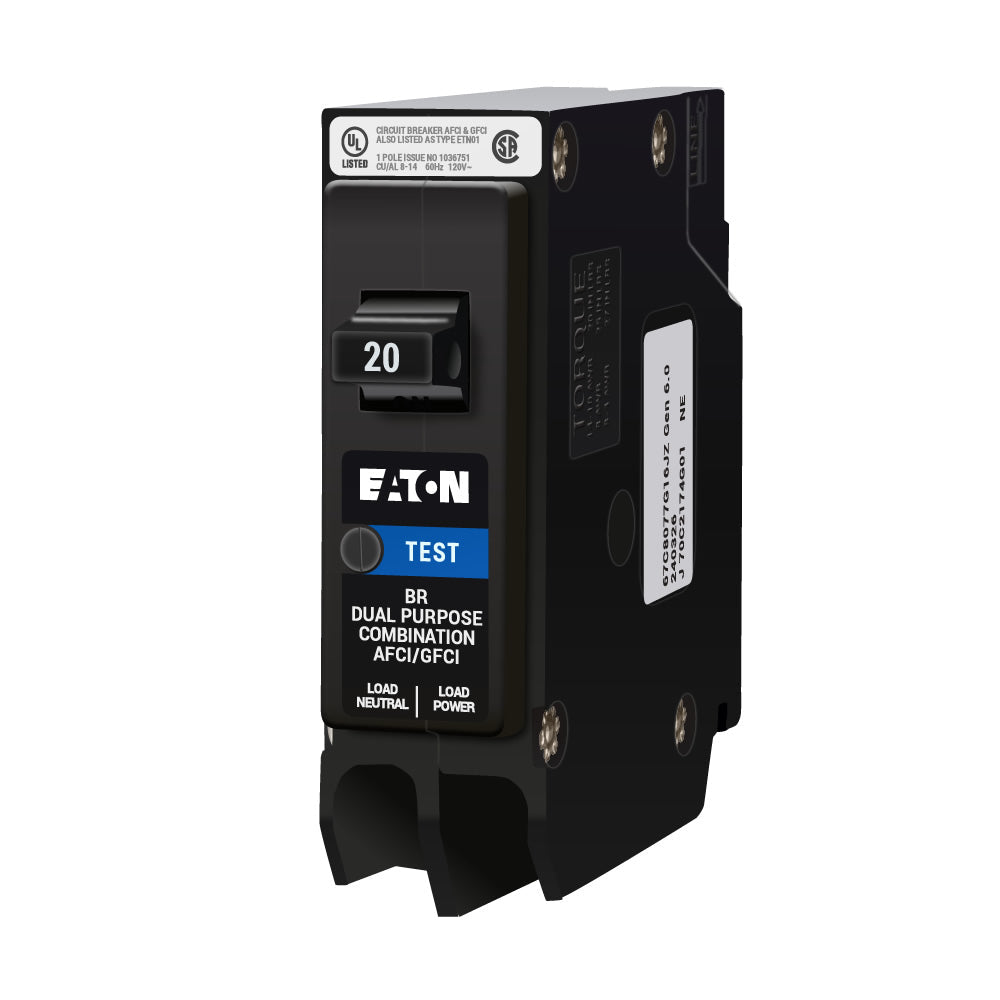

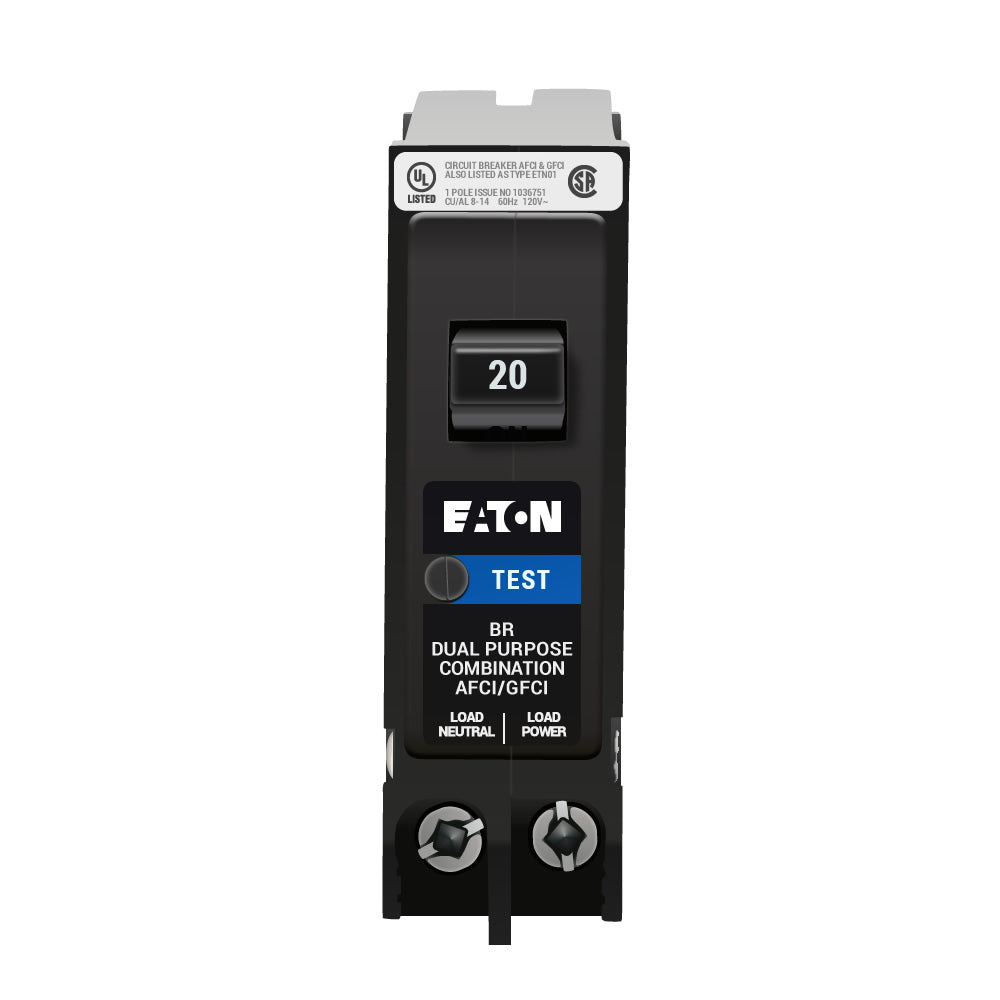

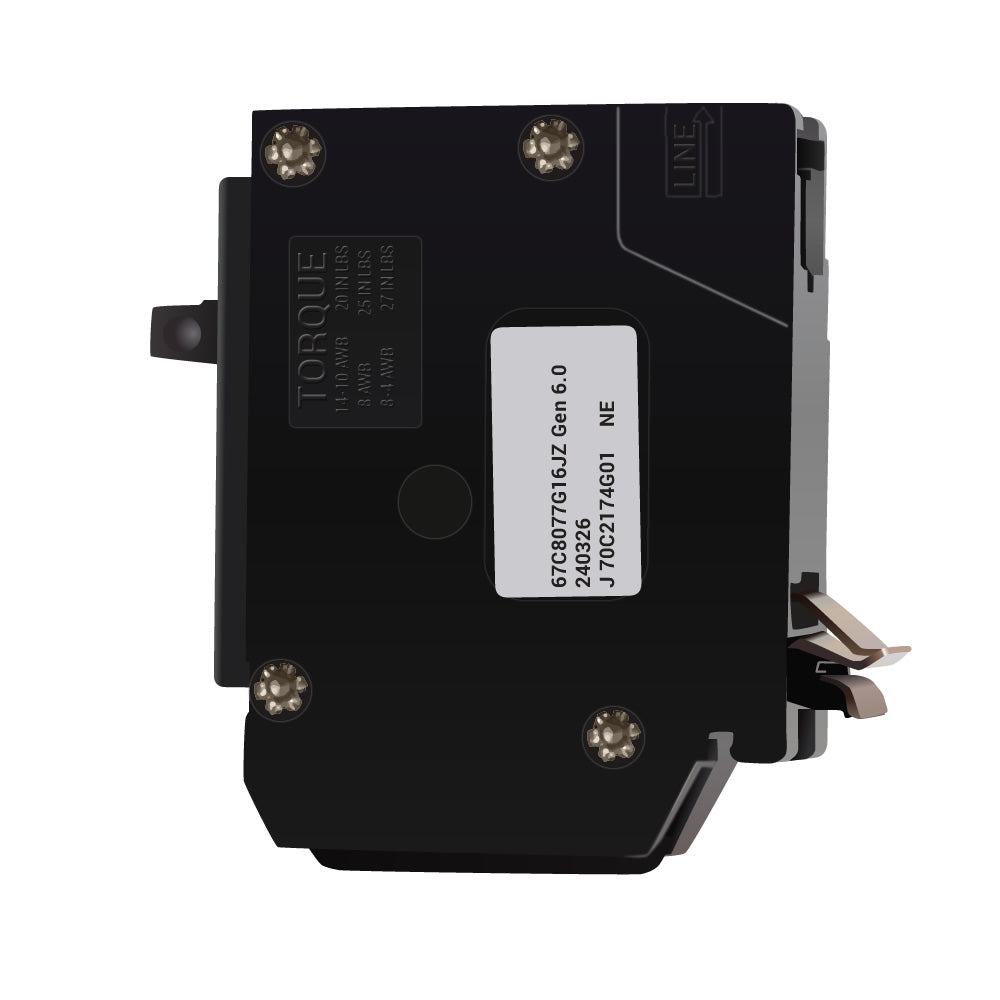

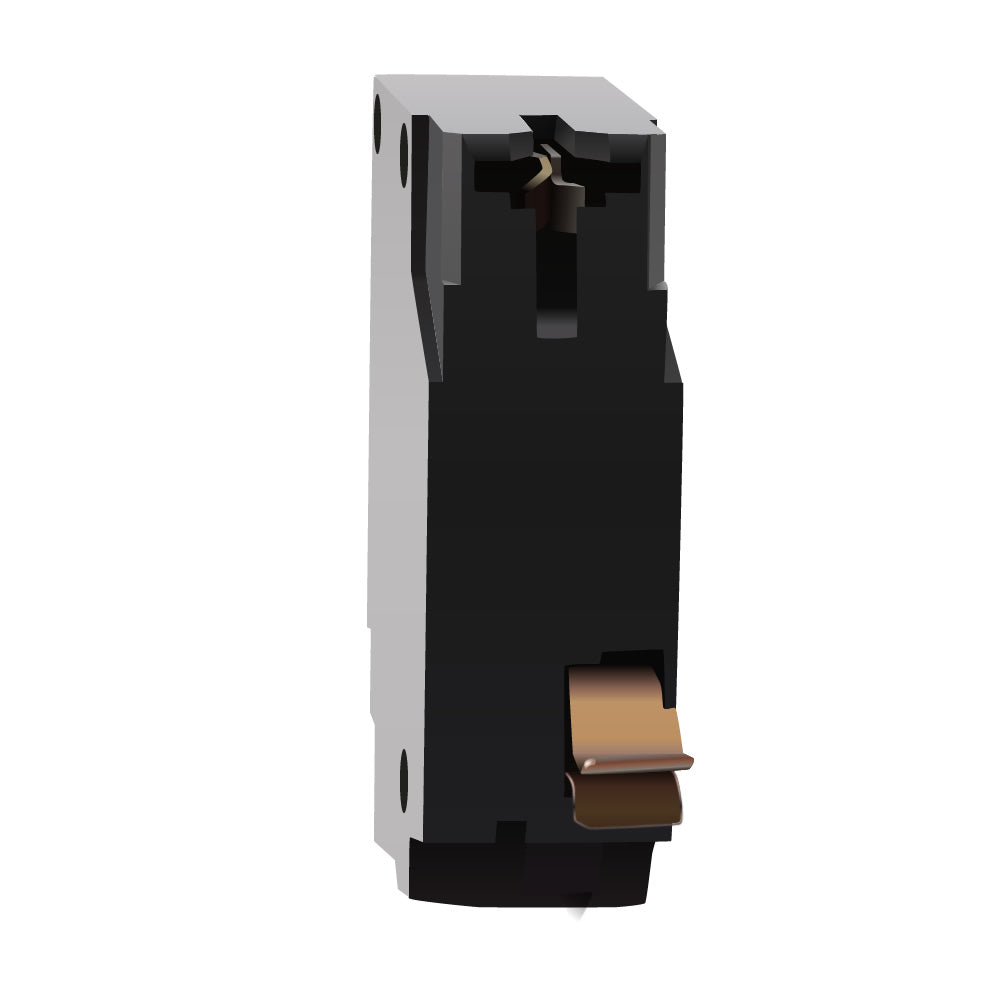

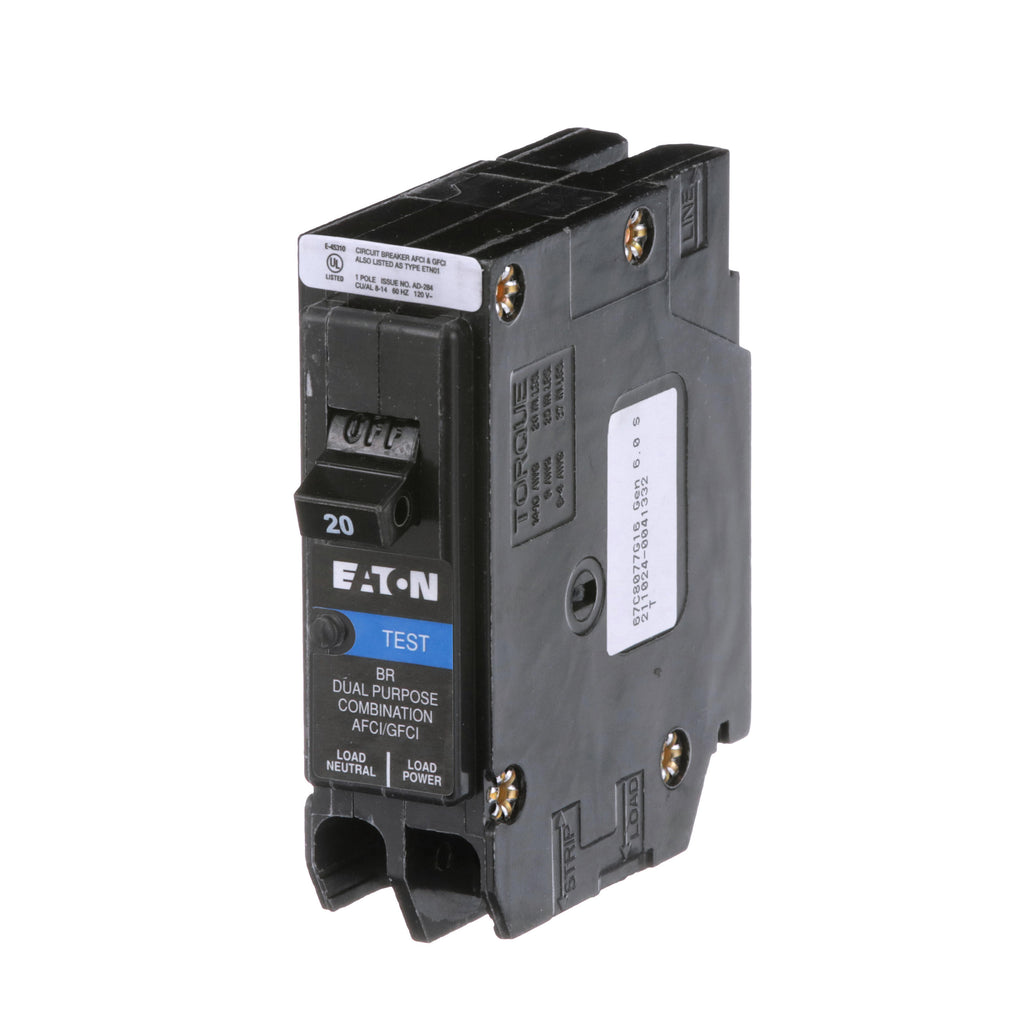

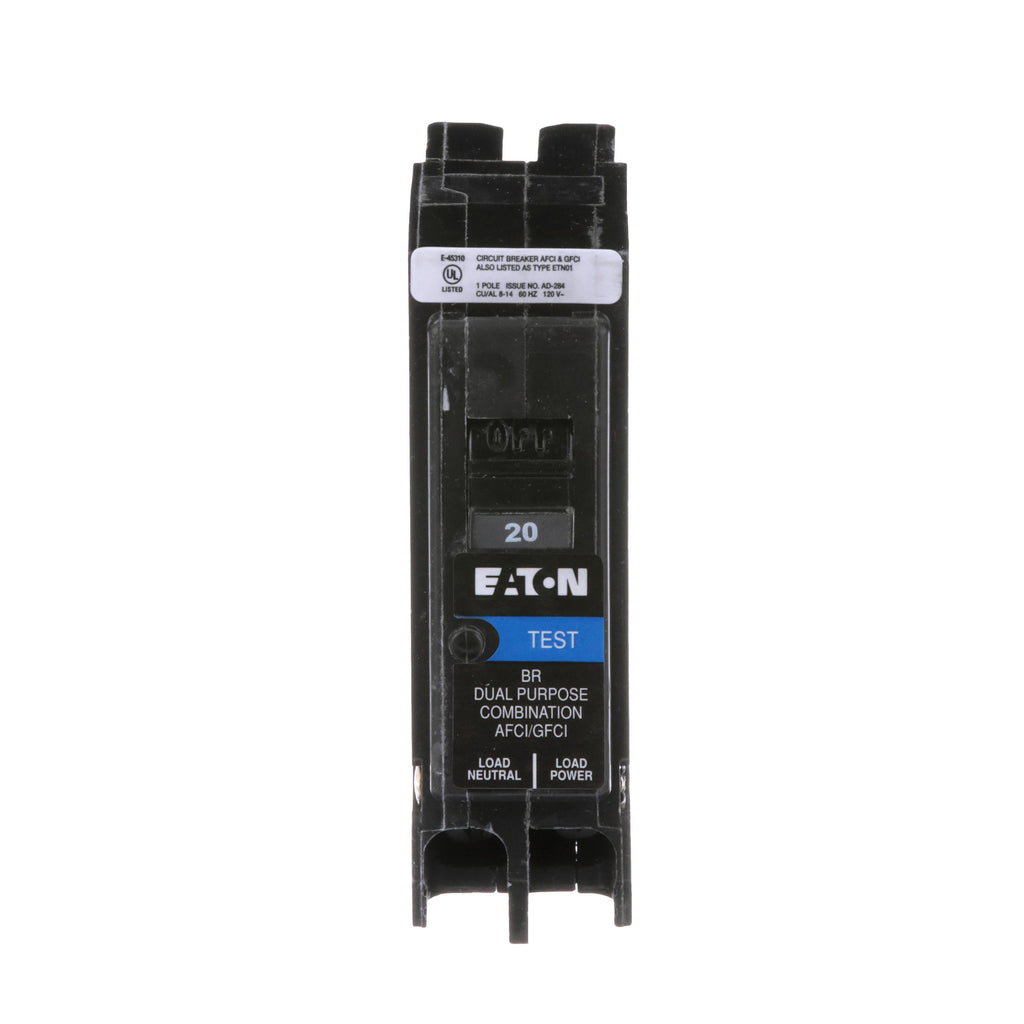

BRP120DF is a 20 amp, 1-pole dual function circuit breaker from Eaton's BR series designed for arc fault and ground fault protection.This Eaton BRP120DF circuit breaker features thermal magnetic trip technology with long-time and instantaneous trip functions, a 10 kA interrupt rating, and plug-on neutral mounting for easy installation in compatible load centers.

Key Specifications
• Amperage: 20 A
• Voltage Rating: 120/240 V AC
• Number of Poles: 1
• Series/Frame: BR
• Mounting Type: Plug-On Neutral
• Interrupt Rating: 10 kAIC
• Trip Unit: Thermal Magnetic with AFCI/GFCI dual function
• Wire Size Range: 14 to 4 AWG
• Certifications: UL Listed
• Dimensions: 2.9 in L x 2.9 in W x 0.9 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRP120DF
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BRP
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Breaker Type : BR
• Protection : Thermal Magnetic

Product Data

• UPC : 786670009207
• GTIN : 00786670009207
• Country of Origin : Dominican Republic
• Dimensions : 2.9 in x 0.9 in x 2.9 in (Length/Depth x Height x Width)
• Weight : 0.4 lb
• Certification : UL 1699, UL 943
• Wire Size : 14 to 4 AWG
