Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- General Electric
- Sub-Category
- Molded Case
- Series
- Q-Line
- Frame
- THQB
- Rated current
- 20
- Voltage
- 240V
- Poles
- 1
- Phases
- 1
- Interrupting rating
- 10kA@240V
- Trip functions
- Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Lugs
- Included
- UPC
- 783164329711
Show all specifications (3 more)
- GTIN
- 00783164329711
- Weight
- 2
- Wire Size
- 14 AWG to 8 AWG, 12 AWG to 8 AWG, Cu/Al
Product description & additional details

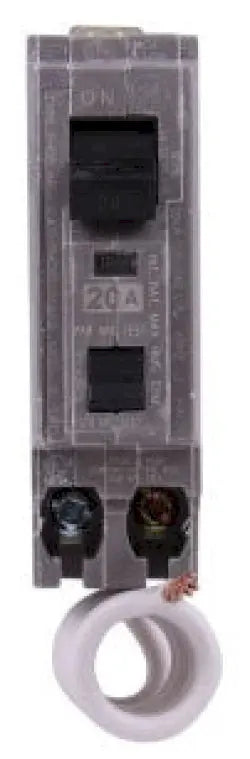

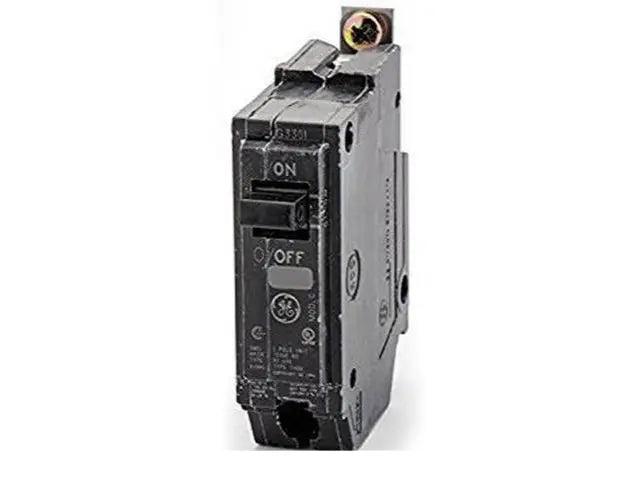

THQB1120AF
THQB1120AF is a 20 Amp, 1 Pole, 120/240 Volt Q-Line circuit breaker from General Electric designed for residential and commercial load centers.This thermal magnetic breaker features a plug-in connection, 10kA interrupting rating, and long time and instantaneous trip functions for reliable circuit protection.
- Manufacturer: General Electric
- Series/Frame: Q-Line (THQL)
- Amperage: 20 Amps
- Voltage: 120/240 VAC
- Poles: 1
- Interrupting Rating: 10,000 AIC at 120/240 VAC
- Mounting Type: Plug-In
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
- Certifications: UL Listed, CSA Approved
- Dimensions: Approximately 3" x 1" x 3"
- Suitable for use in Power Mark Gold Load Centers and AQ Lighting Panels
Specifications
- Part Number: THQB1120AF
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQB
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783164329711
- GTIN : 00783164329711
- Weight : 2
- Wire Size : 14 AWG to 8 AWG, 12 AWG to 8 AWG, Cu/Al
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
