Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- General Electric
- Sub-Category
- Molded Case
- Series
- Q-Line
- Frame
- THQB
- Rated current
- 20
- Voltage
- 240V
- Poles
- 1
- Phases
- 1
- Interrupting rating
- 10kA@240V
- Trip functions
- Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Lugs
- Included
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
Show all specifications (5 more)
- UPC
- 78316416014
- GTIN
- 40783164160145
- Dimensions
- Height 3.280 in x Depth / Length 2.375 in x Width 1.000 in
- Weight
- 0.11
- Wire Size
- AWG 14 to 8 AWG, AWG 12 to 8 AWG, Copper/Aluminum
Product description & additional details

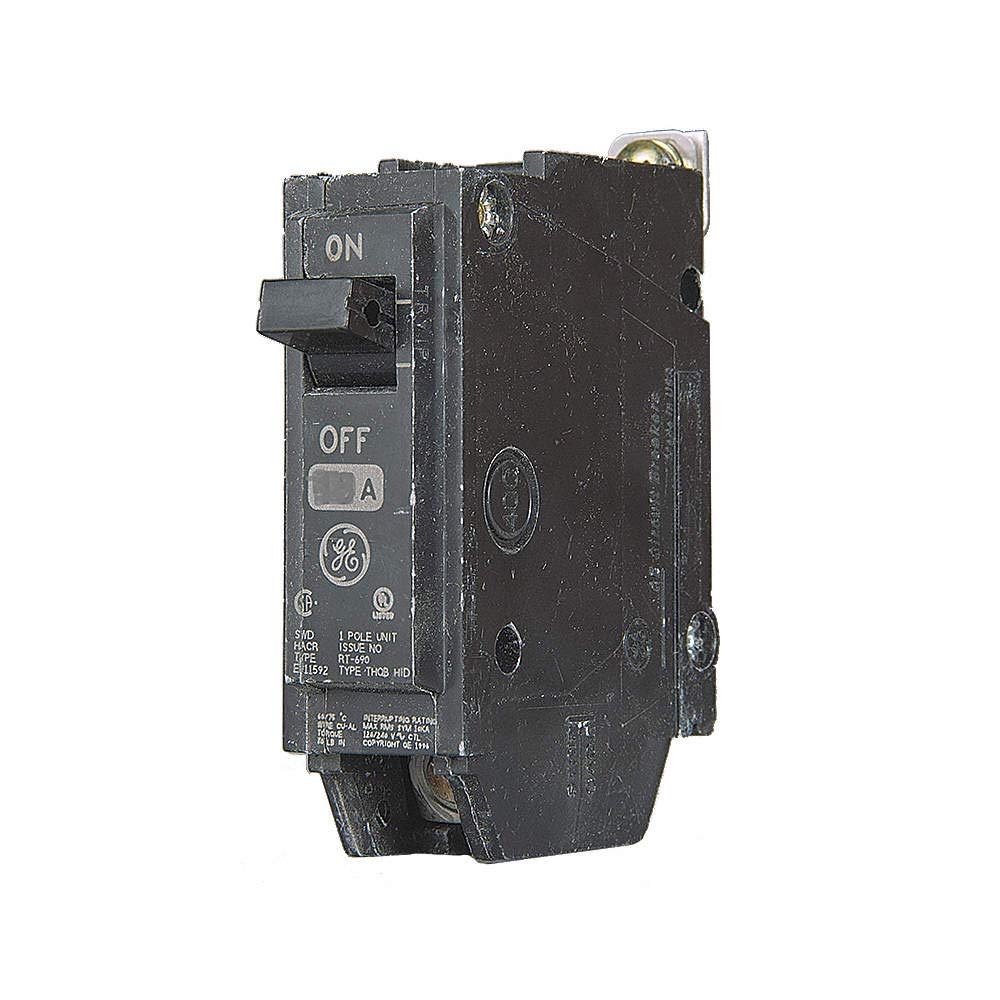

THQB1120HID
THQB1120HID is a 1 pole, 20 amp, 120/240VAC bolt-on circuit breaker designed for reliable protection in residential and commercial applications. This General Electric Q-Line breaker features a thermal-magnetic trip unit and high interrupting capacity for dependable performance. The THQB1120HID is a compact, molded case miniature circuit breaker with a 10kAIC interrupting rating at 120/240VAC. It is designed for bolt-on mounting and is suitable for use in load centers and panelboards. The breaker is part of the GE Q-Line series and features long time/instantaneous trip characteristics for effective circuit protection.
- Part Number: THQB1120HID
- Manufacturer: General Electric
- Amperage: 20A
- Voltage: 120/240VAC
- Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 10kAIC @ 120/240VAC
- Series/Frame: Q-Line
- Frame Type: THQB
- Series/Frame: Q-Line
- Trip Unit: Thermal-Magnetic/Long Time/Instantaneous
- Certifications: UL Listed
Specifications
- Part Number: THQB1120HID
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQB
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Protection : Thermal Magnetic
Product Data
- UPC : 78316416014
- GTIN : 40783164160145
- Dimensions : Height 3.280 in x Depth / Length 2.375 in x Width 1.000 in
- Weight : 0.11
- Wire Size : AWG 14 to 8 AWG, AWG 12 to 8 AWG, Copper/Aluminum
