THQB1120AF2 - General Electric Bolt-On 20 Amp 1 Pole Circuit Breaker - Essential Electric Supply

THQB1120AF2 - General Electric 20A 120/240V 1-Pole Q-Line Molded Case Circuit Breaker Arc Fault Bolt-On - Essential Electric Supply

Hover to zoom

Reference images. Contact us for photos of the available unit.

General Electric

THQB1120AF2

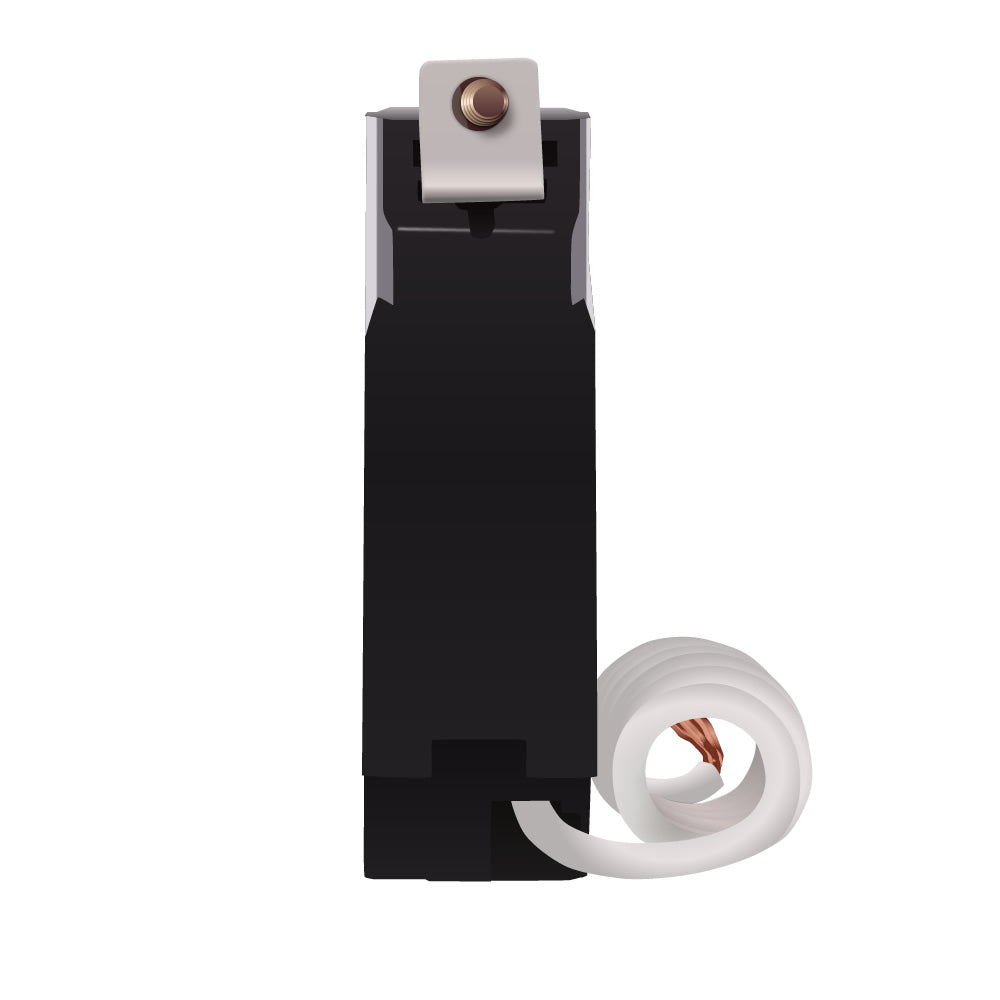

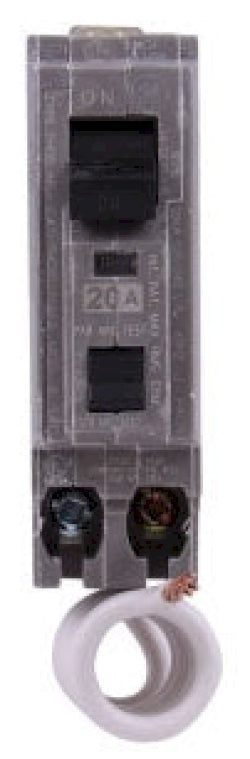

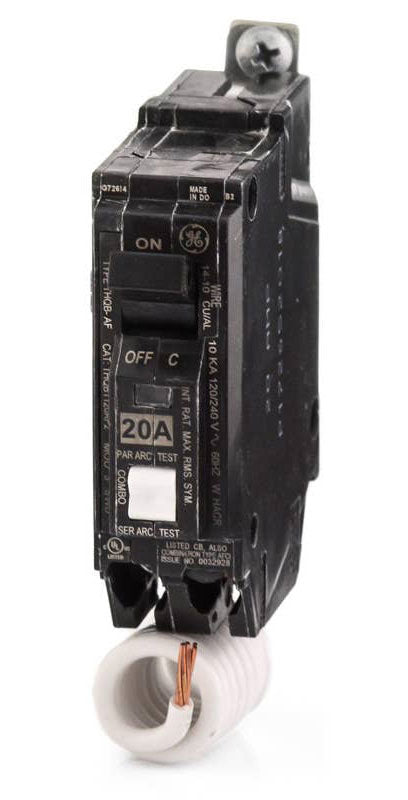

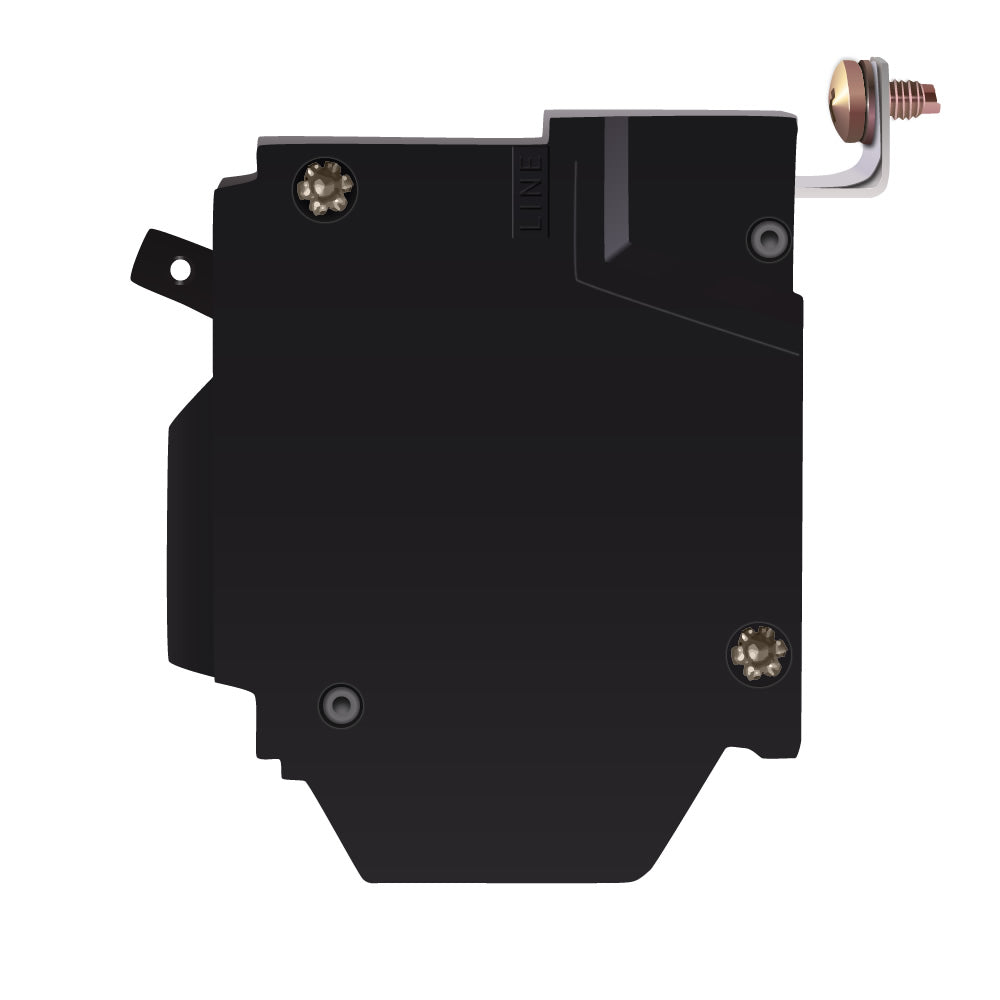

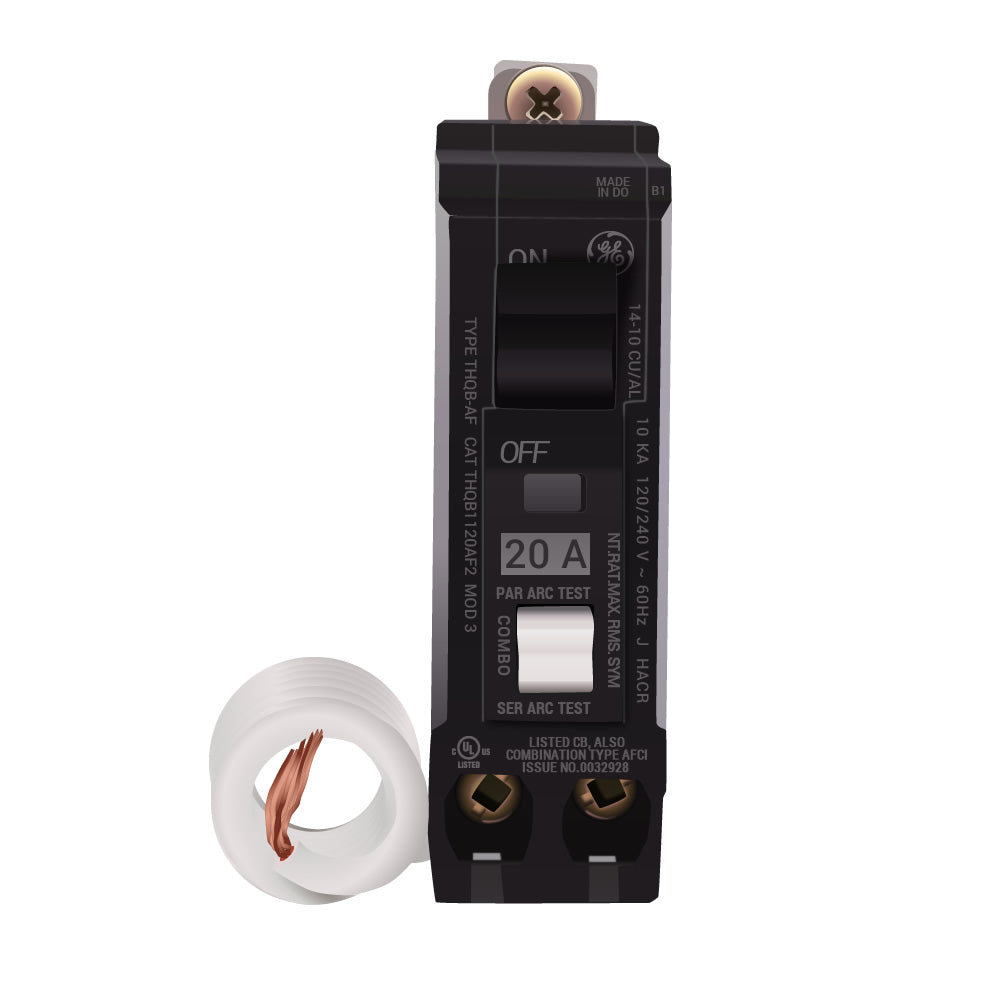

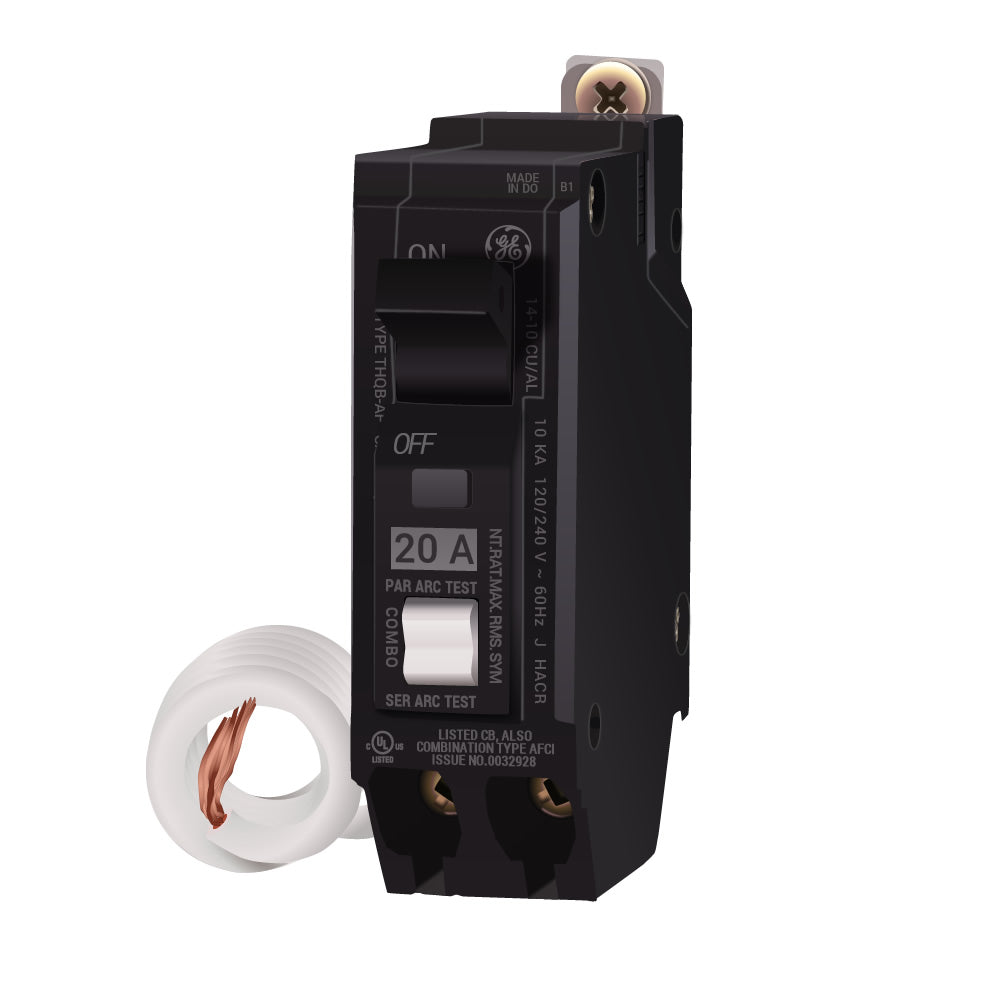

Name: THQB1120AF2 - General Electric 20A 120/240V 1-Pole Q-Line Molded Case Circuit Breaker Arc Fault Bolt-On
Brand: General Electric
SKU: THQB1120AF2-New
Price: 130.14 USD
Availability: InStock

General Electric 20A 120/240V 1-Pole Q-Line Molded Case Circuit Breaker Arc Fault Bolt-On

Current: 20Poles: 1Voltage: 240VConnection: Bolt-On

Choose your condition

Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →

Variant

$130.14 $621.00

Save $490.86

100+ in stock, ready to be shipped

View warranty coverage Return eligibility

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

💡 ABB / GE Branding Notice

Customers may receive ABB-branded products, GE-branded products, or packaging reflecting either brand. Contact our team before ordering if you need specific labeling.

Read the complete ABB / GE notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

ABB-branded products
GE-branded products
Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer: General Electric
Sub-Category: Molded Case
Series: Q-Line
Frame: THQB
Rated current: 20
Voltage: 240V
Poles: 1
Phases: 1
Interrupting rating: 10kA@240V
Trip functions: LI - Long-Time and Instantaneous Trip
Protection: Thermal Magnetic
Connection: Bolt-On
Lugs: Included
Breaker type: AFCI
Country of origin: Dominican Republic

Show all specifications (5 more)

UPC: 078316465287
GTIN: 40783164652879
Dimensions: 1 in x 3.28 in x 3-9/32 in
Weight: 1
Certification: CSA Certified, UL Listed

Product description & additional details

THQB1120AF2

THQB1120AF2 is a General Electric Q-Line 20 Amp, 1 Pole, 120/240 Volt Molded Case Circuit Breaker with Arc Fault protection and bolt-on mounting.This GE THQB1120AF2 circuit breaker features a 10 kA interrupt rating and thermal magnetic trip unit with Long-Time and Instantaneous (LI) trip functions. It is UL listed and designed for use in Q-Line bolt-on breaker panels, providing reliable arc fault detection and circuit protection in residential and commercial applications.

Amperage: 20 Amps
Voltage: 120/240 VAC
Poles: 1 Pole
Mounting Type: Bolt-On
Interrupt Rating: 10 kA
Series/Frame: Q-Line THQB
Trip Unit: Thermal Magnetic with Arc Fault (AF2)
Certifications: UL Listed
Phase: Single Phase
Load Side Lug Terminal

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

Part Number: THQB1120AF2
Manufacturer : General Electric
Brand : General Electric
Category : Circuit Breaker
Item Subcategory : Molded Case
Family : Q-Line
Type : THQB
Voltage : 240
Amperage : 20
Phase : 1
Poles : 1
AIC rating : 10kA@240V
Connection : Bolt-On
Functions : LI - Long-Time and Instantaneous Trip
Protection : Thermal Magnetic

Product Data

UPC : 078316465287
GTIN : 40783164652879
Country of Origin : Dominican Republic
Dimensions : 1 in x 3.28 in x 3-9/32 in
Weight : 1
Certification : CSA Certified, UL Listed
