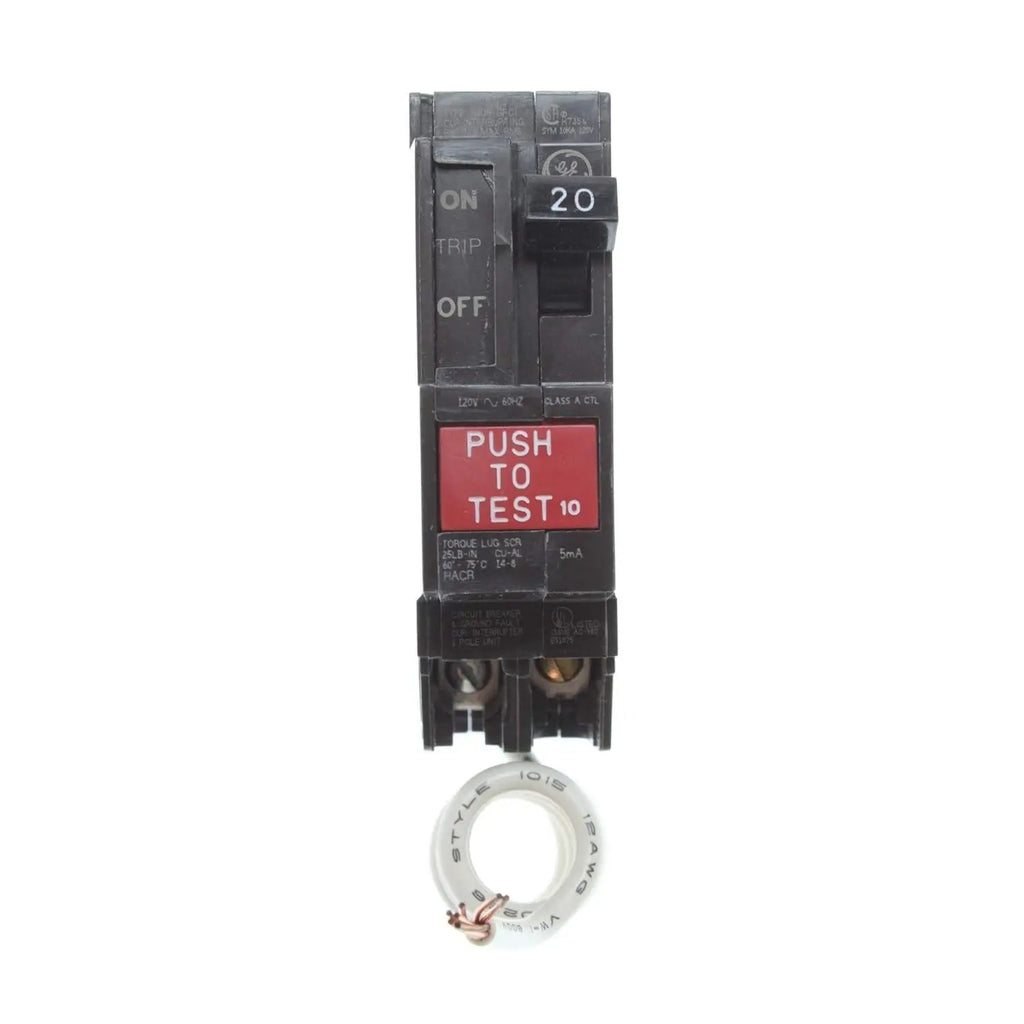

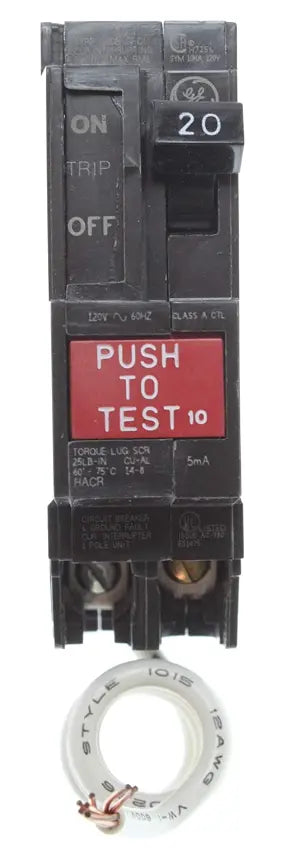

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- General Electric
- Sub-Category
- Molded Case
- Series
- Q-Line
- Frame
- THQB
- Rated current
- 20
- Voltage
- 120V
- Poles
- 1
- Phases
- 1
- Interrupting rating
- 10kA@120V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Lugs
- Included
- Breaker type
- GFCI
Show all specifications (5 more)
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- UPC
- 783164086010
- Weight
- 4.57 lb
- Certification
- UL Listed, CSA Certified
- Wire Size
- 14 To 8 Awg (Copper), 12 To 8 Awg (Aluminum)
Product description & additional details
THQB1120GF
THQB1120GF is a General Electric molded case circuit breaker designed for reliable ground fault protection in commercial and industrial applications.
This 1 pole, 20 amp, 120 volt circuit breaker features a bolt-on mounting style, 10kA interrupting rating, and is part of the Q-Line series. It includes a non-interchangeable thermal magnetic trip unit (LI), is UL and CSA listed, and is rated for use with copper or aluminum wiring.
-
Key Specifications
- Amperage: 20A
- Voltage: 120V
- Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 10kA at 120V
- Series/Frame: Q-Line, THQB
- Trip Unit: Thermal Magnetic (LI), Non-Interchangeable
- Certifications: UL Listed, CSA
- Wire Size: #14 to #8 Cu, #12 to #8 Al
- Protection: Ground Fault (GFCI)
- Connection: Bolt-On
- Temperature Rating: 40°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: THQB1120GF
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQB
- Voltage : 120
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164086010
- Weight : 4.57 lb
- Certification : UL Listed, CSA Certified
- Wire Size : 14 To 8 Awg (Copper), 12 To 8 Awg (Aluminum)
