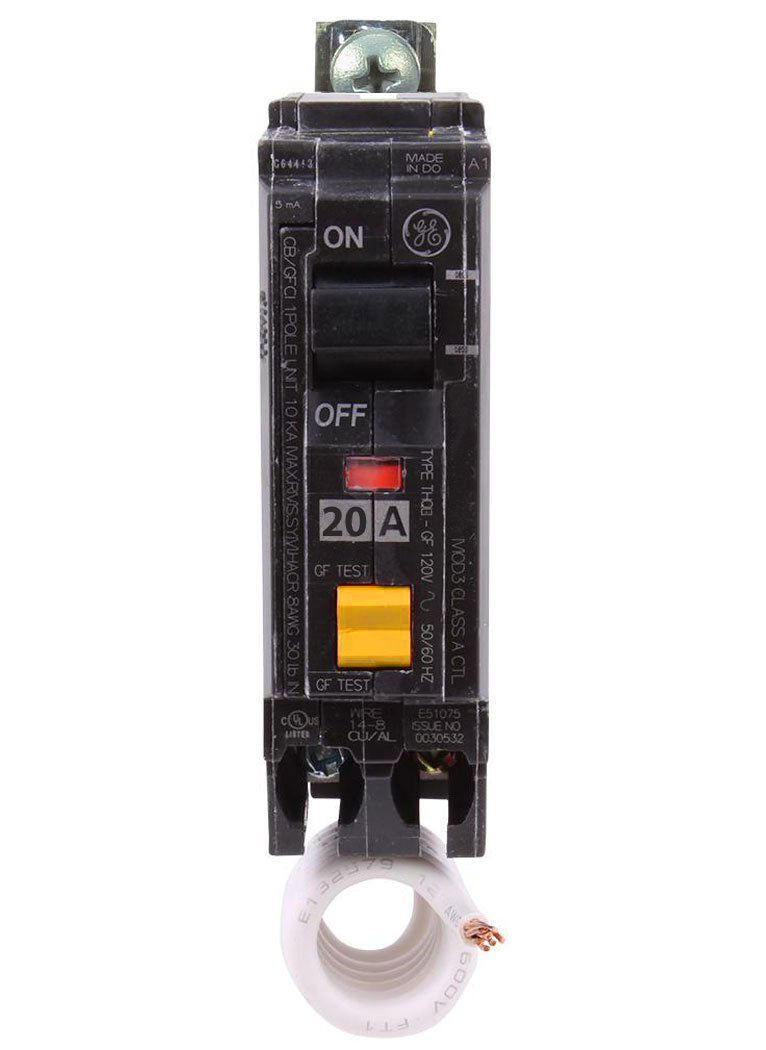

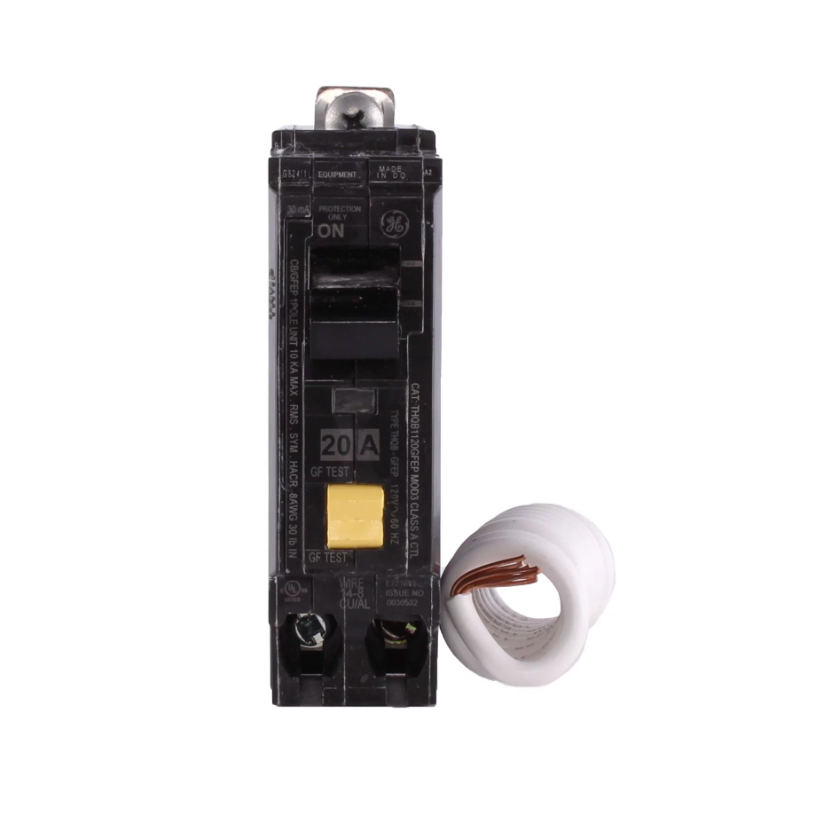

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- General Electric
- Sub-Category
- Molded Case
- Series
- Q-Line
- Frame
- THQB
- Rated current
- 20
- Voltage
- 120V
- Poles
- 1
- Phases
- 1
- Interrupting rating
- 10kA@120V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Lugs
- Included
- Breaker type
- GFCI
Show all specifications (6 more)
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- UPC
- 783164060164
- GTIN
- 00783164060164
- Dimensions
- Height 2.92 in x Depth / Length 3.28 in x Width 1 in
- Weight
- 0.55
- Certification
- UL Listed
Product description & additional details
THQB1120GFEP
THQB1120GFEP is a General Electric 1-pole molded case circuit breaker with ground fault protection designed for 120/240 VAC systems rated at 20 amps.
This GE Q-Line THQB1120GFEP breaker features a fixed thermal magnetic trip unit with a 10 kA interrupt rating, providing reliable equipment protection. It includes ground fault equipment protection (GFEP) with a 30 mA trip sensitivity and a tin-plated copper stab for corrosion-resistant connections. This compact breaker is part of the Q-Line series and is designed for easy installation in compatible panels.
- Key Specifications
- Amperage: 20 Amps
- Voltage: 120/240 VAC
- Poles: 1
- Mounting Type: Molded Case
- Interrupt Rating: 10 kA
- Series/Frame: Q-Line
- Trip Unit: Fixed Thermal Magnetic with Ground Fault
- Ground Fault Trip Sensitivity: 30 mA
- Connection: Tin Plated Copper Stab
- Certifications: UL Listed
- Part Number: THQB1120GFEP
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQB
- Voltage : 120
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Protection : Thermal Magnetic
- UPC : 783164060164
- GTIN : 00783164060164
- Dimensions : Height 2.92 in x Depth / Length 3.28 in x Width 1 in
- Weight : 0.55
- Certification : UL Listed
