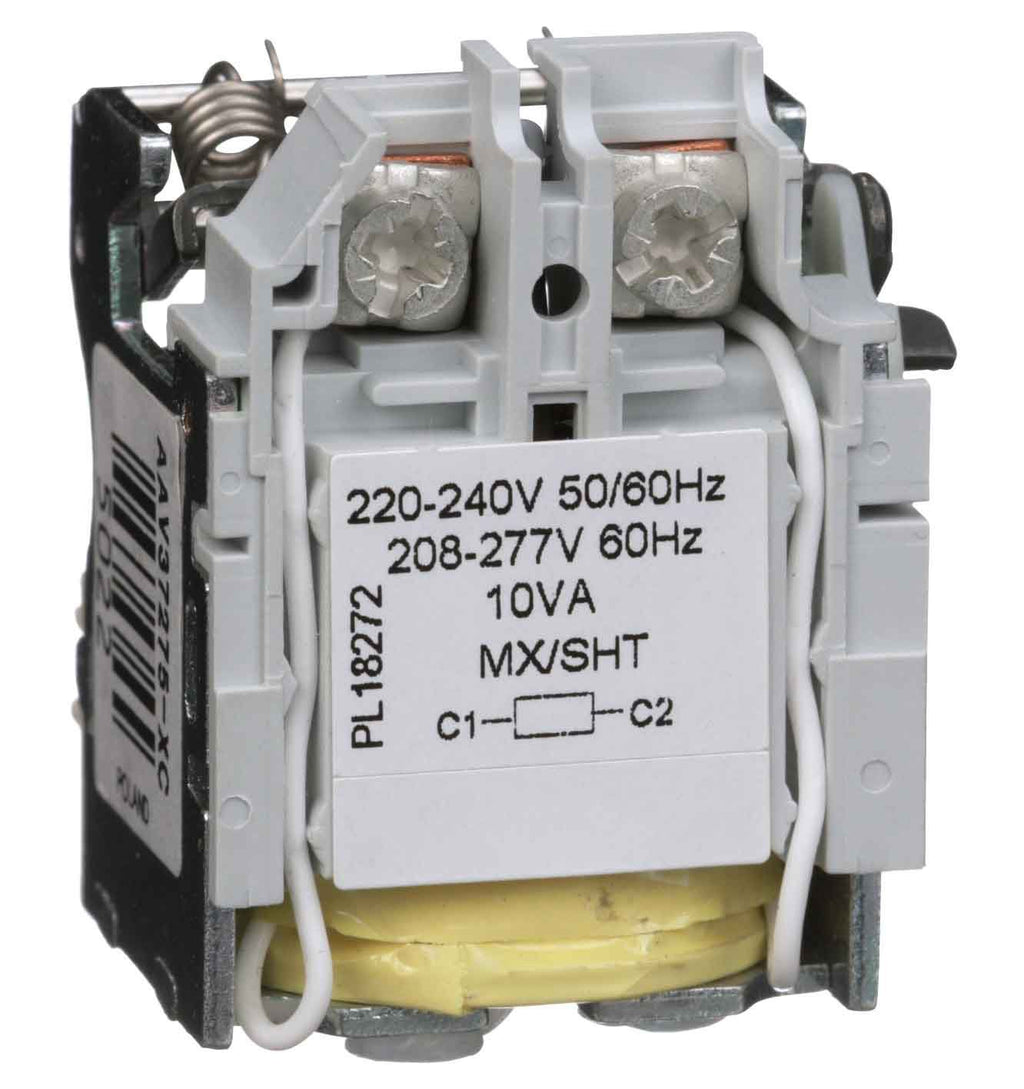

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Shunt Trip
- Series
- Powerpact
- Frame
- S29
- Voltage
- 208-277V
- Country of origin
- United States
- Control Voltage Minimum
- 208
- Compatible Frames
- DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, LR
- Control Voltate Maximum
- 277
- UPC
- 785901545675
- GTIN
- 00785901545675
- Dimensions
- Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight
- 0.292
Show all specifications (1 more)
- Certification
- CSA
Product description & additional details
S29387
S29387 is a shunt‐trip accessory manufactured by Schneider Electric (Square D brand) designed for use with PowerPact H-, J- and L-frame molded case circuit breakers. This accessory enables remote tripping of the breaker via a separate control voltage supply. This shunt‐trip unit is rated for a control voltage range of 208-277 V AC, 50/60 Hz, and is a continuous-duty type suitable for integration in industrial and commercial electrical systems. It mounts on the compatible breaker with screw terminals and is UL and CSA certified.
- Part Number: S29387
- Manufacturer: Schneider Electric (Square D)
- Accessory Type: Shunt Trip (remote trip coil)
- Control Voltage: 208-277 V AC
- Compatible Frames: PowerPact H, J, L series molded case breakers
- Duty Type: Continuous
- Application: Remote trip/shutdown via control circuit for circuit breaker protection
Specifications
- Part Number: S29387
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Powerpact
- Type : S29
- Voltage : 208-277V
- Control Voltage Minimum : 208
- Compatible Frames : DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, LR
- Control Voltate Maximum : 277
Product Data
- UPC : 785901545675
- GTIN : 00785901545675
- Country of Origin : United States
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 0.292
- Certification : CSA
Technical Documents
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
