Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- General Electric
- Sub-Category
- Molded Case
- Series
- Q-Line
- Frame
- THQB
- Rated current
- 30
- Voltage
- 240V
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 10kA@240V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Terminals
- Load Side Lug
- Breaker type
- GFCI
Show all specifications (5 more)
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- UPC
- 783164485578
- GTIN
- 40783164485576
- Dimensions
- Height 2.92 in x Depth / Length 3.28 in x Width 2 in
- Weight
- 1
Product description & additional details

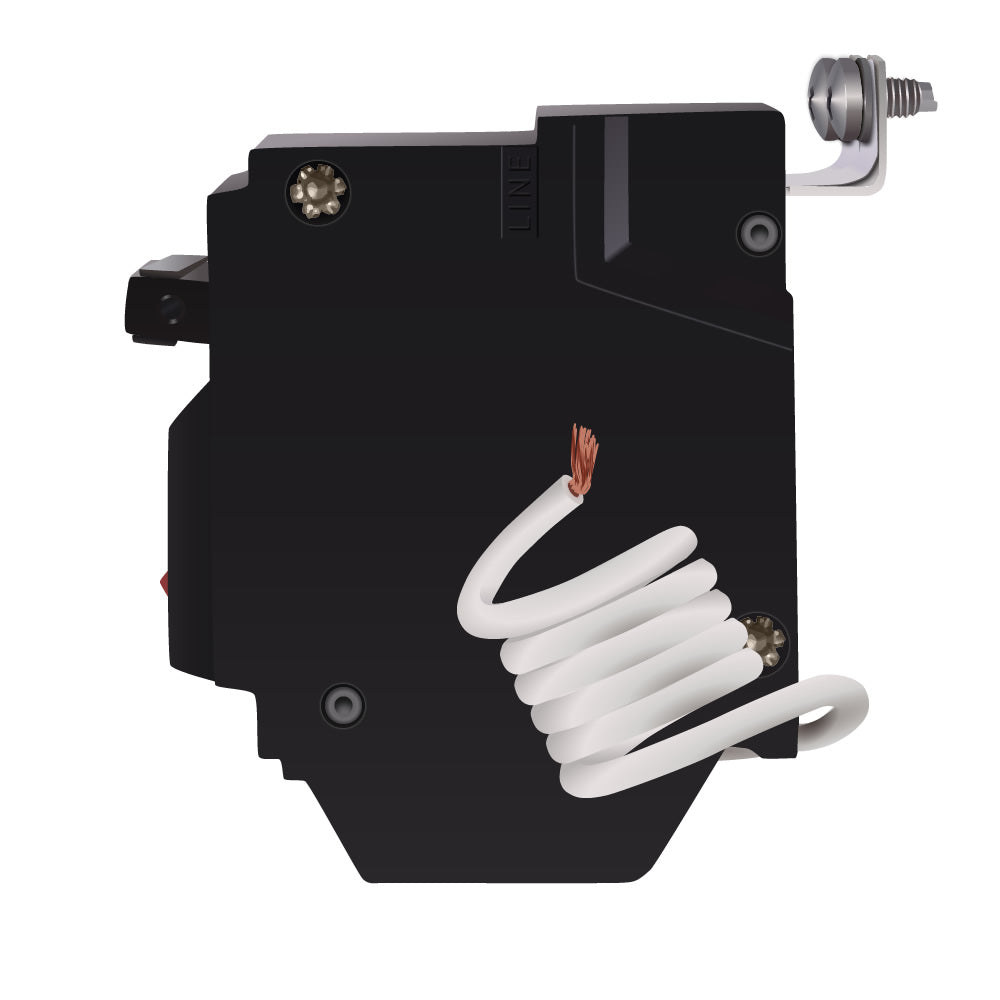

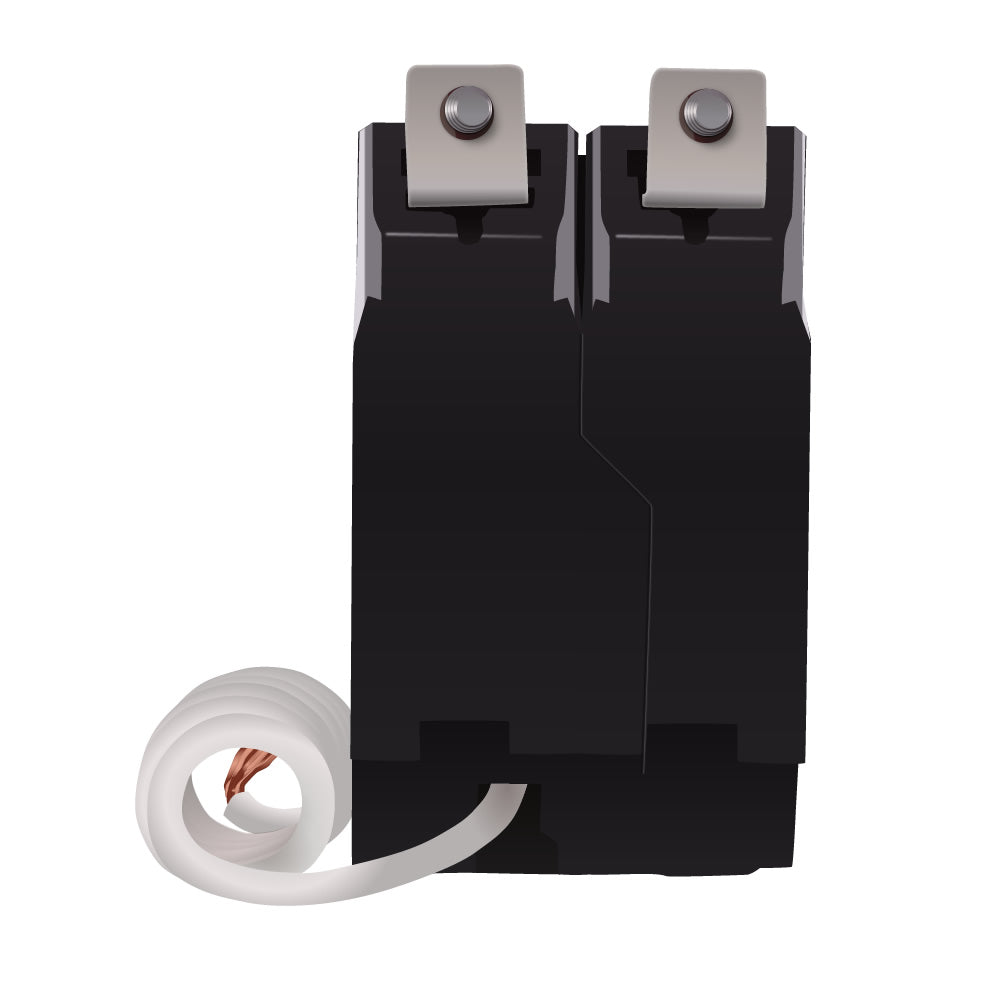

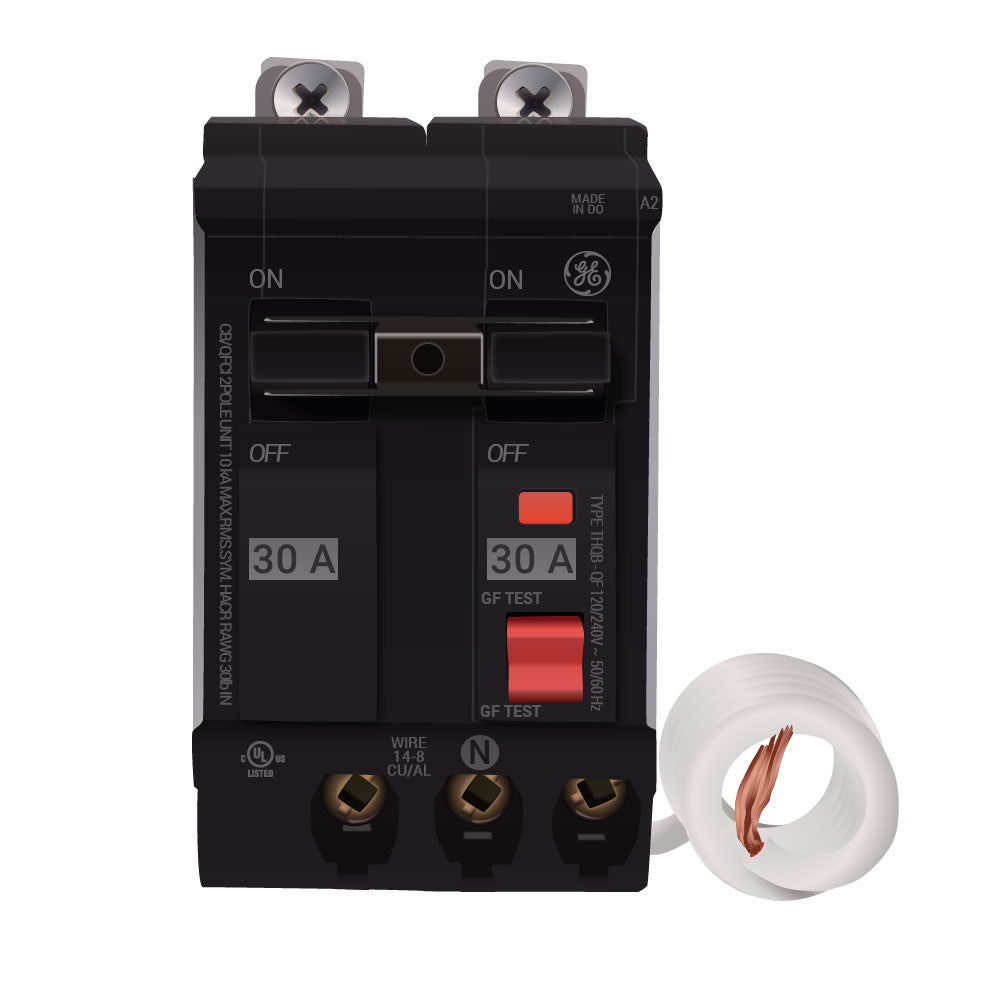

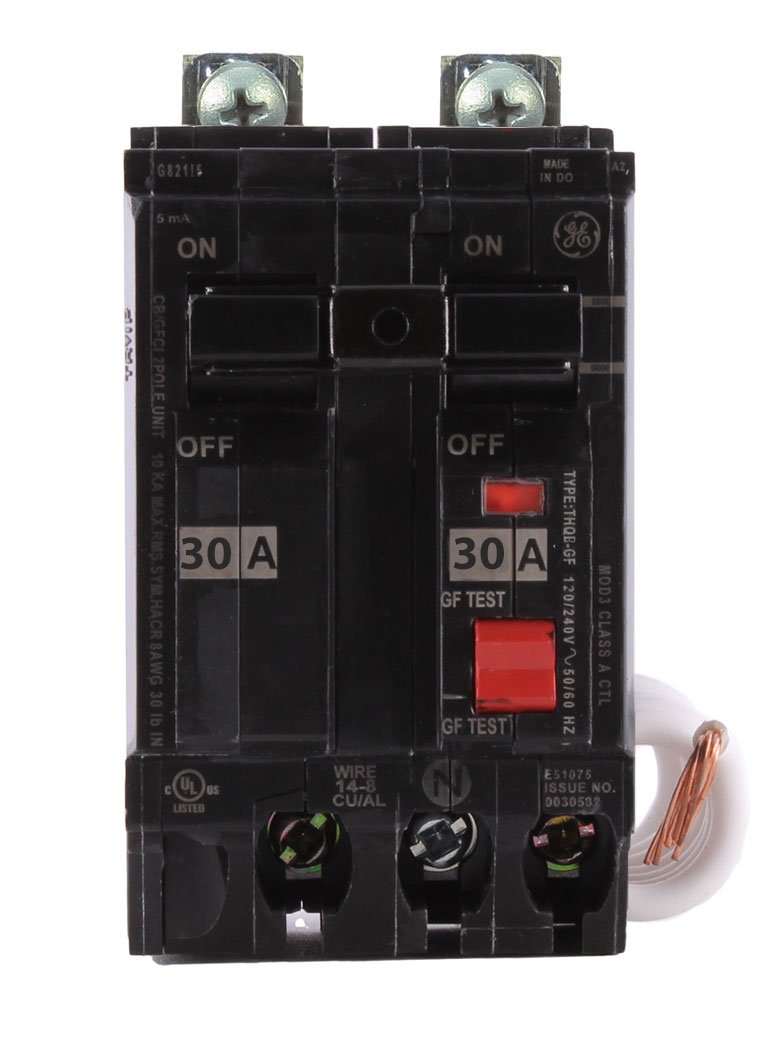

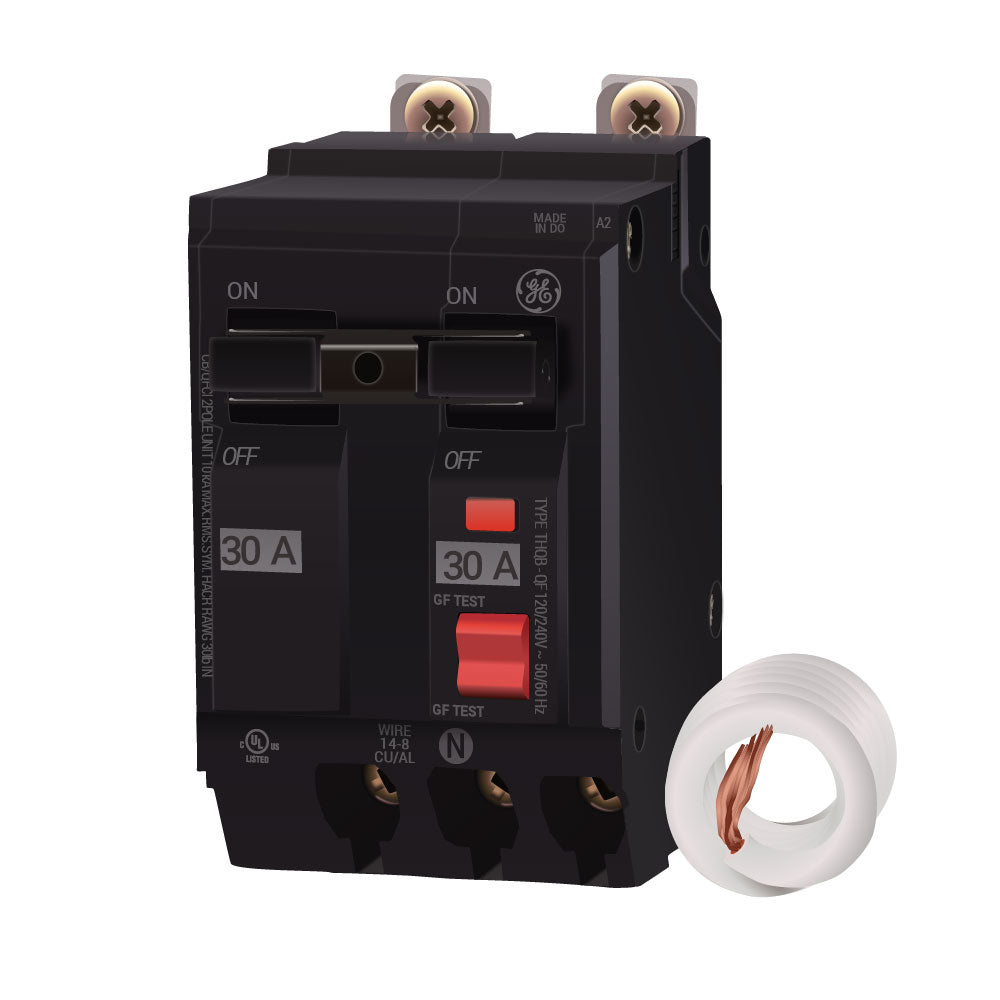

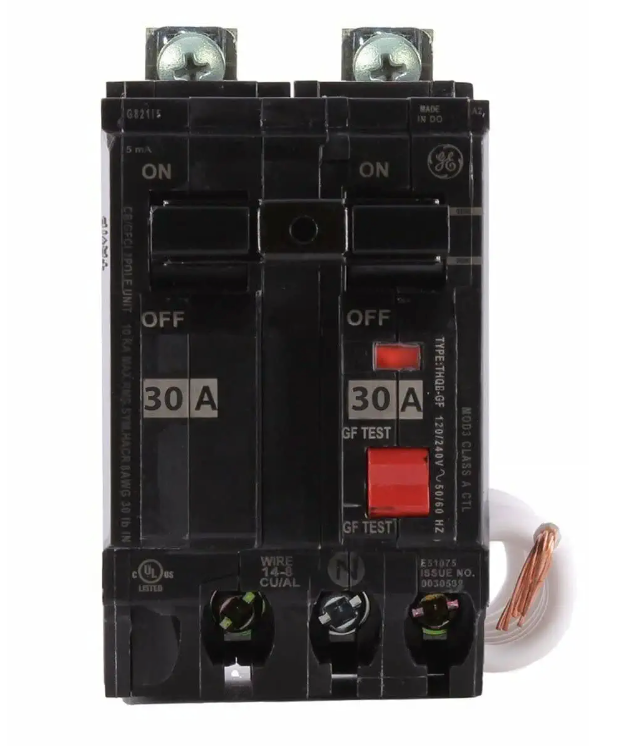

THQB2130GFT
THQB2130GFT is a General Electric 2 pole, 30 amp, 240 Volt ground fault circuit breaker designed for reliable protection in residential and commercial applications.This THQB series molded case circuit breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions. It has a 10kA interrupting rating at 240VAC and uses a bolt-on mounting type with load side lug terminals. The breaker provides ground fault protection and is UL listed for safety and performance.
- Manufacturer: General Electric
- Series/Frame: THQB
- Amperage: 30 Amps
- Voltage: 240 VAC
- Poles: 2
- Interrupt Rating: 10kA at 240V
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Protection: Ground Fault Circuit Interruption (GFCI)
- Terminal Connection: Load Side Lug
- Phase: Single
- Certifications: UL Listed
Specifications
- Part Number: THQB2130GFT
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQB
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Load Side Lug
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164485578
- GTIN : 40783164485576
- Dimensions : Height 2.92 in x Depth / Length 3.28 in x Width 2 in
- Weight : 1
