QO250GFI - Square D 50A 120/240V 2-Pole Ground Fault Circuit Breaker QO Series

QO250GFI

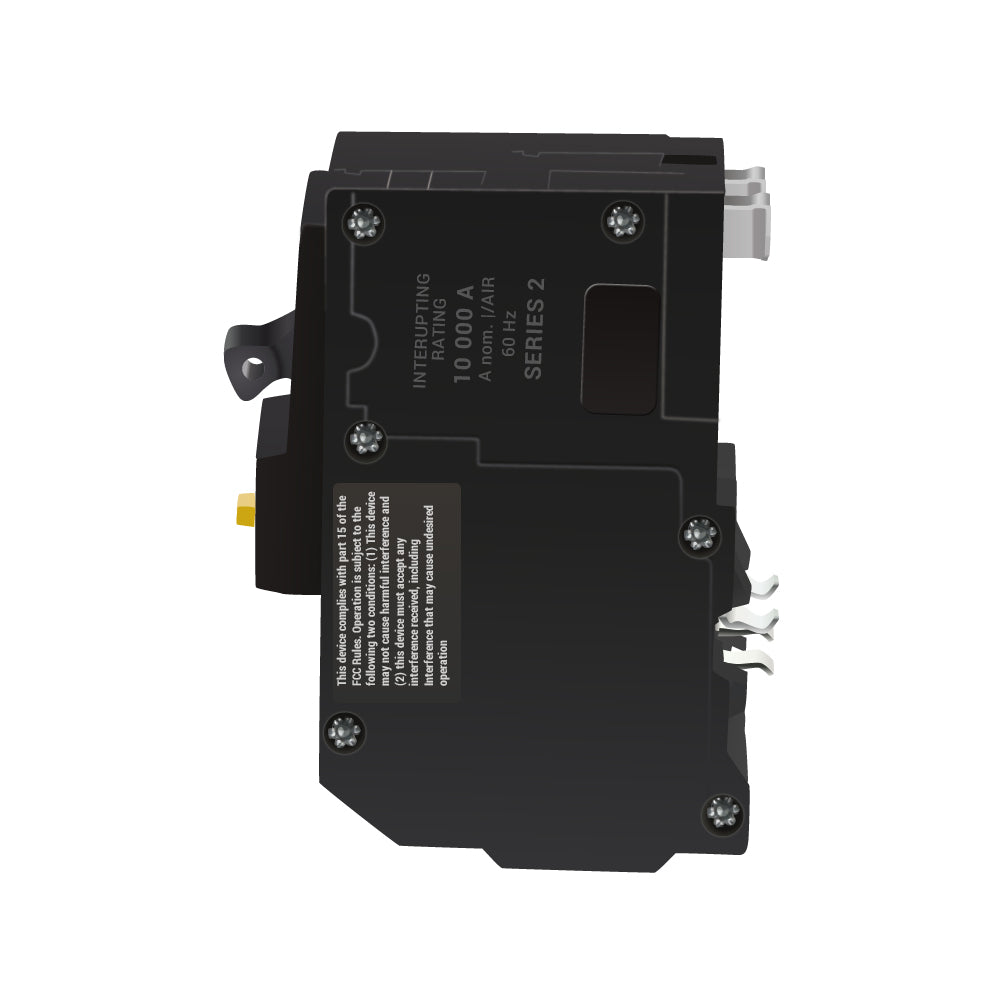

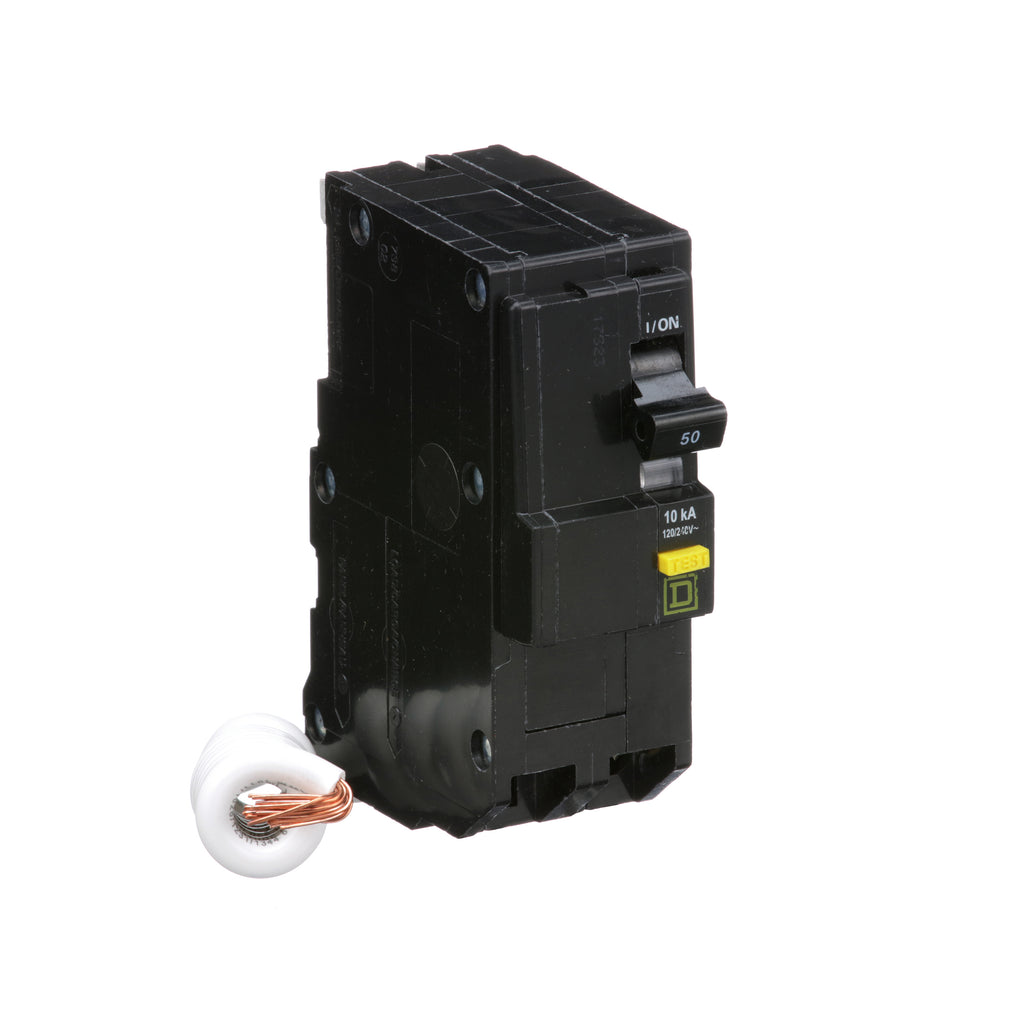

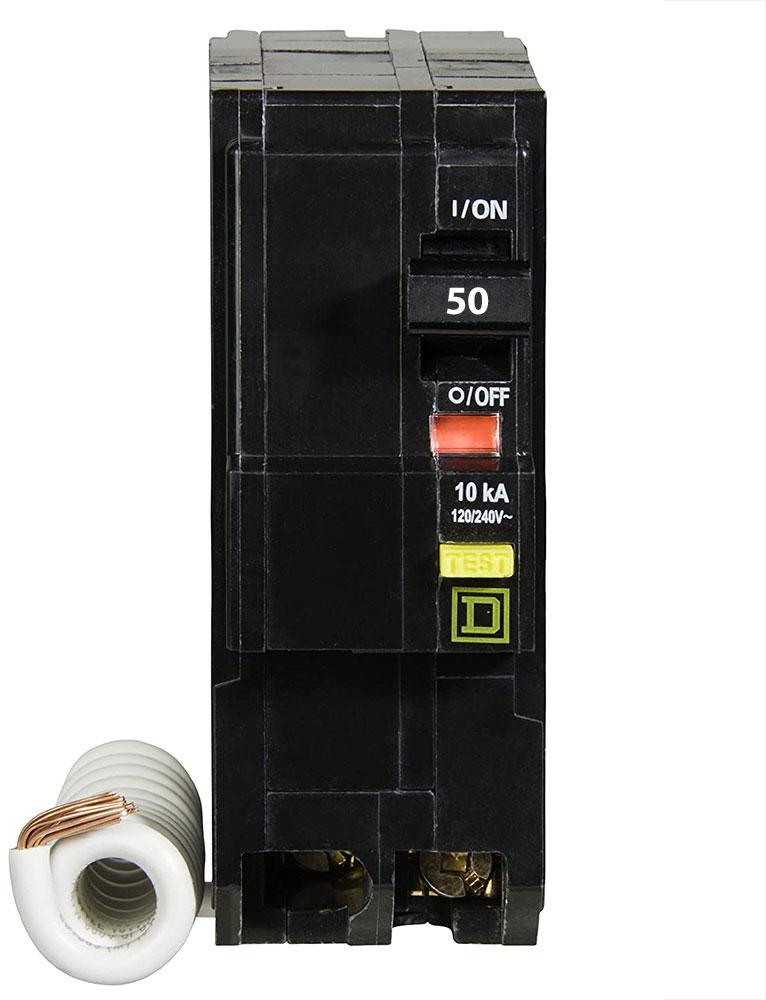

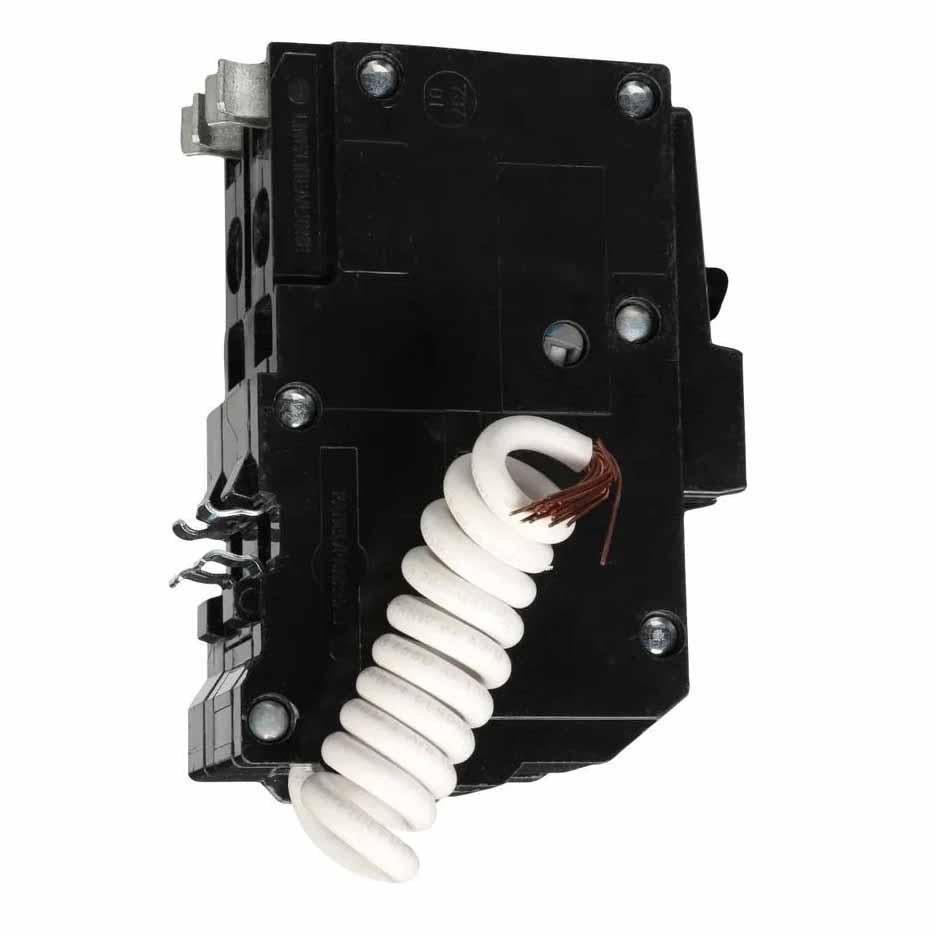

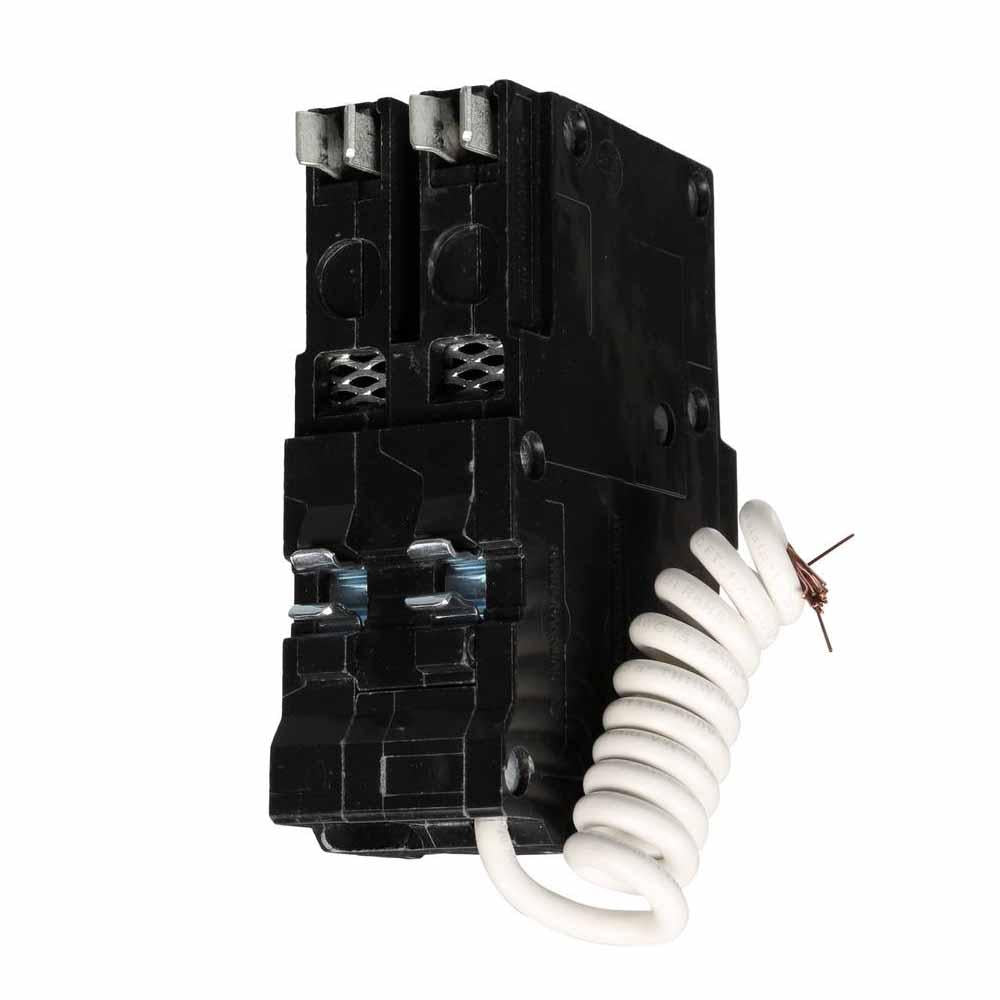

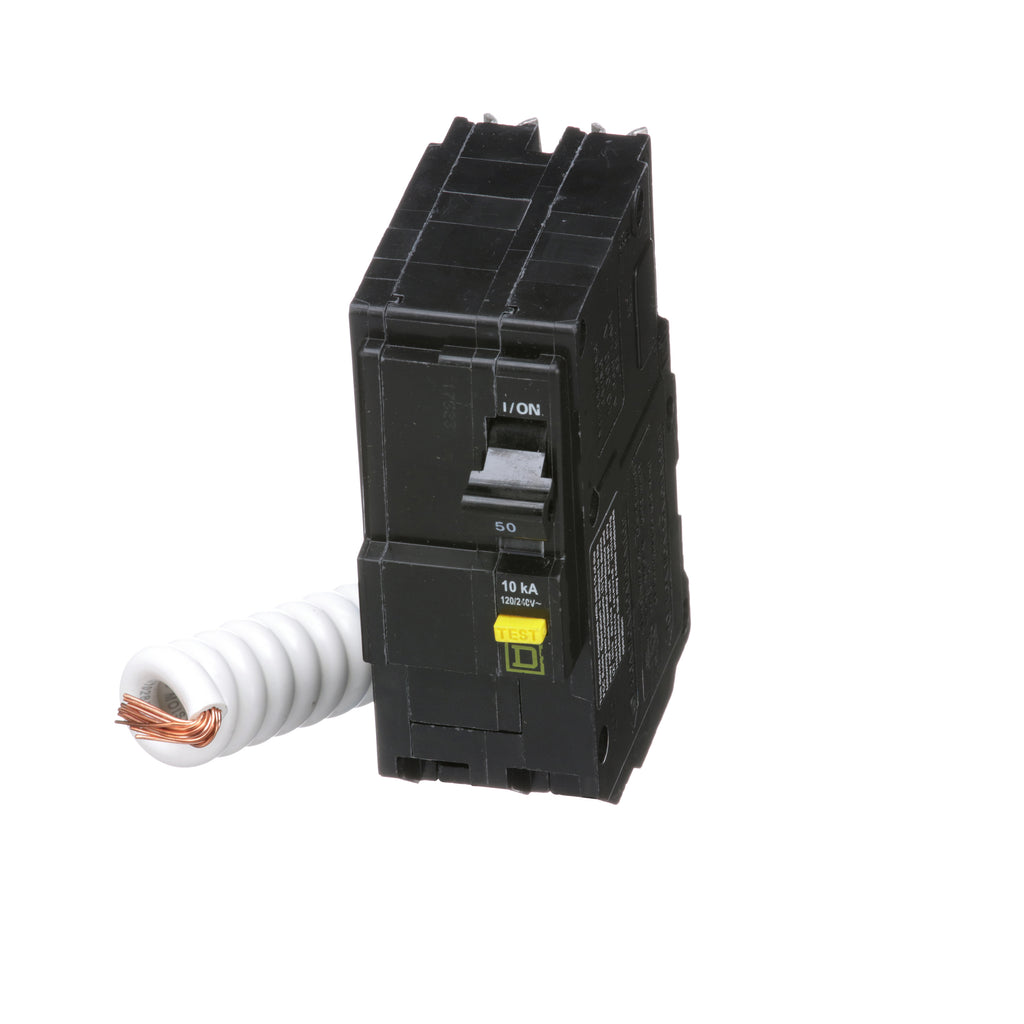

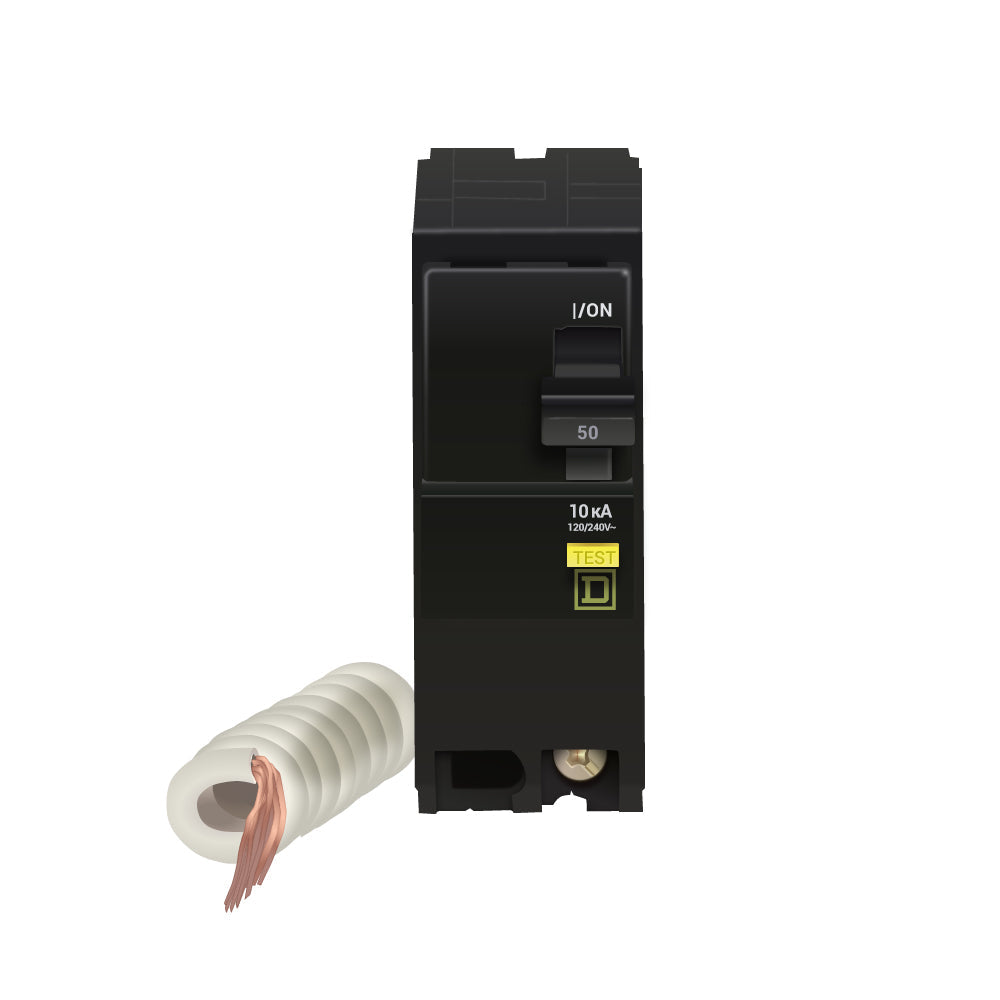

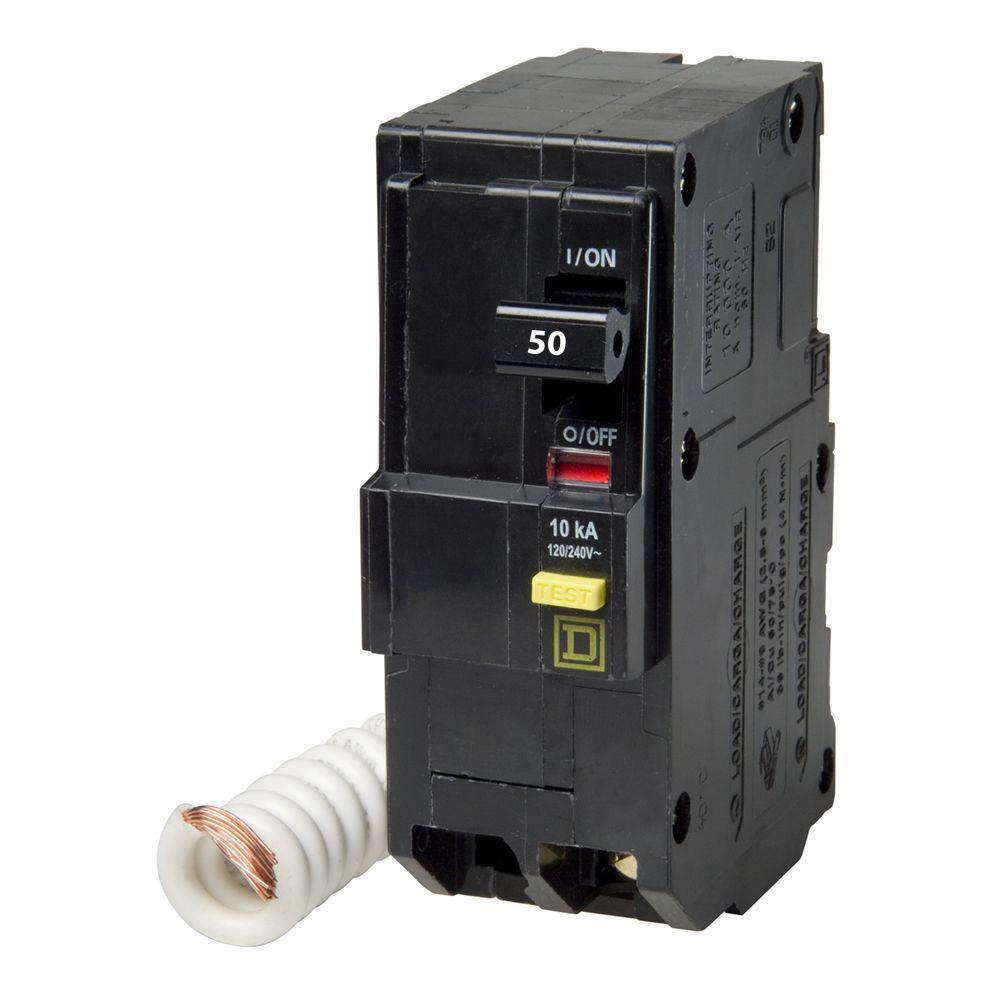

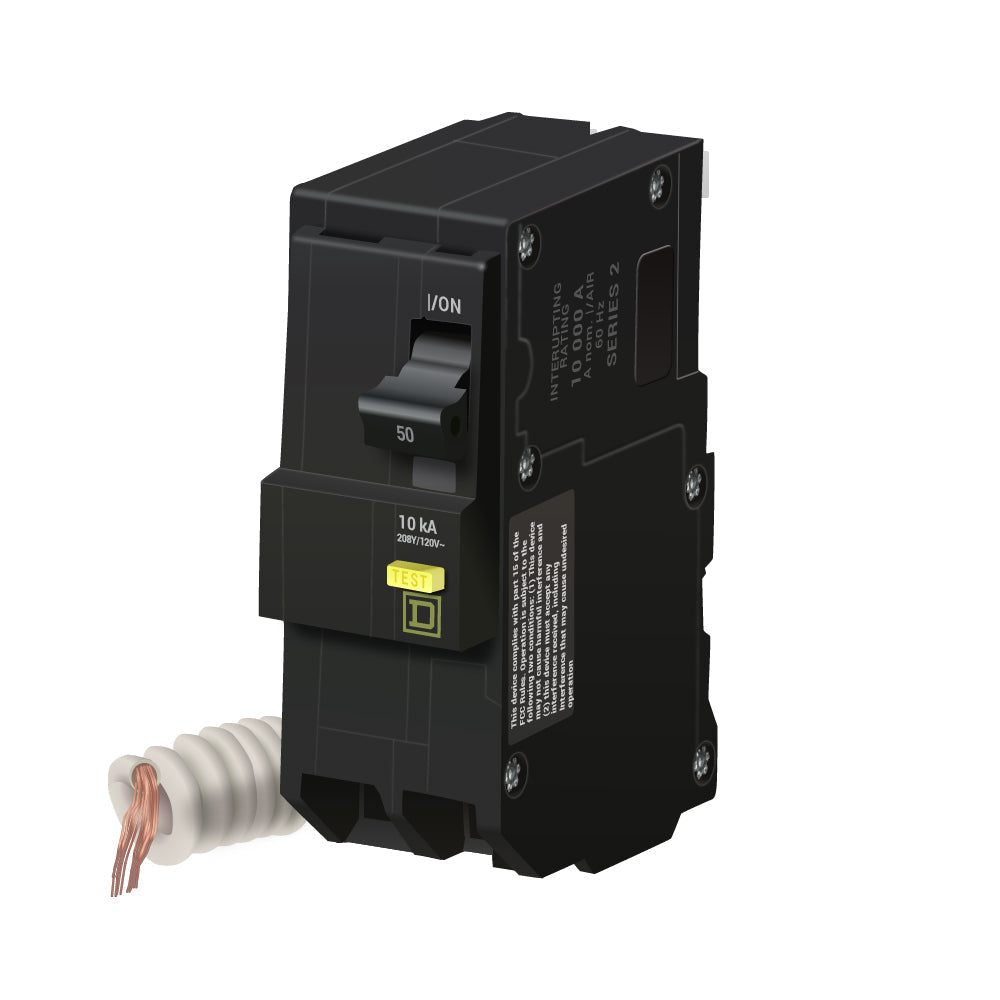

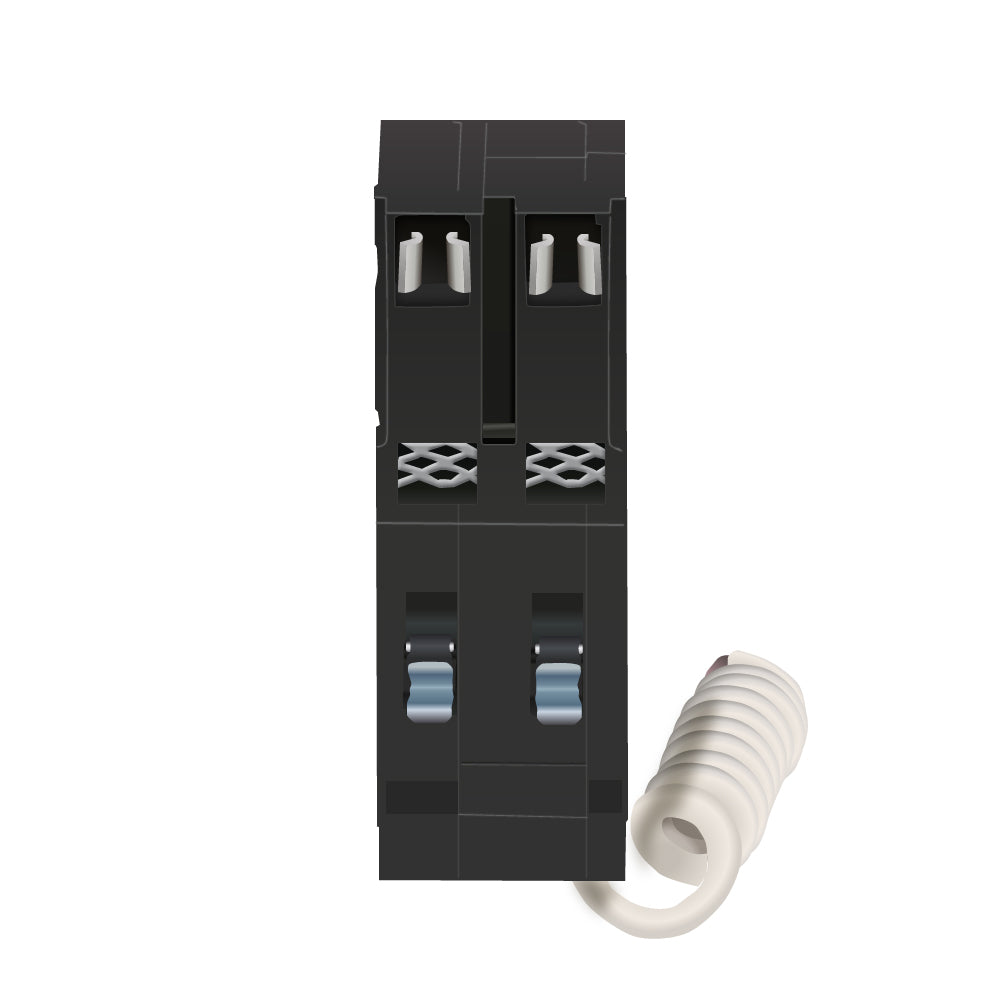

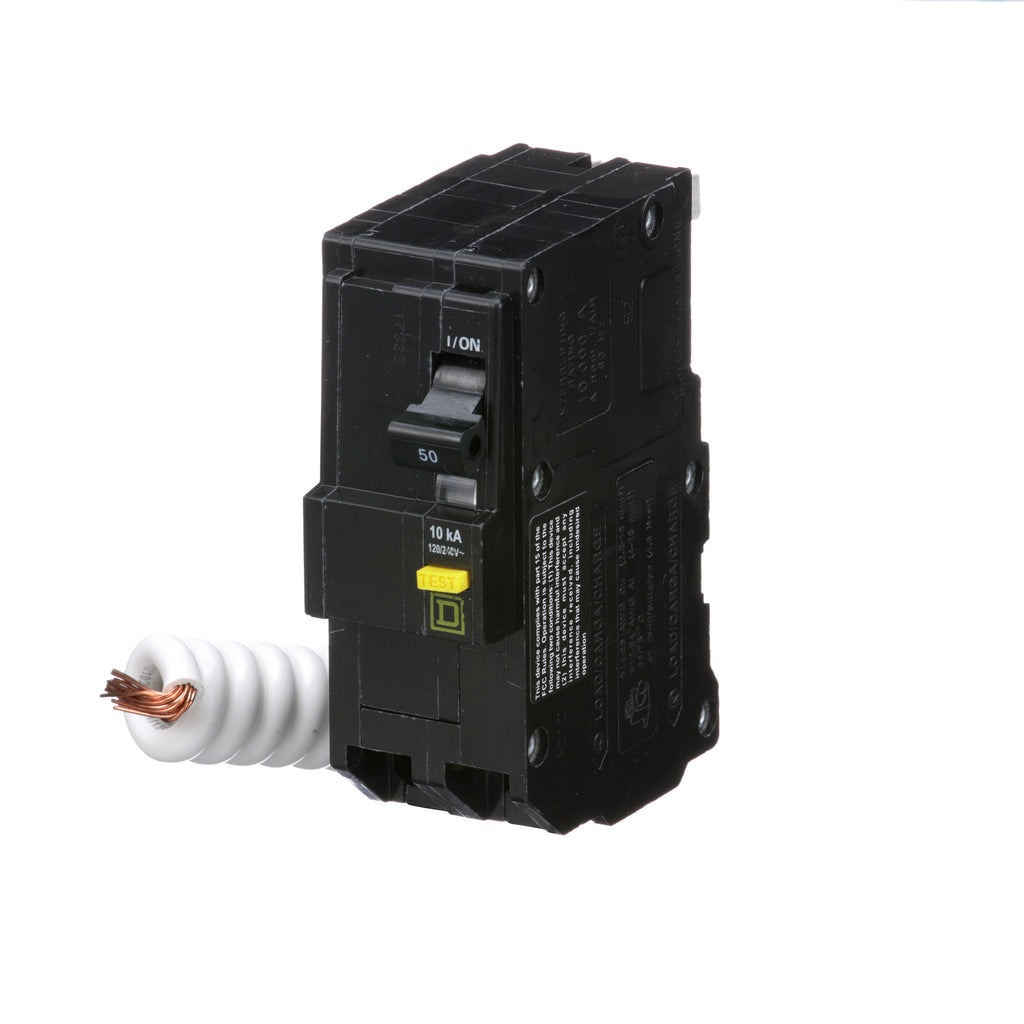

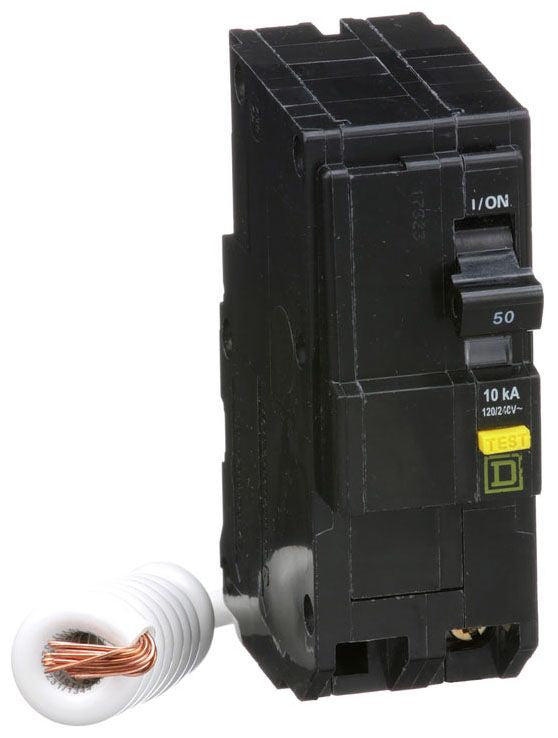

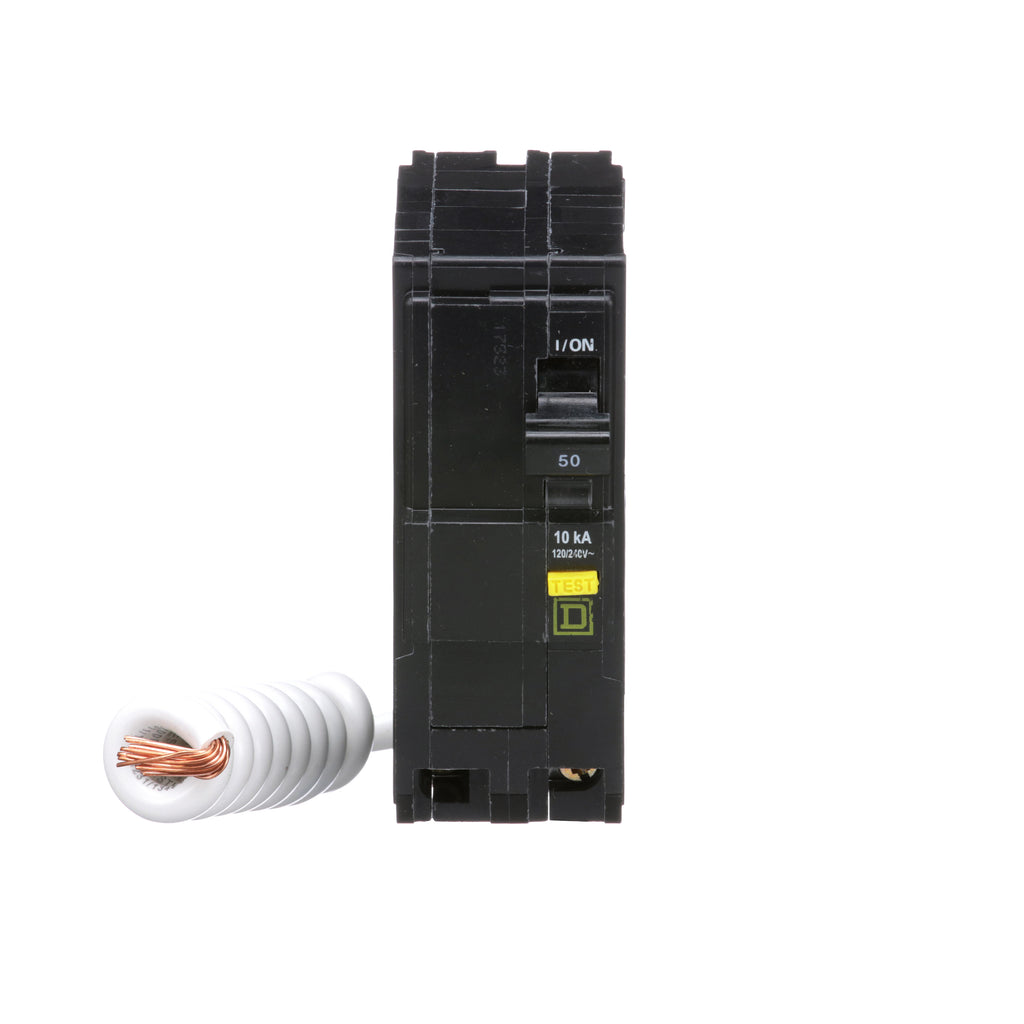

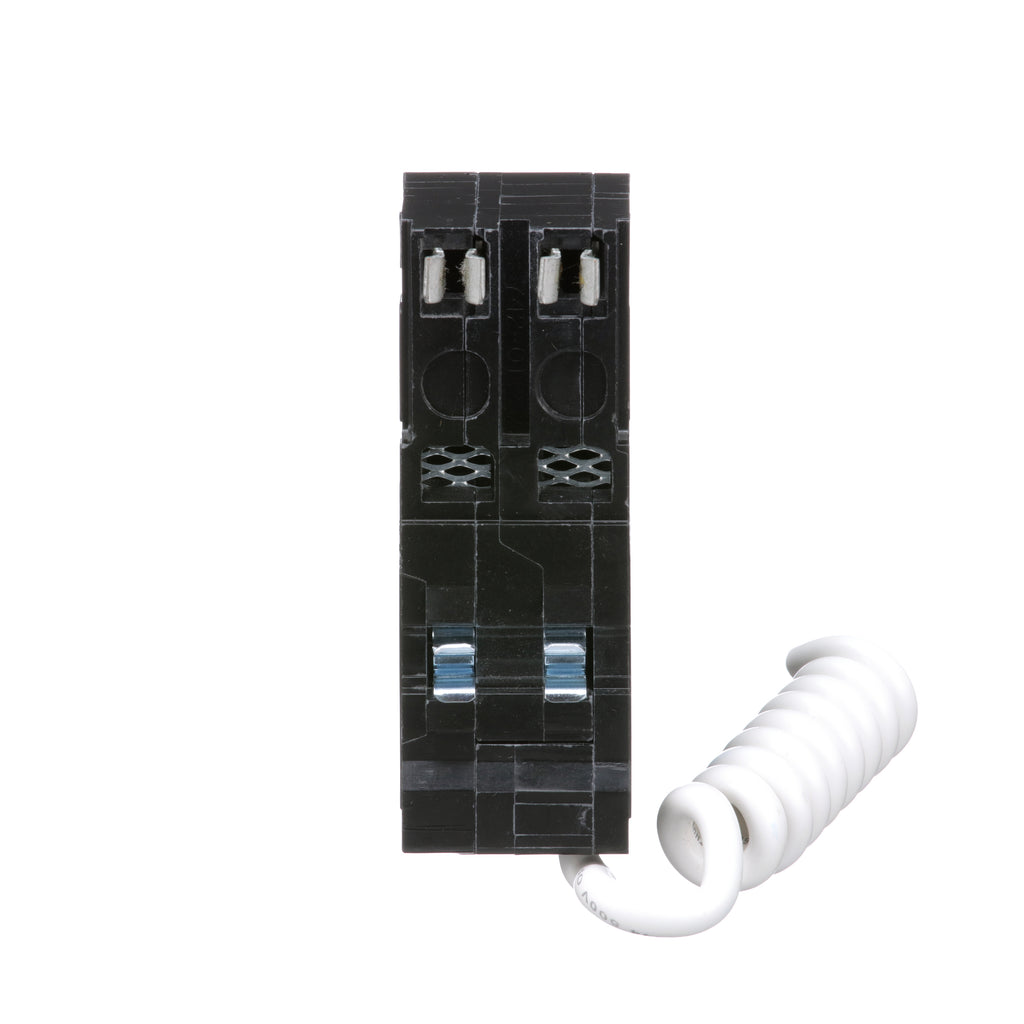

QO250GFI is a Square D 2-pole 50 amp ground fault circuit breaker designed for 120/240 VAC systems.This thermal magnetic molded case circuit breaker features a plug-in mounting type, 10kA interrupting rating, and provides Class A 6mA ground fault protection. It includes long time and instantaneous trip functions, is compatible with QO load centers and NQ panelboards, and is UL and CSA certified.

• Brand: Square D
• Series: QO
• Amperage: 50A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10kA at 120/240 VAC
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Ground Fault Protection: Class A 6mA
• Certifications: UL, CSA, RoHS
• Connection Type: Lug
• Compatible With: QO Load Centers, NQ Panelboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO250GFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO-GF
• Voltage : 120/240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901764861
• GTIN : 00785901764861
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 1.042
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : 12-4 AWG Aluminum, 14-6 AWG Copper
