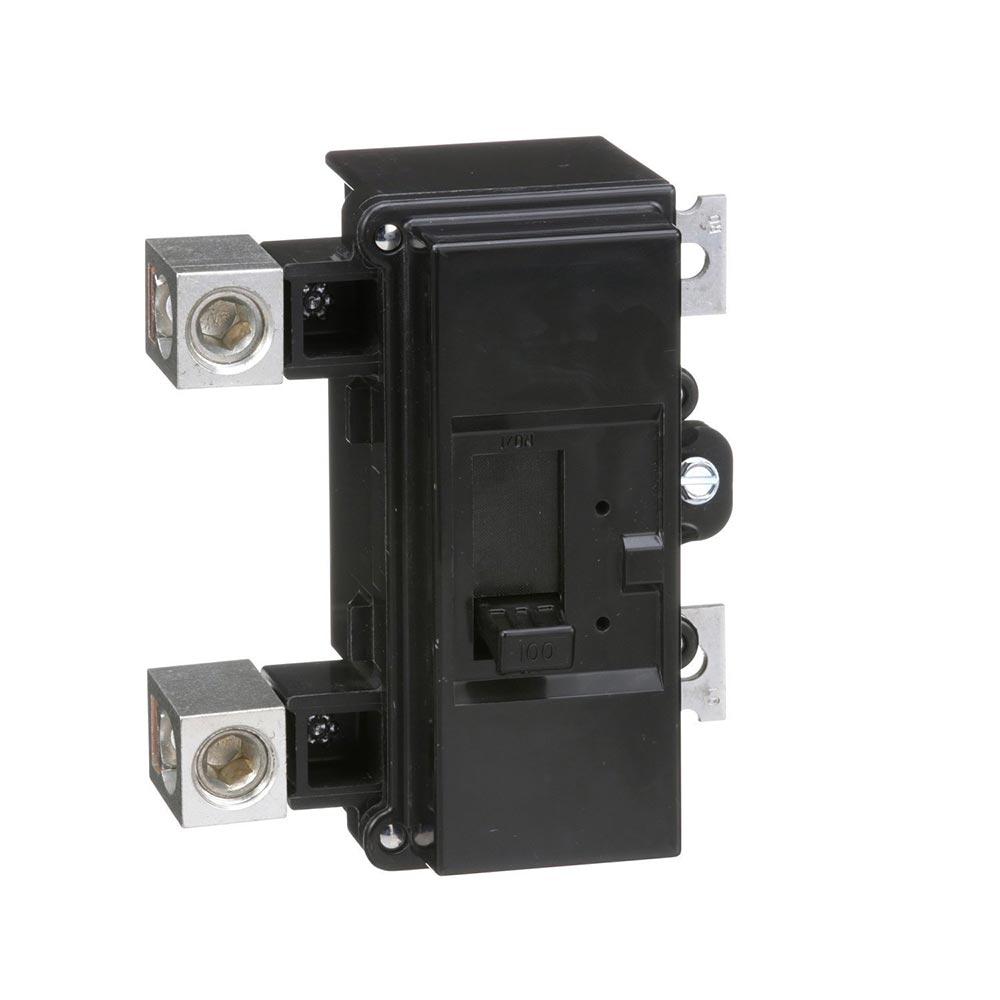

QOM2100VH - Square D 100 Amp 120/240VAC 2 Pole Bolt-On Circuit Breaker QO Series

QOM2100VH

QOM2100VH is a Square D 2 pole, 100 amp thermal magnetic circuit breaker designed for 120/240VAC applications.This QO series breaker features a bolt-on mounting type with a 22kA interrupting rating and LI (long-time and instantaneous) trip functions.

• Amperage: 100 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupting Rating: 22kA at 120/240VAC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic with LI trip functions
• Terminal Connection: Lug
• Phase: Single
• Wire Gauge: AWG 4 to 300 kcmil Aluminum/Copper
• Certifications: UL Listed, CSA Certified
• Compatible with QO and Homeline Load Centers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOM2100VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOM Series
• Type : QOM
• Voltage : 120/240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Main Breaker
• Protection : Thermal Magnetic

Product Data

• UPC : 785901021957
• GTIN : 00785901021957
• Country of Origin : Mexico
• Dimensions : 5.6 in (142 mm) x 3.6 in (91 mm) x 5.08 in (129 mm) (Height x Width x Depth)
• Weight : 2.65
• Panel Type : Homeline Load Center, QO Load Center
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 4 to 300KCmil, Aluminum/Copper
