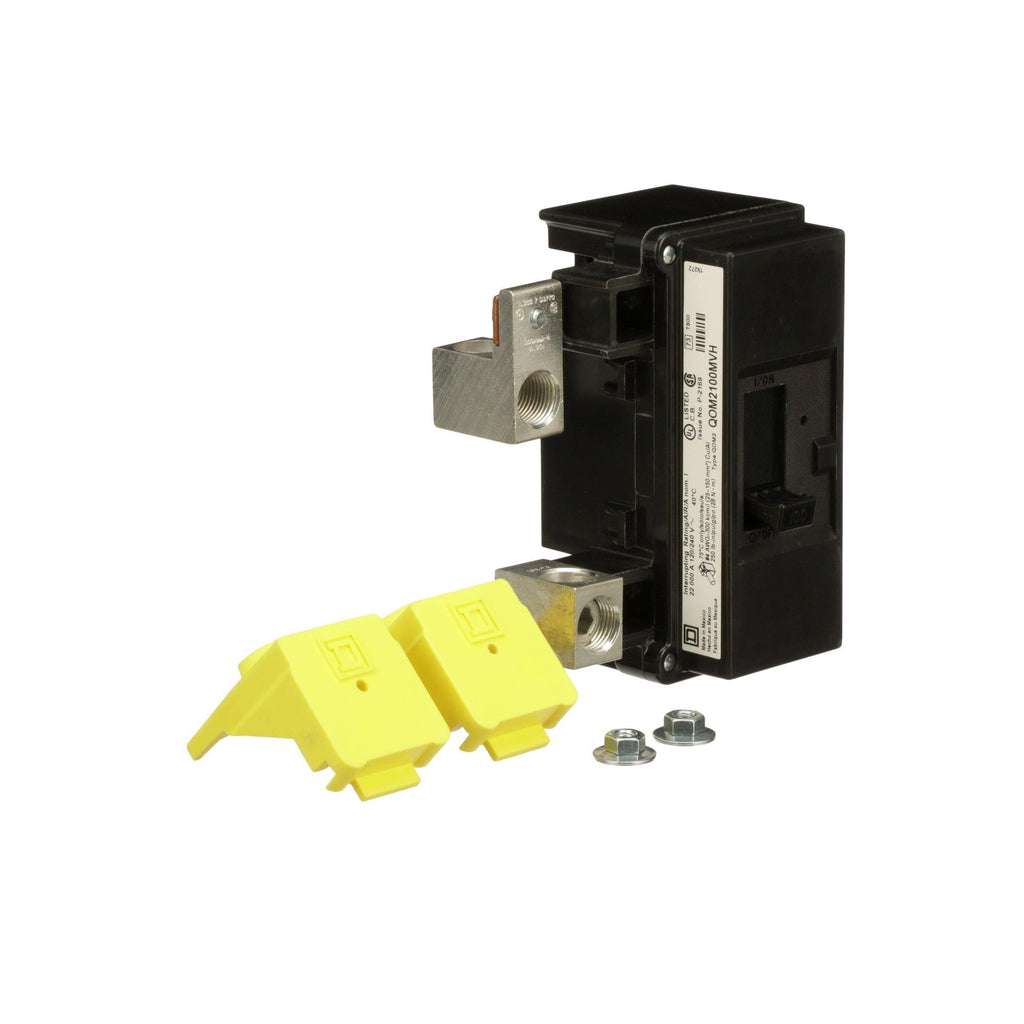

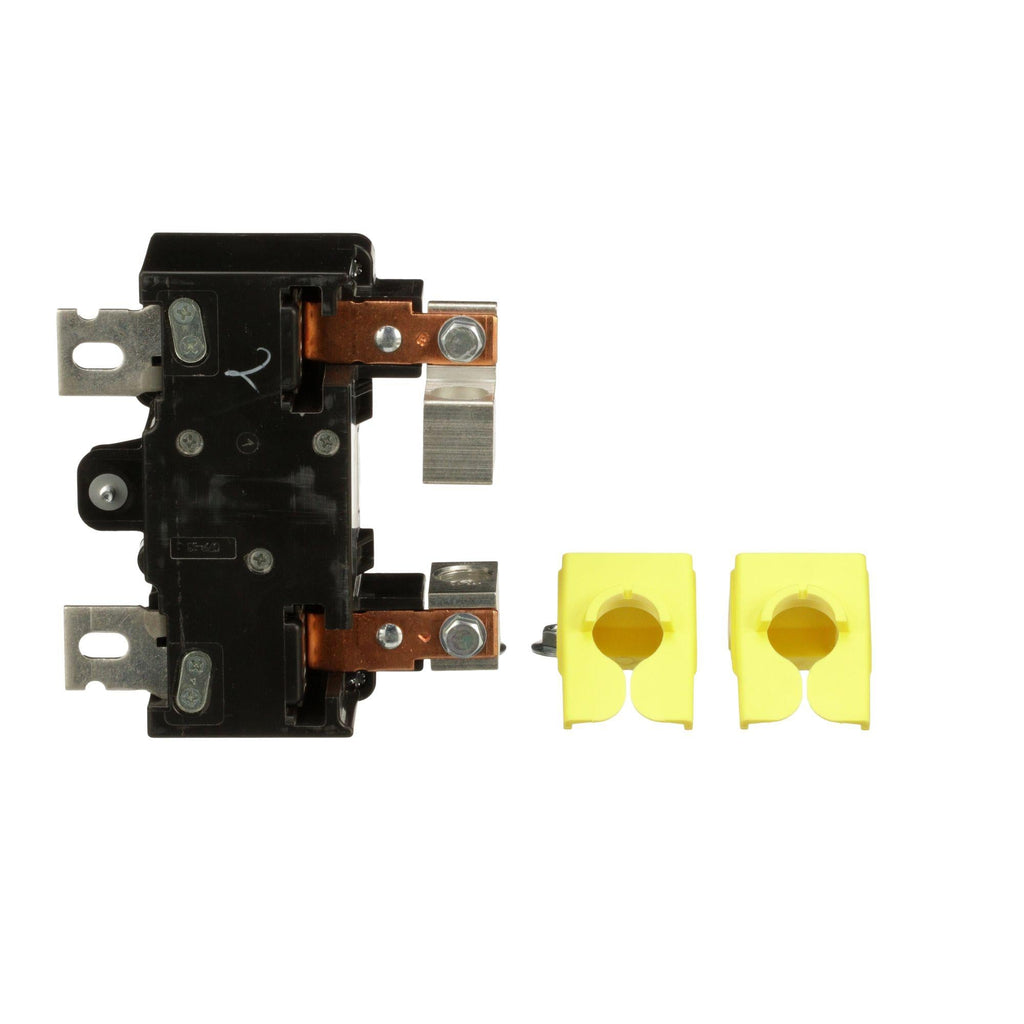

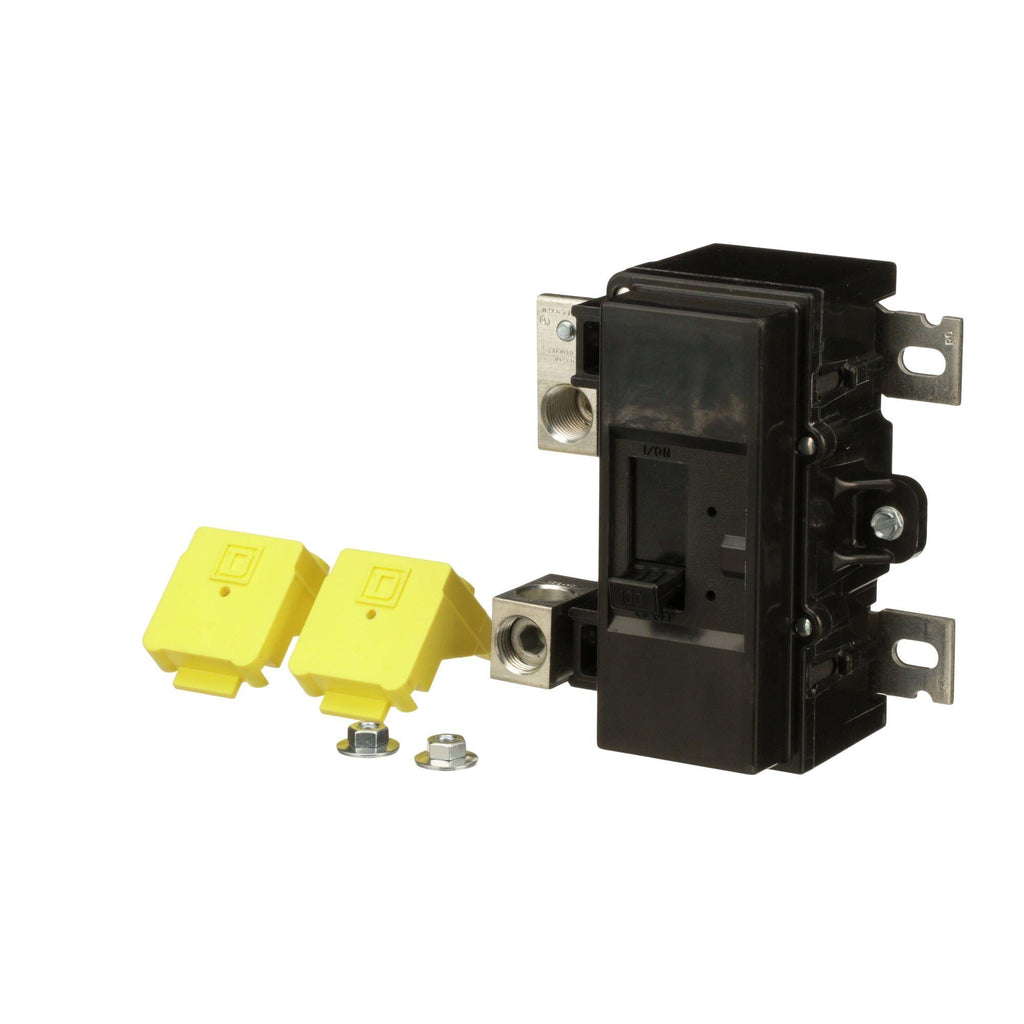

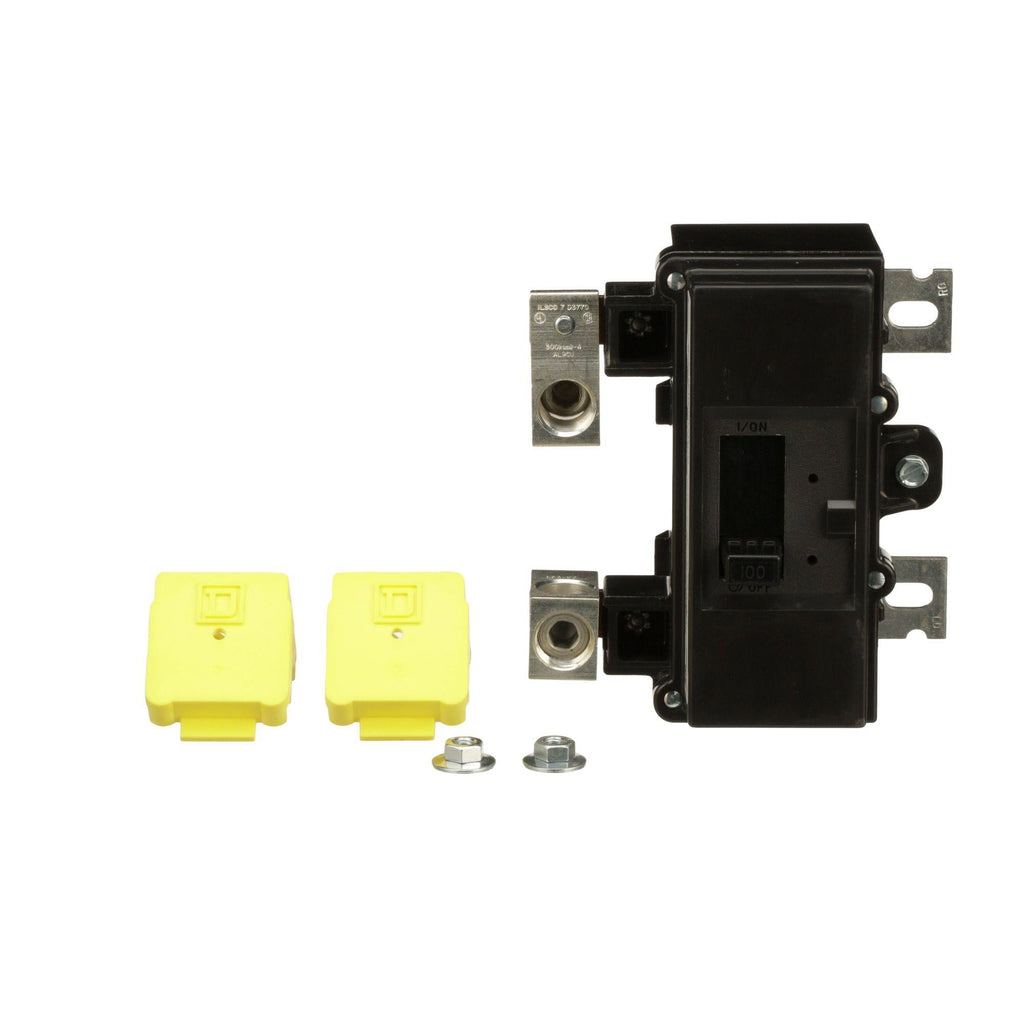

QOM2100MVH - Square D 100 Amp 240 Volt 2 Pole QO Series Circuit Breaker Bolt-On Mount

QOM2100MVH

QOM2100MVH is a Square D 2 pole circuit breaker rated for 100 amps and 240 volts with bolt-on mounting.This Square D QO Series circuit breaker features a thermal magnetic trip unit providing reliable long time and instantaneous protection. It has a 22 kA interrupt rating at 120/240 V AC 50/60 Hz and is designed for single-phase applications. The breaker fits QOM2 frame size and is UL listed for safety and performance.

• Manufacturer: Square D
• Part Number: QOM2100MVH
• Amperage: 100 A
• Voltage Rating: 240 V AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kA at 120/240 V AC
• Trip Unit: Thermal Magnetic
• Series/Frame: QO / QOM2
• Phase: Single Phase
• UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOM2100MVH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOM Series
• Type : QOM
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous
• Terminal Connection : Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 300 kcmil (Cu/Al)
• Breaker Type : Main Breaker
• Protection : Thermal Magnetic

Product Data

• UPC : 785901301509
• GTIN : 00785901301509
• Country of Origin : Mexico
• Dimensions : 5.6 in (142 mm) x 5.08 in (129 mm) x 3.6 in (91 mm) (Height x Width x Depth)
• Weight : 2.67
• Panel Type : QO Load Center
• Standards : UL Listed, CSA
• Certification : UL Listed, CSA
• Wire Size : AWG 4, 300 kcmil Copper or Aluminium
