QOM2100MM - Square D 100A 2 Pole 120/240VAC Bolt-On Main Circuit Breaker QOM2 Frame

Save $226.99
SKU: QOM2100MM-New
Condition: New
Price:
$247.01 $474.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

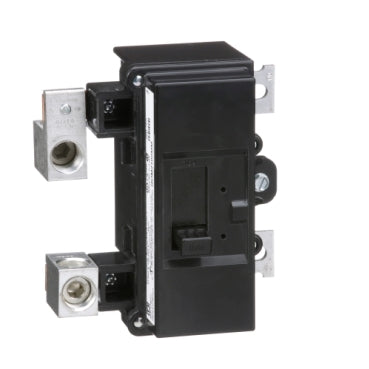

QOM2100MM - Square D Bolt-On 100 Amp 2 Pole Circuit Breaker - Essential Electric Supply

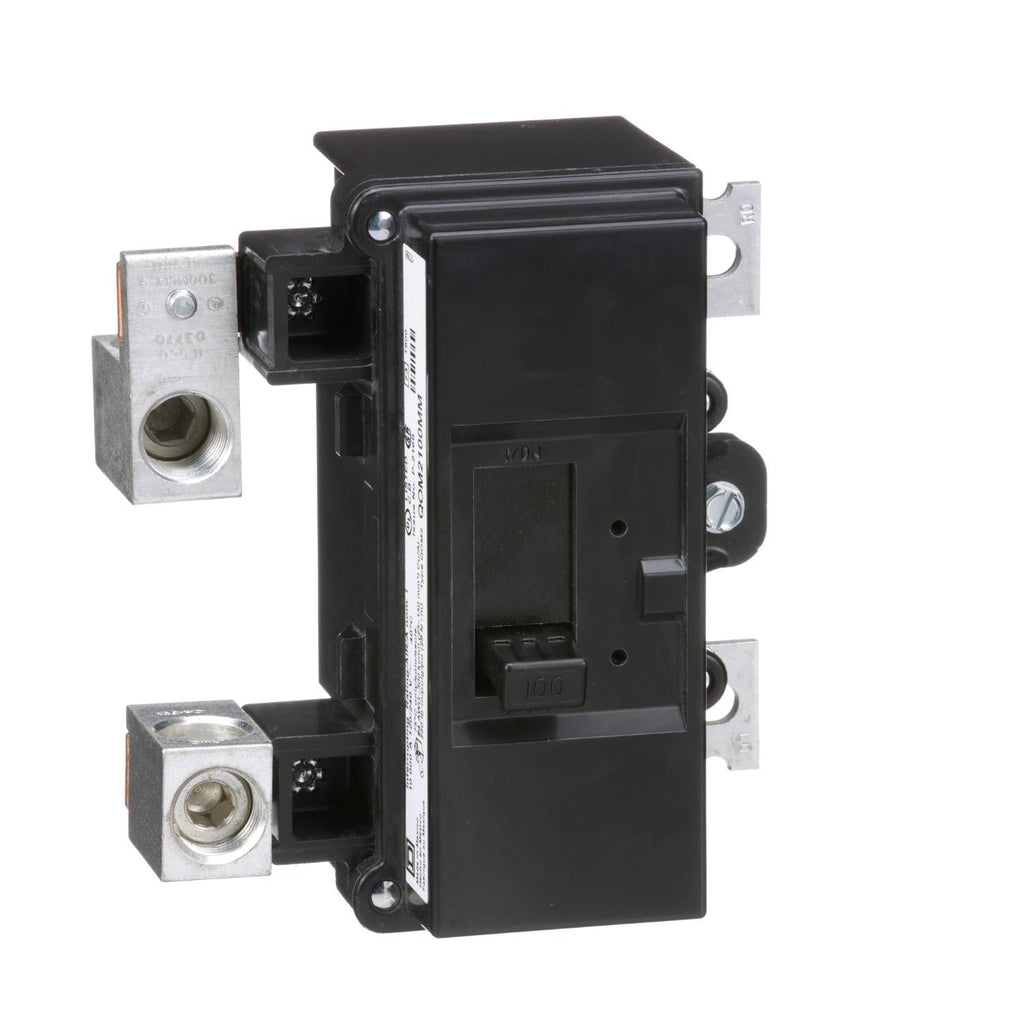

QOM2100MM - Square D 100A 2 Pole 120/240VAC Bolt-On Main Circuit Breaker QOM2 Frame - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOM2100MM - Square D Bolt-On 100 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QOM2100MM - Square D 100A 2 Pole 120/240VAC Bolt-On Main Circuit Breaker QOM2 Frame - Essential Electric Supply

Description

QOM2100MM


QOM2100MM is a 2 pole, 100A, 120/240VAC main circuit breaker designed for reliable overcurrent protection in load centers and metering applications. This Square D QO series breaker features a bolt-on mounting design and a QOM2 frame, offering robust performance for commercial and industrial installations. The QOM2100MM provides thermal magnetic protection with long time and instantaneous trip functions, ensuring safety and durability. It is UL Listed and CSA Certified, meeting the highest industry standards for quality and reliability. The breaker is compatible with Square D QO load centers and is ideal for use with metering equipment.
  • Part Number: QOM2100MM
  • Manufacturer: Square D
  • Series: QO
  • Amperage: 100A
  • Voltage: 120/240VAC
  • Poles: 2
  • Mounting Type: Bolt-On
  • Interrupting Rating: 10kAIC at 120/240VAC
  • Frame Type: QOM2
  • Trip Unit: Thermal Magnetic
  • Certifications: UL Listed, CSA Certified
  • Standards: RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: QOM2100MM
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOM Series
  • Type : QOM
  • Voltage : 240
  • Amperage : 100
  • Phase : 1
  • Poles : 2
  • AIC rating : 10kA@240V
  • Connection : Bolt-on
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 300 kcmil (Cu/Al)
  • Breaker Type : Main Breaker
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901765202
  • GTIN : 00785901765202
  • Country of Origin : Mexico
  • Dimensions : 5.6 in (142 mm) x 5.08 in (129 mm) x 3.6 in (91 mm) (Height x Width x Depth)
  • Weight : 2.69
  • Panel Type : QO Load Center
  • Standards : UL Listed, CSA
  • Certification : UL Listed, CSA
  • Wire Size : AWG 4 to 300KCmil Copper/Aluminum
