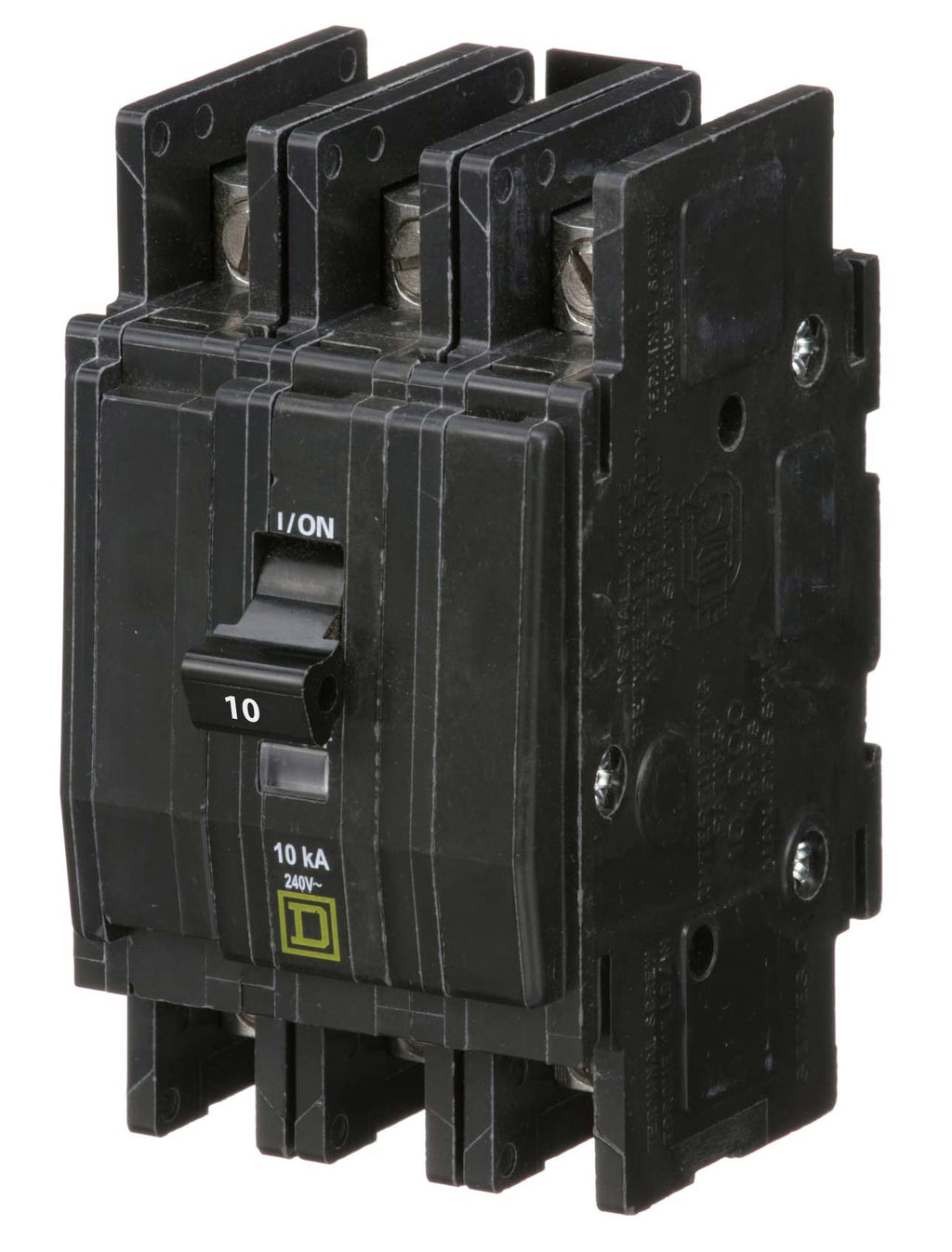

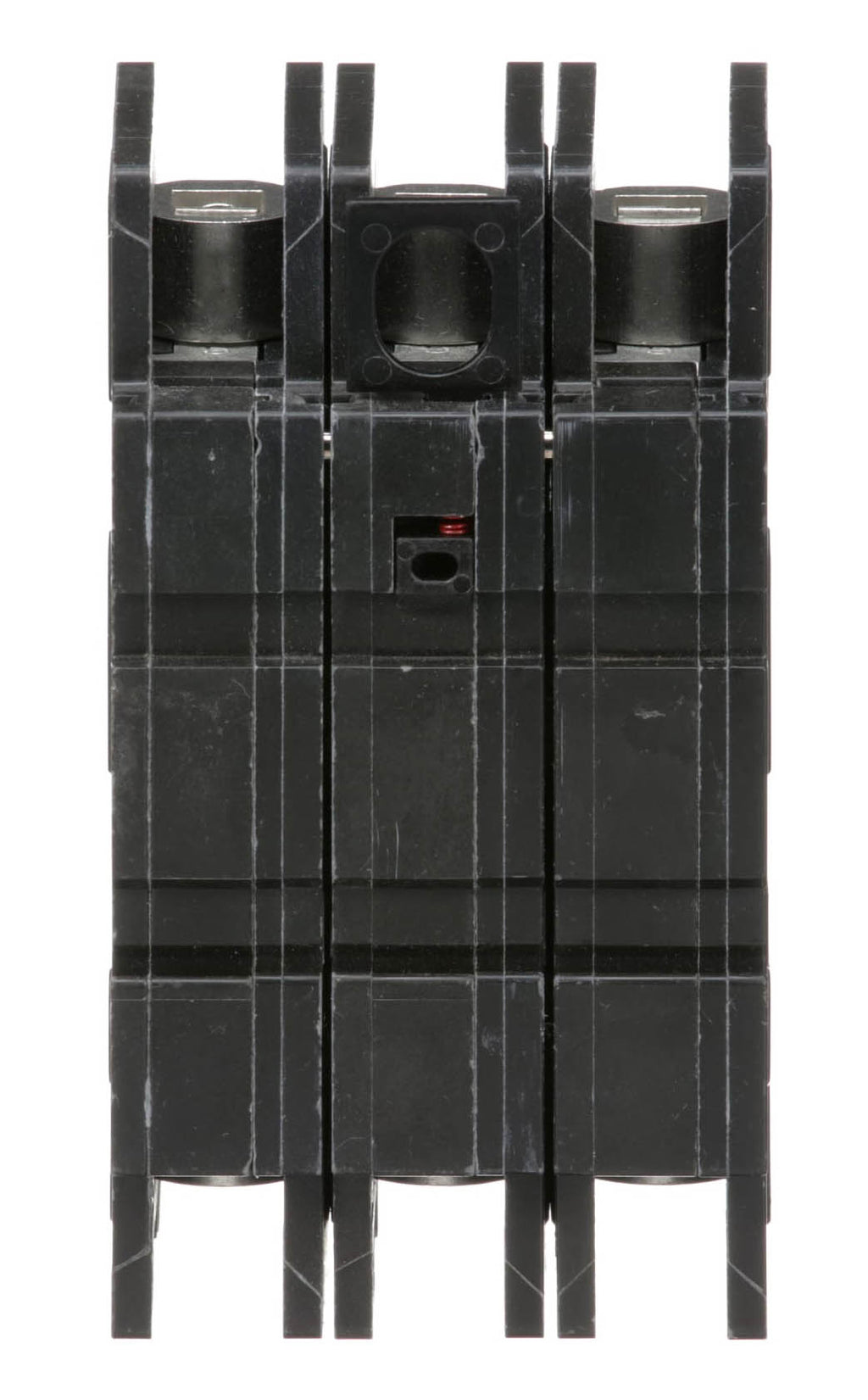

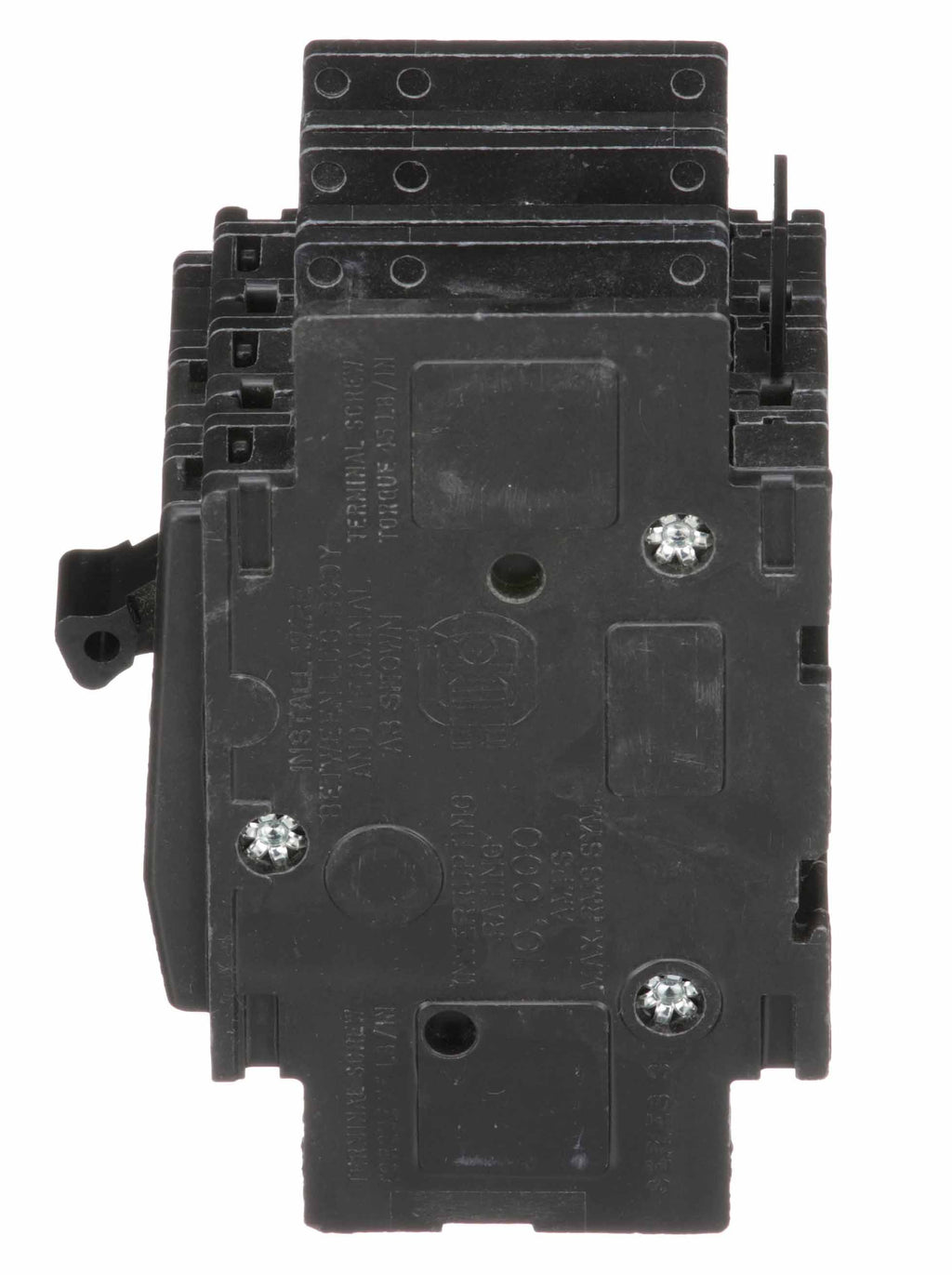

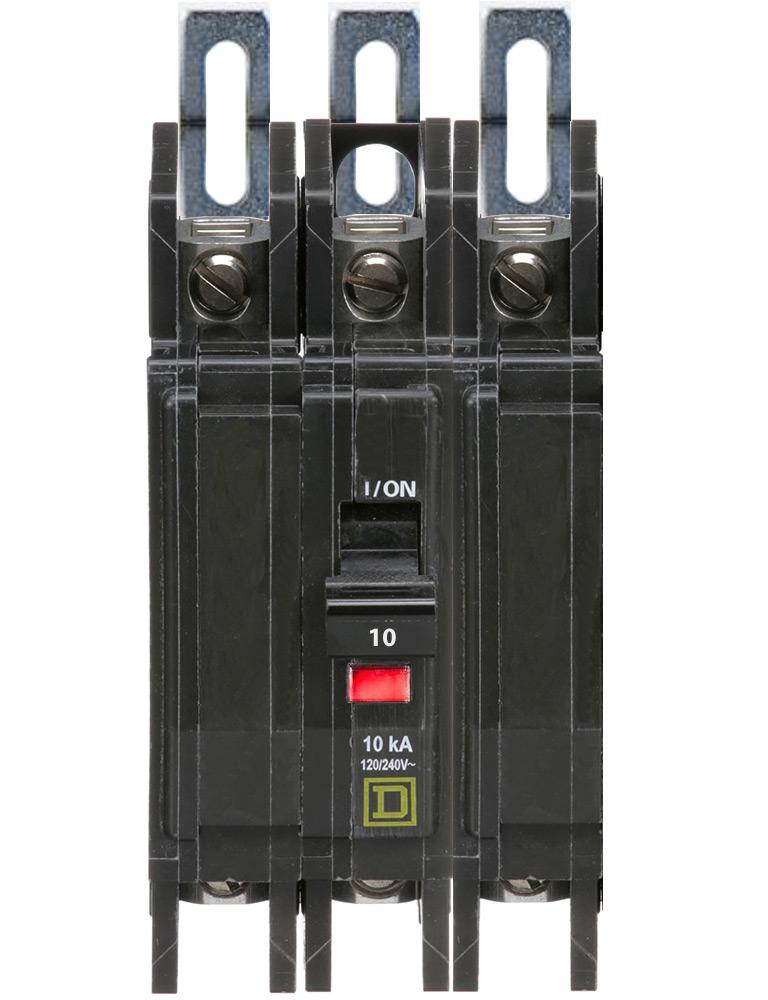

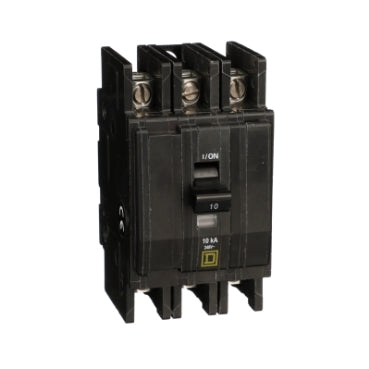

QOU310 - Square D 10 Amp 3 Pole 240 Volt Miniature Circuit Breaker QOU Series

QOU310

QOU310 is a 10 Amp, 3 Pole miniature circuit breaker from Square D's QOU series designed for reliable circuit protection.This standard type circuit breaker features a 10 kA interrupt rating at 120/240 V AC and 5 kA at 48 V DC. It supports unit mount installation with slotted box lug connections on both line and load sides. Compatible with 14 to 2 AWG copper or aluminum wiring, it is UL, CSA, and IEC certified for safety and performance.

• Amperage: 10 A
• Voltage: 120/240 V AC, 48 V DC
• Number of Poles: 3
• Mounting Type: Unit mount
• Interrupt Rating: 10 kA at 120/240 V AC, 5 kA at 48 V DC
• Series/Frame: QOU
• Trip Unit: Standard
• Electrical Connection: Slotted box lugs (line and load side)
• Wire Gauge: AWG 14 to 2 (Copper/Aluminum)
• Certifications: UL listed, CSA, IEC
• Dimensions (H x W x D): 4.05 x 2.25 x 2.95 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOU310
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOU Series
• Type : QOU
• Voltage : 240
• Amperage : 10
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Slotted Box Lug (Reversible Line and Load)
• Frame Size : 100A/QOU
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901489245
• GTIN : 00785901489245
• Country of Origin : Mexico
• Dimensions : 4.05 in (102.87 mm) x 2.25 in (57.15 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 1.06
• Panel Type : Air Conditioning and Refrigeration Equipment, Heating
• Standards : CSA, IEC, UL listed
• Certification : IEC, UL listed
• Wire Size : AWG 14...AWG 2 aluminium/copper
