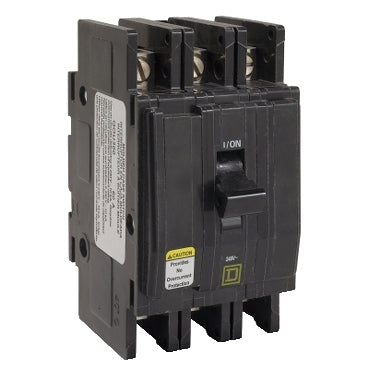

QOU300 - Square D 60A 240V 3-Pole QOU Series Non-Automatic Miniature Circuit Breaker

QOU300

QOU300 is a Square D 60 Amp, 240 Volt, 3-Pole non-automatic miniature circuit breaker from the QOU series.This circuit breaker features a thermal magnetic trip unit designed for overcurrent protection and switching on AC and DC systems. It has a 10 kA interrupt rating at 240 VAC and 5 kA at 48 VDC, suitable for three-phase applications. The unit mount design supports line/load lug connections with wire sizes from 14 to 2 AWG aluminum or copper. It is UL Listed and CSA Certified, with a compact size of 2.25 inches wide, 2.95 inches deep, and 4.05 inches high. The breaker includes VisiTrip trip indication and is rated for temperatures from 14 to 140 degrees Fahrenheit.

Key Specifications
• Amperage: 60 A
• Voltage Rating: 240 VAC, 48 VDC
• Number of Poles: 3
• Interrupt Rating: 10 kA at 240 VAC, 5 kA at 48 VDC
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount
• Wire Size: 14 to 2 AWG Al/Cu
• Dimensions: 2.25" W x 2.95" D x 4.05" H
• Certifications: UL Listed, CSA Certified
• Frequency: 50/60 Hz
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QOU300
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QOU
• Voltage : 240
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Unit Mount
• Functions : NA - No Overcurrent Protection
• Terminal Connection : Slotted Box Lug
• MCM Size : Min. Wire Size 12 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
• Protection : Non-Automatic



Product Data

• UPC : 785901489238
• GTIN : 00785901489238
• Country of Origin : Mexico
• Dimensions : 4.05 in (102.87 mm) x 2.25 in (57.15 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 0.98
• Standards : UL Listed, CSA
• Certification : UL Listed, CSA
• Wire Size : AWG 12...AWG 2/0 aluminium/copper
