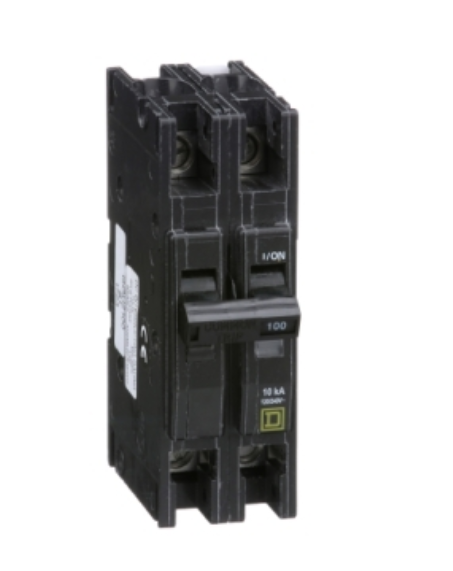

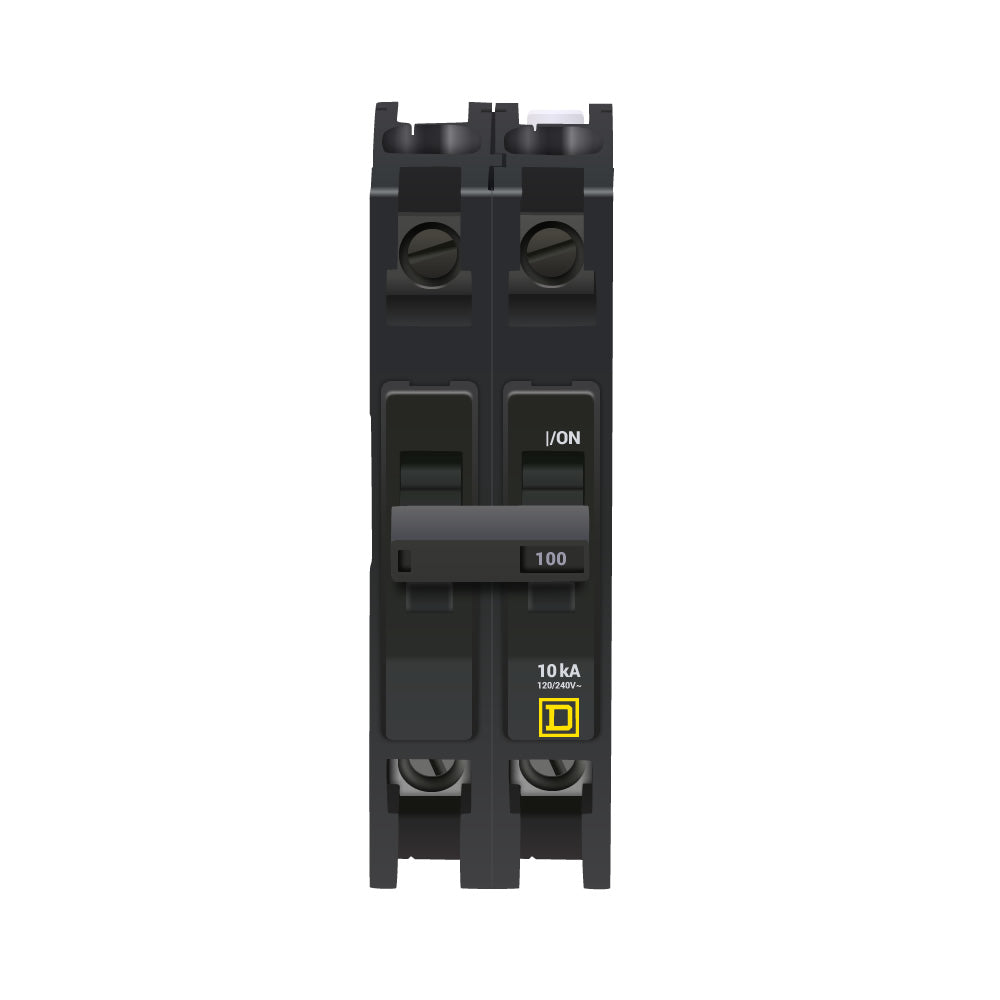

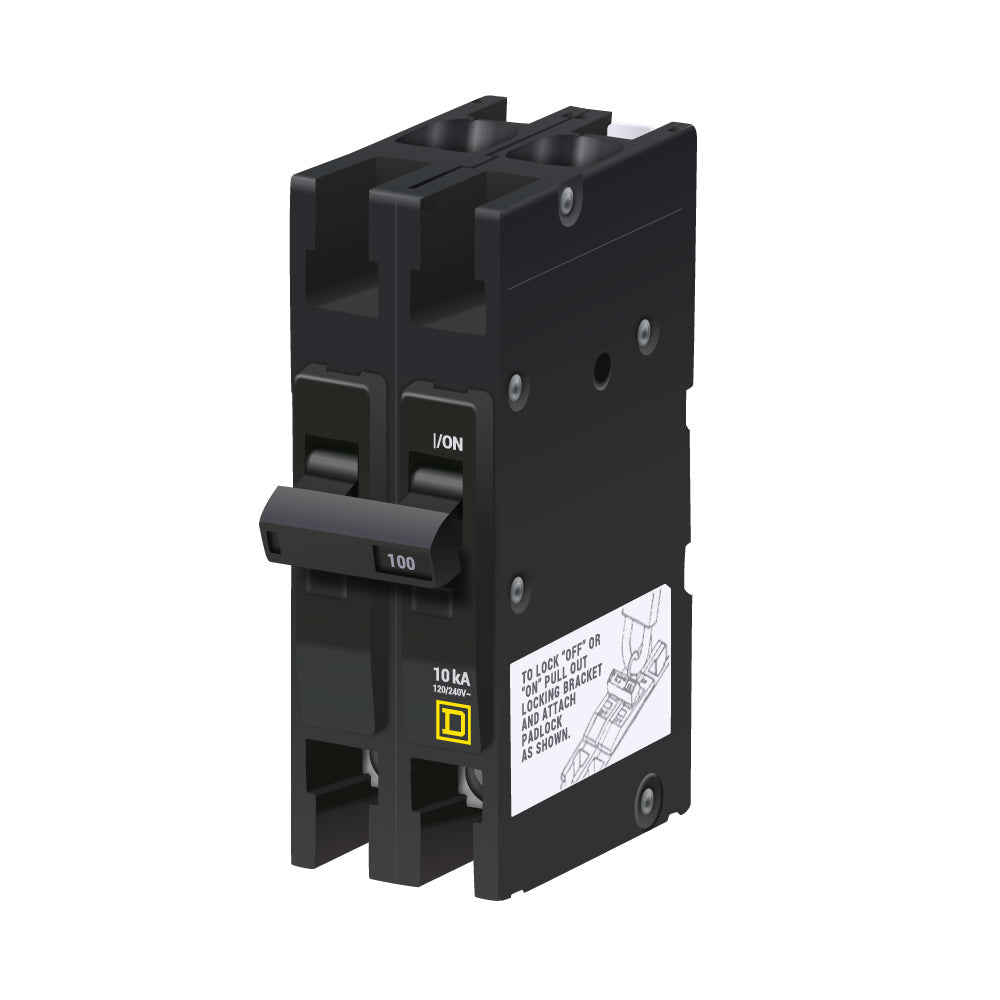

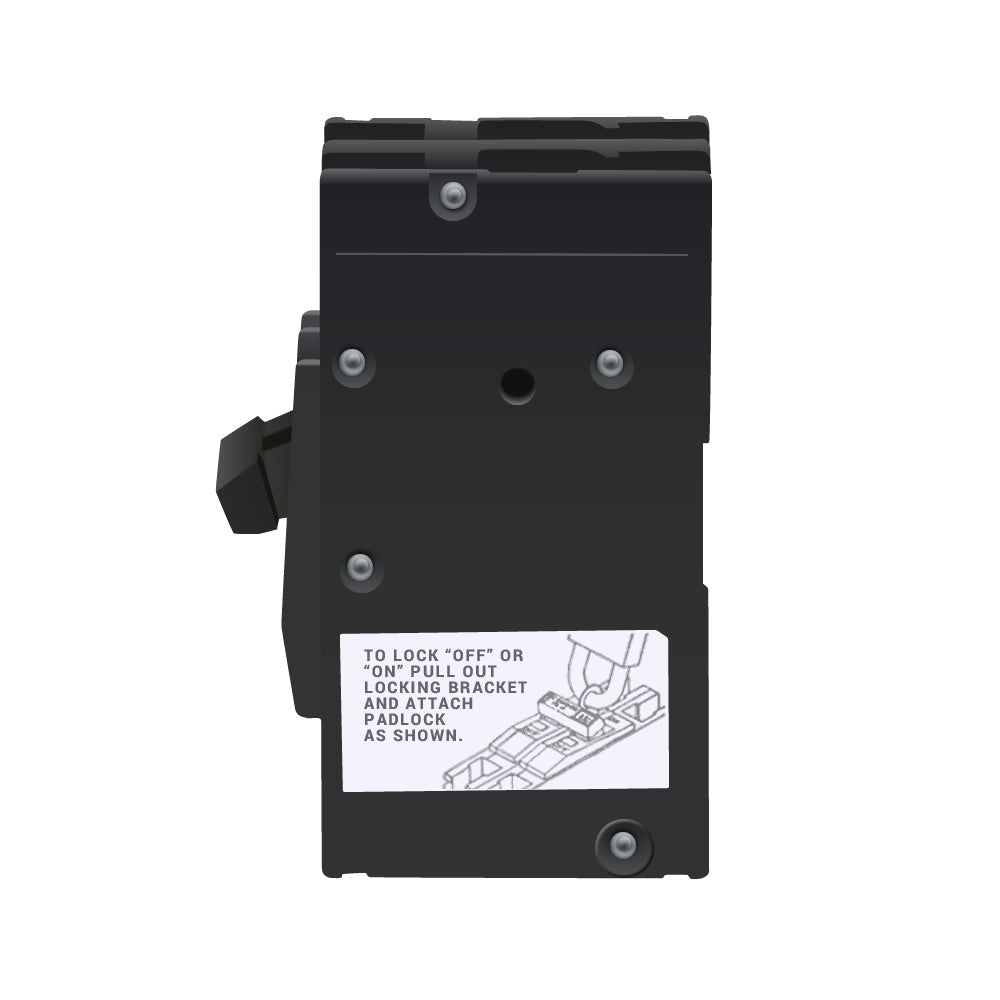

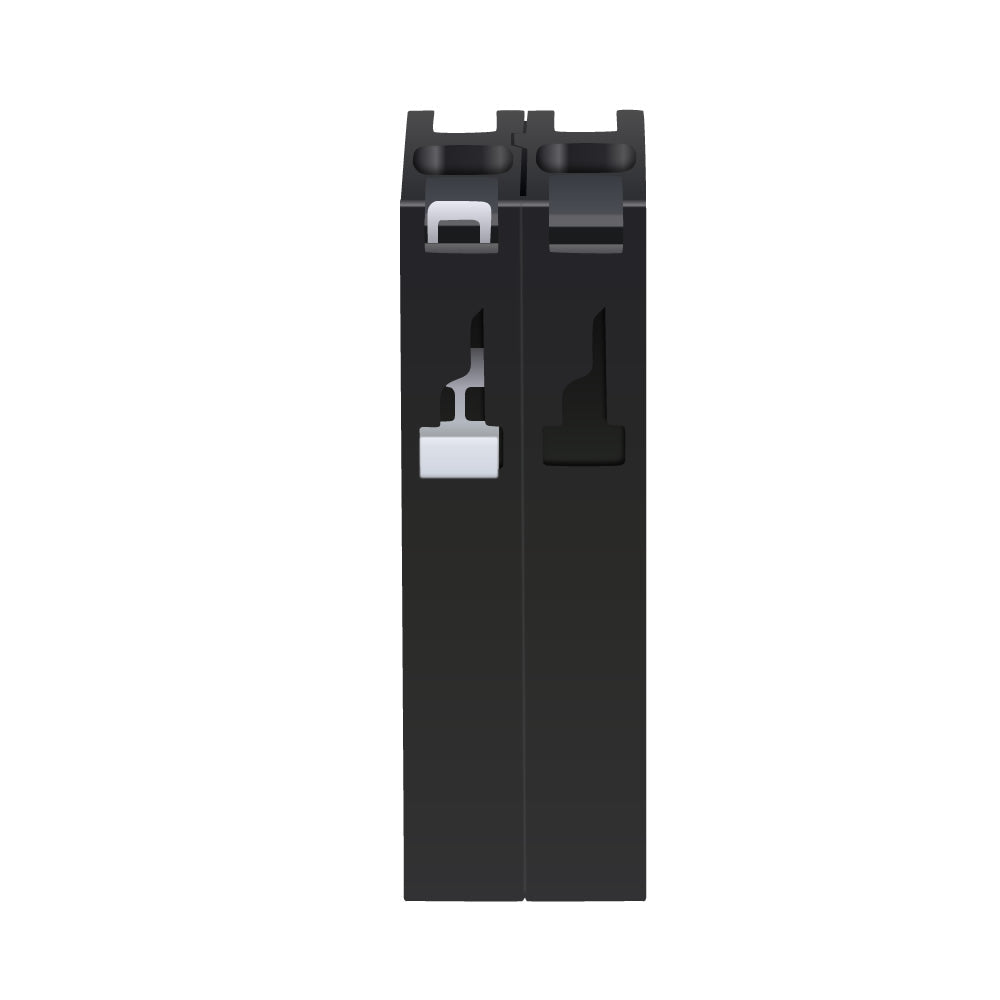

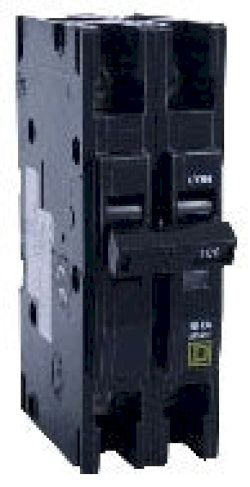

QOU2100 - Square D 100 Amp 2 Pole 120/240V Circuit Breaker 10kA Interrupt Rating QOU Series

QOU2100

QOU2100 is a Square D 2 Pole 100 Amp circuit breaker designed for 120/240 Volt AC applications with a 10kA interrupt rating.This QOU series thermal magnetic molded case circuit breaker provides reliable overcurrent and short-circuit protection with a common trip unit. It features slotted box lug electrical connections and is UL and CSA certified for safety and performance. The breaker is compact with approximate dimensions of 1.5 inches wide by 4 inches long and 2.38 inches deep, suitable for various mounting configurations.

• Amperage: 100 Amps
• Voltage Rating: 120/240 VAC, 60 VDC
• Number of Poles: 2
• Interrupt Rating: 10,000 Amps (10kA) at 120/240 VAC
• Type/Series: QOU
• Trip Unit: Thermal Magnetic, Common Trip
• Mounting Type: Standard panel mount
• Certifications: UL Listed, CSA Certified
• Electrical Connection: Slotted box lugs
• Dimensions: Approx. 1.5" W x 4.0" L x 2.38" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOU2100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOU Series
• Type : QOU
• Voltage : 120/240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Unit Mount
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Slotted Box Lug (Non-Reversible Line and Load)
• Frame Size : 100A/QOU
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG Max. Wire Size 2/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901060284
• GTIN : 00785901060284
• Country of Origin : Mexico
• Dimensions : 4.45 in (113.03 mm) x 1.5 in (38.1 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 0.94
• Panel Type : Air Conditioning and Refrigeration Equipment, Heating
• Standards : CSA, IEC, UL listed
• Certification : IEC, UL listed
• Wire Size : AWG 12...AWG 2/0 aluminium/copper
