QOU210 - Square D 10 Amp 2 Pole 120/240VAC 10kA Interrupt Miniature Circuit Breaker, QOU Series, Thermal Magnetic Trip, Bolt-On Mount

QOU210

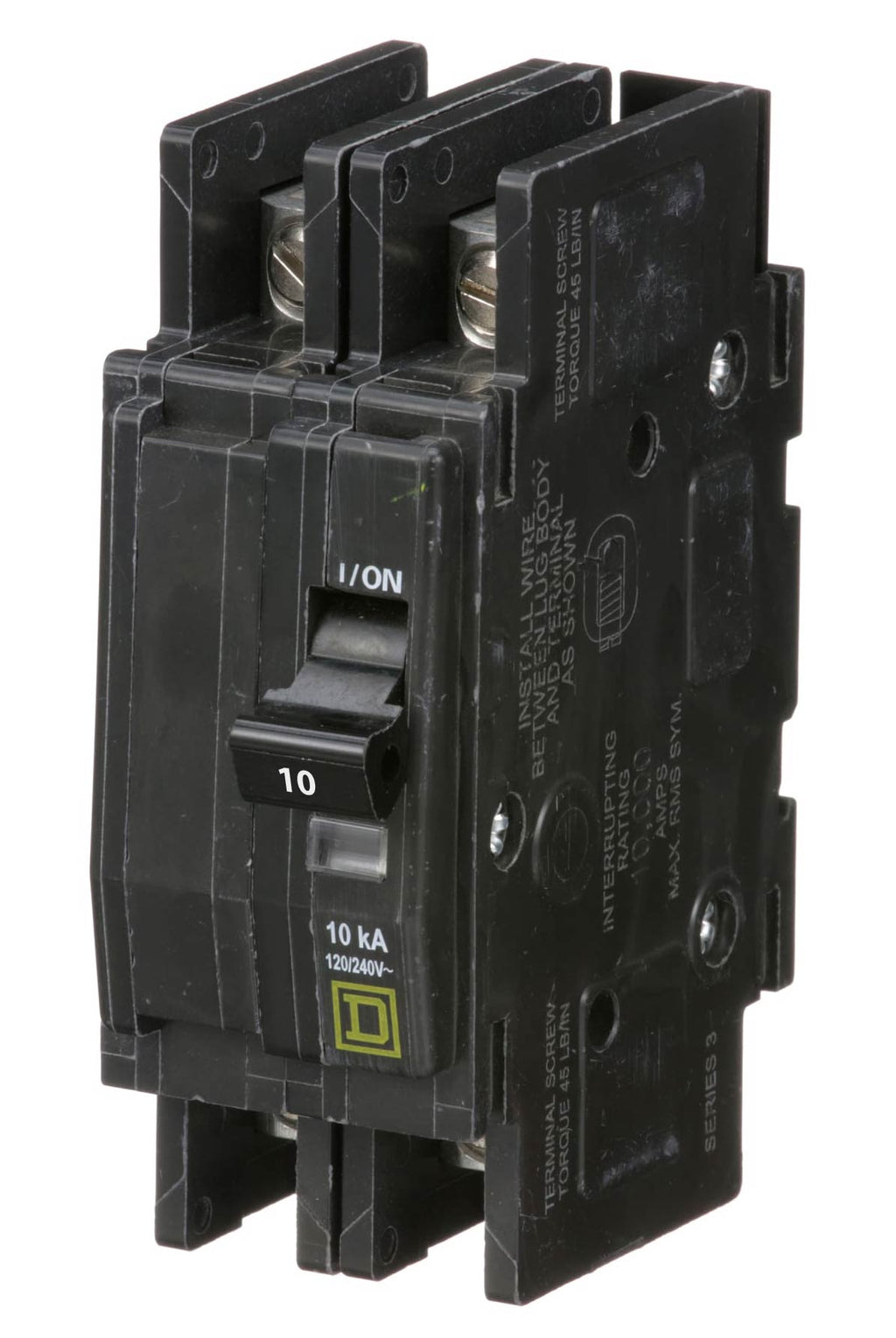

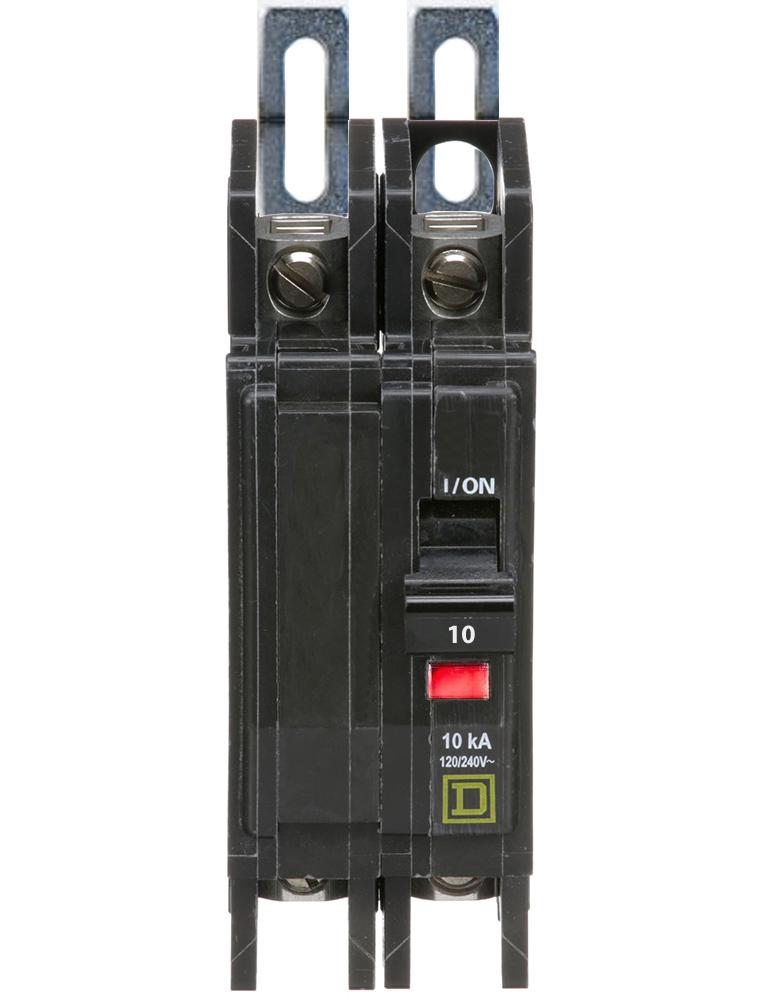

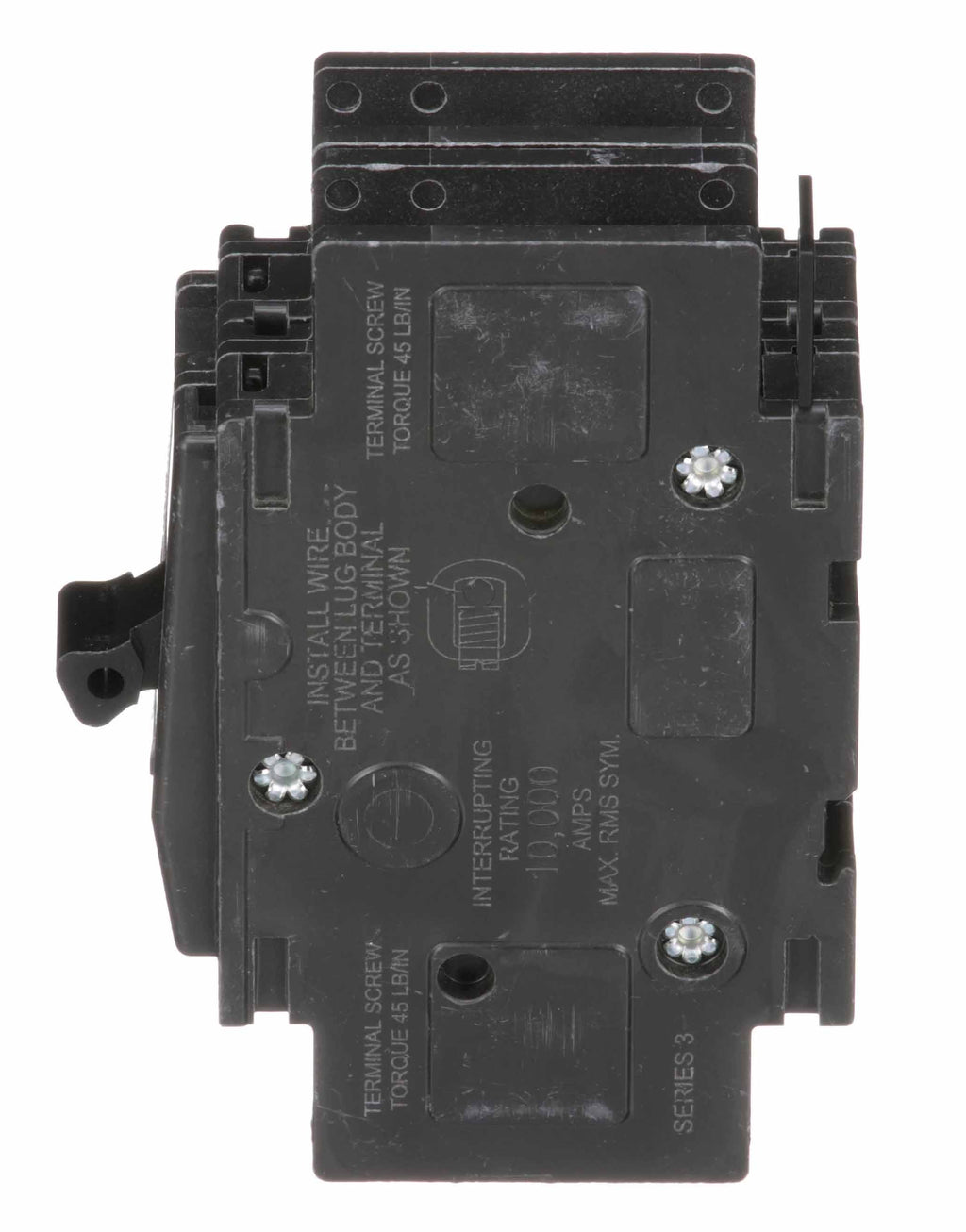

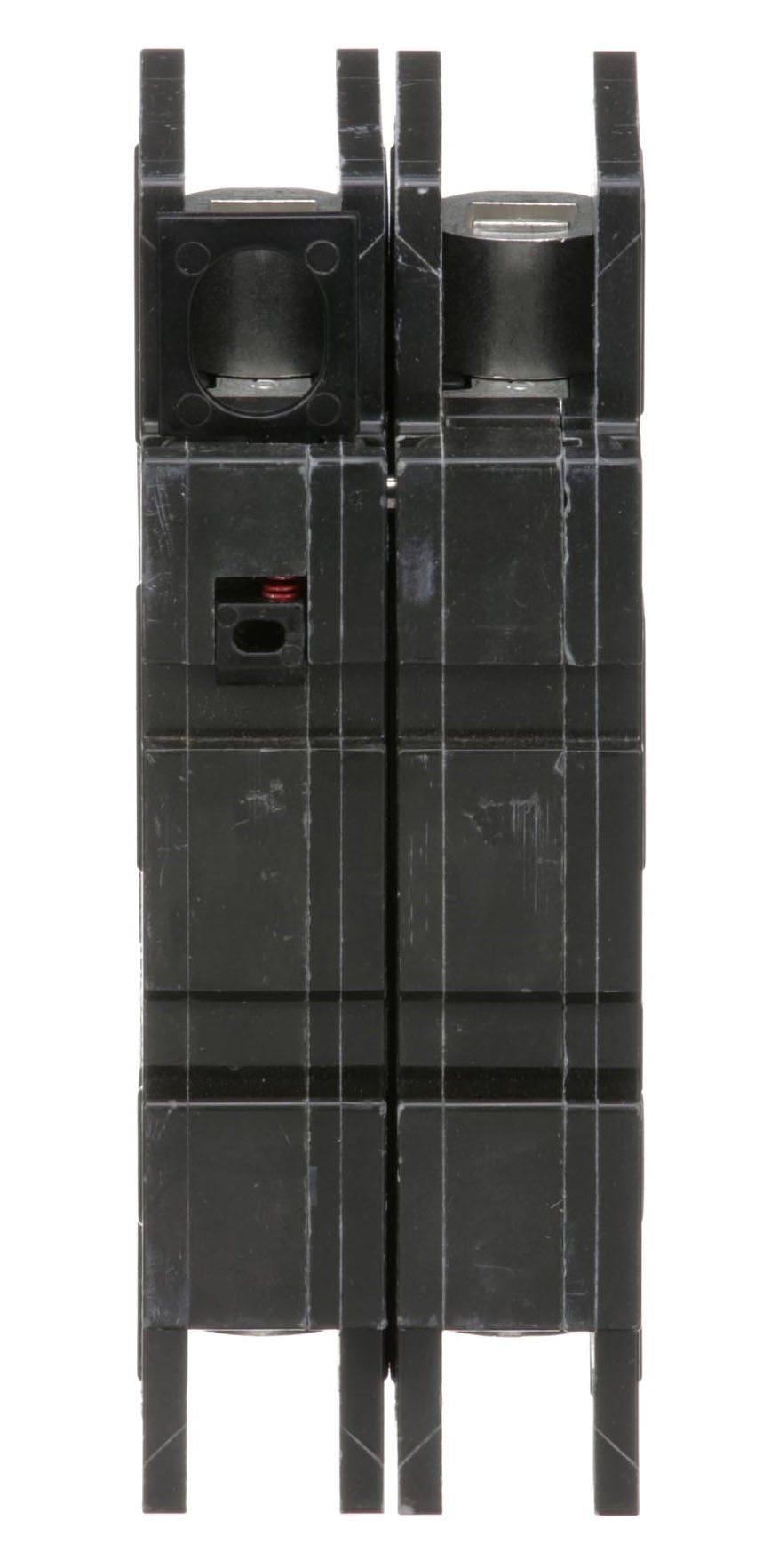

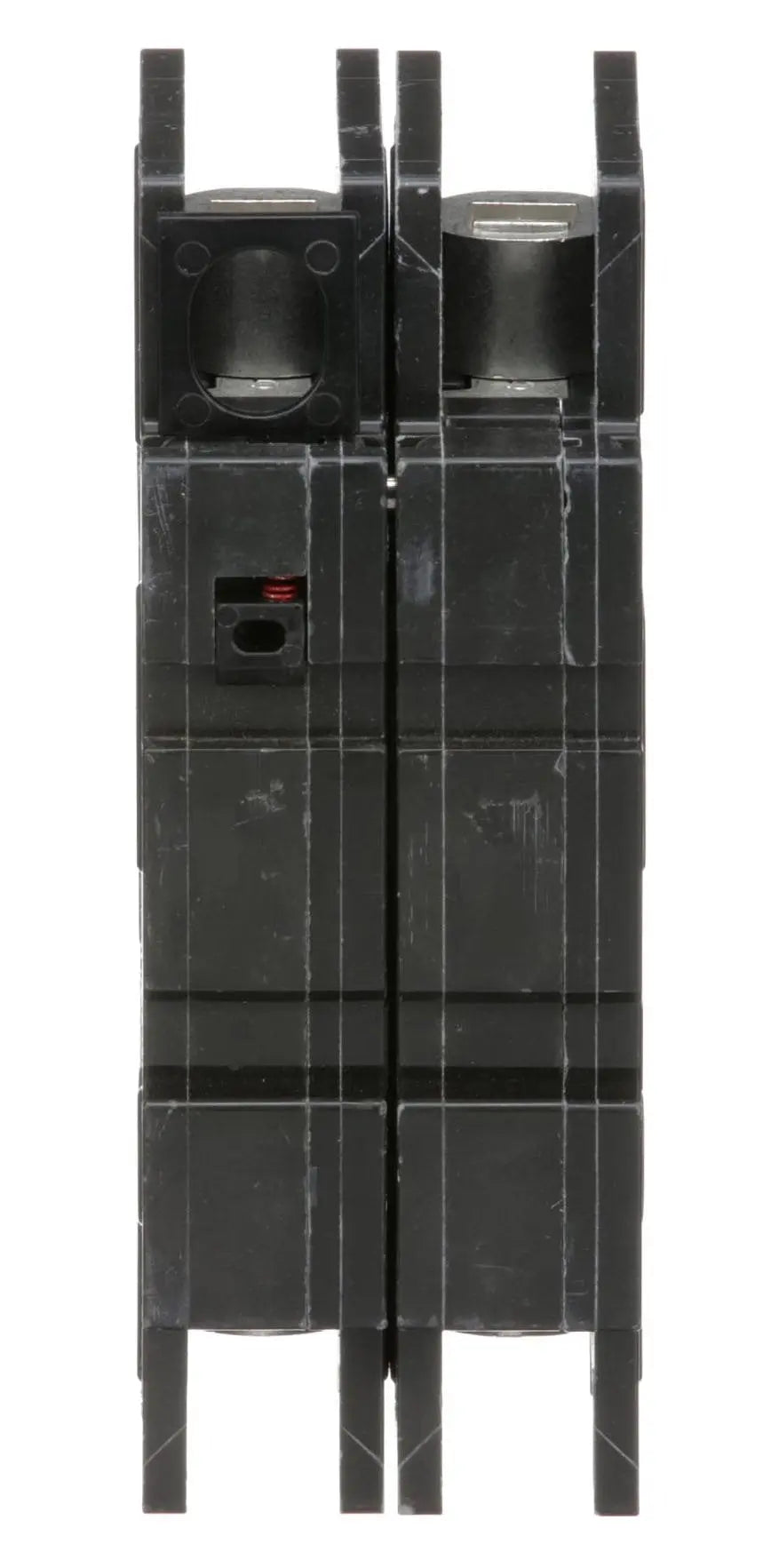

QOU210 is a Square D miniature circuit breaker designed for reliable protection in residential and light commercial applications.

This 2-pole, bolt-on circuit breaker features a 10 Amp current rating, 120/240VAC voltage rating, and a robust 10kA interrupt rating. It is part of the QOU series and uses a thermal magnetic trip unit for precise overload and short-circuit protection. Suitable for use with 14 to 2 AWG copper or aluminum wire, this breaker is engineered for easy installation and dependable performance.

Key Specifications
• Part Number: QOU210
• Manufacturer: Square D
• Category: Circuit Breaker
• Amperage: 10 Amp
• Voltage: 120/240VAC, 48VDC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA @ 120/240VAC
• Series/Frame: QOU
• Trip Unit: Thermal Magnetic
• Wire Range: 14 to 2 AWG (Copper/Aluminum)
• Certifications: Not specified in available data

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOU210
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOU Series
• Type : QOU
• Voltage : 120/240
• Amperage : 10
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Slotted Box Lug (Reversible Line and Load)
• Frame Size : 100A/QOU
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901477457
• GTIN : 00785901477457
• Country of Origin : Mexico
• Dimensions : 4.45 in (113.03 mm) x 1.5 in (38.1 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 0.74
• Panel Type : Air Conditioning and Refrigeration Equipment, Heating
• Standards : CSA, IEC, UL listed
• Certification : IEC, UL listed
• Wire Size : AWG 14...AWG 2 aluminium/copper
