Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QOB3100VH1021

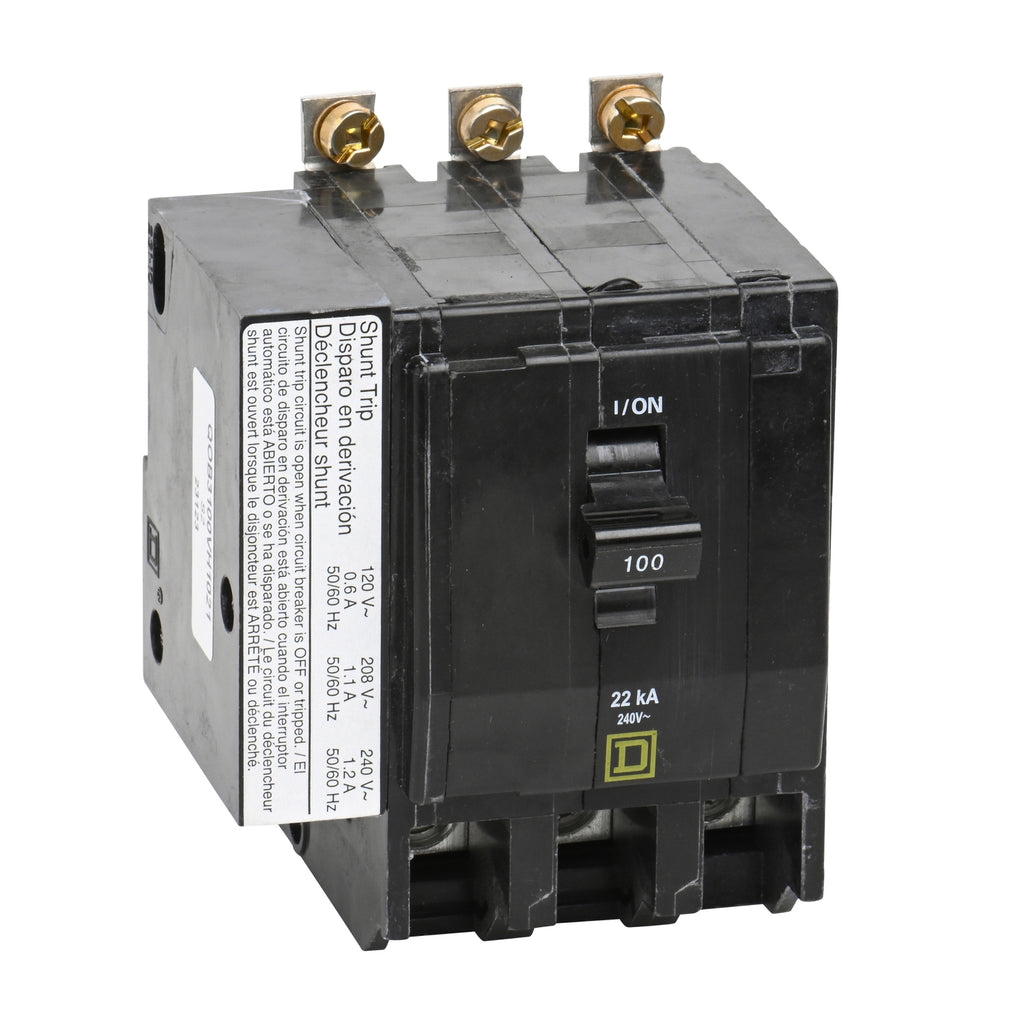

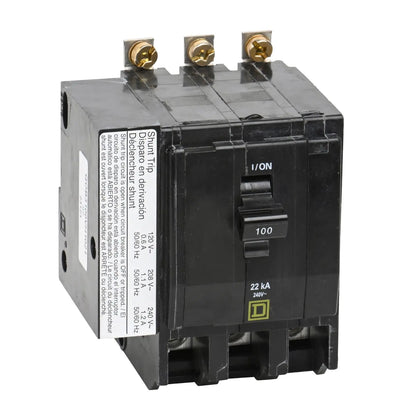

QOB3100VH1021 is a 3 pole, 100A miniature circuit breaker designed for reliable protection in commercial and industrial applications. This Square D QO series breaker features a thermal magnetic trip unit and is rated for 120/240VAC with a 22kA interrupt rating. It is designed for bolt-on mounting in compatible panelboards and is HACR rated for use with heating, air conditioning, and refrigeration equipment. The breaker is UL and CSA certified for safety and performance. This QOB3100VH1021 circuit breaker is ideal for use in Square D NQ panelboards and provides robust protection for three-phase circuits. The box lug terminals support wire sizes from #4 to #2/0 AWG copper or aluminum, and the breaker is calibrated for use at 40¡C ambient temperature. Its compact design and high interrupt rating make it suitable for demanding electrical environments.
- Part Number: QOB3100VH1021
- Manufacturer: Square D
- Series: QO
- Frame Size: 100A
- Poles: 3
- Amperage Rating: 100A
- Voltage Rating: 120/240VAC
- Interrupt Rating: 22kA @ 120/240VAC
- Mounting Type: Bolt-On
- Terminal Type:(more...)
Specifications
- Part Number: QOB3100VH1021
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QOB Series
- Type : QOB
- Voltage : 120/240VAC
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 22kA@240V
- Connection : Bolt-On
- Functions : Long-Time and Instantaneous Trip
- Terminal Connection : Pressure Plate
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 8 AWG (Cu/Al) Max. Wire Size 2 AWG (Cu/Al)
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 785901088752
- GTIN : 00785901088752
- Country of Origin : Mexico
- Dimensions : 3.5 in (89 mm) x 3.0 in (76 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 1.15
- Standards : CSA, UL Listed
- Certification : UL Listed
- Wire Size : AWG 4 to AWG 2/0, Copper/Aluminum
