QOB3100VH - Square D 100 Amp 3 Pole Bolt-On Miniature Circuit Breaker, 120/240VAC, 22kA, QO Series, Visi-Trip, UL/CSA Listed

Save $490.32
SKU: QOB3100VH-New
Condition: New
Price:
$189.00 $679.32
Stock:
100+ in stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

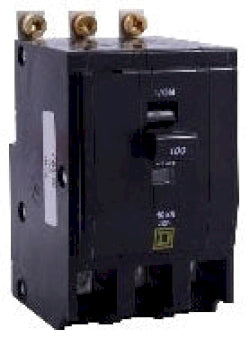

QOB3100VH - Square D Bolt-On 100 Amp 3 Pole Circuit Breaker - Essential Electric Supply

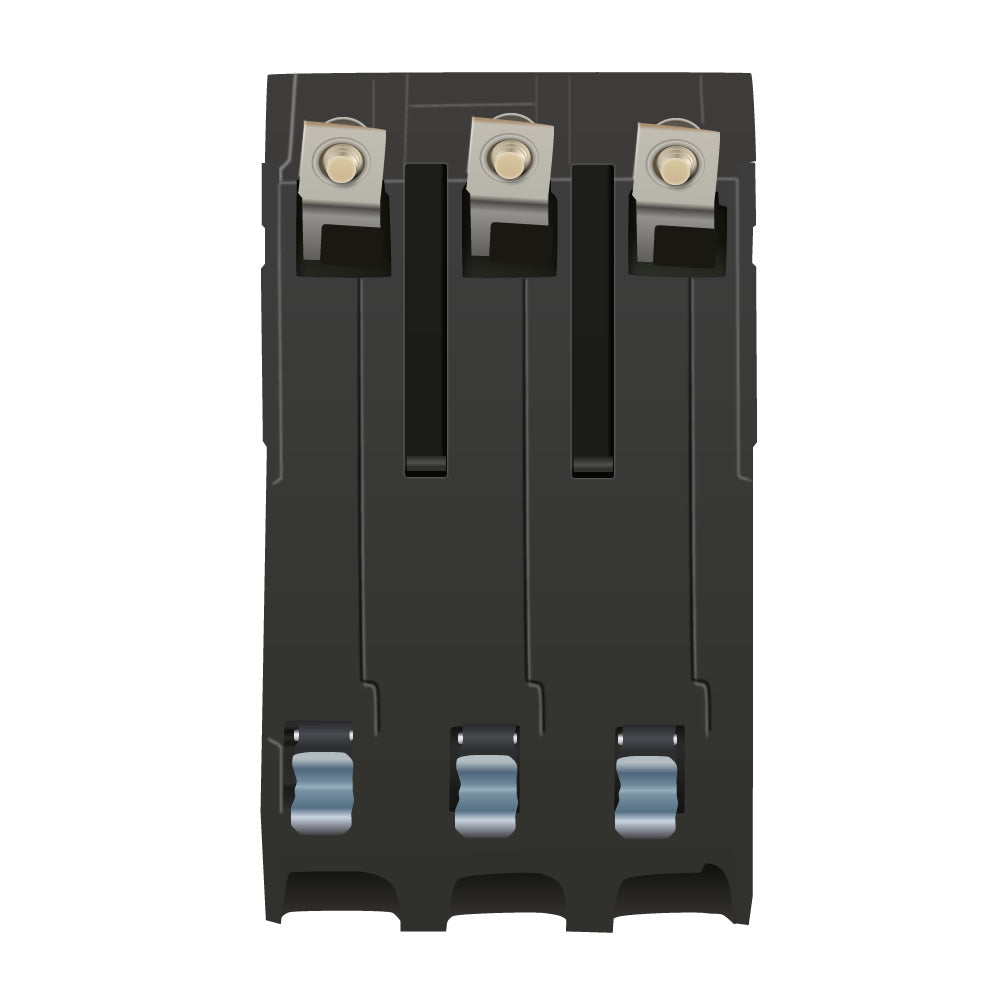

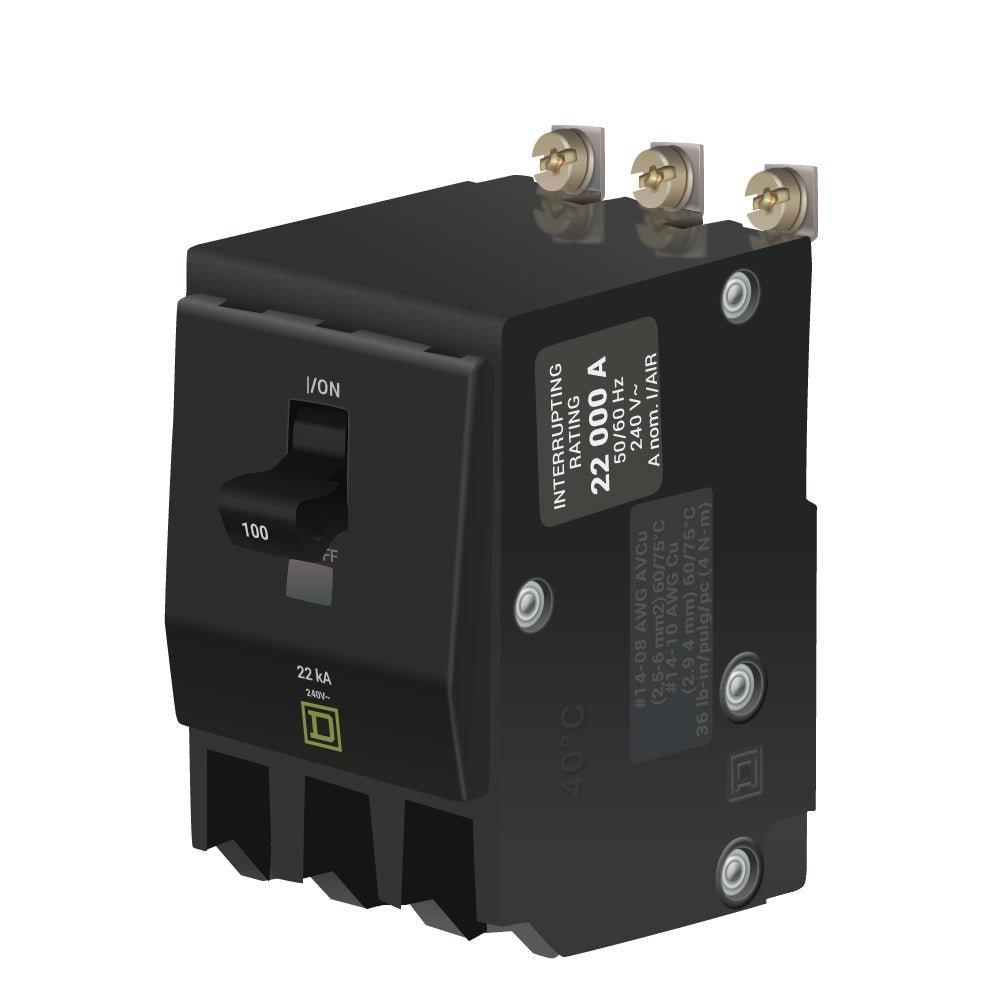

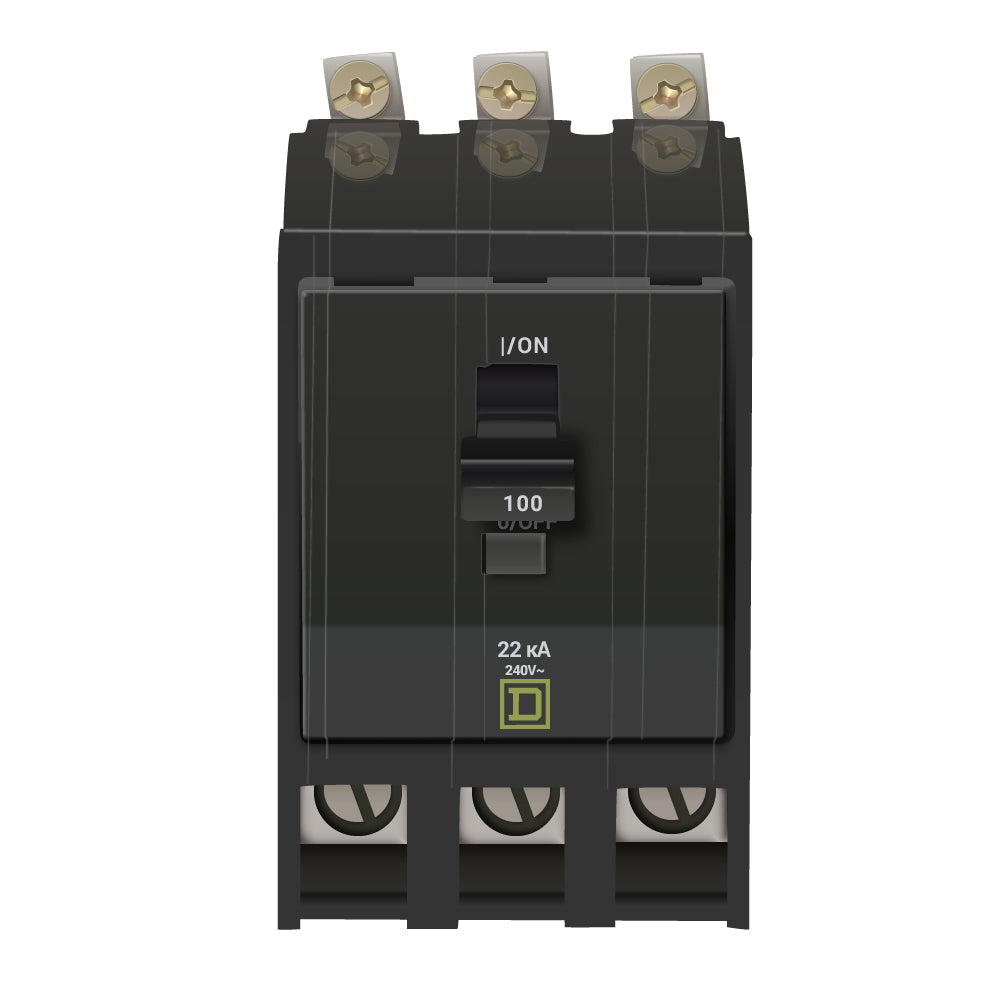

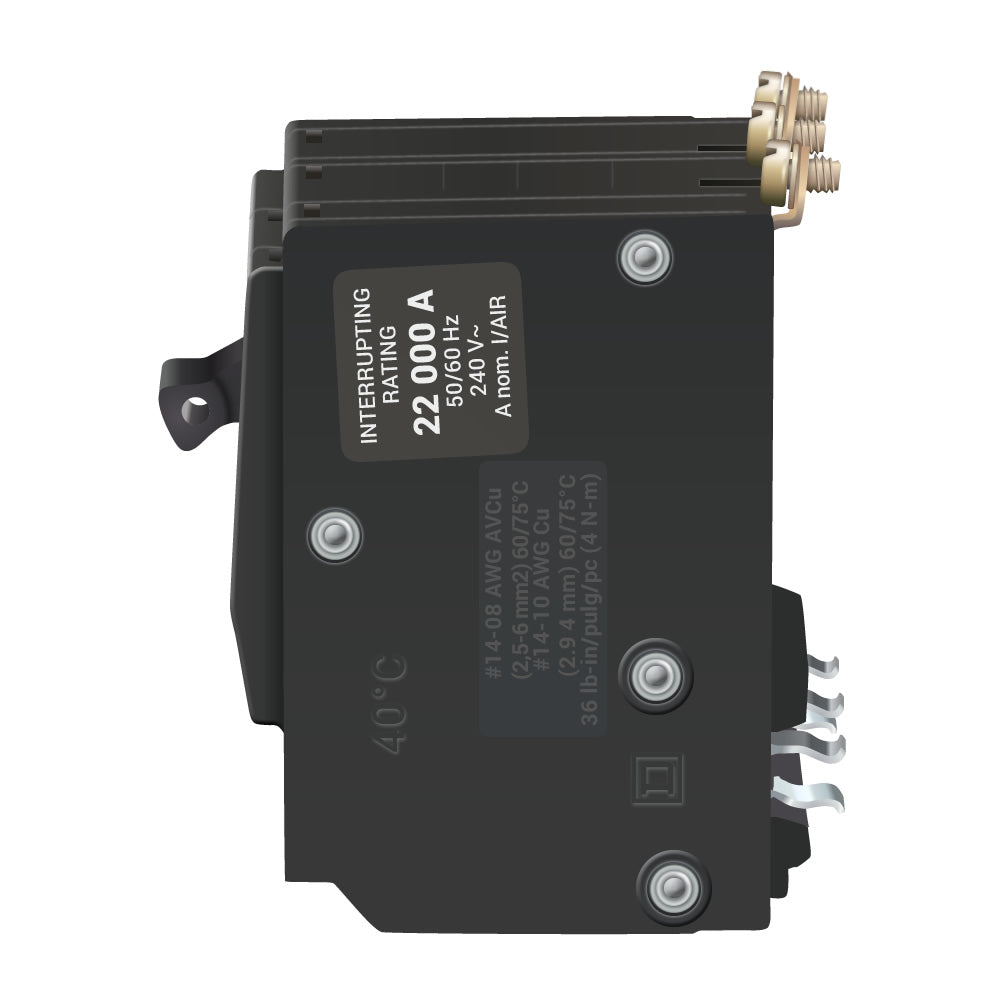

QOB3100VH - Square D 100 Amp 3 Pole Bolt-On Miniature Circuit Breaker, 120/240VAC, 22kA, QO Series, Visi-Trip, UL/CSA Listed - Essential Electric Supply
QOB3100VH - Square D 100 Amp 3 Pole Bolt-On Miniature Circuit Breaker, 120/240VAC, 22kA, QO Series, Visi-Trip, UL/CSA Listed - Essential Electric Supply
QOB3100VH - Square D 100 Amp 3 Pole Bolt-On Miniature Circuit Breaker, 120/240VAC, 22kA, QO Series, Visi-Trip, UL/CSA Listed - Essential Electric Supply
QOB3100VH - Square D 100 Amp 3 Pole Bolt-On Miniature Circuit Breaker, 120/240VAC, 22kA, QO Series, Visi-Trip, UL/CSA Listed - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only

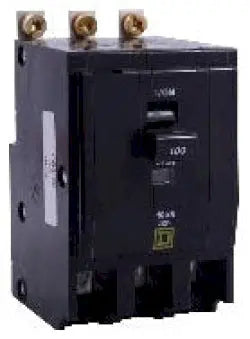

QOB3100VH - Square D Bolt-On 100 Amp 3 Pole Circuit Breaker - Essential Electric Supply
QOB3100VH - Square D 100 Amp 3 Pole Bolt-On Miniature Circuit Breaker, 120/240VAC, 22kA, QO Series, Visi-Trip, UL/CSA Listed - Essential Electric Supply
QOB3100VH - Square D 100 Amp 3 Pole Bolt-On Miniature Circuit Breaker, 120/240VAC, 22kA, QO Series, Visi-Trip, UL/CSA Listed - Essential Electric Supply
QOB3100VH - Square D 100 Amp 3 Pole Bolt-On Miniature Circuit Breaker, 120/240VAC, 22kA, QO Series, Visi-Trip, UL/CSA Listed - Essential Electric Supply
QOB3100VH - Square D 100 Amp 3 Pole Bolt-On Miniature Circuit Breaker, 120/240VAC, 22kA, QO Series, Visi-Trip, UL/CSA Listed - Essential Electric Supply

Description

QOB3100VH


QOB3100VH is a Square D 3 pole, 100 amp, bolt-on miniature circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal magnetic circuit breaker features a Visi-Trip indicator for easy fault detection, box-type lugs for secure wire termination (4 AWG to 2/0 AWG copper or aluminum), and is compatible with NQ or NQOD panelboards. It is rated for 120/240VAC, 22kA interrupting capacity, and is suitable for use in heating, air conditioning, and refrigeration systems.

    Key Specifications
  • Amperage: 100A
  • Voltage: 120/240VAC, 48VDC
  • Poles: 3
  • Mounting Type: Bolt-on
  • Interrupt Rating: 22kA at 120/240VAC
  • Series/Frame: QO
  • Trip Unit: Thermal magnetic with Visi-Trip indicator
  • Certifications: UL Listed, CSA Certified, HACR rated
  • Wire Size: 4 AWG to 2/0 AWG (copper or aluminum)
  • Operating Temperature: Up to 104¡F (40¡C)
  • Dimensions: 3.50" x 2.25" x 2.91"
  • Weight: 1.09 lbs

At Essential Parts, we offer fast s(more...)

Specifications

  • Part Number: QOB3100VH
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOB Series
  • Type : QOB
  • Voltage : 120/240VAC
  • Amperage : 100
  • Phase : 3
  • Poles : 3
  • AIC rating : 22kA@240V
  • Connection : Bolt-On
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Pressure Plate
  • Frame Size : 100A/QO
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
  • Breaker Type : High Interrupting Capacity
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901054801
  • GTIN : 00785901054801
  • Country of Origin : Mexico
  • Dimensions : 3.5 in (89 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
  • Weight : 1.09
  • Panel Type : Square D NQOD Panelboards
  • Standards : CSA, UL Listed
  • Certification : UL Listed
  • Wire Size : AWG 4 to AWG 2/0, Copper or Aluminum
