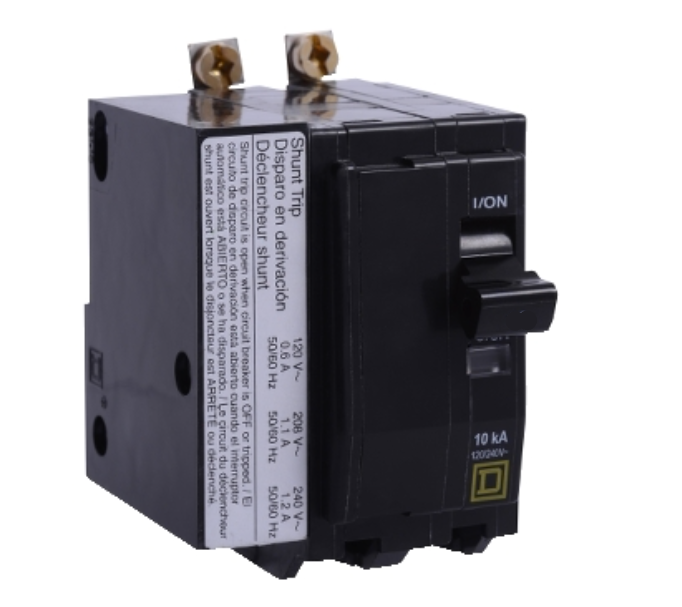

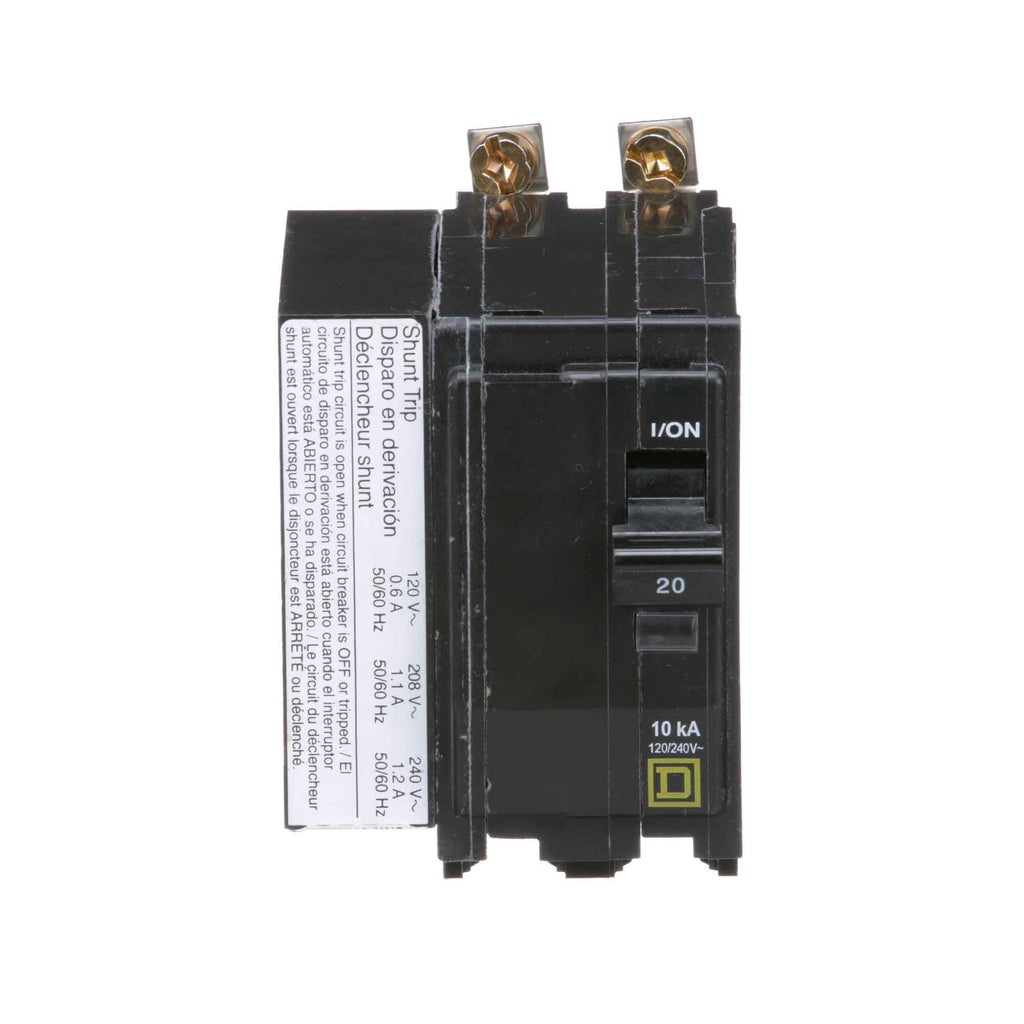

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Molded Case
- Series
- QOB Series
- Frame
- QOB
- Rated current
- 20
- Voltage
- 120/240V
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 10kA@120V
- Trip functions
- LI - Long-Time and Instantaneous
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Terminals
- Pressure Plate
- Lugs
- Included
- Frequency
- 50/60 Hz
- Panel / equipment
- Square D NQOD Panelboards
- Standards
- CSA, UL Listed
- Country of origin
- Mexico
Show all specifications (9 more)
- Frame Size
- 100A/QO
- Temp Rating
- 104°F
- MCM Size
- Min. Wire Size 14 AWG Max. Wire Size 8 AWG
- Breaker Type
- Shunt Trip
- UPC
- 785901494256
- GTIN
- 00785901494256
- Dimensions
- 3.0 in (76 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight
- 0.9 lb
- Certification
- UL Listed
Product description & additional details
QOB2201021
QOB2201021 is a Square D 2 Pole 20 Amp circuit breaker designed for 120/240 Volt AC applications with bolt-on mounting.
This thermal magnetic molded case circuit breaker features a 10,000 Amp interrupt rating and is part of the QO Series. It provides reliable overload and short circuit protection with a thermal/magnetic trip unit. The breaker is UL 489 and CSA certified, HACR rated, and RoHS compliant, suitable for residential and commercial load centers requiring bolt-on installation.
- Key Specifications
- Amperage: 20 Amps
- Voltage Rating: 120/240 VAC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 10 kA
- Series/Frame: QO Series
- Trip Unit: Thermal Magnetic
- Certifications: UL 489, CSA C22.2 #5, HACR Rated, RoHS Compliant
- Application: Residential and Commercial Load Centers
- Frequency: 50/60 Hz
- Part Number: QOB2201021
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QOB Series
- Type : QOB
- Voltage : 120/240
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Pressure Plate
- Frame Size : 100A/QO
- Temp Rating : 104°F
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
- Breaker Type : Shunt Trip
- Protection : Thermal Magnetic
- UPC : 785901494256
- GTIN : 00785901494256
- Country of Origin : Mexico
- Dimensions : 3.0 in (76 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 0.9 lb
- Panel Type : Square D NQOD Panelboards
- Standards : CSA, UL Listed
- Certification : UL Listed
