QOB220EPD

QOB220EPD

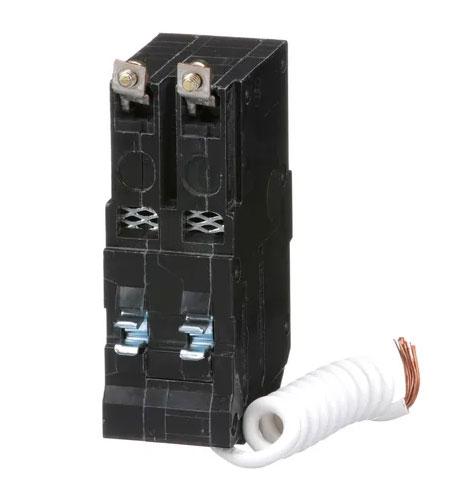

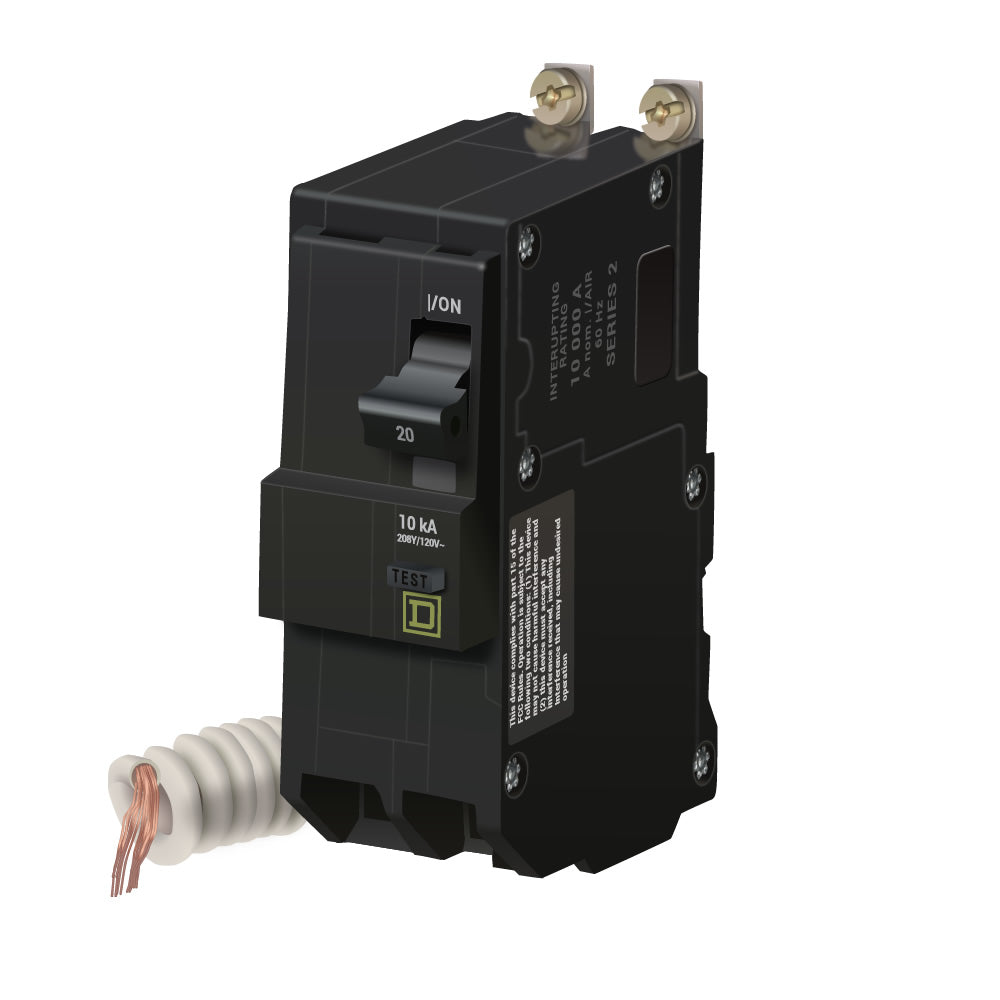

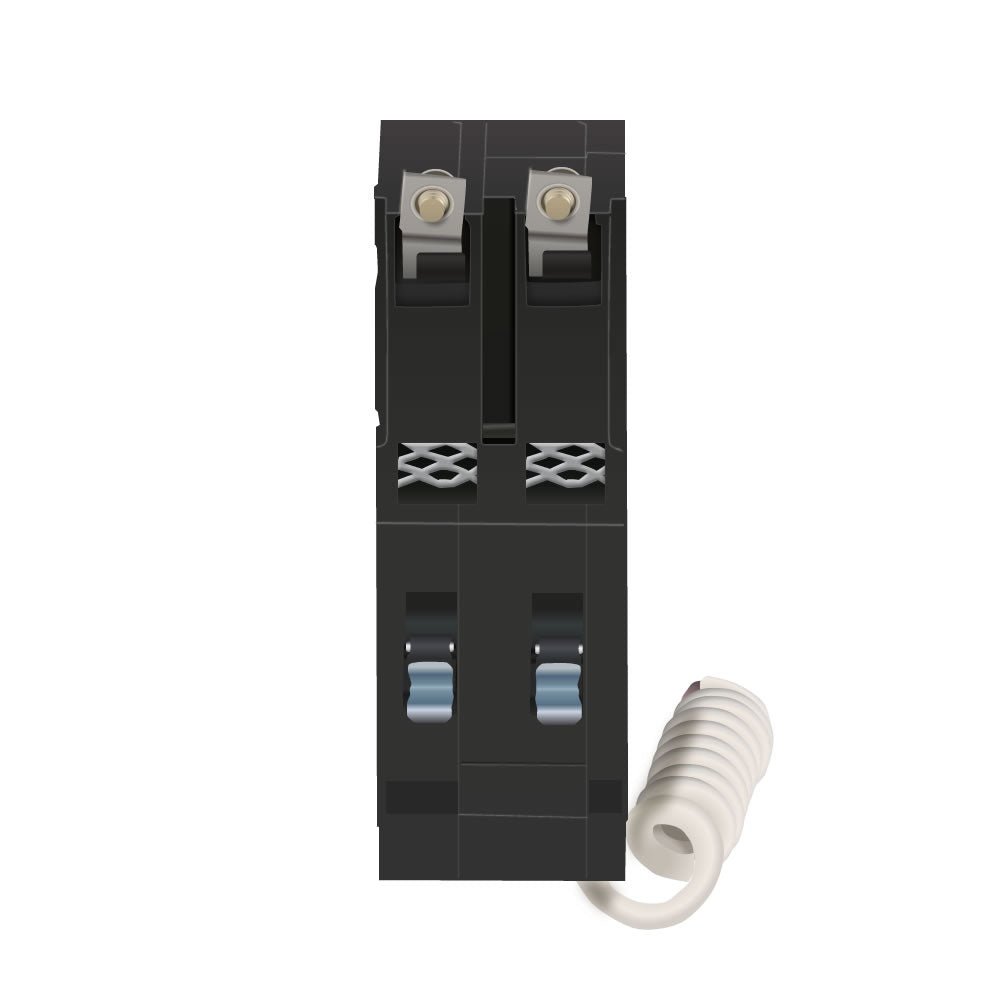

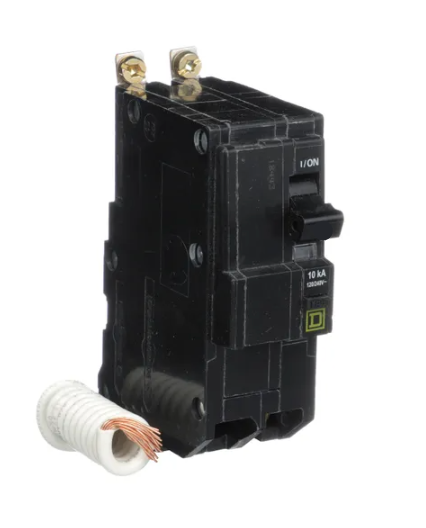

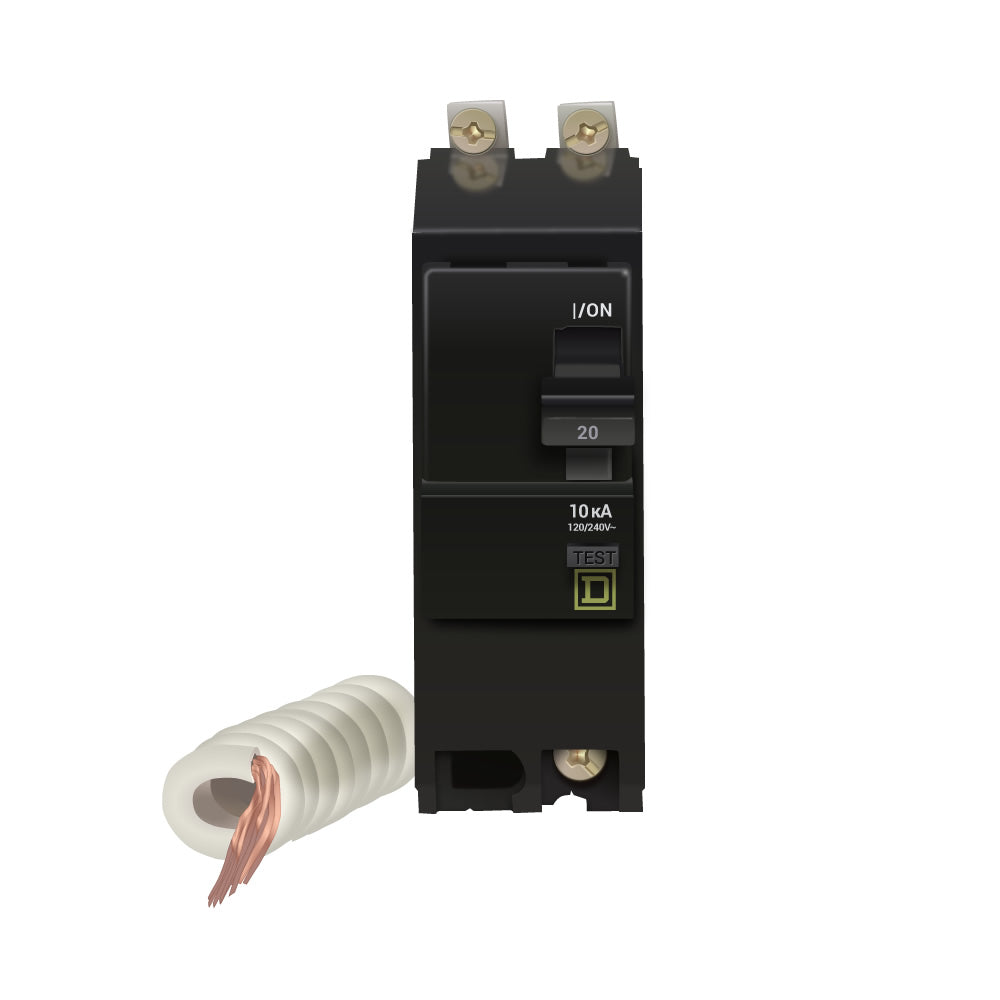

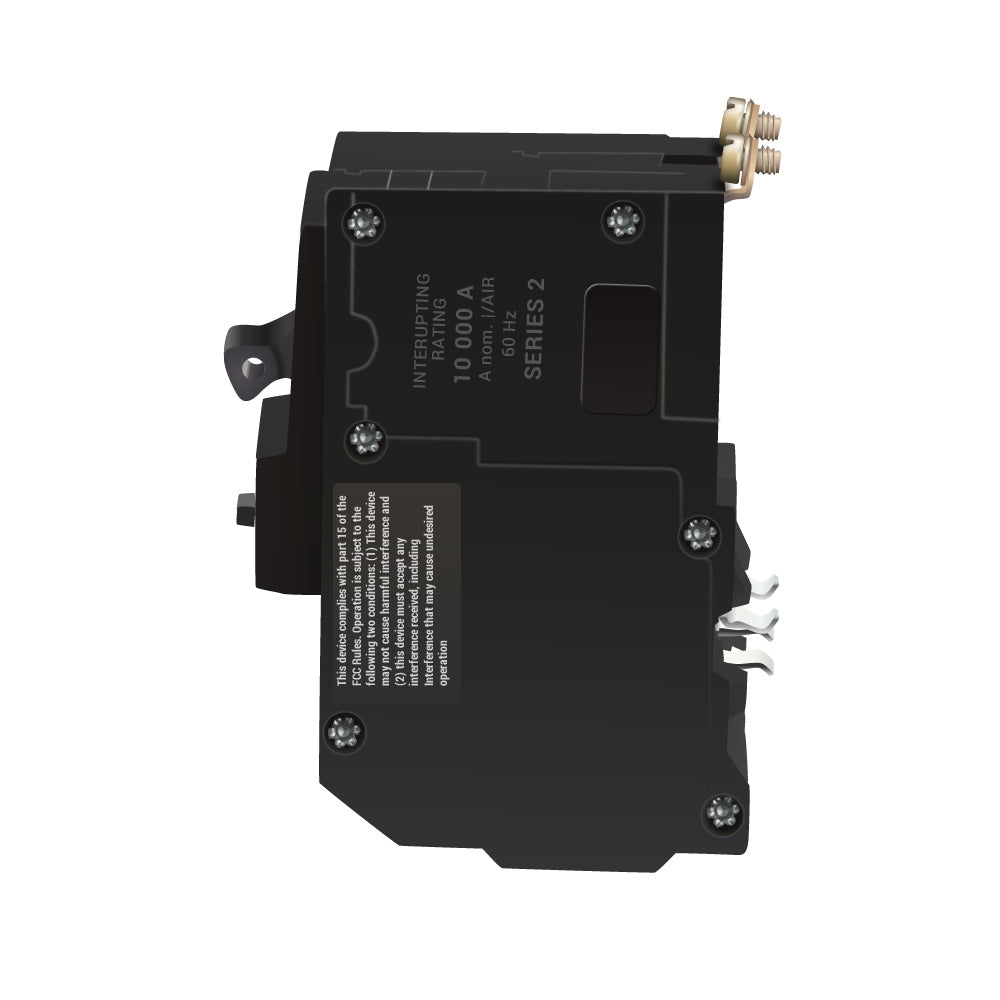

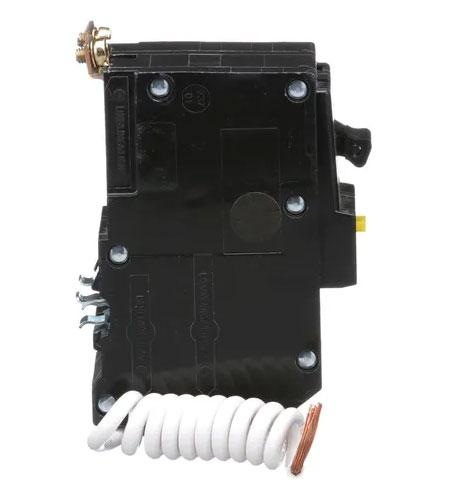

QOB220EPD is a Square D 2 Pole 20 Amp ground fault circuit breaker designed for 120/240VAC applications with bolt-on mounting.This thermal magnetic circuit breaker features a 10kA interrupting rating at 120/240VAC and includes long-time and instantaneous trip functions (LI). It is compatible with QO load centers and NQ panelboards, supports wire gauges from AWG 14 to AWG 8 copper and AWG 12 to AWG 8 aluminum, and is UL and CSA certified.

• Manufacturer: Square D
• Part Number: QOB220EPD
• Amperage: 20 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupting Rating: 10kAIC at 120/240VAC
• Series/Frame: QOB
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Connection Type: Bolt-On
• Certifications: UL, CSA
• Compatible with QO Load Centers and NQ Panelboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB220EPD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13°F to 158°F (-25°C to 70°C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Ground Fault Equipment Protection
• Protection : Thermal Magnetic

Product Data

• UPC : 785901120773
• GTIN : 00785901120773
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.95
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper, AWG 12 to AWG 8, Aluminum
