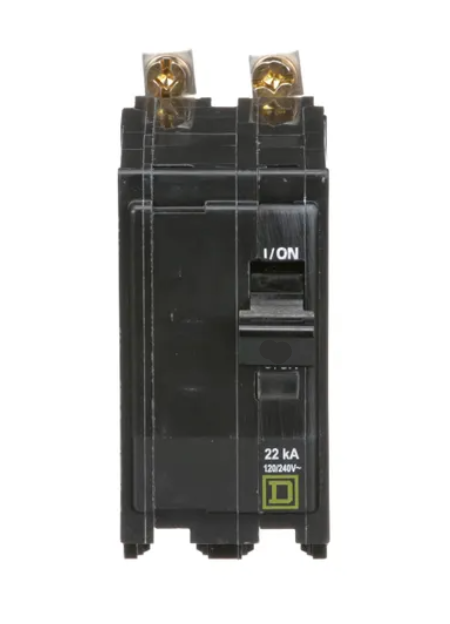

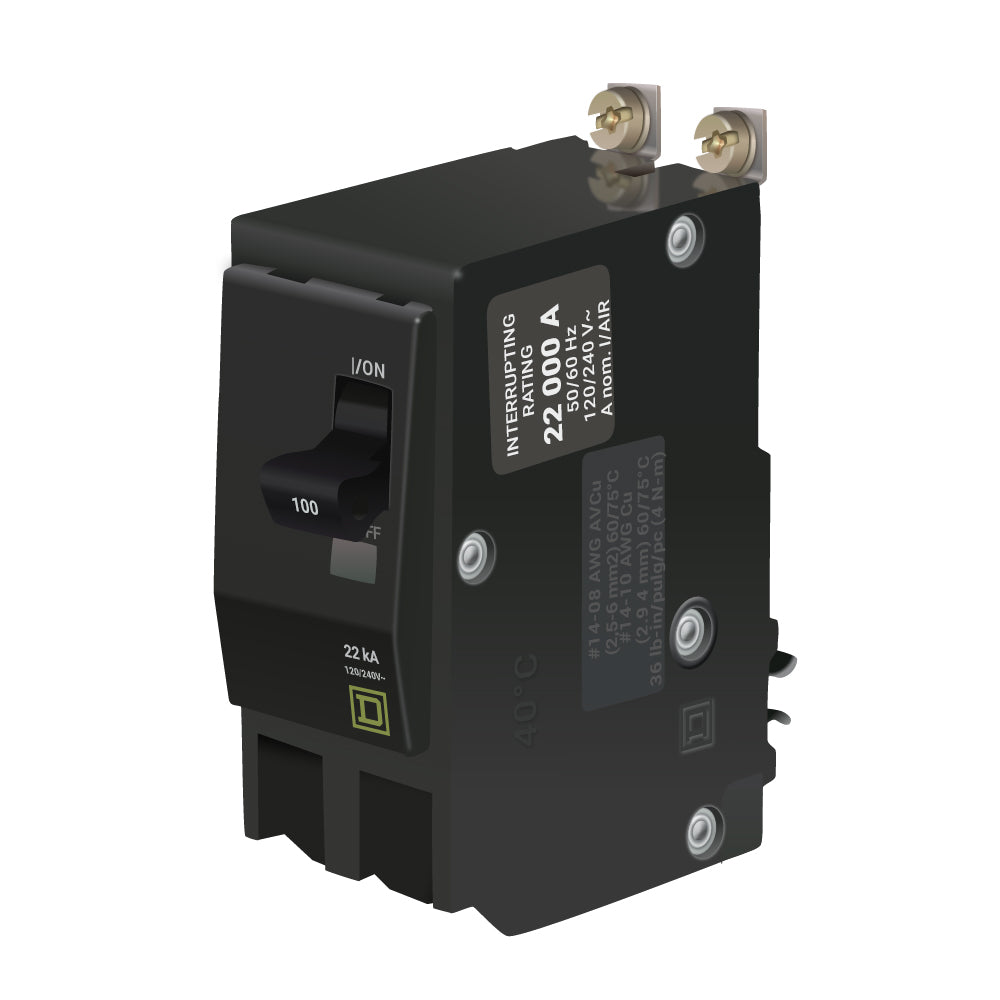

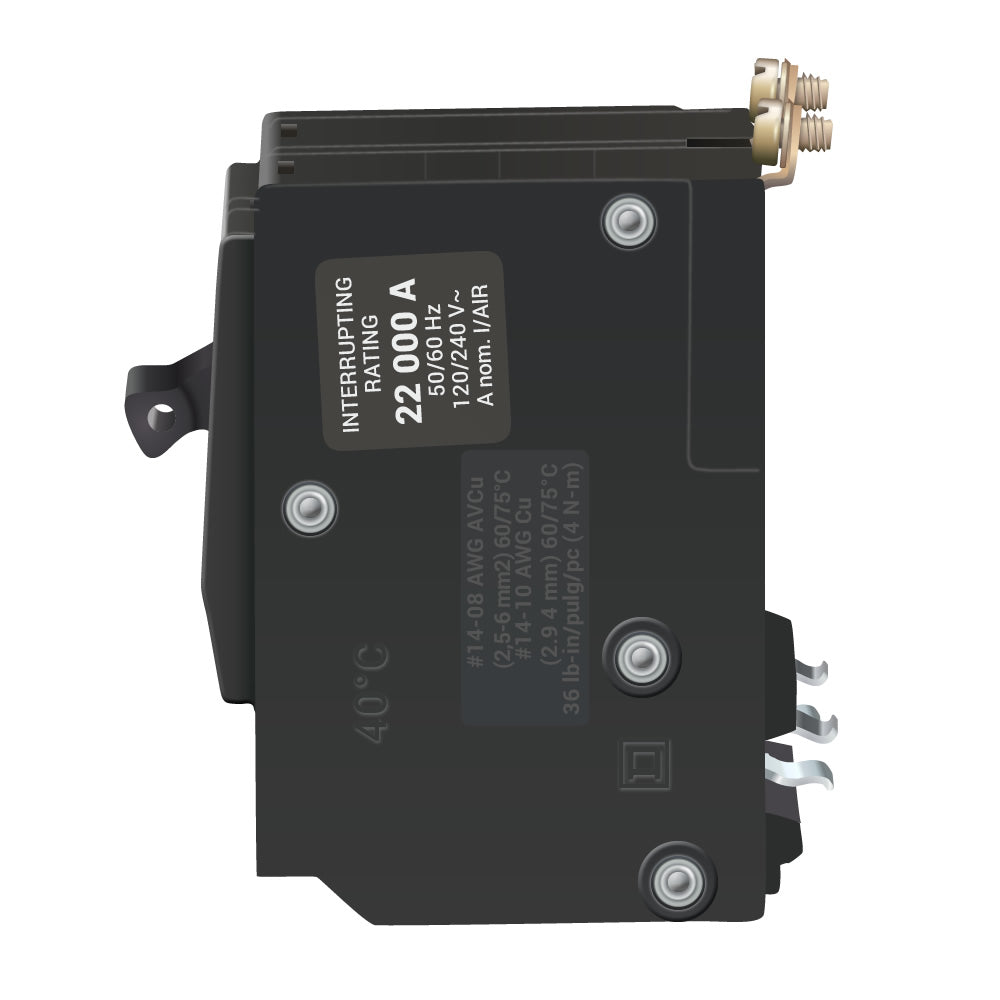

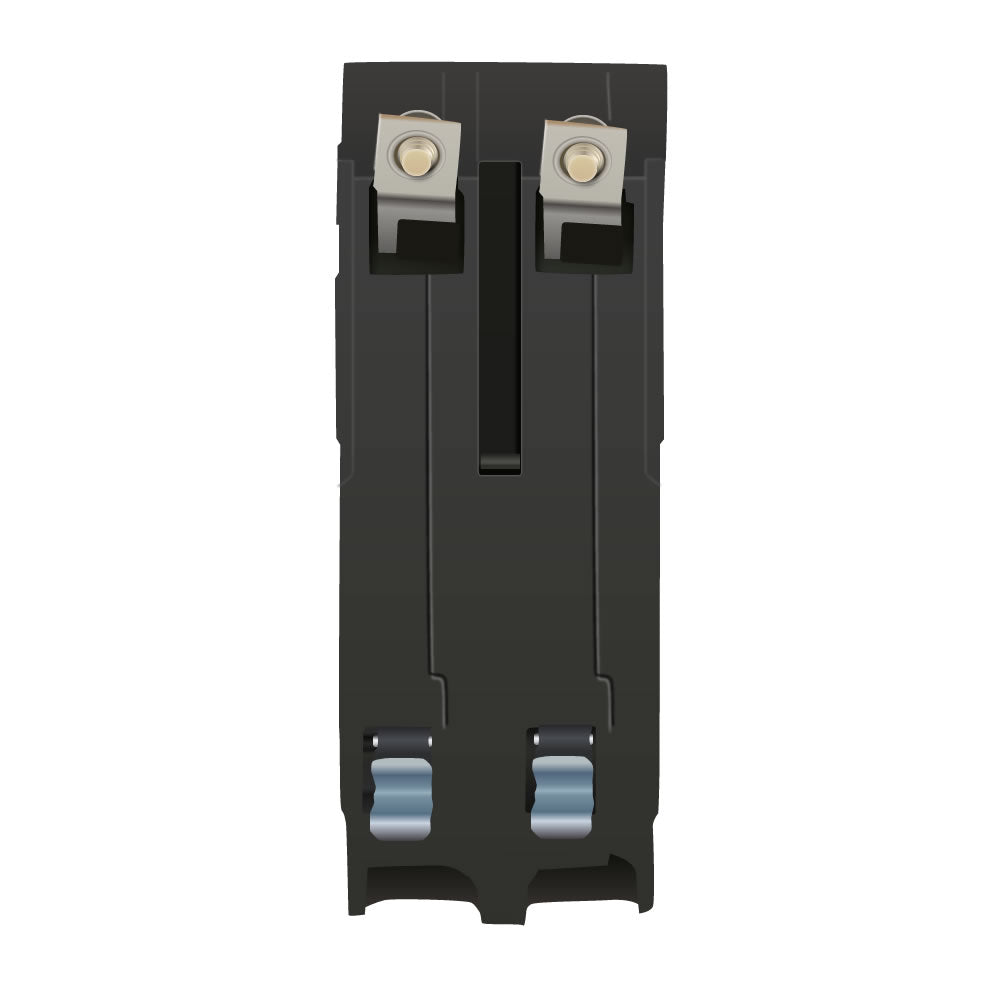

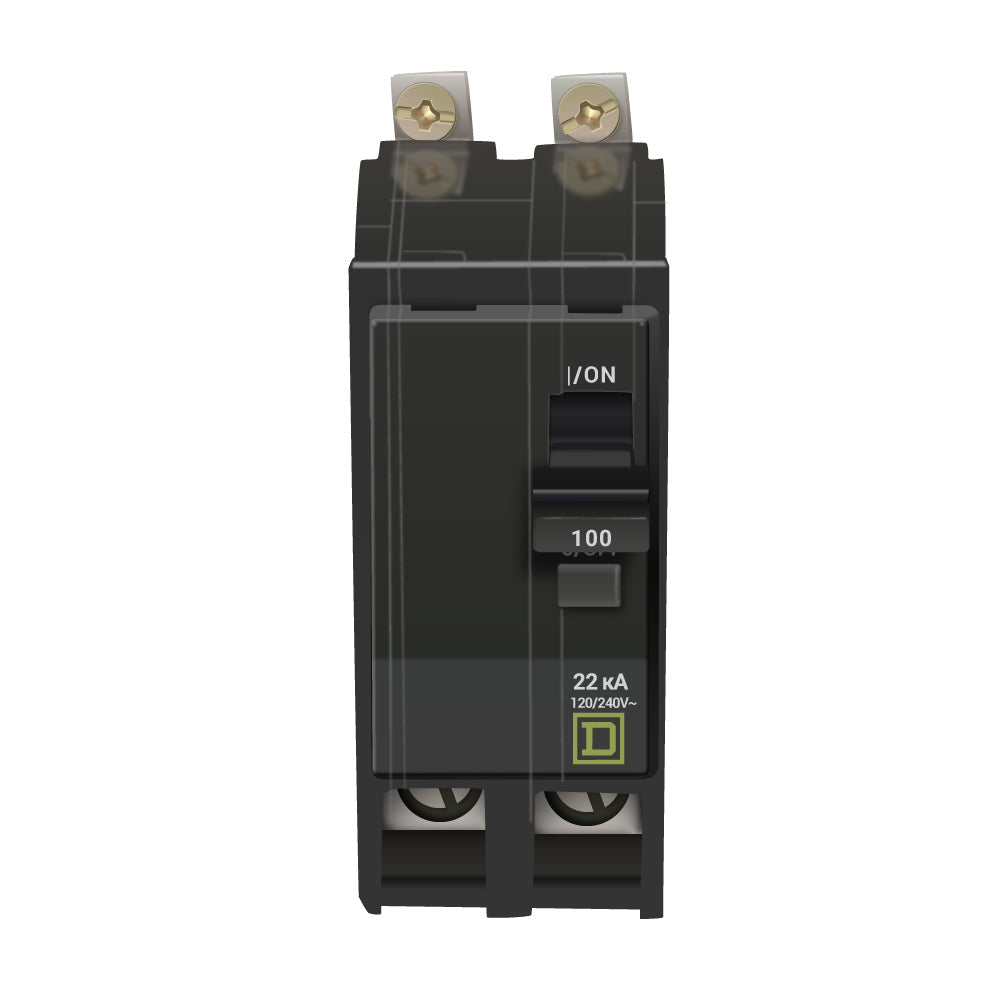

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Molded Case
- Series
- QOB Series
- Frame
- QOB
- Rated current
- 100
- Voltage
- 120/240VAC
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 22kA@240V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Terminals
- Pressure Plate
- Lugs
- Included
- Panel / equipment
- Square D NQOD Panelboards
- Standards
- CSA, UL Listed
- Country of origin
- Mexico
Show all specifications (10 more)
- Frame Size
- 100A/QO
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 8 AWG Max. Wire Size 2 AWG
- Breaker Type
- High Interrupting Capacity
- UPC
- 785901054757
- GTIN
- 00785901054757
- Dimensions
- 3.5 in (89 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight
- 0.72
- Certification
- UL Listed
- Wire Size
- AWG 4 to AWG 2/0, Copper or Aluminum
Product description & additional details
QOB2100VH
QOB2100VH is a Square D 2-pole, 100 amp, bolt-on miniature circuit breaker designed for reliable overcurrent protection in commercial and industrial applications.
This thermal magnetic circuit breaker features a 120/240VAC voltage rating, 22kA interrupting capacity, and is compatible with both copper and aluminum conductors. It is engineered for bolt-on mounting in NQ panelboards and includes a visible trip indicator for easy troubleshooting. The QOB2100VH is backed by major certifications for safety and performance.
-
Key Specifications
- Amperage: 100A
- Voltage: 120/240VAC
- Poles: 2
- Mounting Type: Bolt-on
- Interrupt Rating: 22kA at 120/240VAC
- Series/Frame: QOB
- Trip Unit: Thermal magnetic
- Certifications: CSA, UL listed
- Wire Size: 4 AWG to 300 kcmil (aluminum/copper)
- Ambient Rating: 104°F (40°C)
- Connection: Box lugs
- Dimensions: 3.5" H x 1.5" W x 2.91" L
