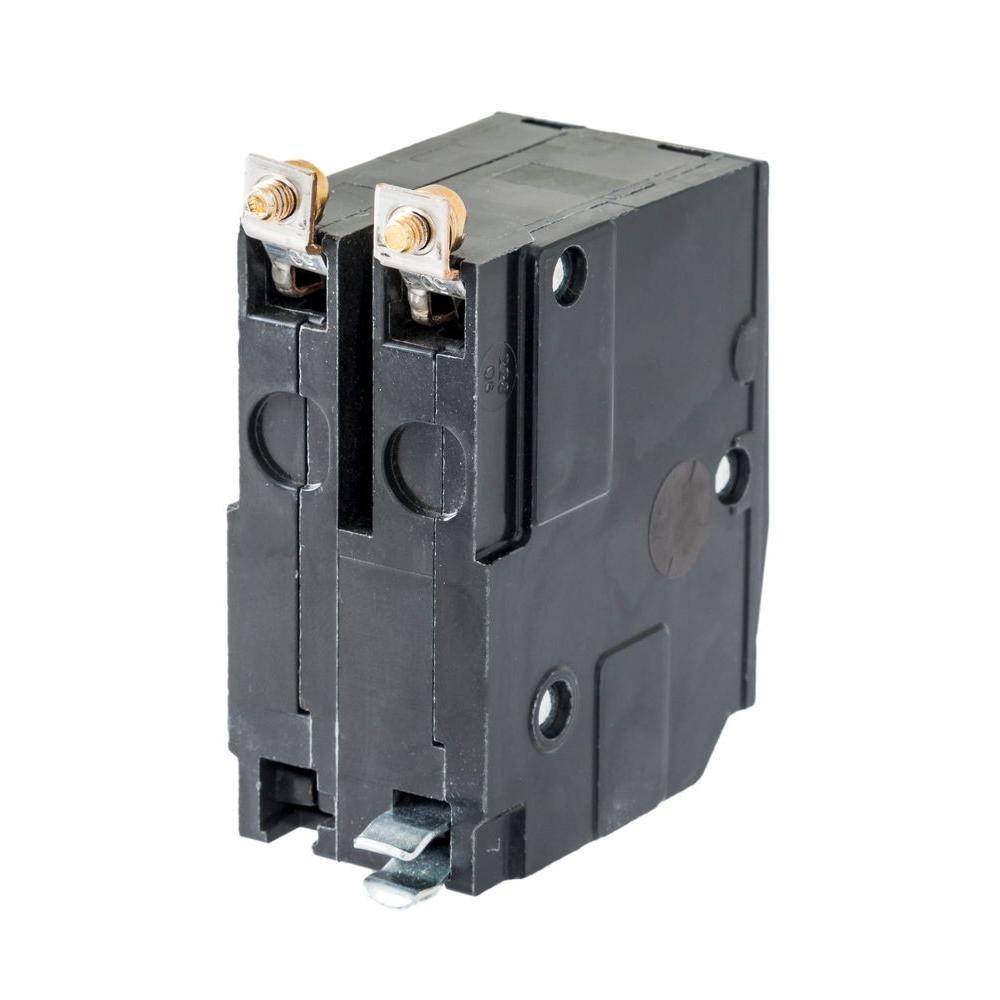

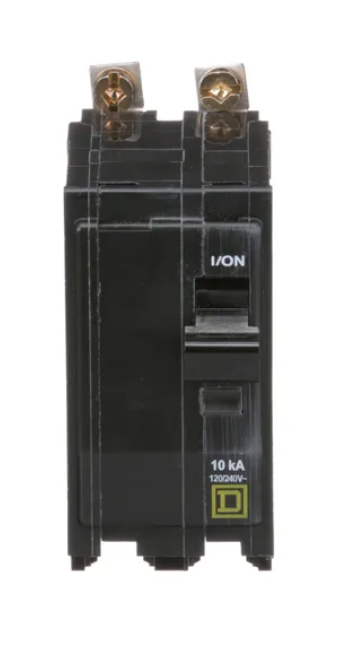

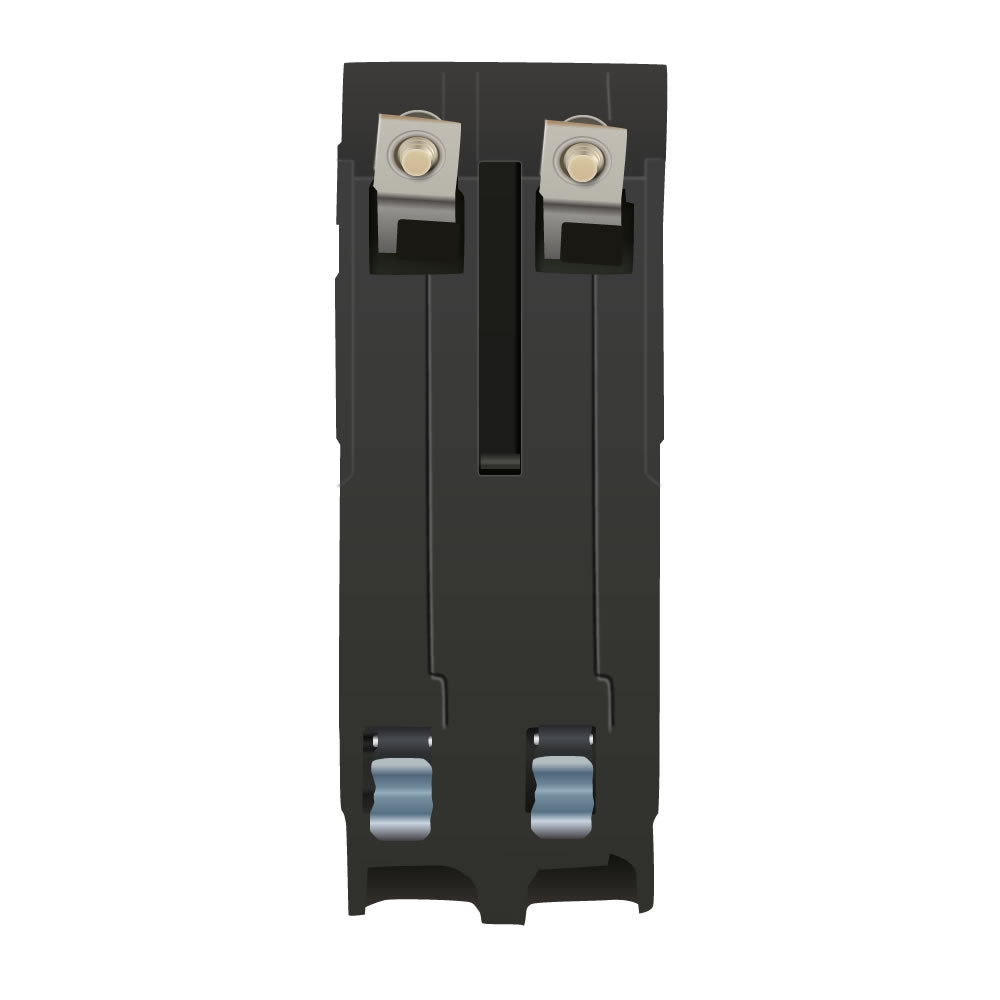

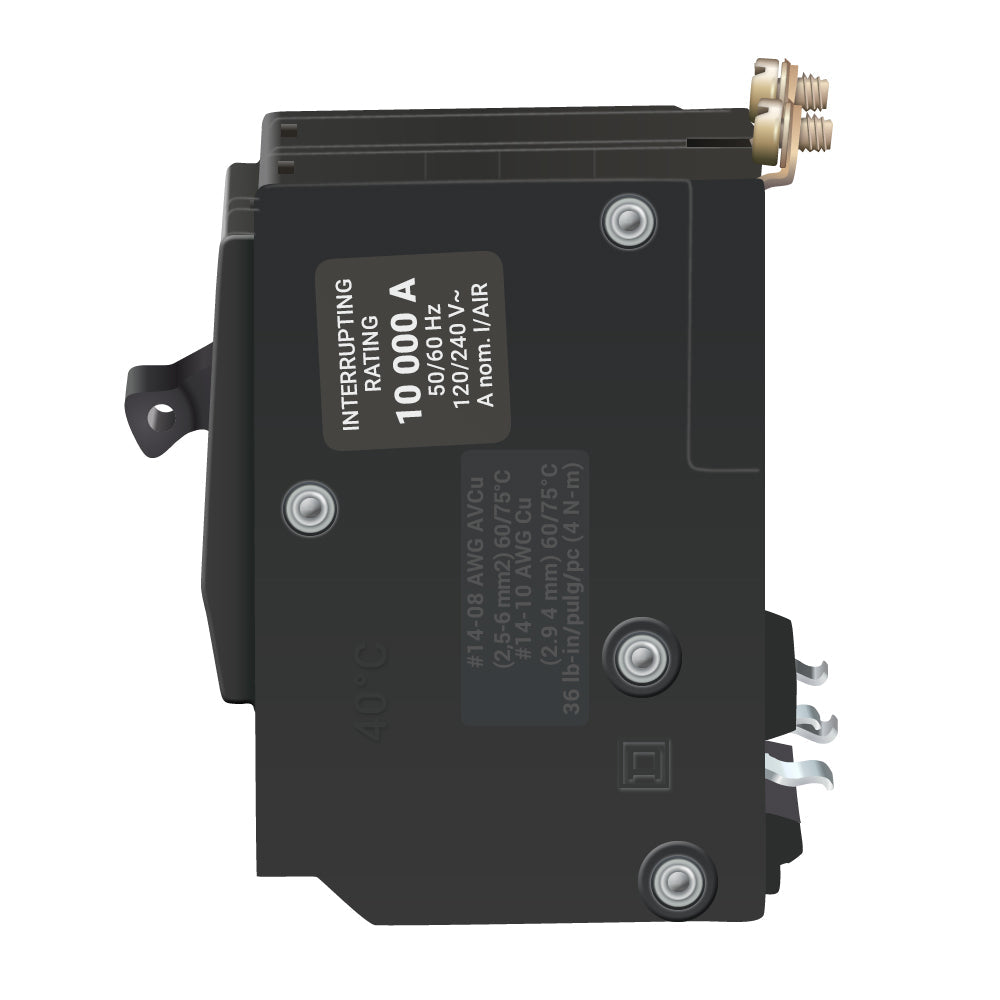

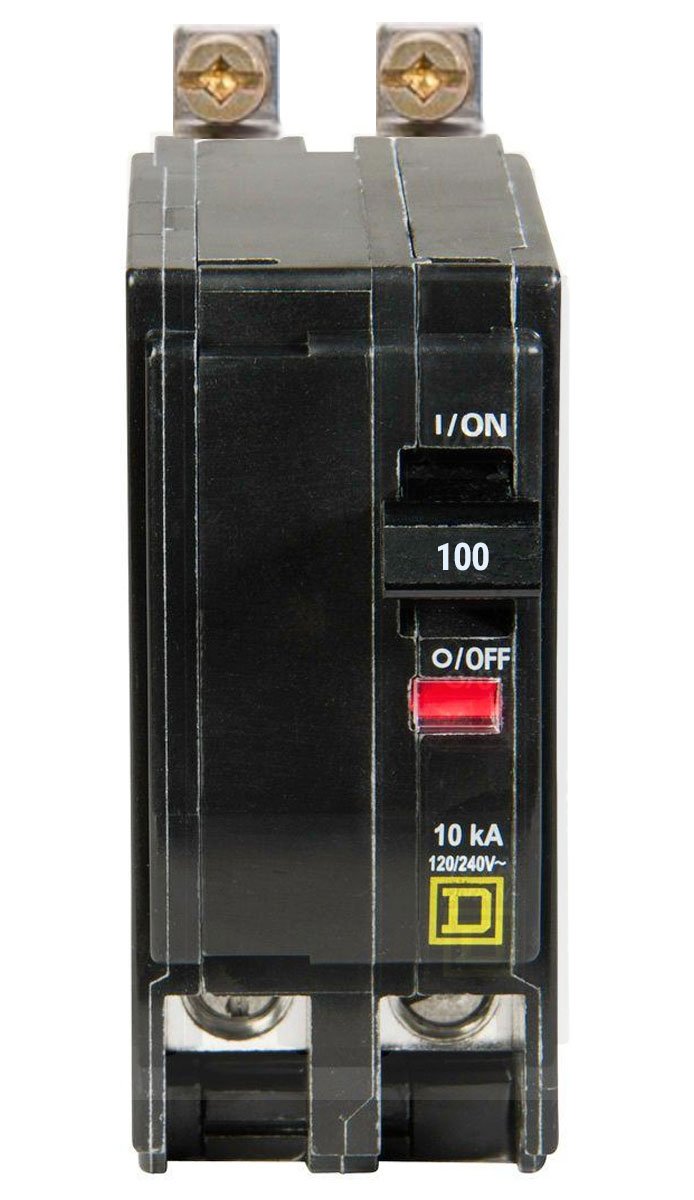

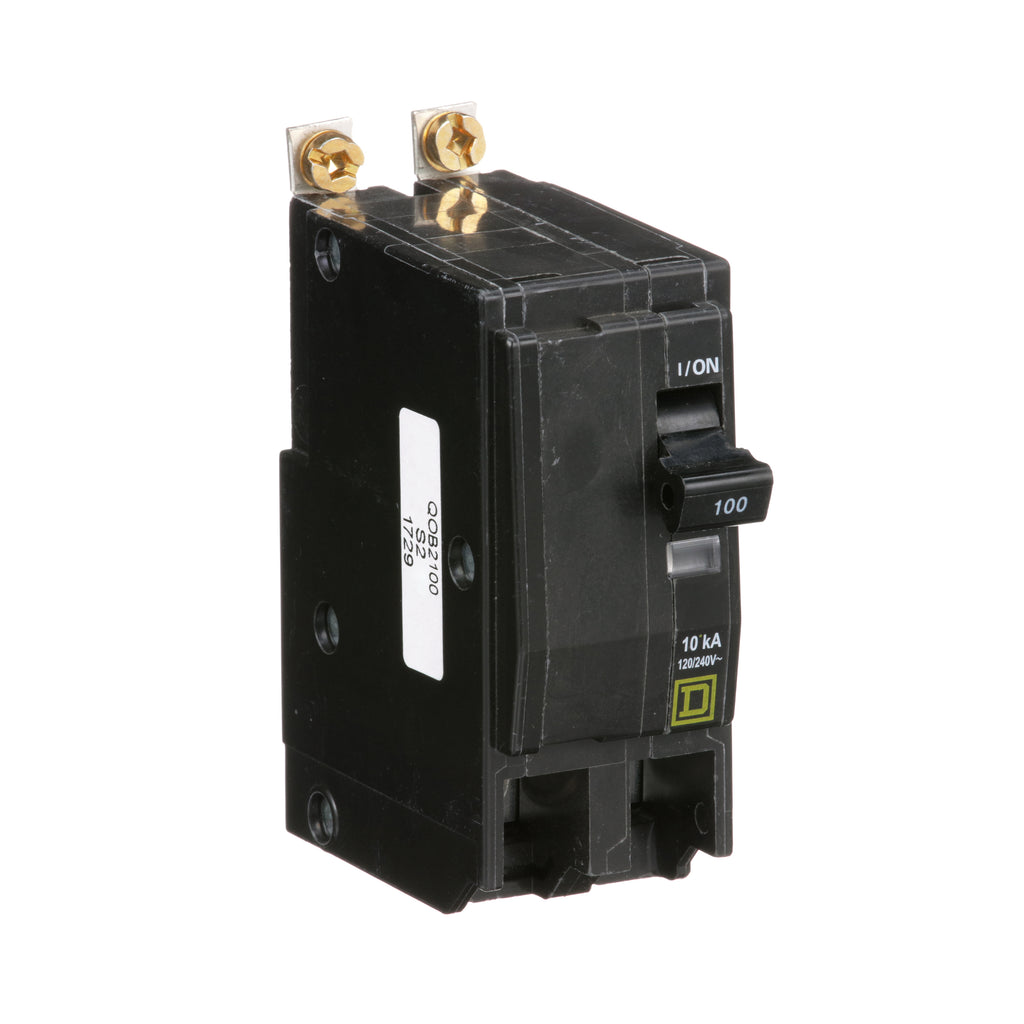

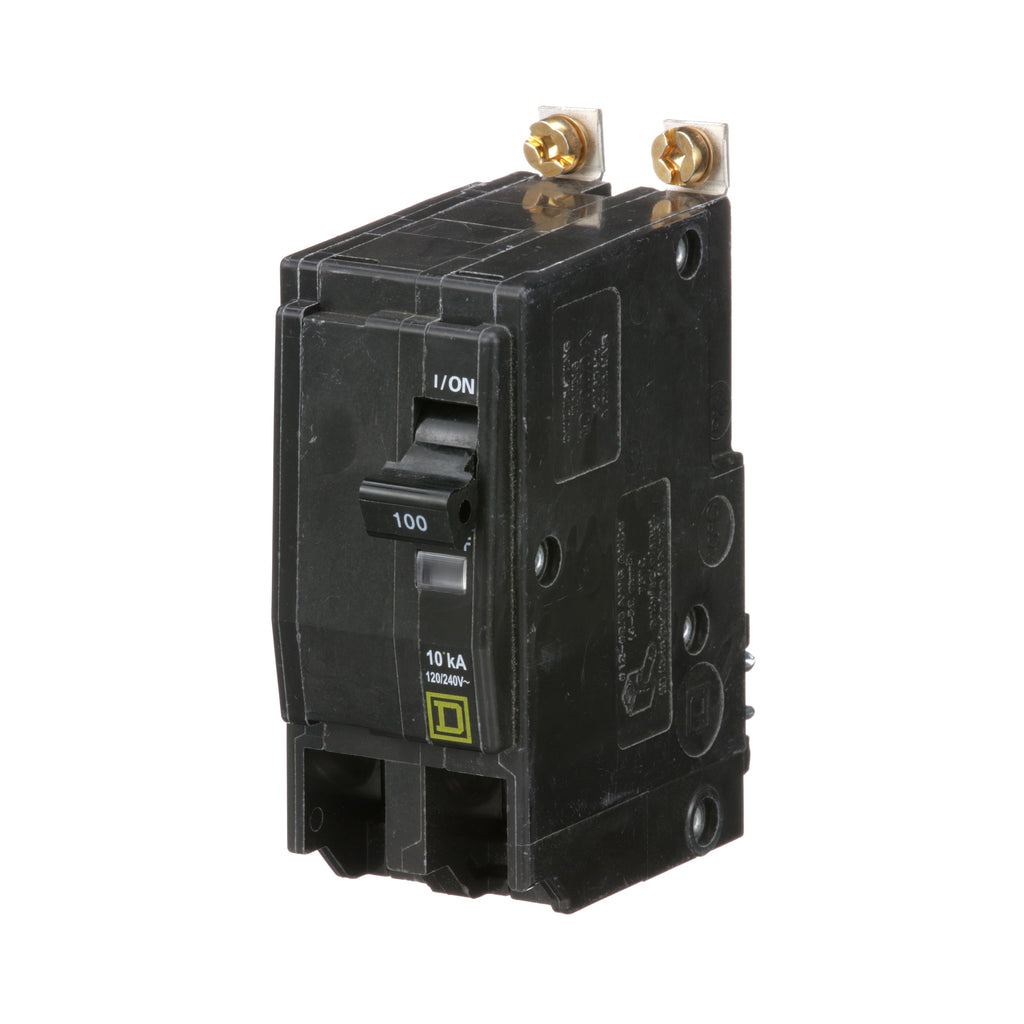

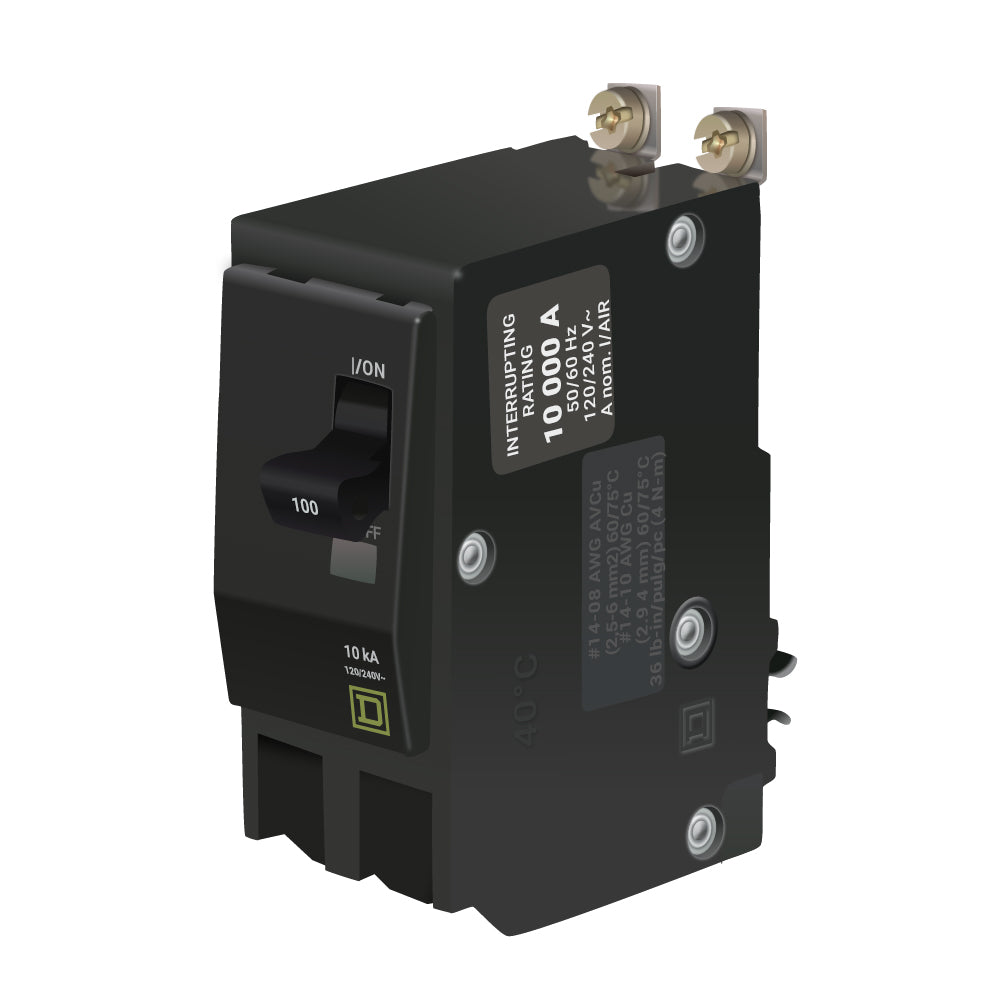

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Molded Case
- Series
- QOB Series
- Frame
- QOB
- Rated current
- 100
- Voltage
- 120/240VAC
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 10kA@120V
- Trip functions
- LI - Long-Time and Instantaneous
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Terminals
- Pressure Plate
- Lugs
- Included
- Panel / equipment
- Square D NQOD Panelboards
- Standards
- CSA, UL Listed
- Country of origin
- Mexico
Show all specifications (10 more)
- Frame Size
- 100A/QO
- Temp Rating
- 104°F
- MCM Size
- Min. Wire Size 8 AWG Max. Wire Size 2 AWG
- Breaker Type
- Standard
- UPC
- 785901019688
- GTIN
- 00785901019688
- Dimensions
- 3.5 in (89 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight
- 0.72
- Certification
- UL Listed
- Wire Size
- 4 to 2 AWG, Aluminum/Copper
Product description & additional details
QOB2100

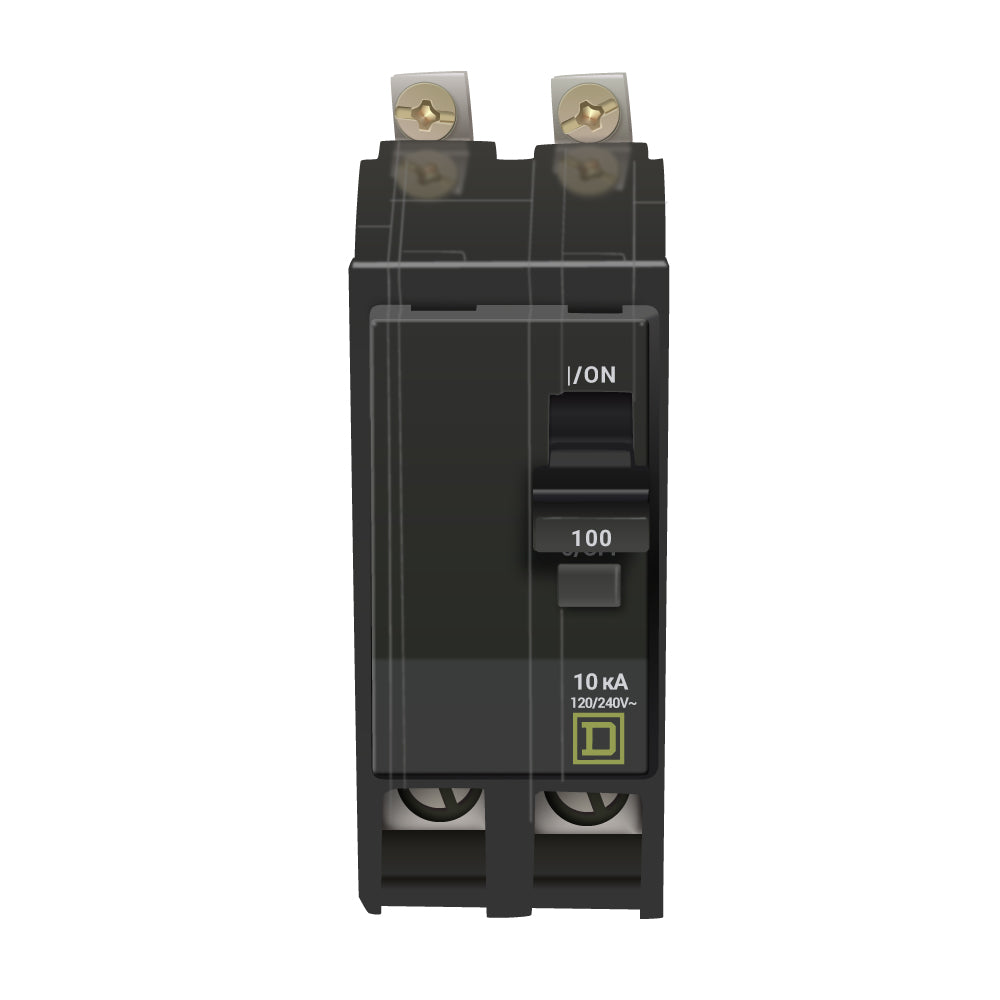

QOB2100 is a Square D 100 Amp, 2-pole, bolt-on miniature circuit breaker designed for reliable circuit protection in residential and commercial applications.
This thermal magnetic trip circuit breaker is part of the QOB series and features a 120/240VAC voltage rating, 10kA interrupting capacity, and HACR certification for use with heating, air conditioning, and refrigeration equipment. Its bolt-on mounting ensures a secure connection, and it accepts 4–2/0 AWG copper or aluminum conductors.
-
Key Specifications
- Amperage: 100A
- Voltage: 120/240VAC, 48VDC
- Poles: 2
- Mounting Type: Bolt-on
- Interrupt Rating: 10kA at 120/240VAC, 5kA at 48VDC
- Series/Frame: QOB
- Trip Unit: Thermal magnetic
- Certifications: HACR rated
- Wire Size: 4–2/0 AWG (copper or aluminum)
- Number of Panel Spaces: 2
- Ambient Rating: 104°F (40°C)
- Dimensions: 3.5" H x 1.5" W x 2.91" D
At Essential Parts, we offer fast shipping, lowest price
Specifications
- Part Number: QOB2100
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QOB Series
- Type : QOB
- Voltage : 120/240VAC
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Pressure Plate
- Frame Size : 100A/QO
- Temp Rating : 104°F
- MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 785901019688
- GTIN : 00785901019688
- Country of Origin : Mexico
- Dimensions : 3.5 in (89 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 0.72
- Panel Type : Square D NQOD Panelboards
- Standards : CSA, UL Listed
- Certification : UL Listed
- Wire Size : 4 to 2 AWG, Aluminum/Copper
Technical Documents
