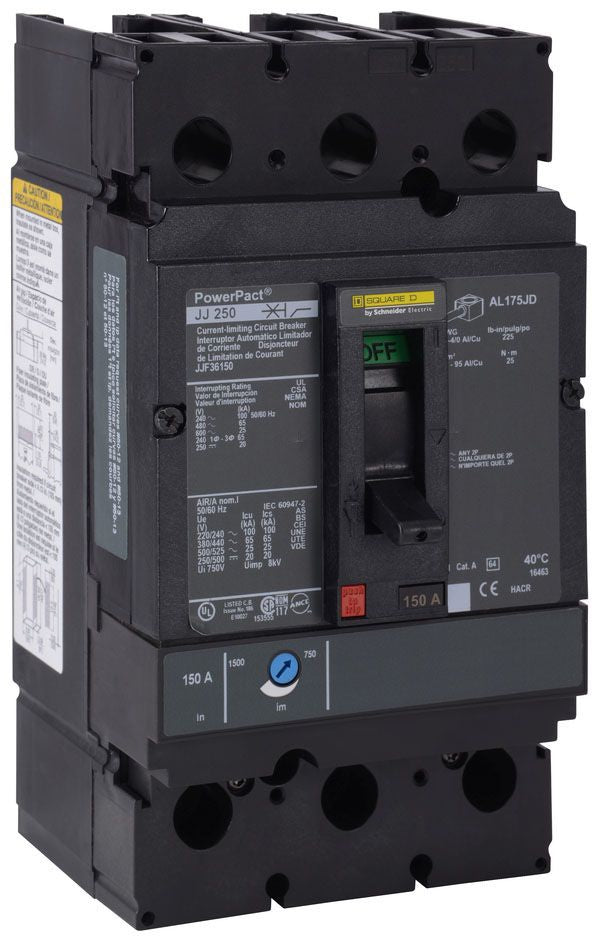

JJL36250C
JJL36250C is a Square D PowerPact molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This 3-pole breaker features a 250A current rating, 600VAC/250VDC voltage rating, and is built for panel mount applications. The breaker utilizes a thermal-magnetic trip unit for precise overcurrent protection and is suitable for feed-thru and reverse fed installations. It is UL 489 listed and features copper lugs for secure connections. The JJL36250C is part of the Square D PowerPact J frame series, offering a robust interrupt rating and compatibility with a wide range of electrical systems. Its design supports both line and load side lug terminals, making it versatile for various installation needs.
- Part Number: JJL36250C
- Manufacturer: Square D
- Series/Frame: PowerPact J Frame
- Amperage: 250A
- Voltage: 600VAC / 250VDC
- Poles: 3
- Mounting Type: Panel Mount
- Interrupt Rating: 100kAIC at 240VAC, 65kAIC at 480VAC, 20kAIC at 250VDC
- Tripping Mechanism: Thermal-Magnetic
- Terminal Type: Copper Lugs
- Feed-Thru: Yes
- Reverse Fed: Suitable
- Certifications: UL 489 Listed
Specifications
- Part Number: JJL36250C
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : JJL
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : J
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
- Circuit Breaker Mounting Style : Panel Mount
- Protection : Thermal Magnetic
Product Data
- UPC : 785901823919
- GTIN : 00785901823919
- Country of Origin : United States
- Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 4.5
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
