HLA36150

HLA36150

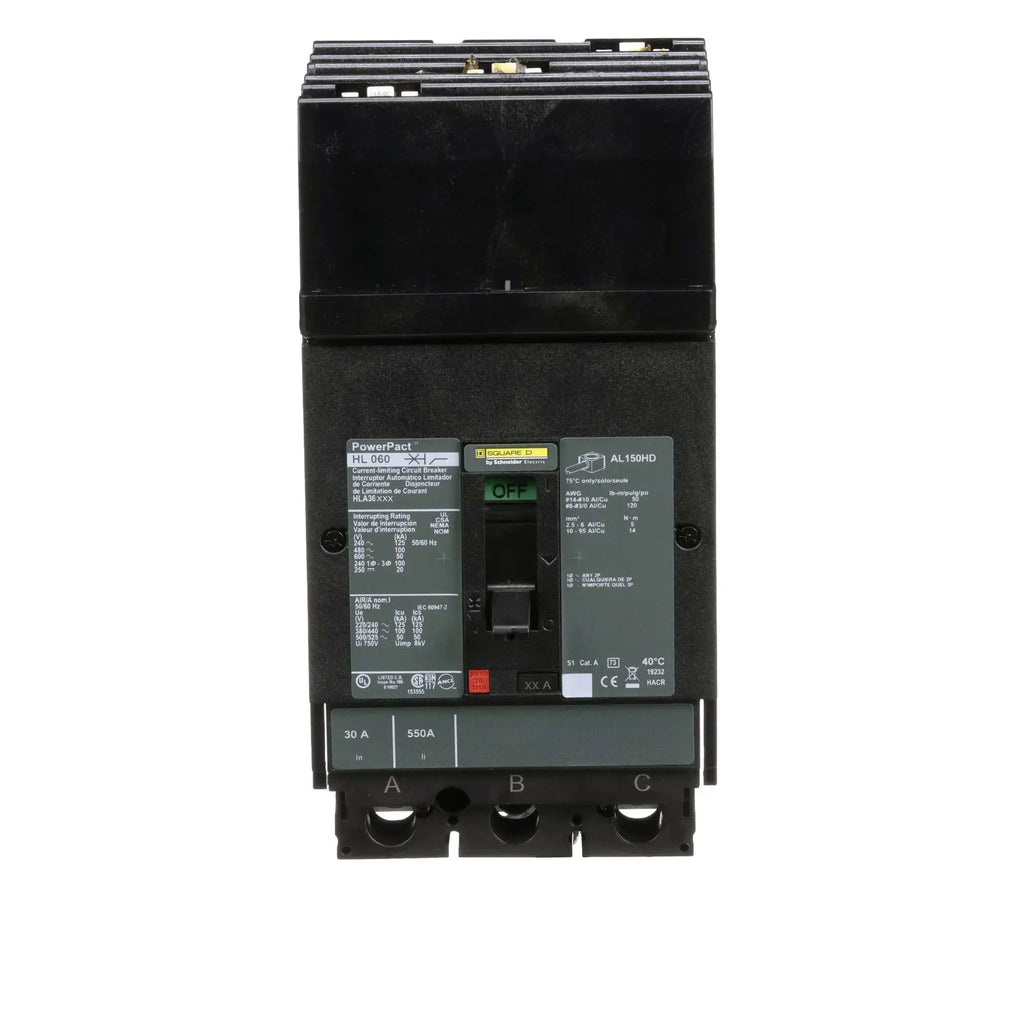

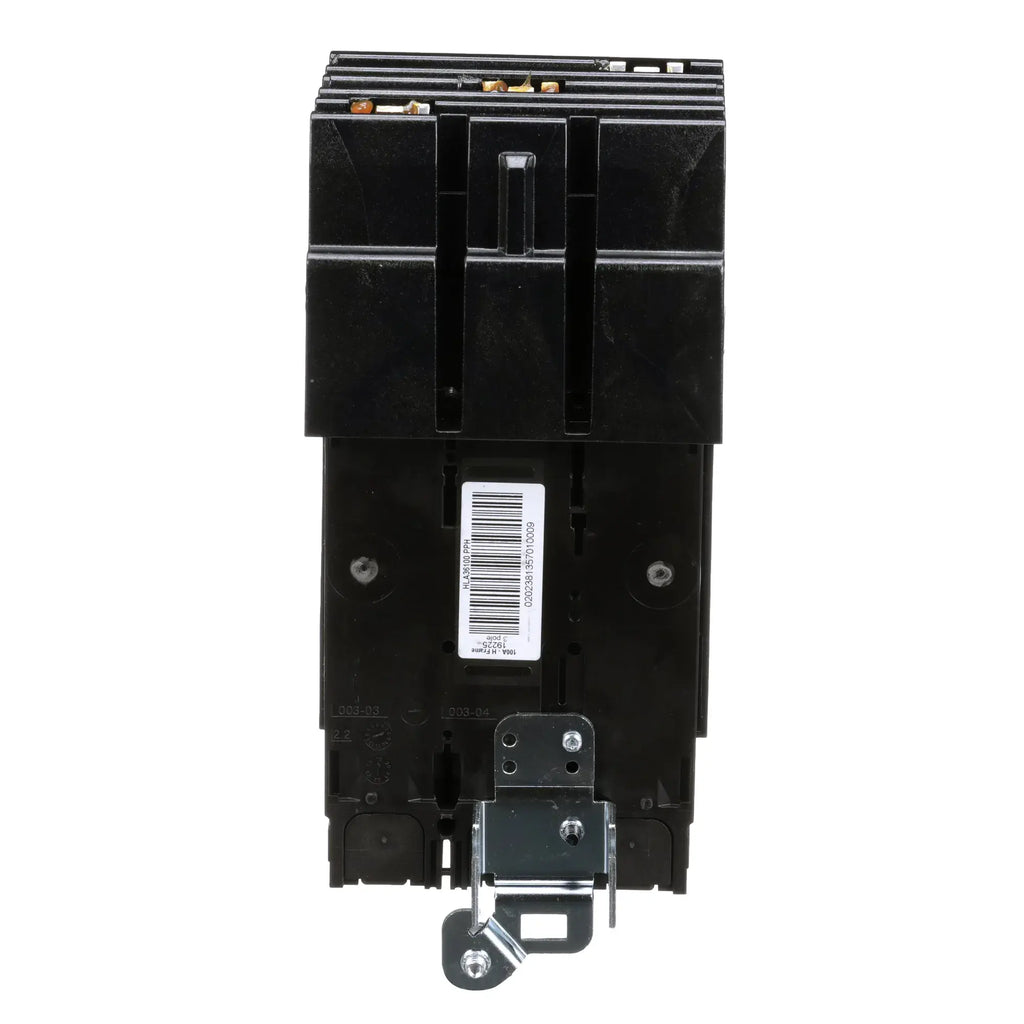

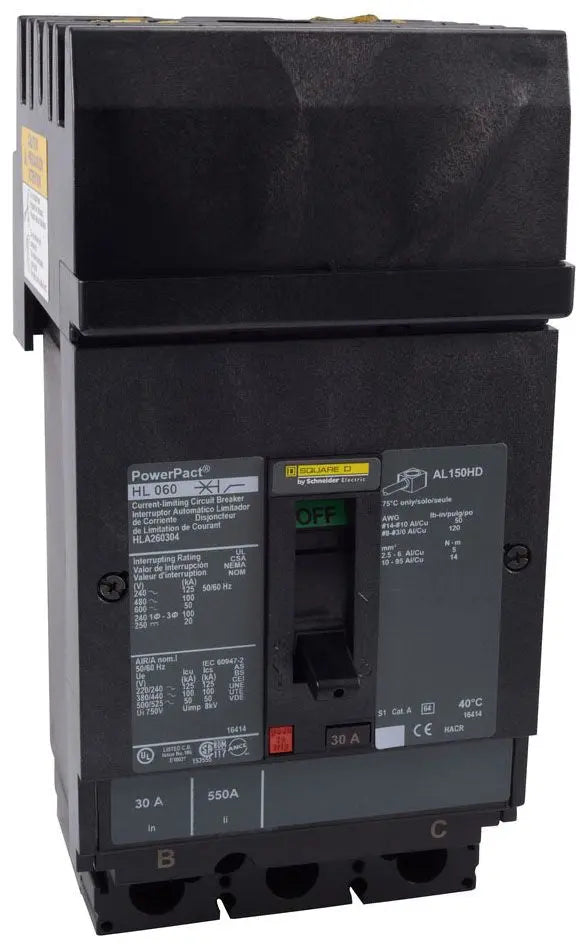

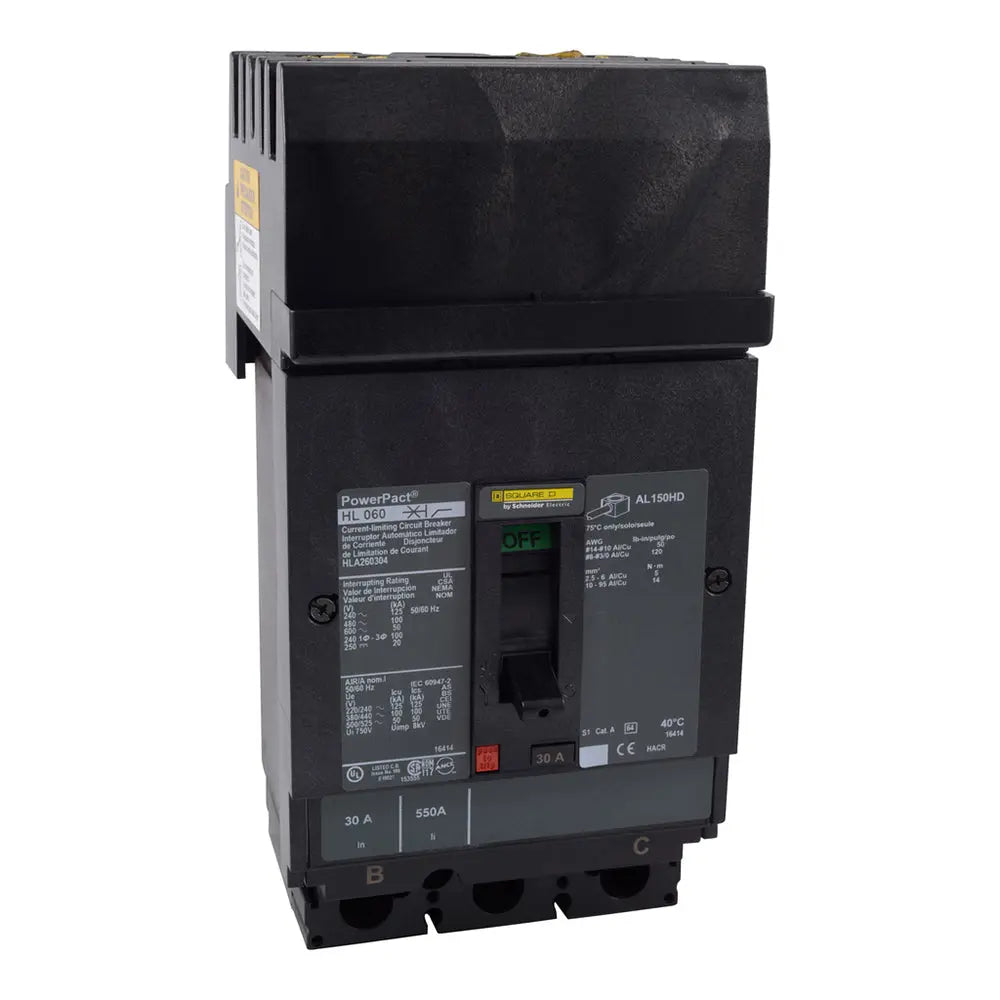

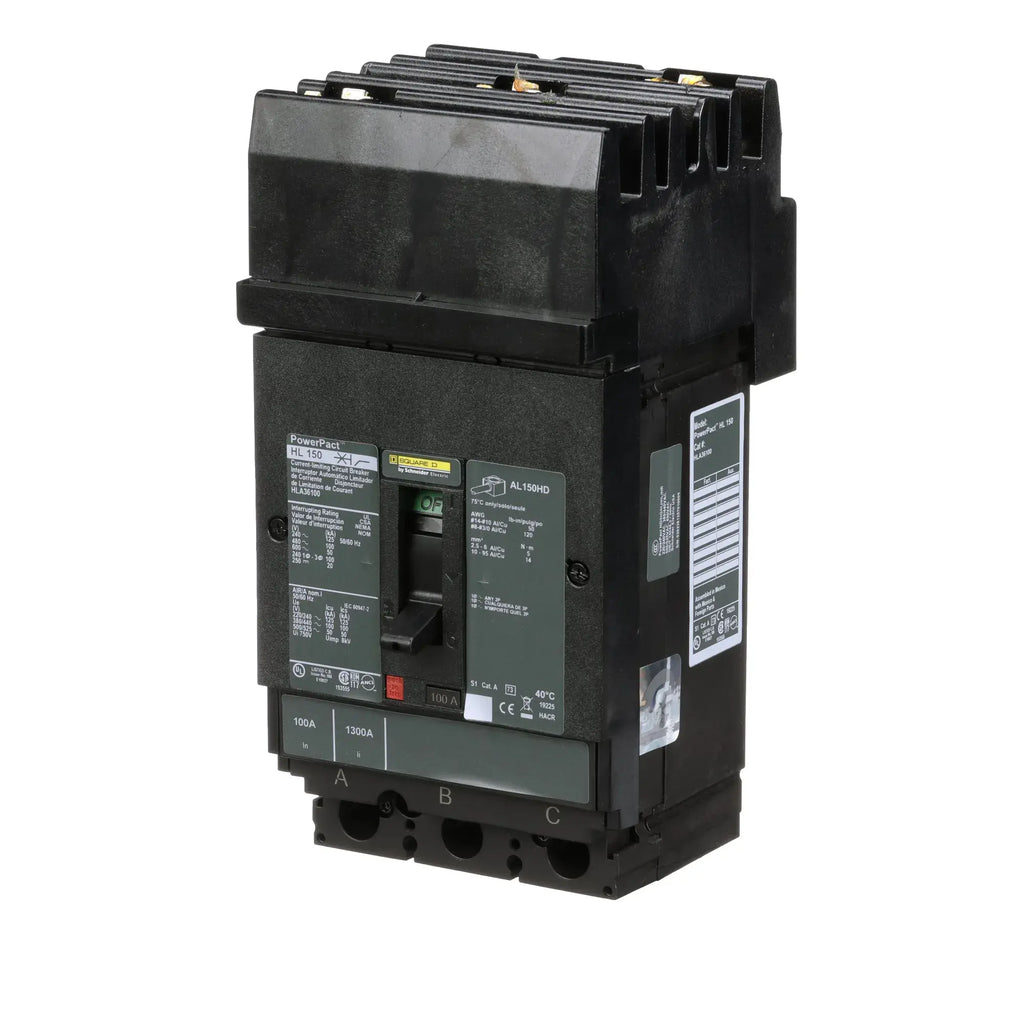

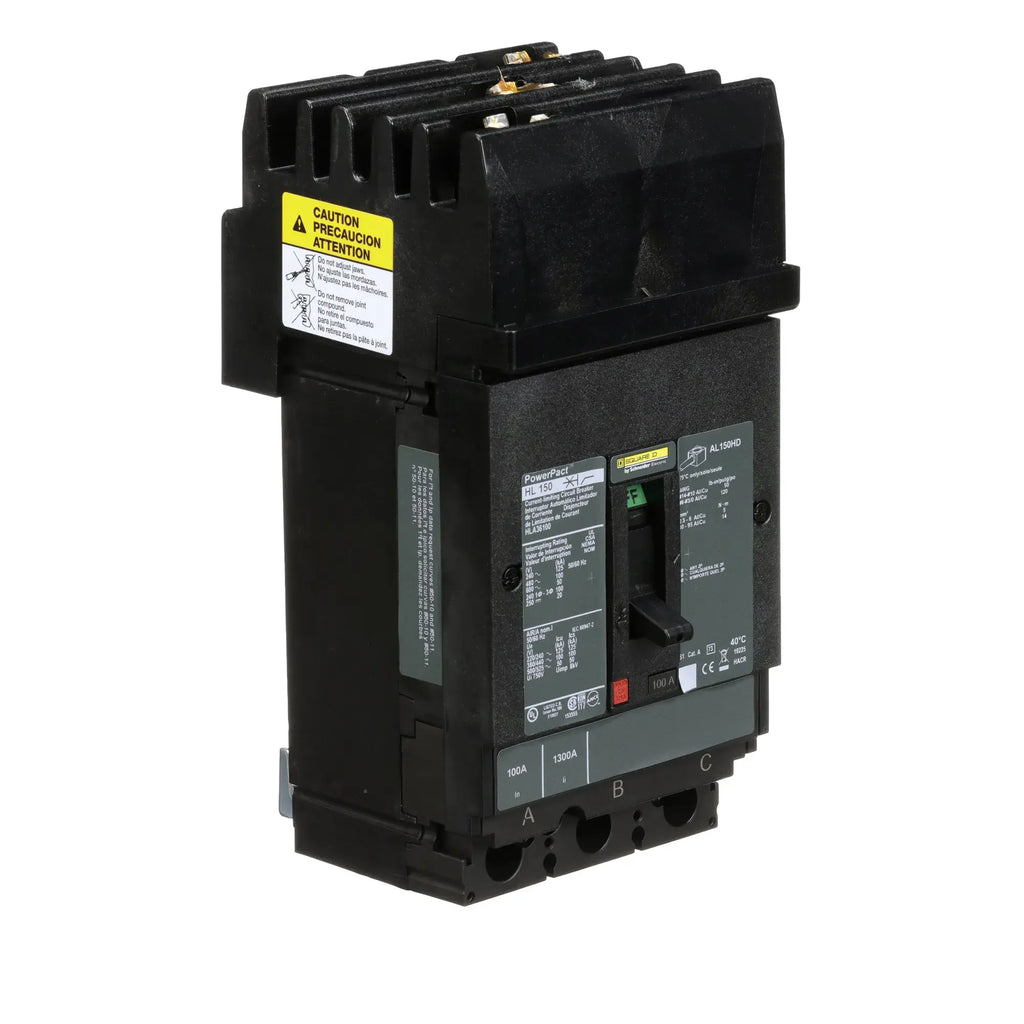

HLA36150 is a Square D Powerpact H molded case circuit breaker with a 150 amp, 3-pole, 600 VAC rating designed for I-Line plug-on mounting.This circuit breaker features thermal magnetic trip units with an 80% continuous current rating and a high interrupt rating of up to 125 kA at 240 VAC and 50 kA at 600 VAC. It is UL 489, CSA, and CE certified, suitable for use in panelboards and switchboards requiring reliable overload and short circuit protection. The breaker supports wire sizes from 14 to 3/0 AWG aluminum or copper and is designed for 50/60 Hz operation.

• Amperage: 150 A
• Voltage Rating: 600 VAC, 250 VDC, 500 VDC
• Poles: 3
• Interrupt Rating: 125 kA at 240 VAC, 100 kA at 480 VAC, 50 kA at 600 VAC
• Frame Type: Powerpact H (L Frame)
• Trip Type: Thermal Magnetic
• Mounting Type: I-Line Plug-On
• Continuous Current Rating: 80%
• Wire Size Range: 14 to 3/0 AWG Al/Cu
• Certifications: UL 489, CSA, CE
• Phase: 3 (ABC)
• Operating Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLA36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLA
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28°F to 158°F (-2°C to 70°C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901422334
• GTIN : 00785901422334
• Country of Origin : United States

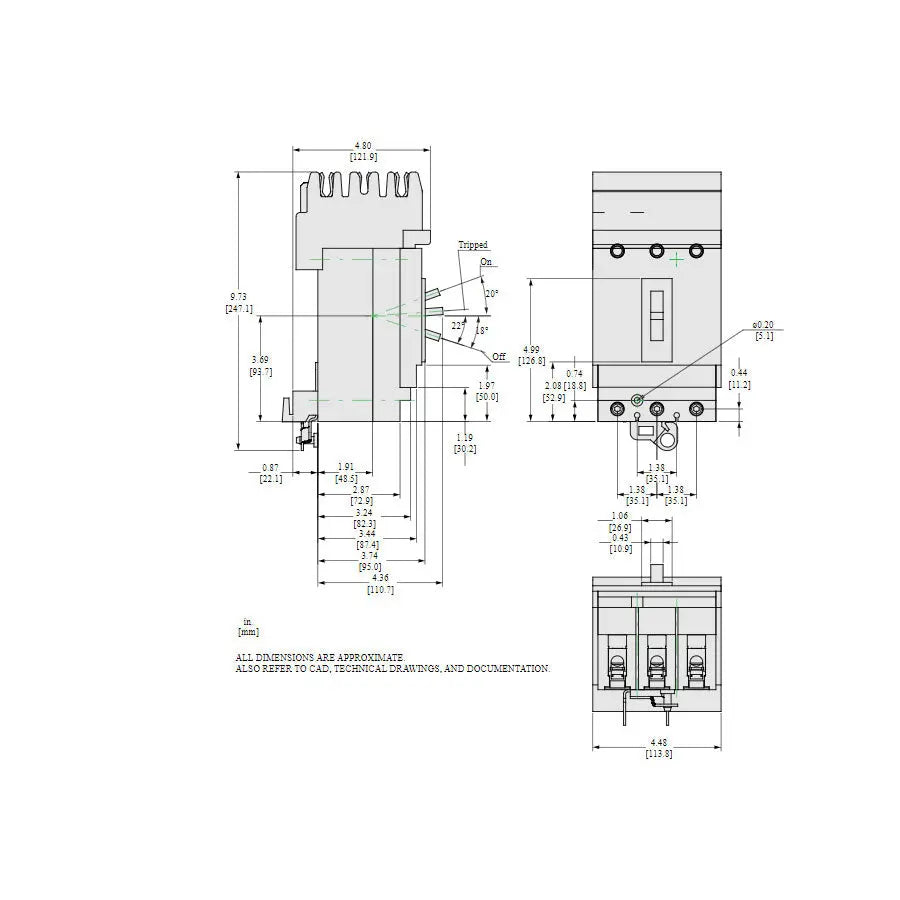

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.842
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
