HLA36015

HLA36015

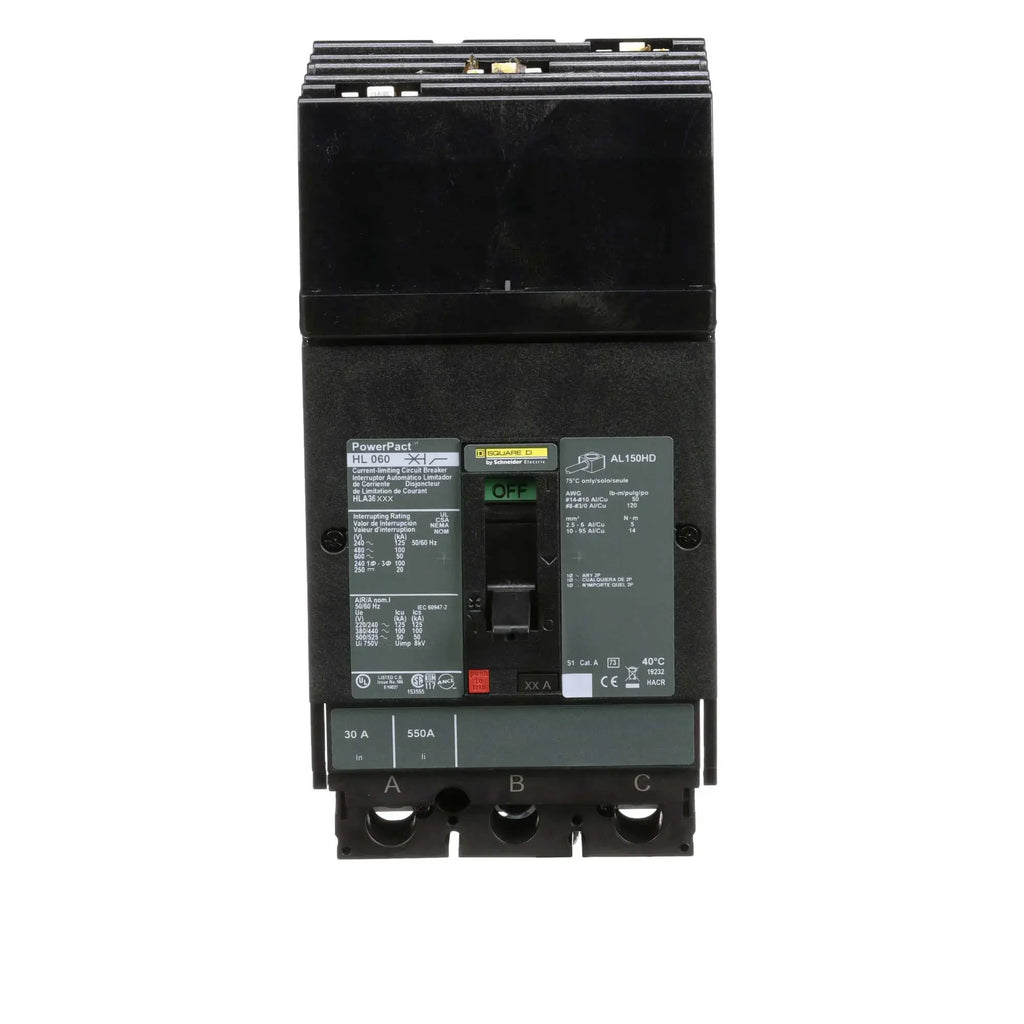

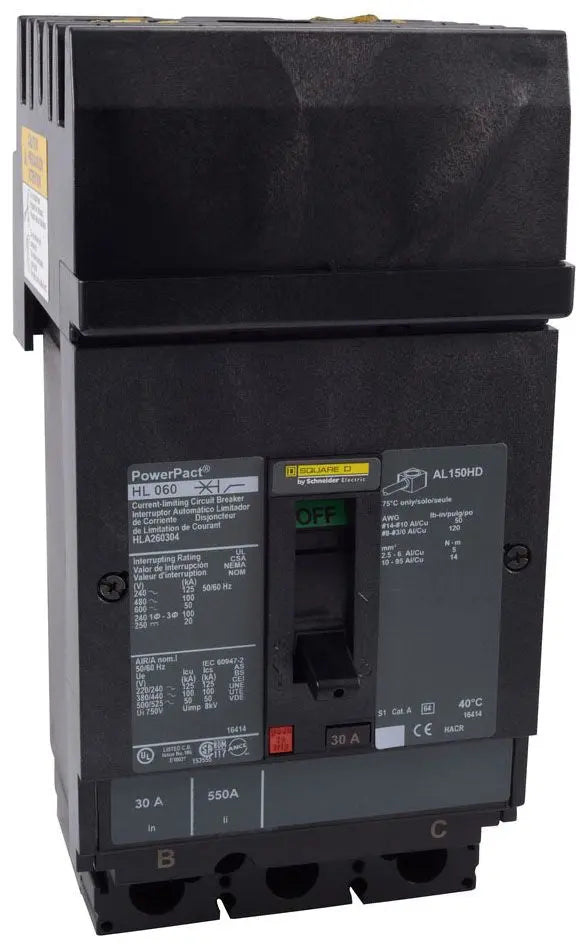

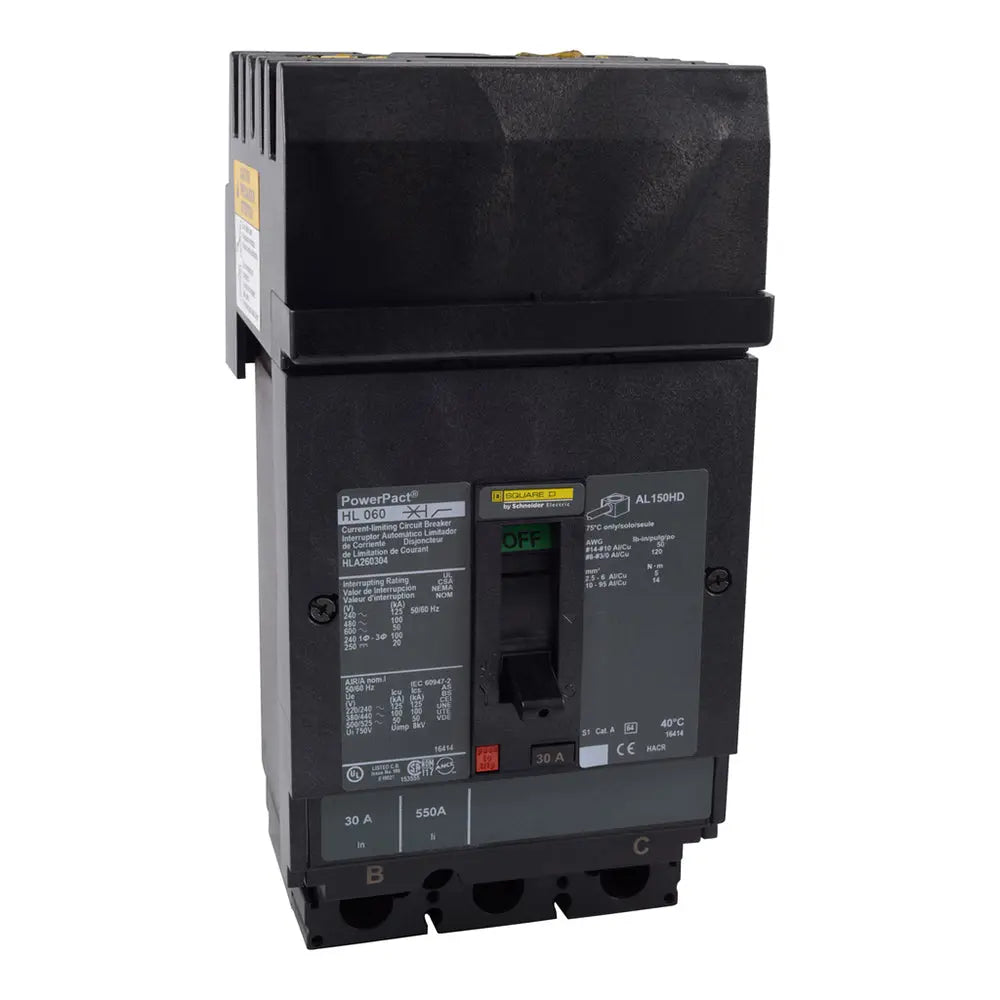

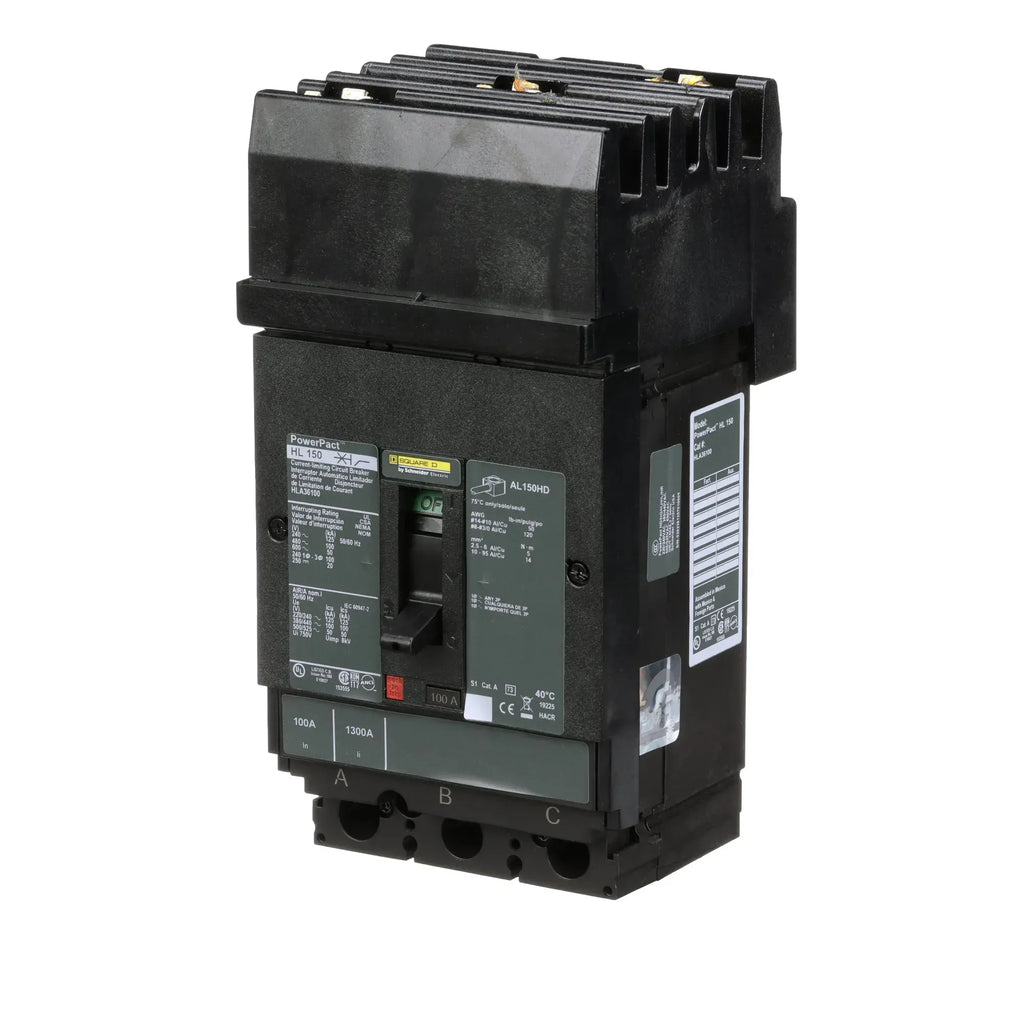

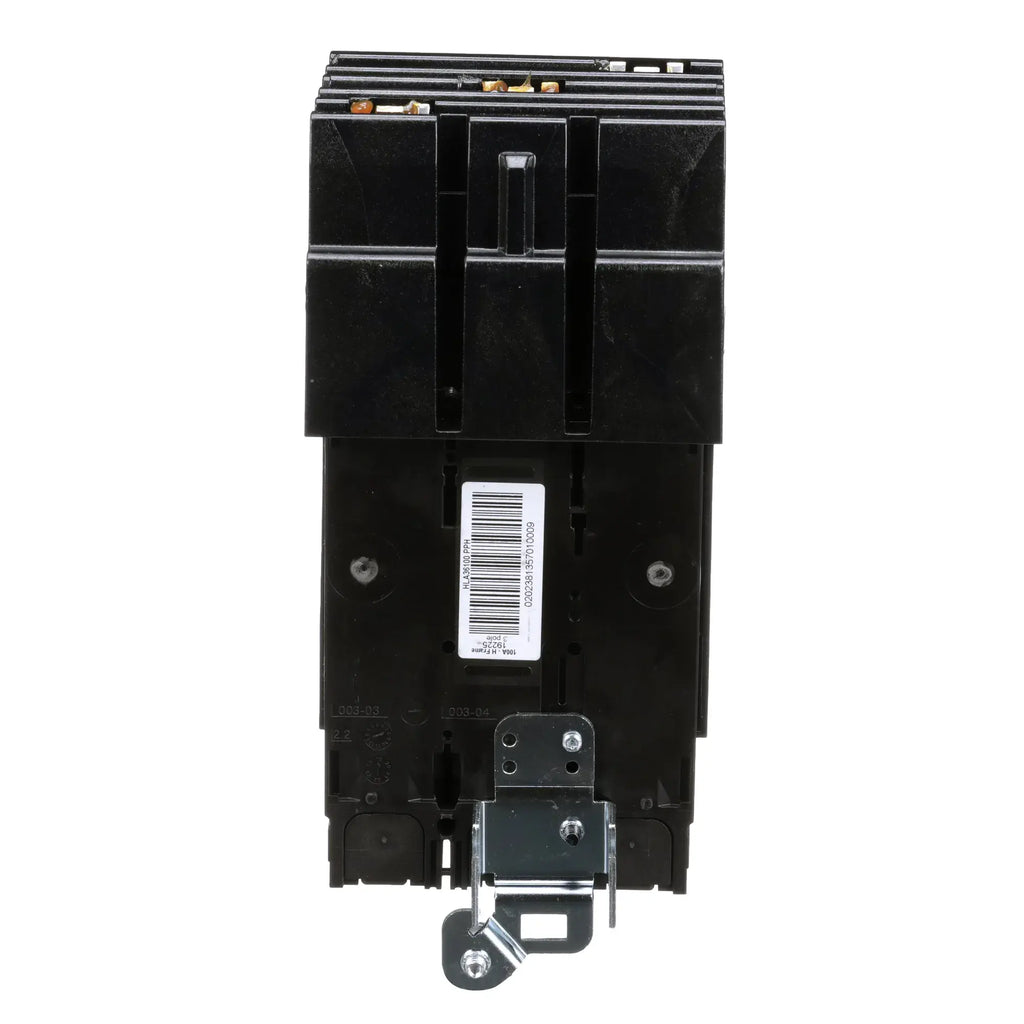

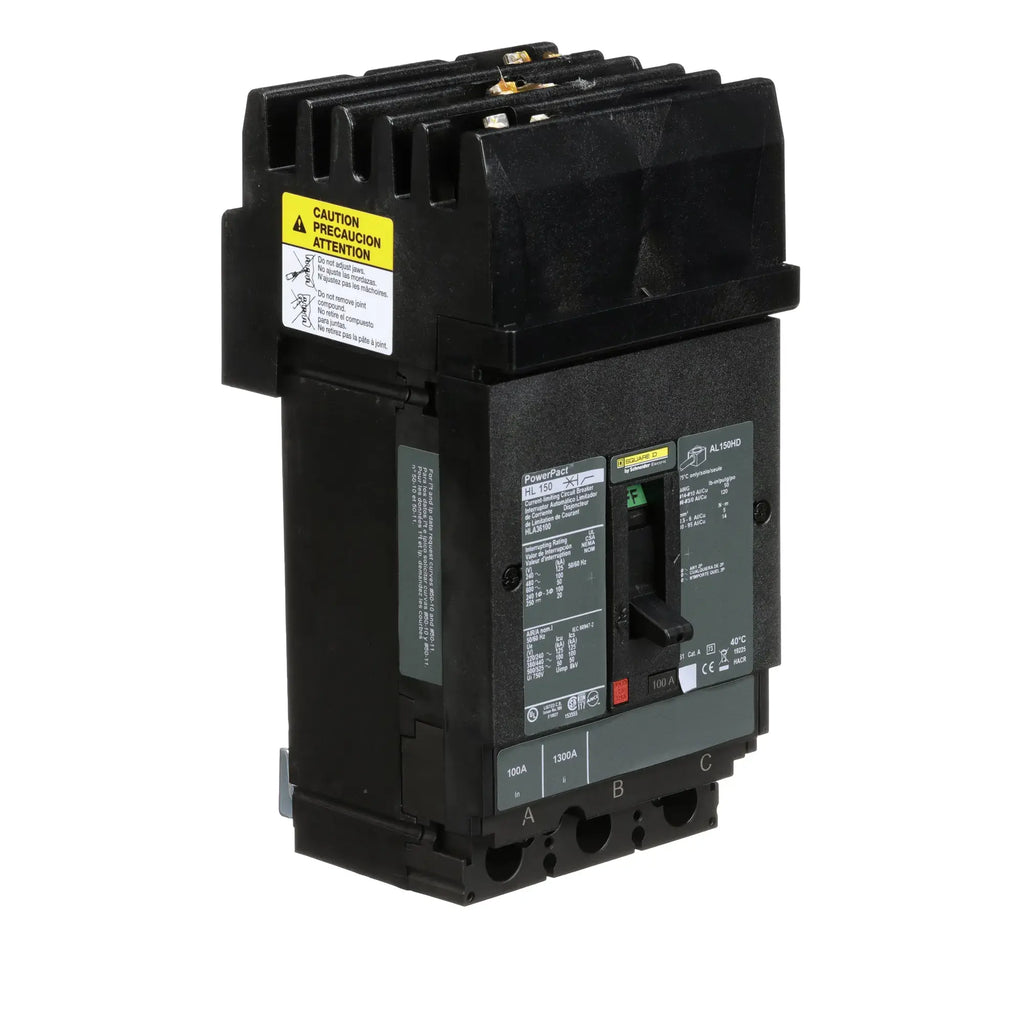

HLA36015 is a 15 Amp, 3-pole, 600 Volt I-Line plug-in molded case circuit breaker by Square D designed for reliable thermal magnetic protection.This circuit breaker features a 100kA interrupt rating at 480V, L frame, and thermal magnetic trip unit technology. It supports 50/60 Hz frequency, is suitable for 14 to 3/0 AWG aluminum or copper wiring, and mounts via plug-on installation in I-Line panelboards. The breaker is UL, CSA, and CE certified and rated for 40°C ambient temperature.

Key Specifications
• Amperage: 15 A
• Voltage Rating: 600 VAC / 250-500 VDC
• Poles: 3
• Interrupt Rating: 100kA @ 480V
• Frame Type: L Frame
• Trip Unit: Thermal Magnetic
• Mounting Type: I-Line Plug-On
• Wire Size: 14 to 3/0 AWG Al/Cu
• Frequency: 50/60 Hz
• Enclosure Type: NEMA AB1
• Certifications: UL, CSA, CE
• Operating Temperature: 40°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HLA36015
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLA
• Voltage : 600
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13°F to 158°F (-25°C to 70°C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC



Product Data

• UPC : 785901700647
• GTIN : 00785901700647
• Country of Origin : Mexico

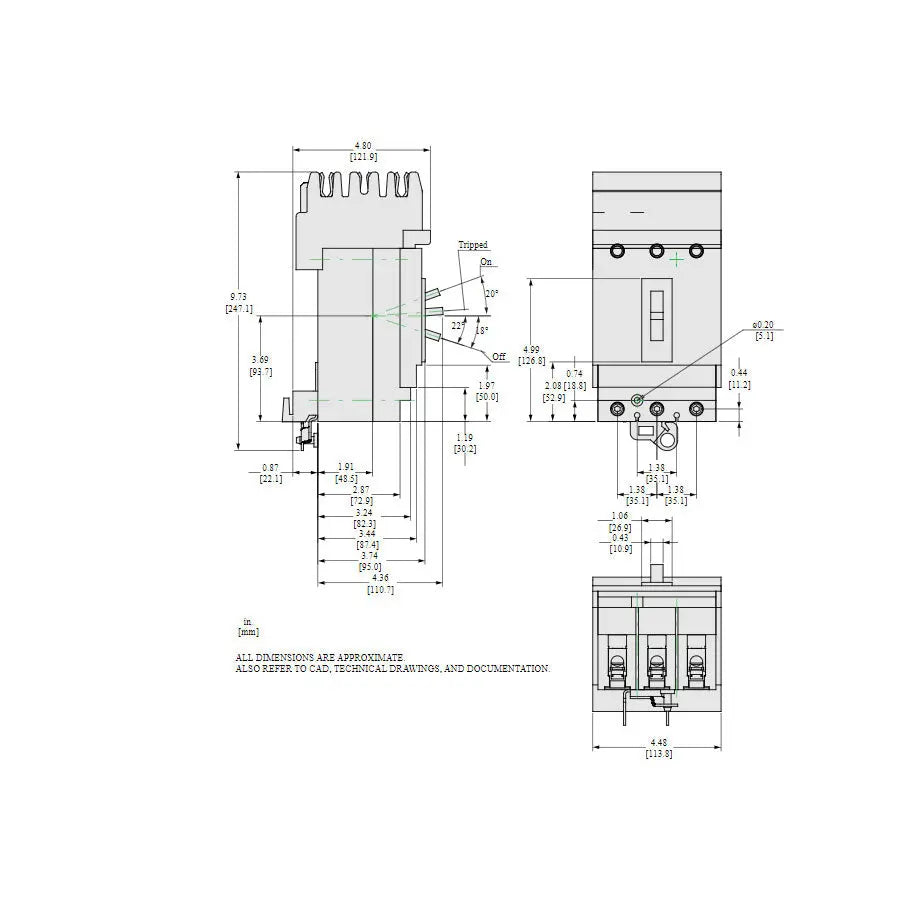

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.351
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
