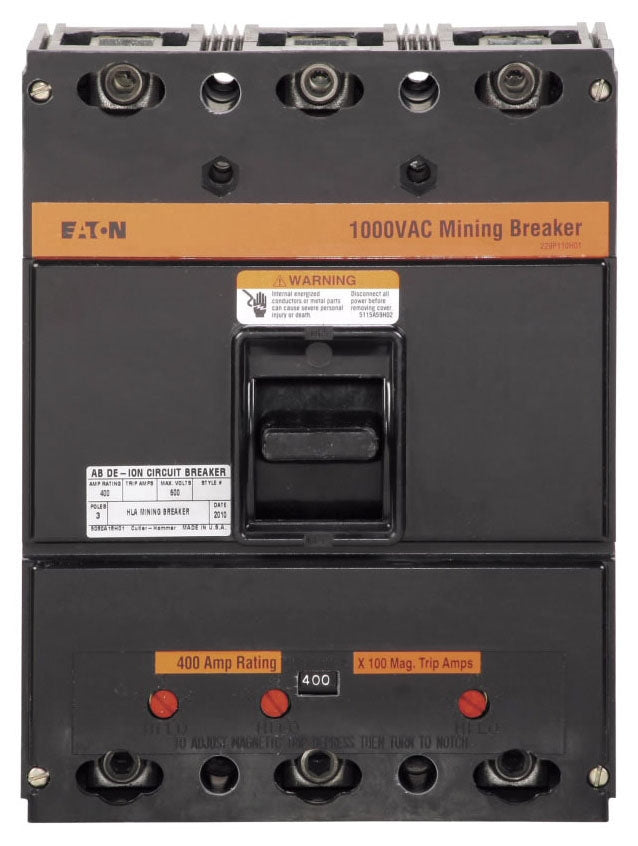

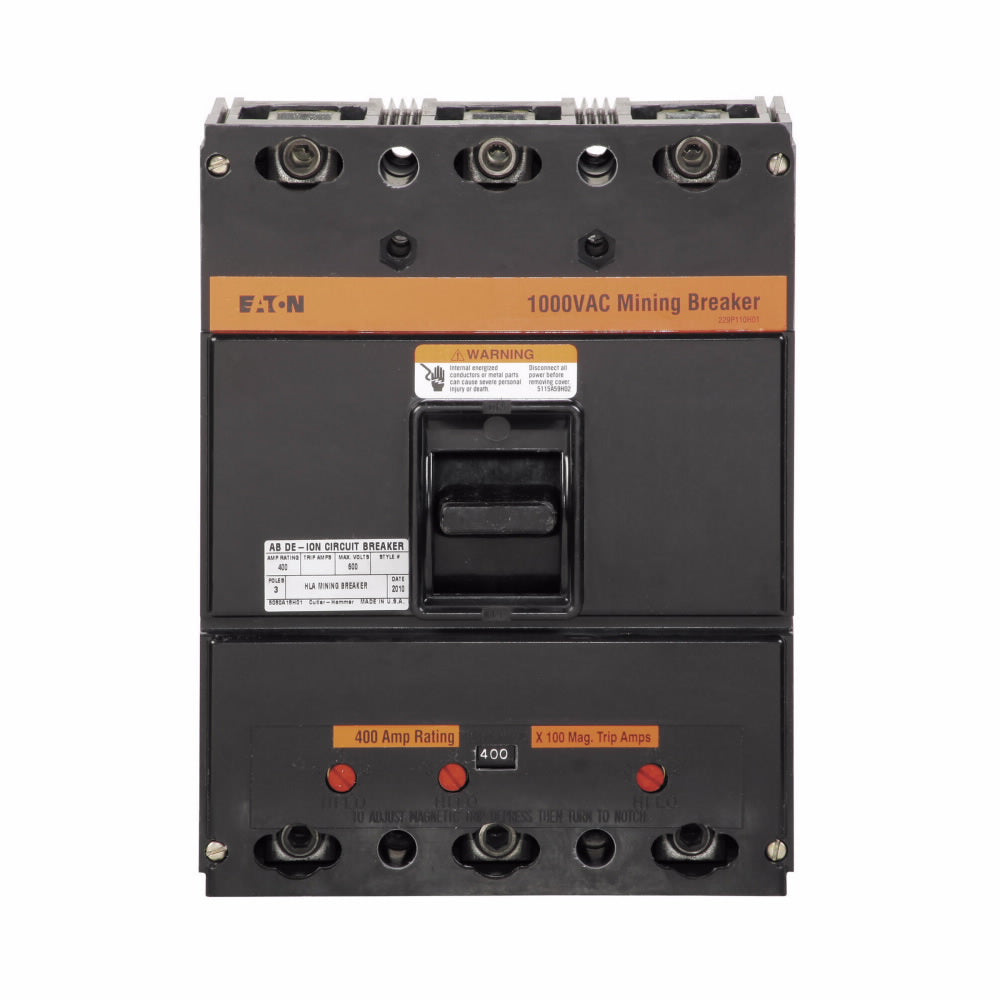

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Westinghouse
- Sub-Category
- Molded Case
- Series
- MARK 75
- Frame
- HLA
- Rated current
- 600
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 35kA@480V
- Trip functions
- LI - Long-Time and Instantaneous
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Mounting
- Panel Mount
- Country of origin
- United States
Show all specifications (5 more)
- UPC
- 786679765326
- GTIN
- 00786679765326
- Dimensions
- 5.5 in x 5.5 in x 5.5 in (Length/Depth x Height x Width)
- Weight
- 2.6
- Certification
- UL Listed
Product description & additional details
HLA3600
HLA3600 is a Westinghouse Cutler Hammer 3 pole molded case circuit breaker designed for industrial power distribution applications.
This HLA series breaker features a 600 amp current rating, 600V maximum voltage, and a thermal magnetic trip unit for reliable overcurrent protection. It is built on the Mark 75 frame, offers panel mount installation, and is rated for 25kA interrupting capacity at 480VAC. The HLA3600 is suitable for demanding environments where robust circuit protection is required.
-
Key Specifications
- Part Number: HLA3600
- Manufacturer: Westinghouse / Cutler Hammer
- Amperage: 600A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Panel Mount
- Interrupt Rating: 25kA @ 480VAC
- Series/Frame: Mark 75 (LA Frame)
- Trip Unit: Thermal Magnetic
- Certifications: Industrial, Re-certified available
- Status: Obsolete / Out of Production
- Accessories: Shunt trip and auxiliary available for field installation
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HLA3600
- Manufacturer : Eaton
- Brand : Westinghouse
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MARK 75
- Type : HLA
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Circuit Breaker Mounting Style : Panel Mount
- Protection : Thermal Magnetic
Product Data
- UPC : 786679765326
- GTIN : 00786679765326
- Country of Origin : United States
- Dimensions : 5.5 in x 5.5 in x 5.5 in (Length/Depth x Height x Width)
- Weight : 2.6
- Certification : UL Listed
