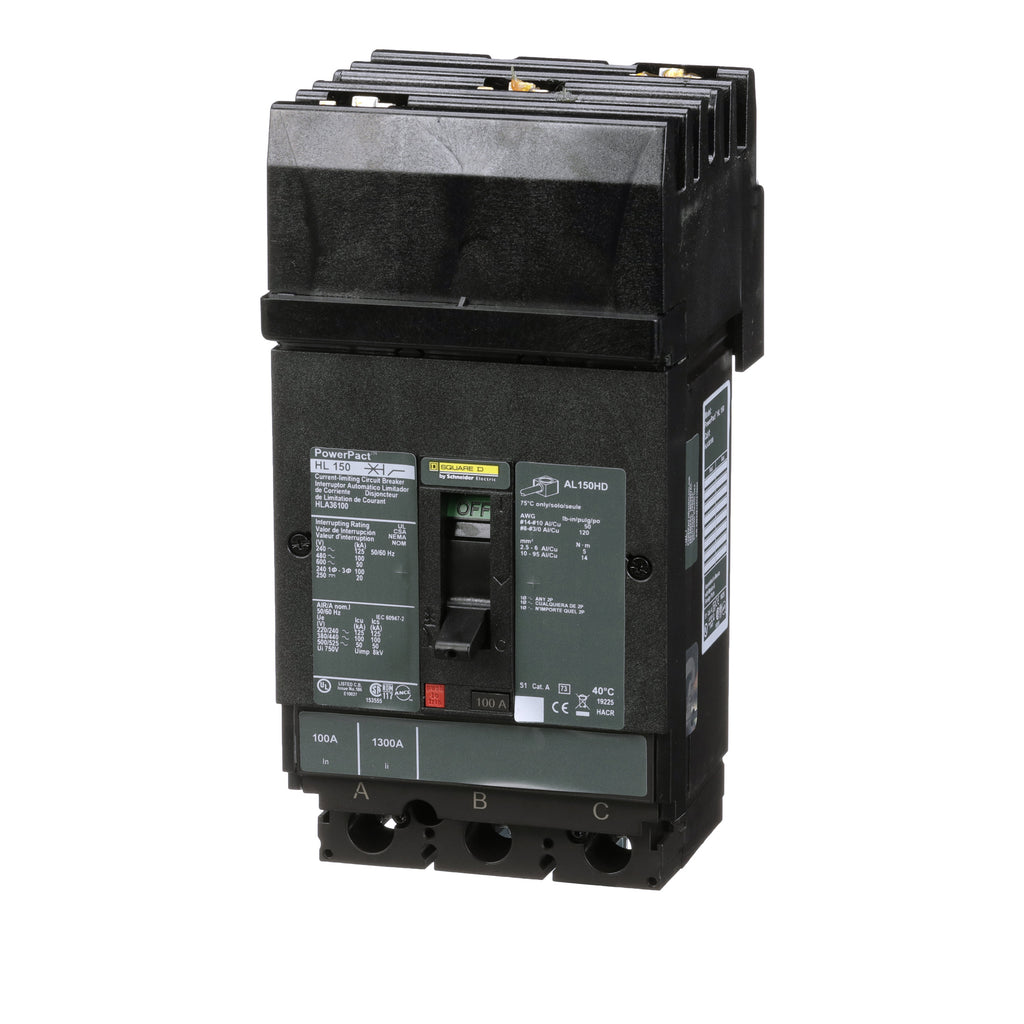

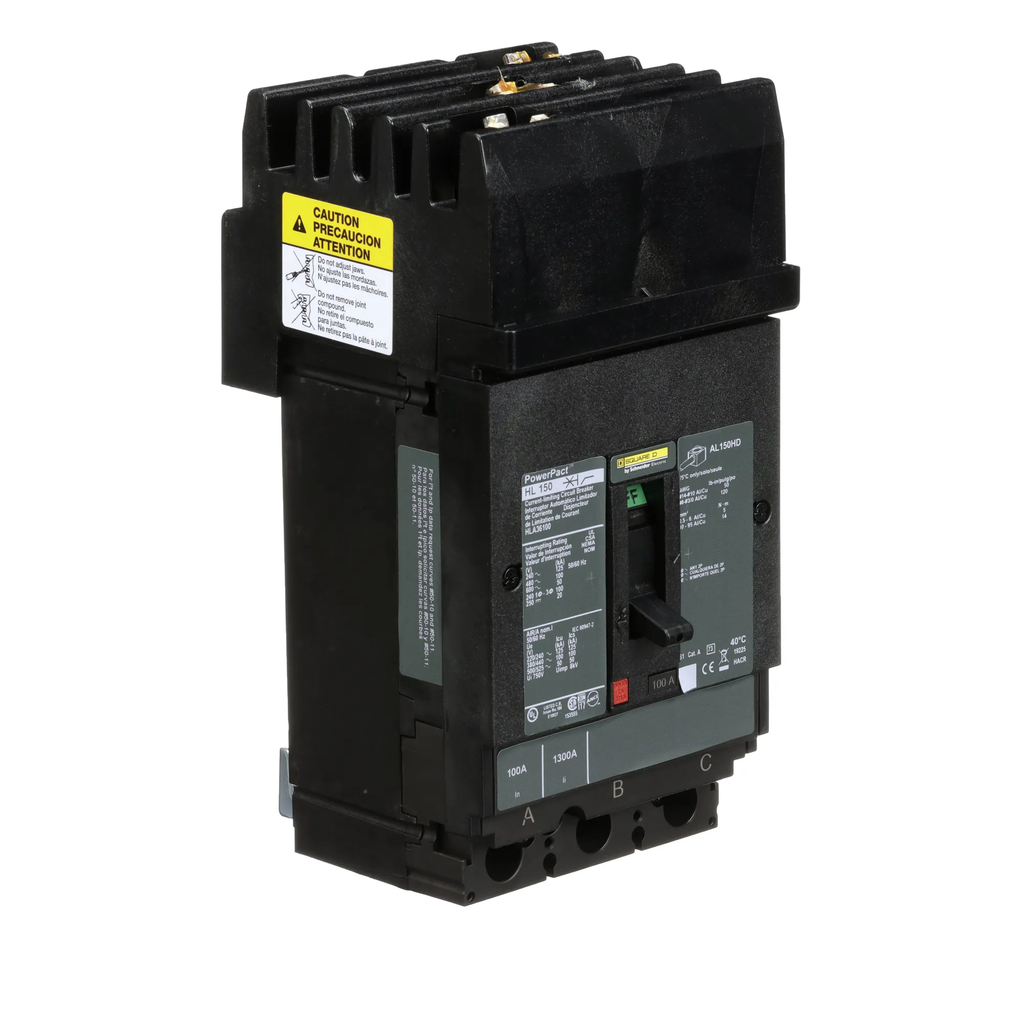

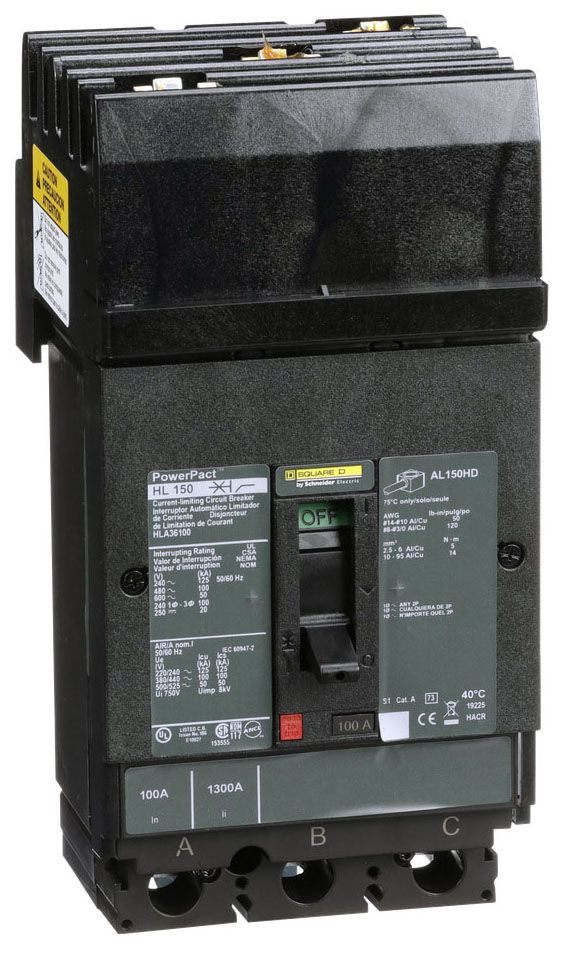

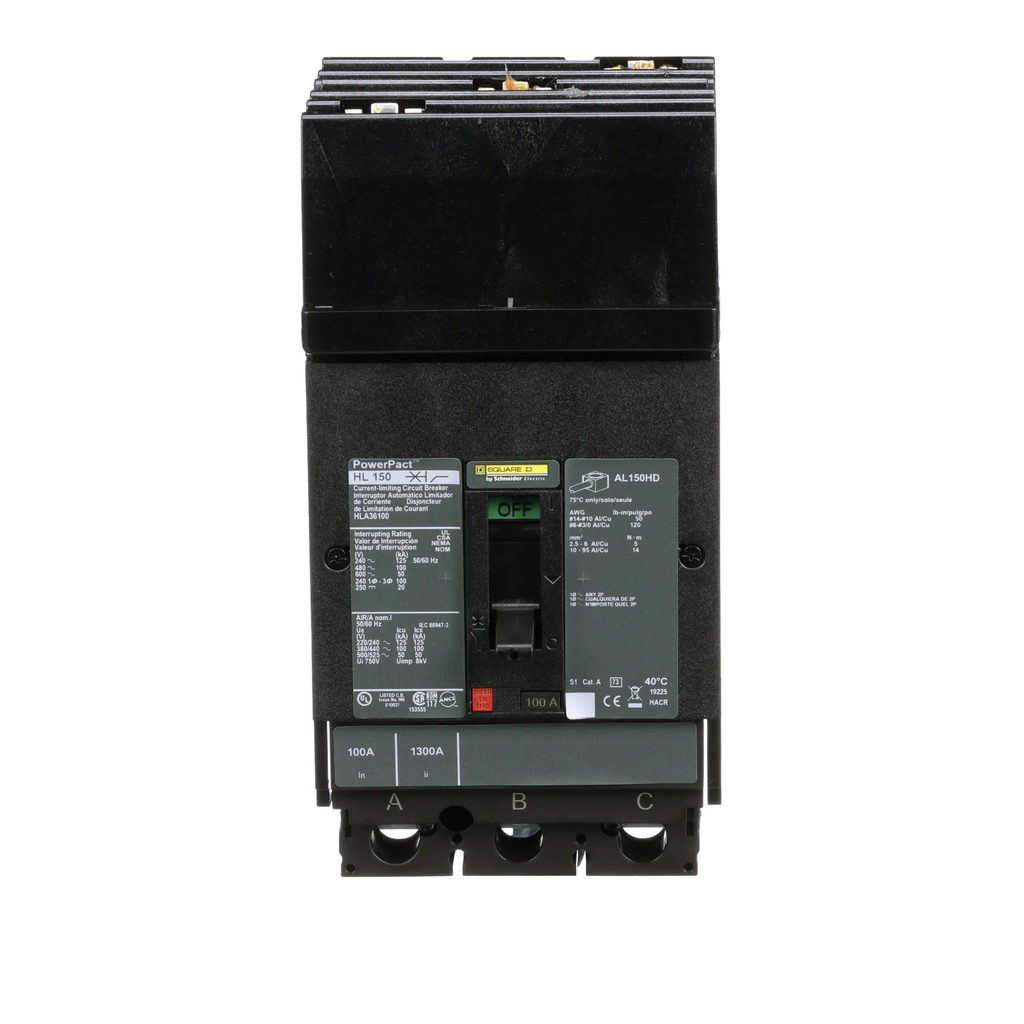

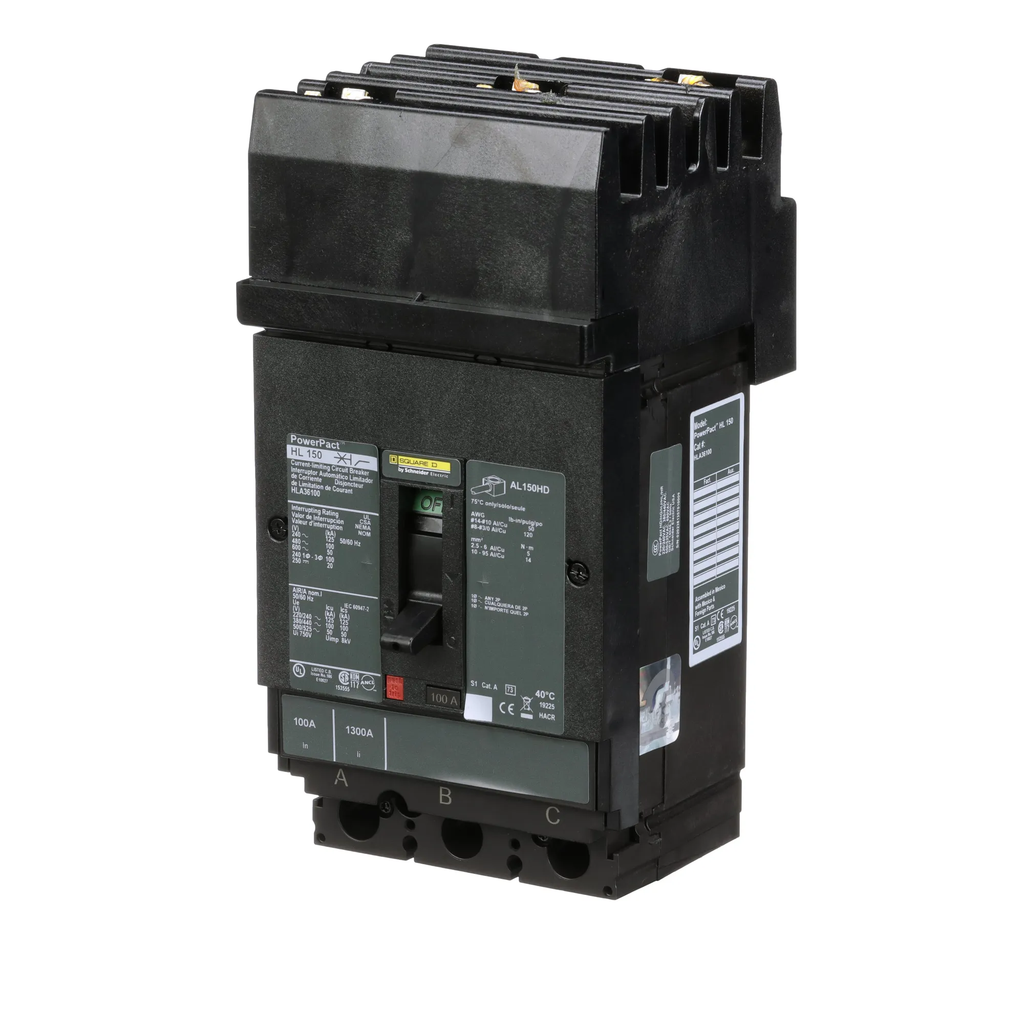

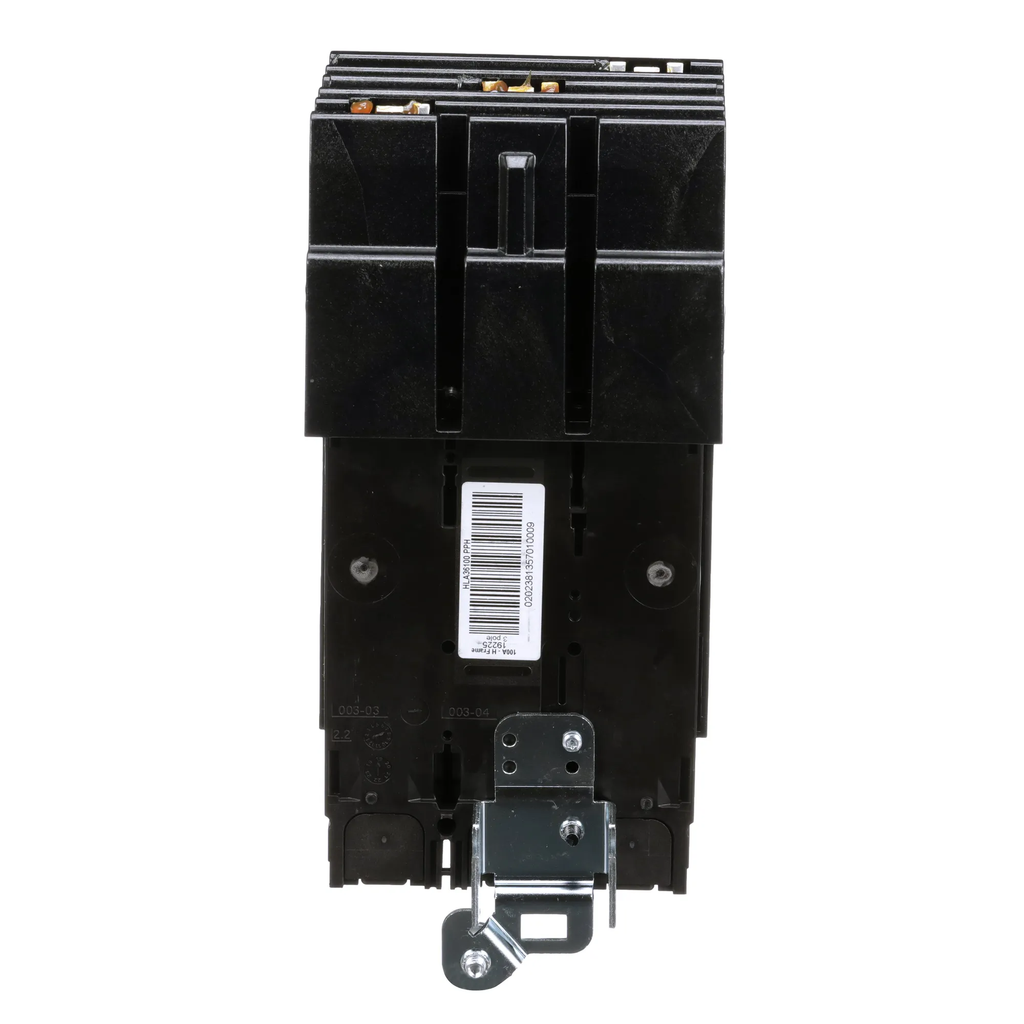

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Molded Case
- Series
- Powerpact
- Frame
- HLA
- Rated current
- 100
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 100kA@480V
- Trip functions
- LI - Long-Time and Instantaneous
- Protection
- Thermal Magnetic
- Connection
- I-Line Style Plug-In
- Terminals
- I-Line, Lug
- Lugs
- Included
- Phase connection
- ABC
- Standards
- UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Country of origin
- Mexico
Show all specifications (9 more)
- Frame Size
- H
- Temp Rating
- 28°F to 158°F (-2°C to 70°C)
- MCM Size
- Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
- UPC
- 785901700630
- GTIN
- 00785901700630
- Dimensions
- 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight
- 5.351
- Certification
- UL, CSA, NOM
- Wire Size
- AWG 14...AWG 3/0 aluminium/copper terminal
Product description & additional details
HLA36100
HLA36100 is a Square D Powerpact HLA series 3 pole 100A molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This breaker features a thermal magnetic trip unit, 600VAC rating, and is suitable for I-Line bus mounting configurations. It is UL listed and built to meet rigorous safety and performance standards for demanding electrical environments.Engineered for durability and safety, the HLA36100 offers a robust solution for main or feeder circuit protection. Its current limiting design helps reduce fault energy, and the plug-in I-Line style mounting ensures quick and secure installation. The breaker is suitable for reverse feed applications and is designed for use in panelboards and switchboards requiring high interrupt capacity.
- Part Number: HLA36100
- Manufacturer: Square D
- Series/Frame: Powerpact HLA
- Poles: 3
- Amperage: 100A
- Voltage: 600VAC
- Interrupt Rating: 100kA @ 480V
- Mounting Type: I-Line Plug-In
- Trip Unit: Thermal Magnetic
- Certifications: UL Listed
- Application: Main/Feeder Protection
- Current Limiting: Yes
Specifications
- Part Number: HLA36100
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HLA
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : I-Line, Lug
- Frame Size : H
- Temp Rating : 28°F to 158°F (-2°C to 70°C)
- MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 785901700630
- GTIN : 00785901700630
- Country of Origin : Mexico
- Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 5.351
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
