Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Molded Case
- Series
- Powerpact
- Frame
- HGL
- Rated current
- 100
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 35kA@480V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Terminals
- Line/Load Lug
- Lugs
- Included
- Phase connection
- ABC
- Standards
- UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Country of origin
- Mexico
Show all specifications (10 more)
- Frame Size
- 150A/HG
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 14 AWG Max. Wire Size 3 AWG
- Breaker Type
- Standard
- UPC
- 785901683131
- GTIN
- 00785901683131
- Dimensions
- 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight
- 4.145
- Certification
- UL, CSA, NOM
- Wire Size
- AWG 14...AWG 3/0 aluminium/copper terminal
Product description & additional details
HGL36100

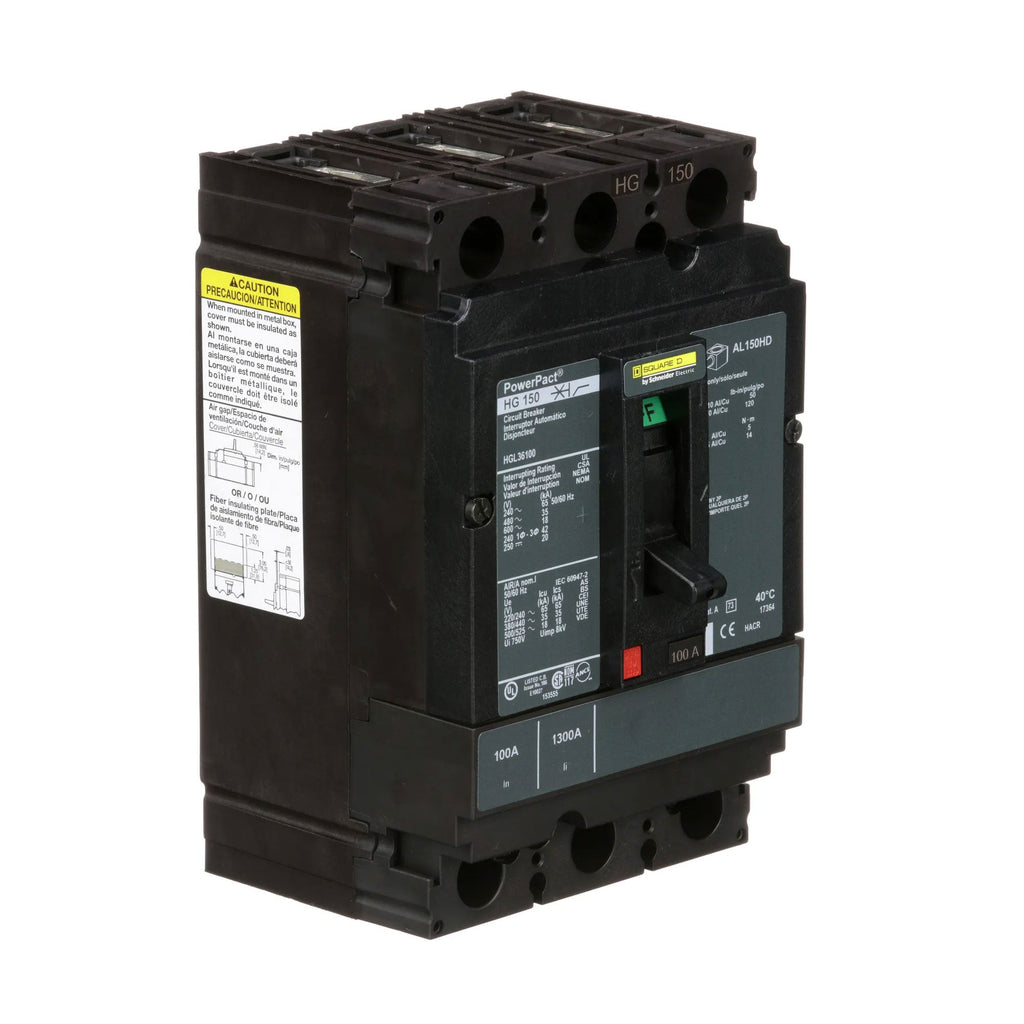

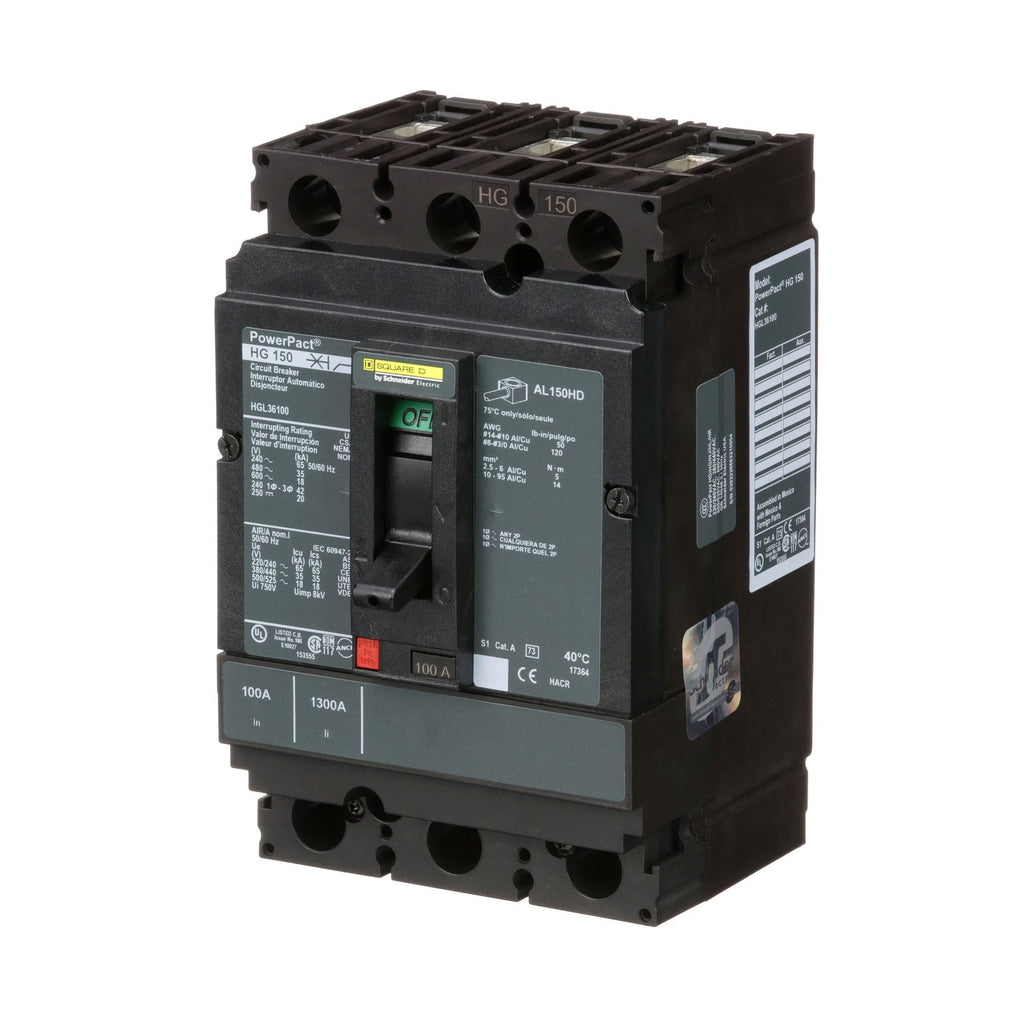

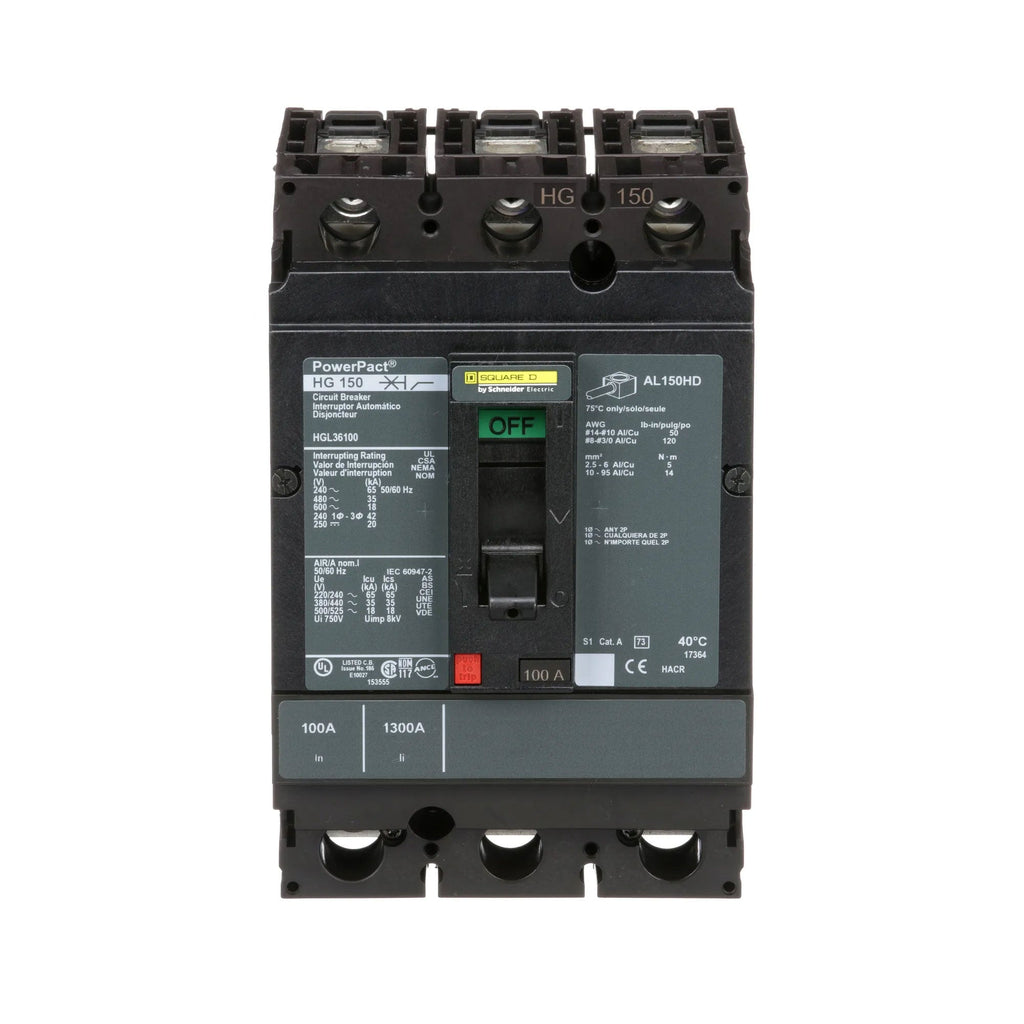

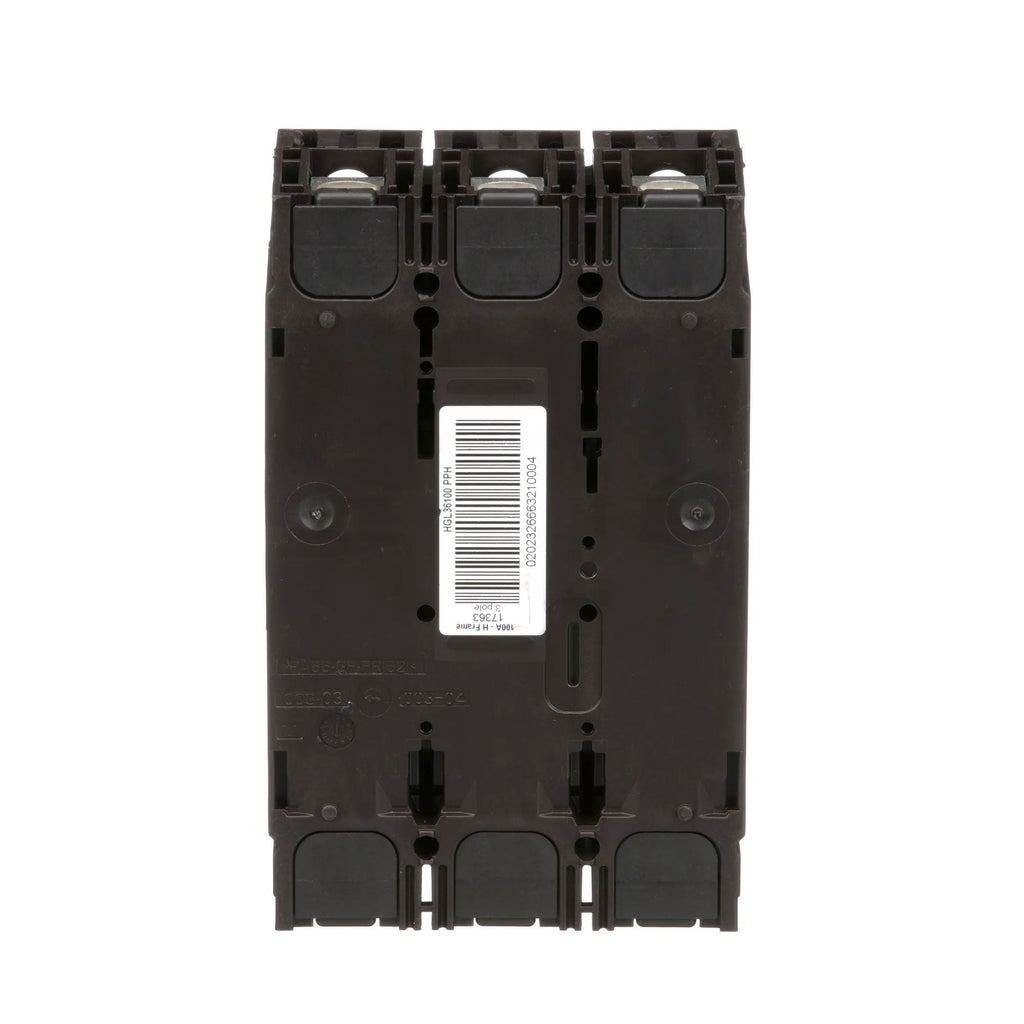

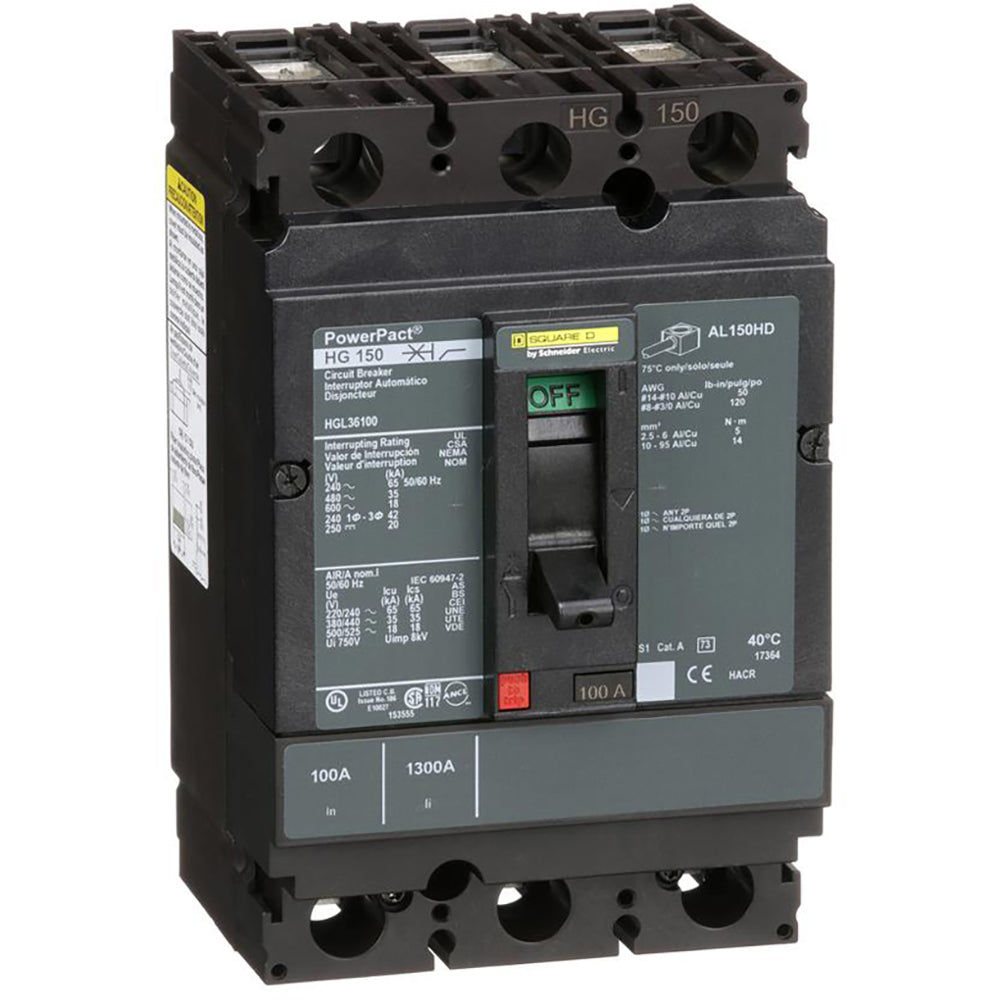

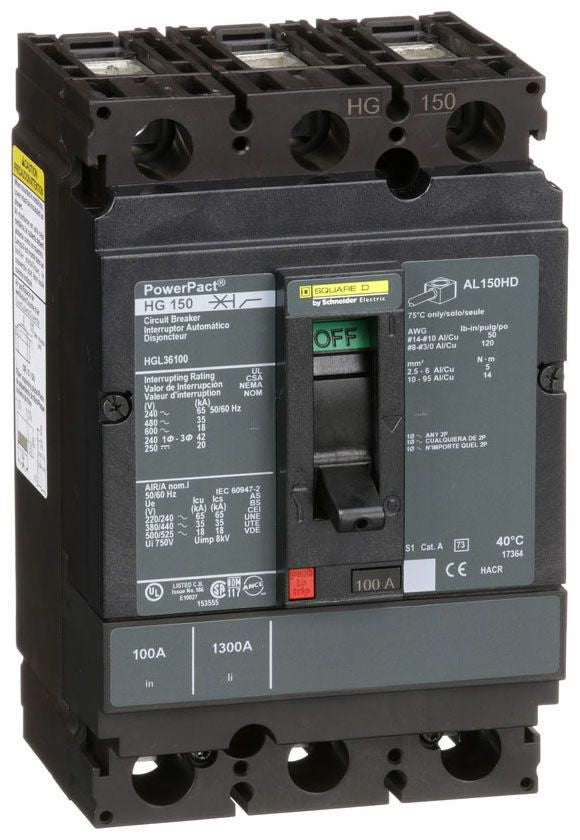

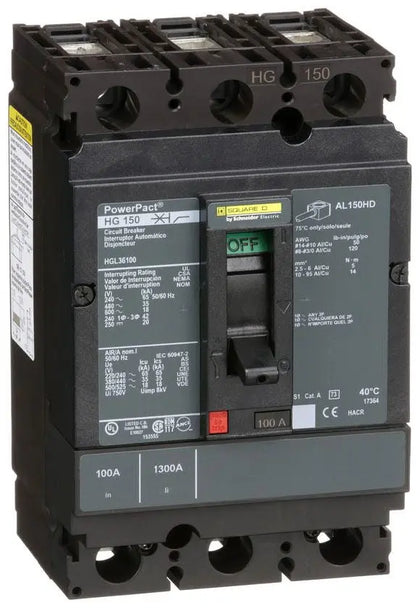

HGL36100 is a Square D 100 Amp, 3 Pole molded case circuit breaker designed for industrial power distribution applications.This thermal magnetic breaker features a 600 VAC voltage rating with a Powerpact H frame and feed-thru mounting type. It offers interrupt ratings of up to 65kA at 240 VAC and is UL listed, CSA certified, and CE marked for safety and compliance. The breaker supports 80% continuous current rating and is suitable for protecting electrical circuits from overloads and short circuits.
- Amperage: 100A
- Voltage: 600 VAC
- Poles: 3
- Mounting Type: Feed-Thru
- Interrupt Rating: 65kA at 240 VAC, 35kA at 480 VAC, 18kA at 600 VAC
- Frame/Series: Powerpact H
- Trip Unit: Thermal Magnetic
- Approvals: UL Listed, CSA Certified, CE Marked
- Dimensions: 6.4" H x 4.12" W x 4.36" D
- Terminal Type: Line and Load Lugs
Specifications
- Part Number: HGL36100
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HGL
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Line/Load Lug
- Frame Size : 150A/HG
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 785901683131
- GTIN : 00785901683131
- Country of Origin : Mexico

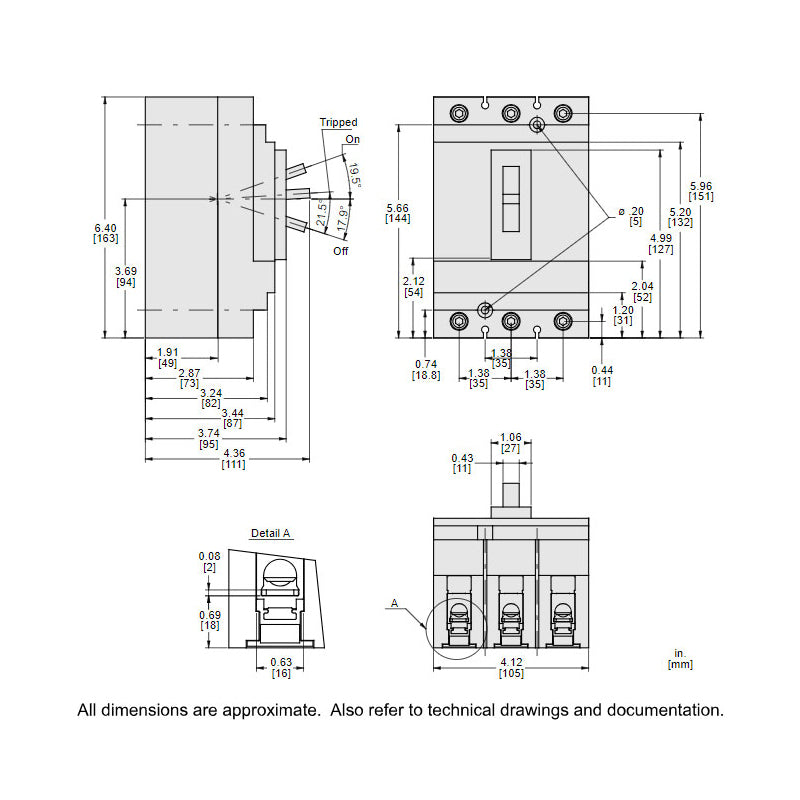

- Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 4.145
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
