Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Molded Case
- Series
- Powerpact
- Frame
- HGL
- Rated current
- 15
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 35kA@480V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Terminals
- Line/Load Lug
- Lugs
- Included
- Phase connection
- ABC
- Standards
- UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Country of origin
- Mexico
Show all specifications (10 more)
- Frame Size
- 150A/HG
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 14 AWG Max. Wire Size 3 AWG
- Breaker Type
- Standard
- UPC
- 785901433989
- GTIN
- 00785901433989
- Dimensions
- 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight
- 4.101
- Certification
- UL, CSA, NOM
- Wire Size
- AWG 14...AWG 3/0 aluminium/copper terminal
Product description & additional details

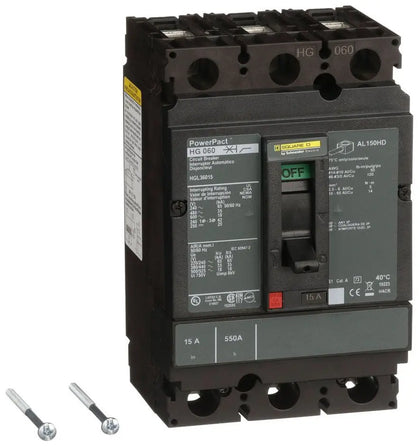

HGL36015
HGL36015 is a Square D molded case circuit breaker designed for reliable protection in demanding electrical applications.
This three-pole breaker features a 15A current rating, 600V maximum voltage, and is built on the robust H frame. It offers a thermal magnetic trip unit, feed-thru mounting, and high interrupting capacity. The HGL36015 is UL 489 listed and suitable for a variety of industrial and commercial uses.
-
Key Specifications
- Part Number: HGL36015
- Manufacturer: Square D by Schneider Electric
- Amperage: 15A
- Voltage: 600V AC (500V DC)
- Poles: 3
- Mounting Type: Feed-Thru, Unit Mount
- Interrupt Rating: 18kA @ 600VAC, 35kA @ 480VAC, 65kA @ 240VAC, 20kA @ 250VDC
- Series/Frame: H Frame (PowerPacT H)
- Trip Unit: Thermal Magnetic, Current Limiting
- Certifications: UL 489 Listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC, CE Marked
- Termination: Lugs (Line & Load)
- Dimensions: 6.4" H x 4.09" W x 3.4" D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HGL36015
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HGL
- Voltage : 600
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Line/Load Lug
- Frame Size : 150A/HG
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 785901433989
- GTIN : 00785901433989
- Country of Origin : Mexico
- Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 4.101
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
