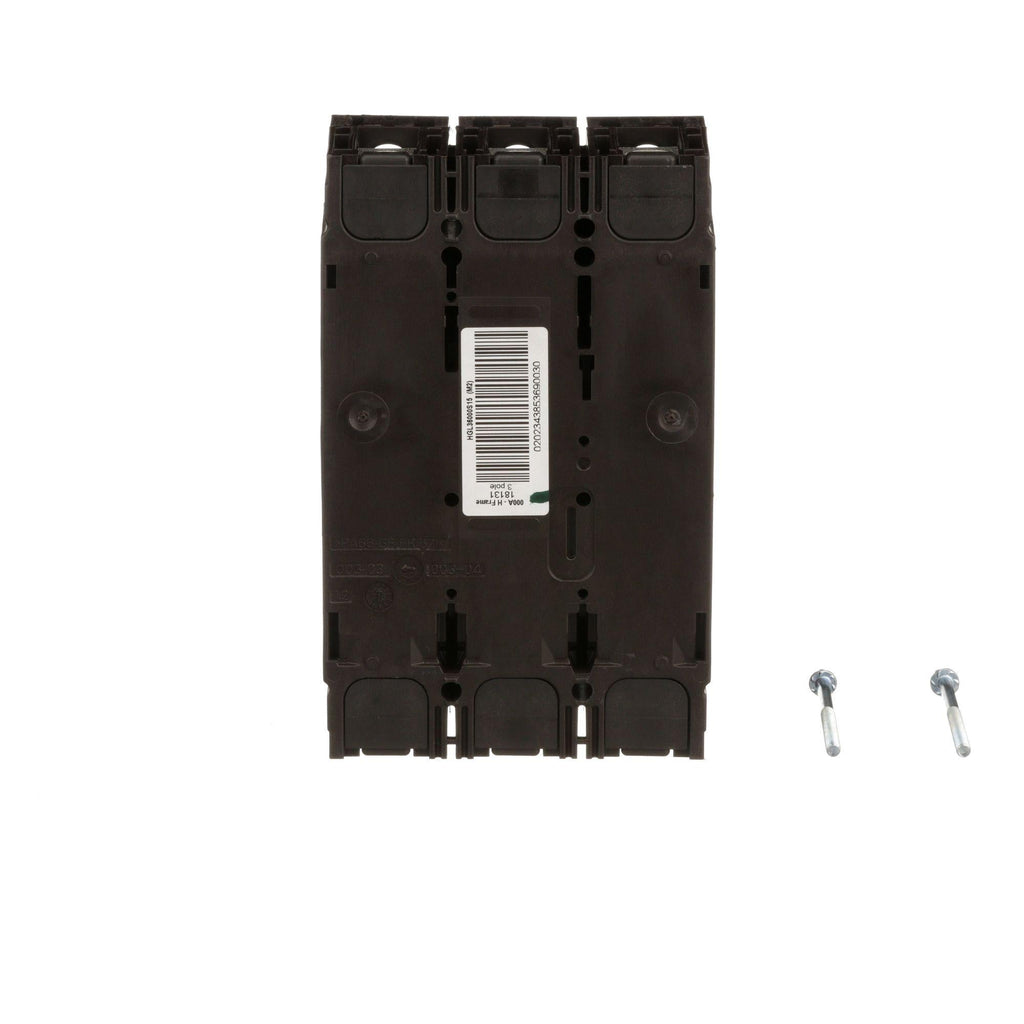

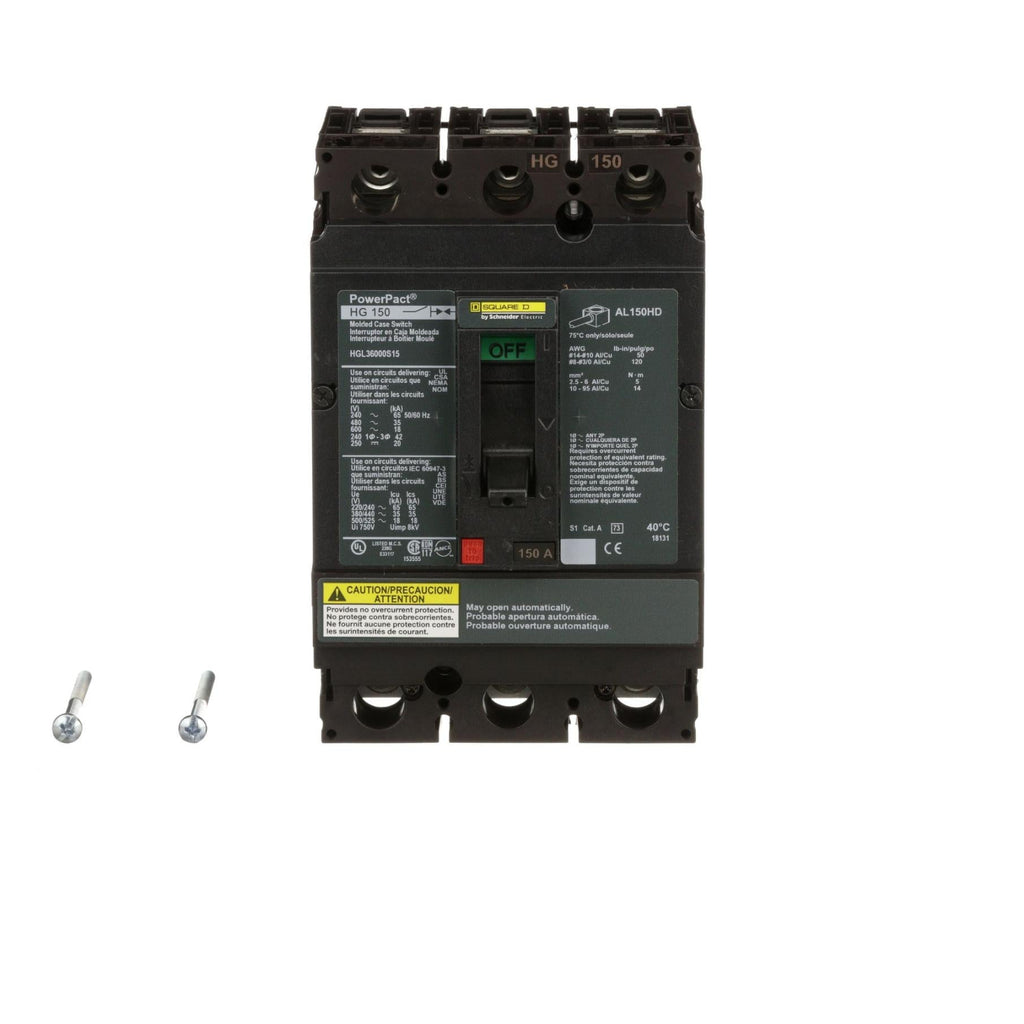

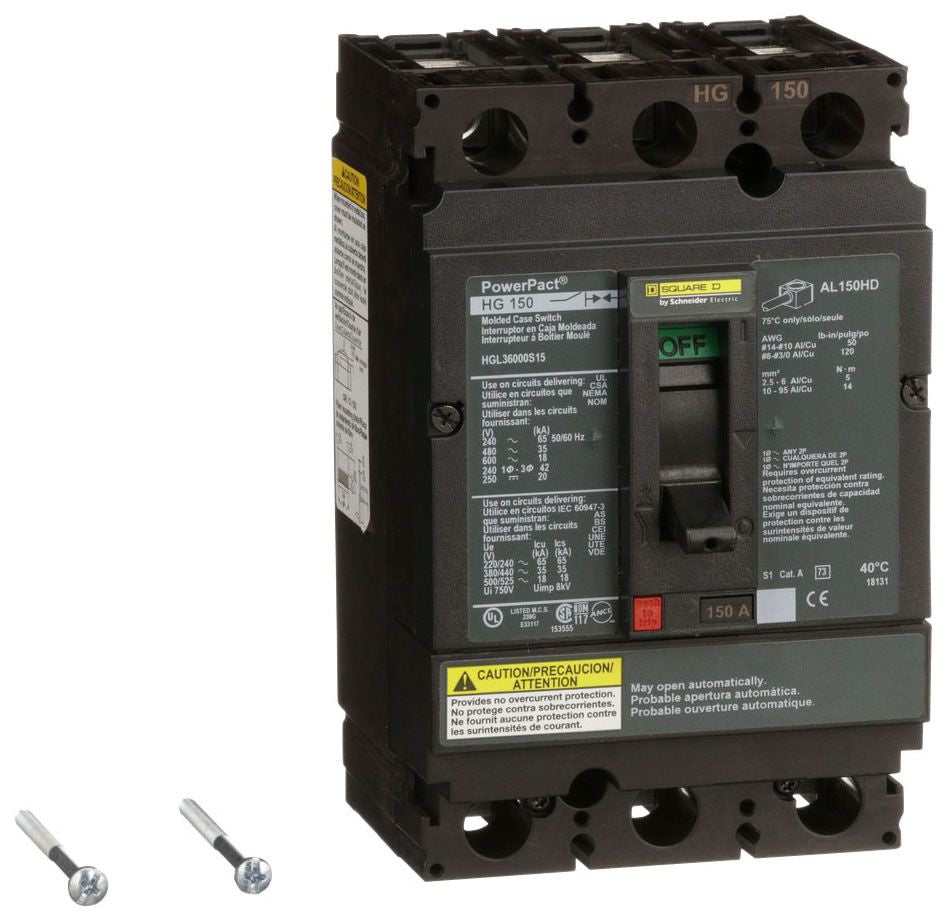

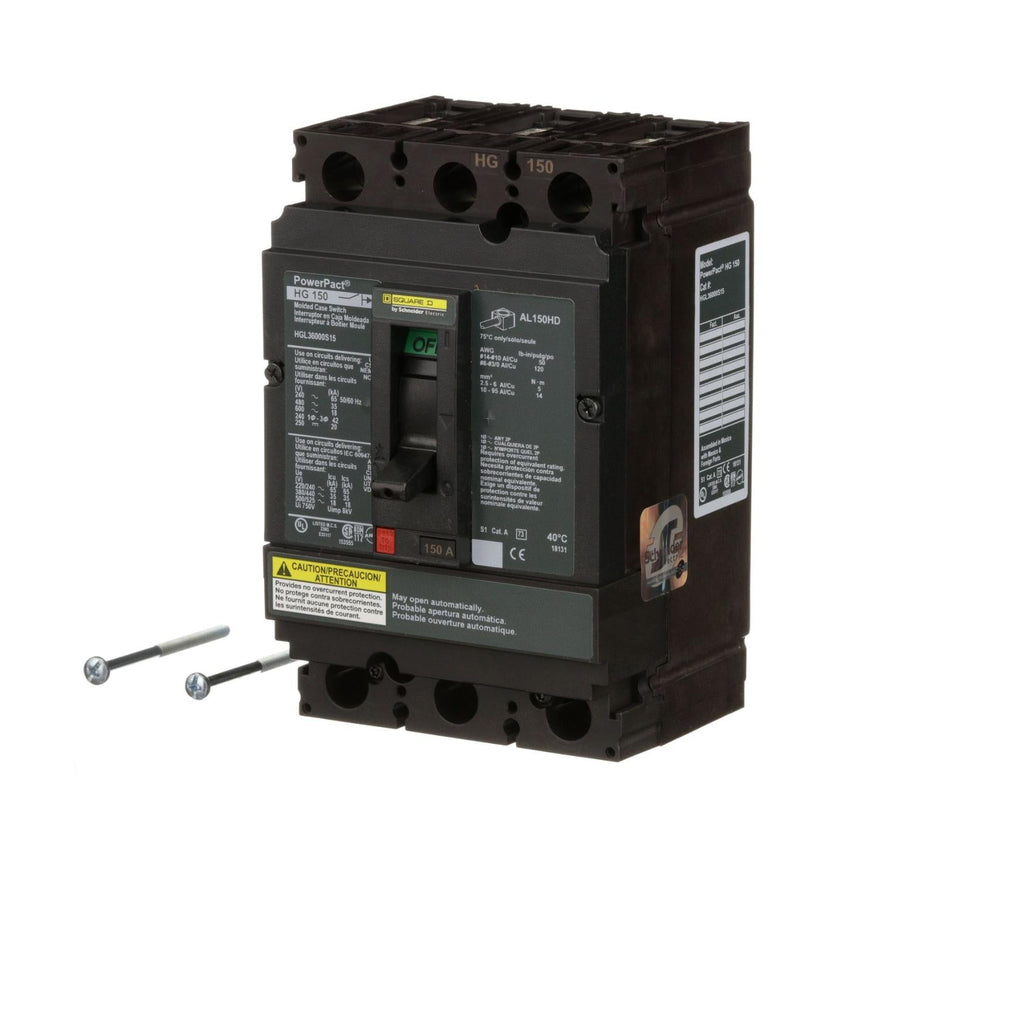

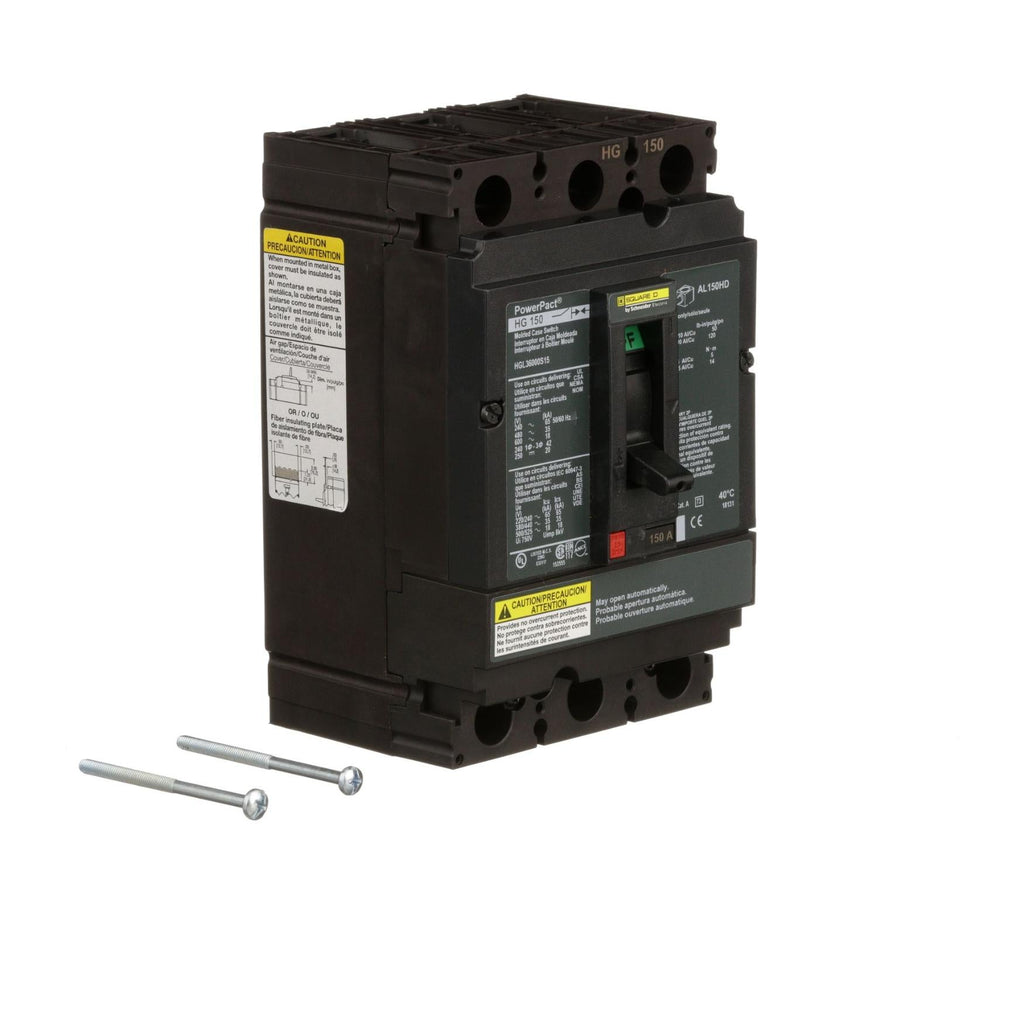

Reference images. Contact us for photos of the available unit.


Schneider Electric

HGL36000S15

Square D PowerPact H-Frame 150A 600V 3 Pole Molded Case Circuit Breaker


Current: 150Poles: 3Voltage: 600VConnection: Bolt-On
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
Price:
Sale price$783.58 Regular price$1,799.00
Save $1,015.42
Stock:
Low inventory, please call (866) 377-3532 for stock check

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Schneider Electric
Brand
Square D
Sub-Category
Molded Case
Series
Powerpact
Frame
HGL
Rated current
150
Voltage
600V
Poles
3
Phases
3
Interrupting rating
35kA@480V
Trip functions
NA - No Overcurrent Protection
Protection
Non-Automatic
Connection
Bolt-On
Terminals
Lug
Lugs
Included
Phase connection
ABC
Frequency
50/60 Hz
Mounting
Unit Mount
Standards
CCC, CE, CSA, IEC, NMX, UL Listed
Country of origin
Mexico
Show all specifications (10 more)
Frame Size
150A/HG
Temp Rating
-13°F to 158°F (-25°C to 70°C)
MCM Size
Min. Wire Size 14 AWG Max. Wire Size 3 AWG
Breaker Type
Shunt Trip
UPC
785901433958
GTIN
00785901433958
Dimensions
6.4 in (162.6 mm) x 2.12 in (53.85 mm) x 4.36 in (110.74 mm) (Height x Width x Depth)
Weight
4.07
Certification
CCC, CE, CSA, IEC, NMX, UL Listed
Wire Size
x AWG 14...AWG 3/0 ( aluminium/copper )
Product description & additional details

HGL36000S15


HGL36000S15 is a Square D PowerPact H-Frame molded case circuit breaker designed for reliable protection in commercial and industrial applications. This 3-pole breaker features a 150A current rating, 600VAC voltage rating, and a 18kA interrupt rating, suitable for use in a wide range of power distribution systems. The unit mount design allows for easy installation and secure connection, while the automatic trip unit provides dependable overcurrent protection. Certified to UL 489 standards, this breaker is built for safety and durability in demanding environments. The HGL36000S15 is part of the PowerPact H-Frame series, offering robust performance and compatibility with standard electrical panels. Its compact dimensions and line/load lug connections make it ideal for retrofit and new installations. The breaker is rated for 50/60 Hz frequency and supports wire sizes from 14 to 3/0 AWG.
  • Part Number: HGL36000S15
  • Manufacturer: Square D
  • Amperage Rating: 150A
  • Voltage Rating: 600VAC
  • Number of Poles: 3
  • Mounting Type: Unit Mount
  • Interrupt Rating: 18kA
  • Series/Frame: PowerPact H-Frame
  • Trip Unit: Automatic
  • Certifications: UL 489 Listed
  • Frequency Rating: 50/60 Hz
  • Wire Size: 14 to 3/0 AWG
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HGL36000S15
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HGL
  • Voltage : 600
  • Amperage : 150
  • Phase : 3
  • Poles : 3
  • AIC rating : 35kA@480V
  • Connection : Bolt-On
  • Functions : NA - No Overcurrent Protection
  • Terminal Connection : Lug
  • Frame Size : 150A/HG
  • Temp Rating : -13°F to 158°F (-25°C to 70°C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
  • Breaker Type : Shunt Trip
  • Circuit Breaker Mounting Style : Unit Mount
  • Protection : Non-Automatic
  • Phase Connection : ABC

Product Data

  • UPC : 785901433958
  • GTIN : 00785901433958
  • Country of Origin : Mexico
  • Dimensions : 6.4 in (162.6 mm) x 2.12 in (53.85 mm) x 4.36 in (110.74 mm) (Height x Width x Depth)
  • Weight : 4.07
  • Standards : CCC, CE, CSA, IEC, NMX, UL Listed
  • Certification : CCC, CE, CSA, IEC, NMX, UL Listed
  • Wire Size : x AWG 14...AWG 3/0 ( aluminium/copper )

Technical Documents
Return eligibility: what to know before ordering

Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.

Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.

Read the complete return and warranty policy ↗

Warranty supplied by Essential Electric

Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.

Review coverage, exclusions, and the claim process ↗
